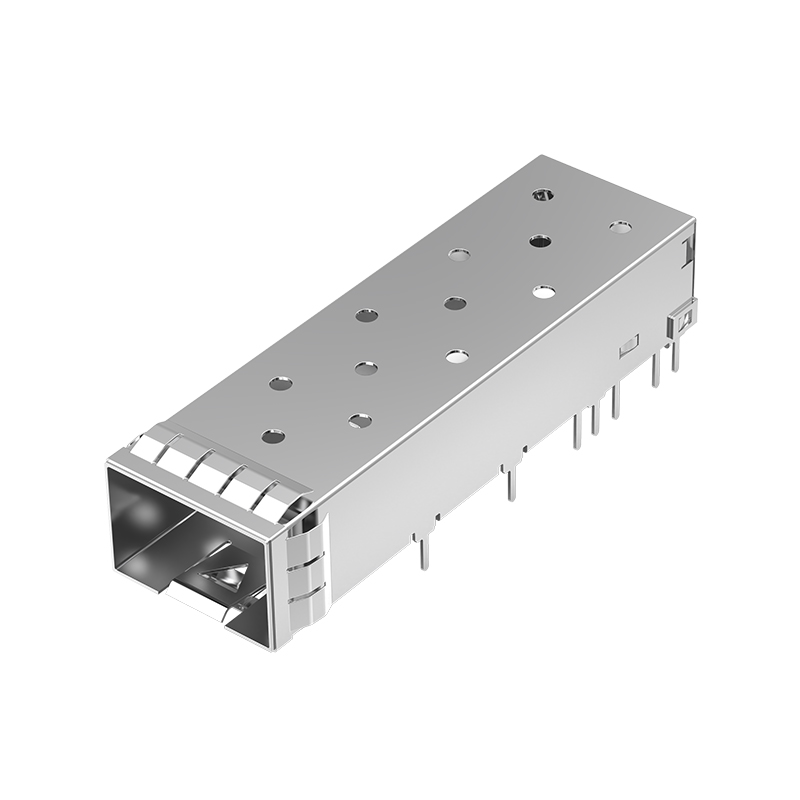

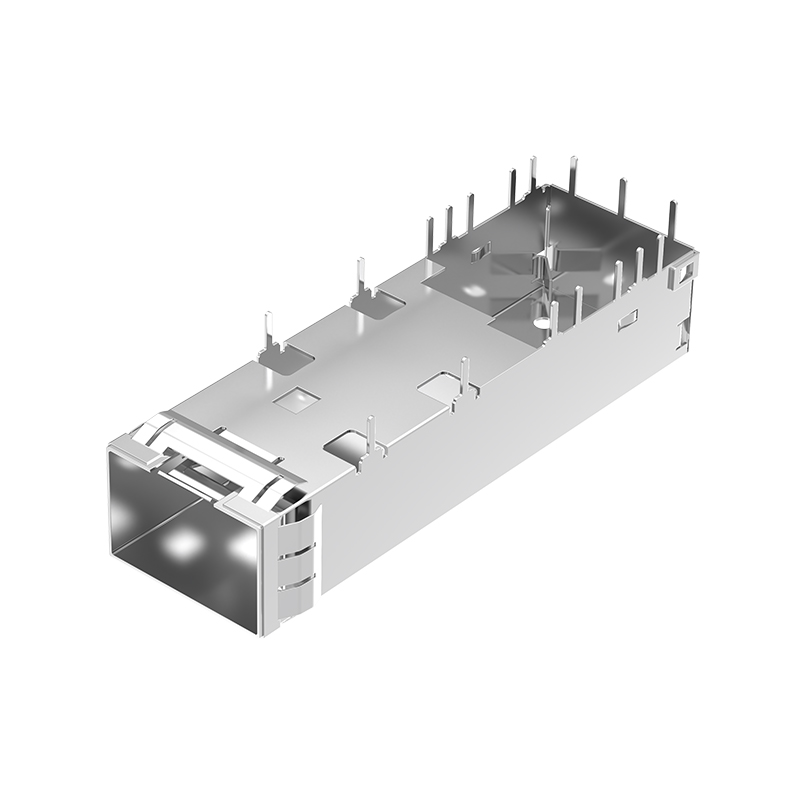

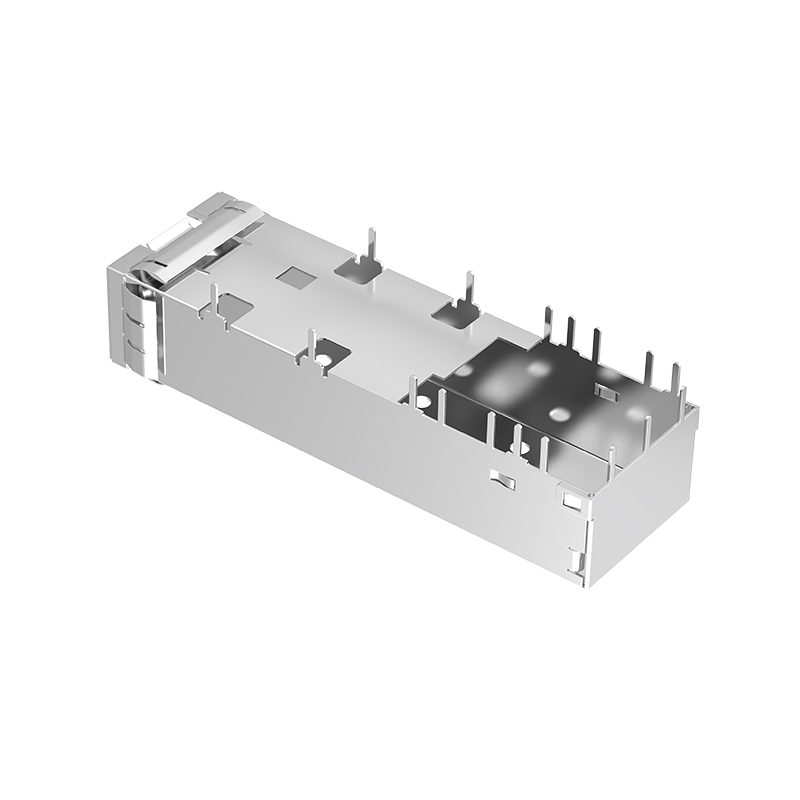

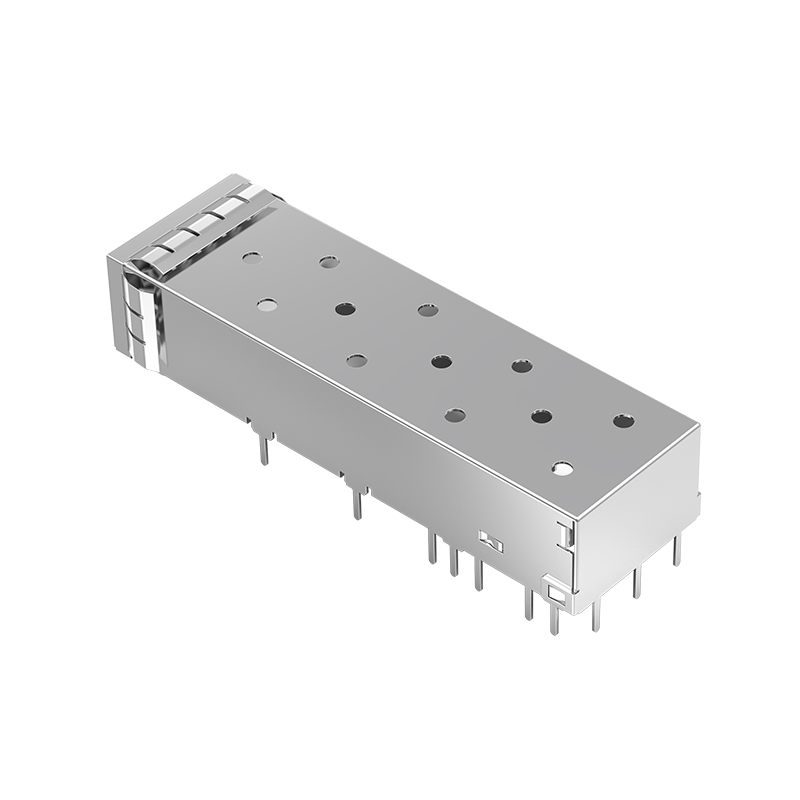

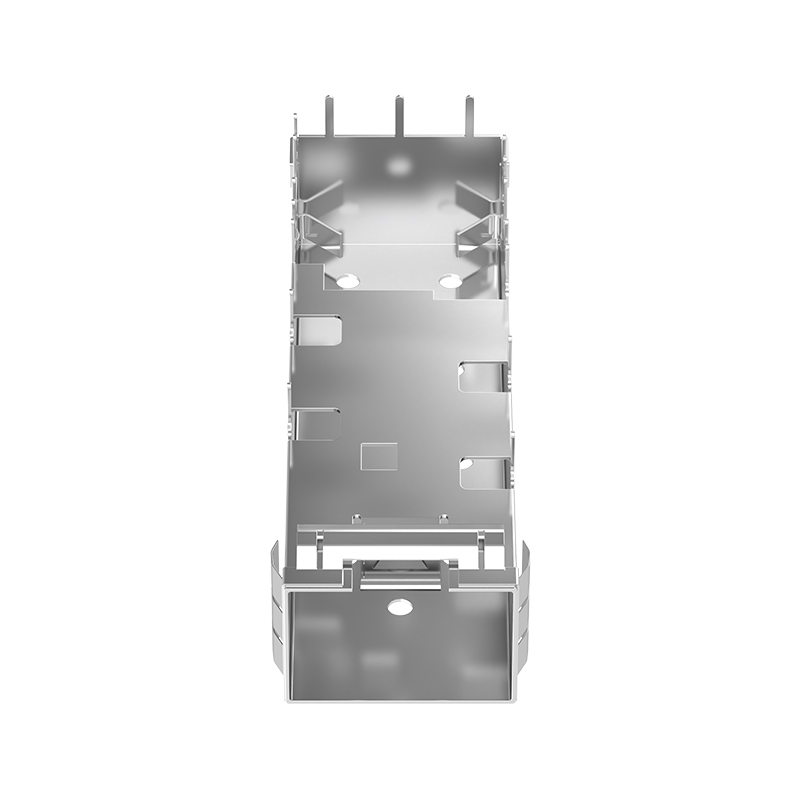

TR11BCS1000 SFP 1x1 Cage Solder Through Hole Right Angle

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Number ： TR11BCS1000
Brand ： Trxcom
Types ： SFP+
Number of Ports ： 1x1
Pluggable I/O Product Type ： Cage
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： Without Lightpipe
Termination Method to Printed ： Through Hole - Solder
Operating Tem Perature Range(° ： -55℃ to 85℃
Get a Quote
Consult products
DetailReview(0)

Trxcom TR11BCS1000 SFP 1x1 Cage Solder Through Hole Right Angle

Trxcom TR11BCS1000 is a 1×1 right-angle SFP cage with through-hole solder mounting. It offers reliable EMI shielding and compact structure, ideal for gigabit network switches, network cards and communication devices.

Part NumberTR11BCS1000Part StatusActive
Connector StyleCageConnector TypeSFP+
CageCOPPER ALLOY,Ni PLATEDPACKAGINGTRAY PACKAGING
Port Matrix Configuration1x1 PortNumber of Ports1
Operating Temperature Range-55 ~ +85°CMounting StyleThrough Hole, Right Angle
Included LightpipeWithoutTerminationSolder
Height (Inches/mm)9.70/0.382Length (Inches/mm)48.70/1.917
Width (Inches/mm)14.00/0.551EMI Containment Feature TypeEMI Springs
