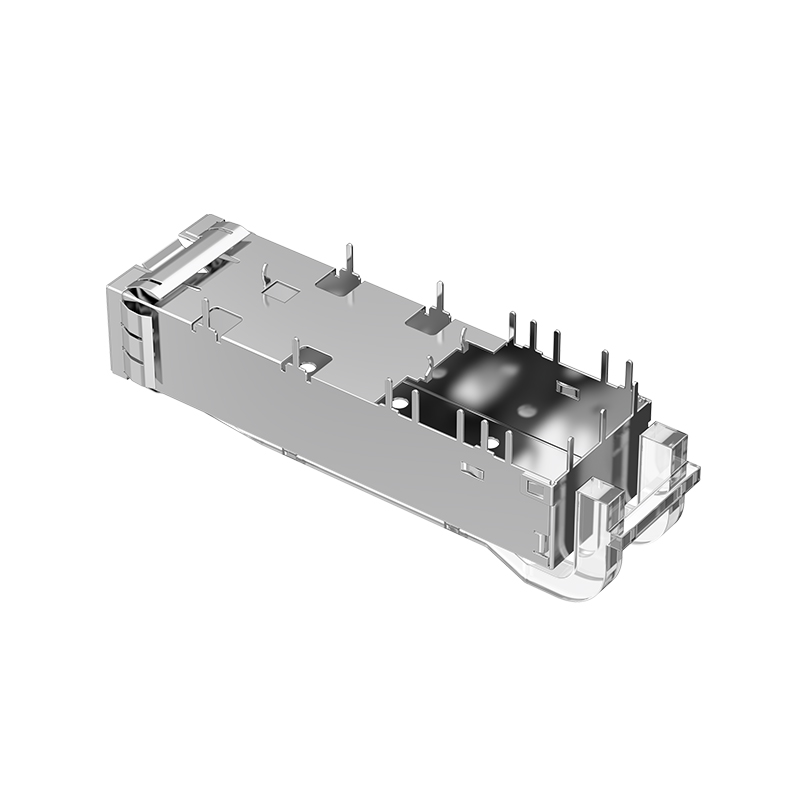

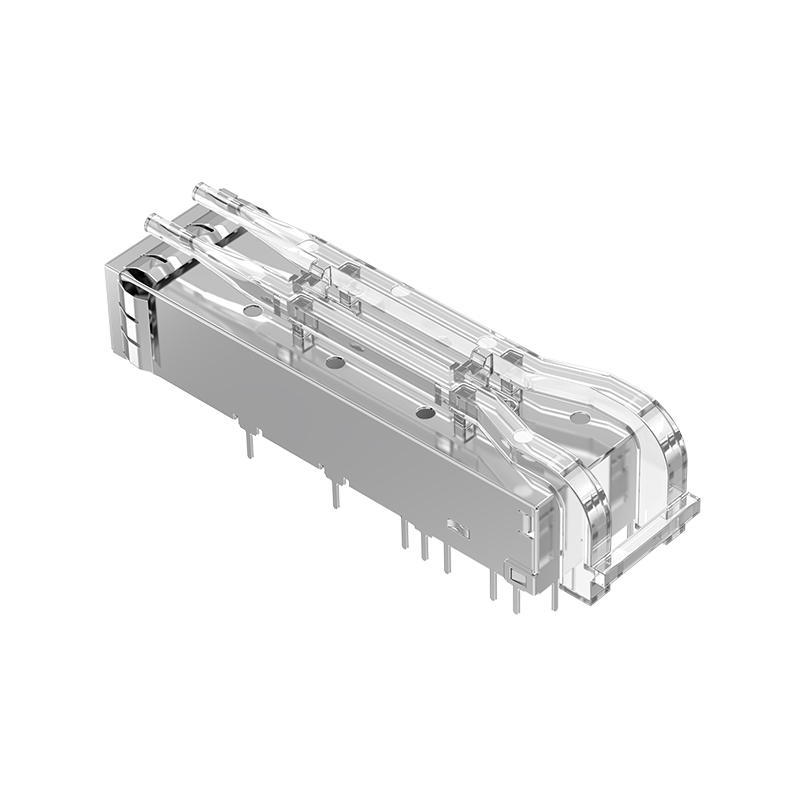

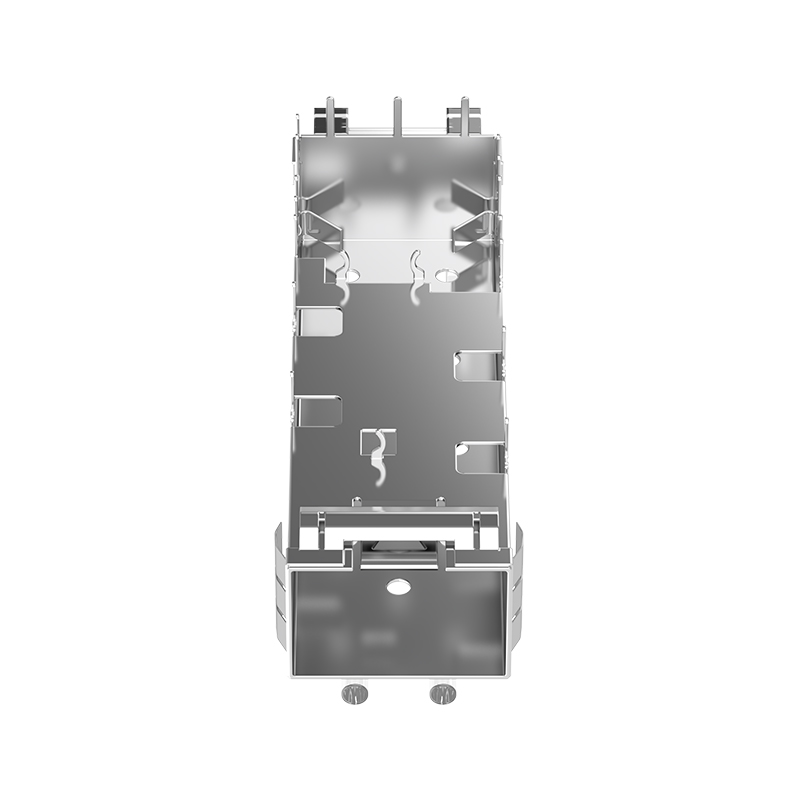

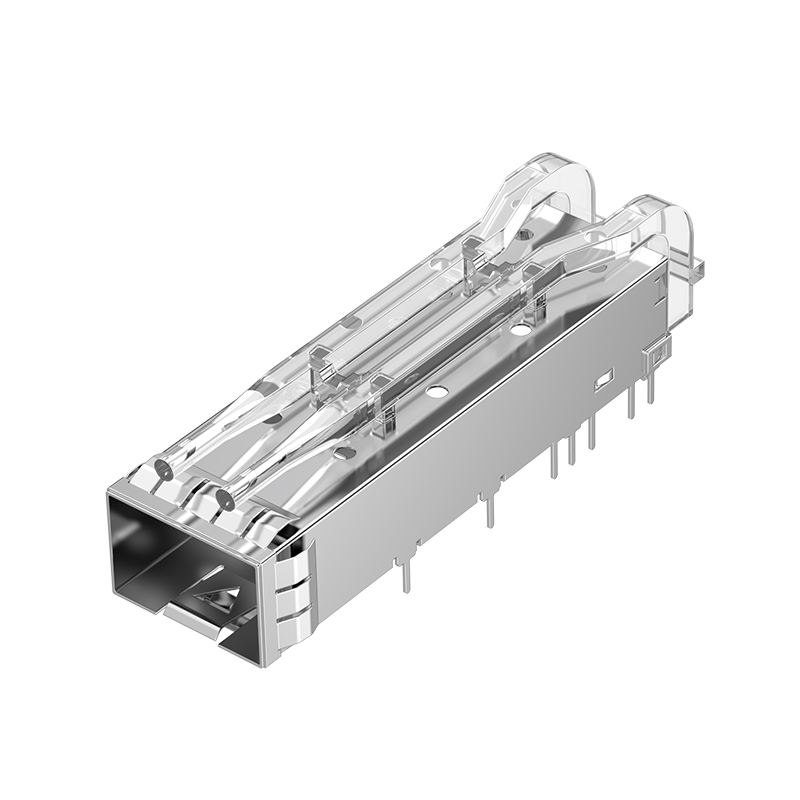

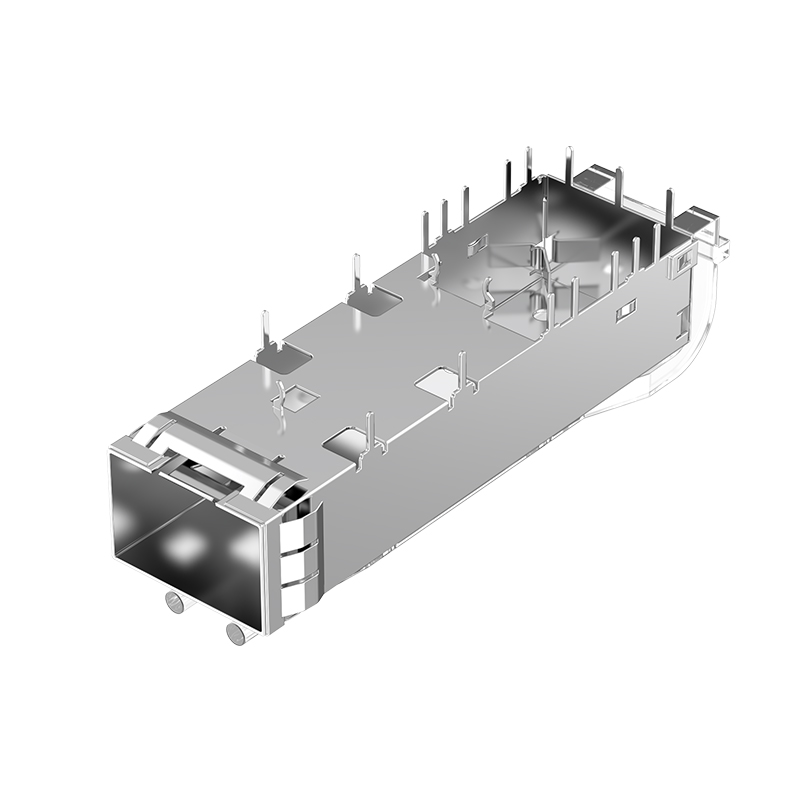

TR11BCS2100 SFP+ 1x1 Cage Solder With EMI Spring Finger Light Pipe
share
Parameter
Number ： TR11BCS2100
Brand ： Trxcom
Types ： SFP+
Number of Ports ： 1x1
Pluggable I/O Product Type ： Cage Assembly
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： With Lightpipe
Termination Method to Printed ： Through Hole - Solder
Operating Tem Perature Range(° ： -55℃ to 85℃
DetailReview(0)
Trxcom TR11BCS2100 SFP+ 1x1 Cage Solder With EMI Spring Finger Light Pipe
Trxcom TR11BCS2100 is a 1x1 SFP+ cage in solder type design, equipped with EMI spring fingers and integrated light pipe. It provides excellent electromagnetic shielding and clear LED status indication, supporting stable 10G high-speed transmission for switches, network cards and servers.
| Part Number | TR11BCS2100 | Part Status | Active |
| Connector Style | Cage | Connector Type | SFP+ |
| Cage | COPPER ALLOY,Ni PLATED | PACKAGING | TRAY PACKAGING |
| Port Matrix Configuration | 1x1 Port | Number of Ports | 1 |
| Operating Temperature Range | -55 ~ +85°C | Mounting Style | Through Hole, Right Angle |
| Included Lightpipe | Yes | Termination | Solder |
| Height (Inches/mm) | 9.70/0.382 | Length (Inches/mm) | 53.20/2.094 |
| Width (Inches/mm) | 14.00/0.551 | EMI Containment Feature Type | EMI Springs |
Consumer Electronics
Security System
Military Industry
