TR11BCS2060 1x1 Port SFP+ Cage With Heat Sink Sorder

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Number ： TR11BCS2060
Brand ： Trxcom
Types ： SFP+
Number of Ports ： 1x1
Pluggable I/O Product Type ： Cage Assembly
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： Without Lightpipe
Termination Method to Printed ： Through Hole - Solder
Operating Tem Perature Range(° ： -55℃ to 85℃
Get a Quote
Consult products
DetailReview(0)

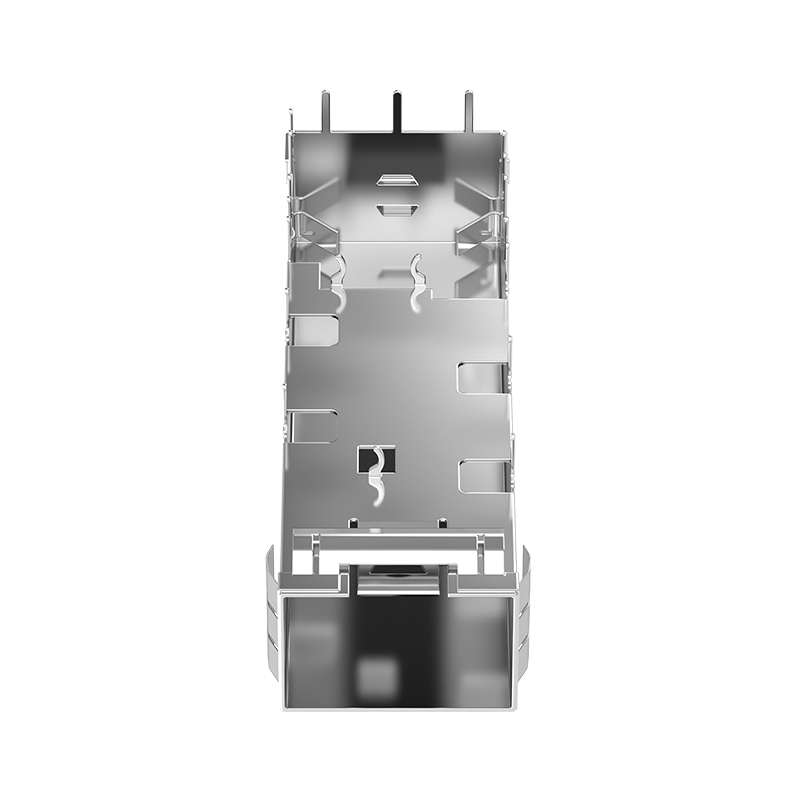

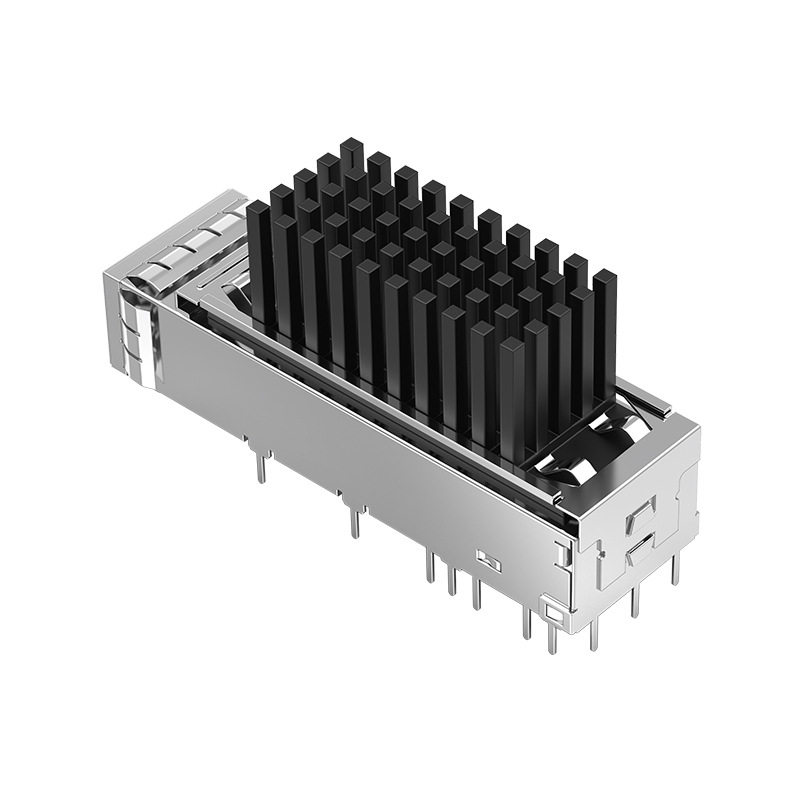

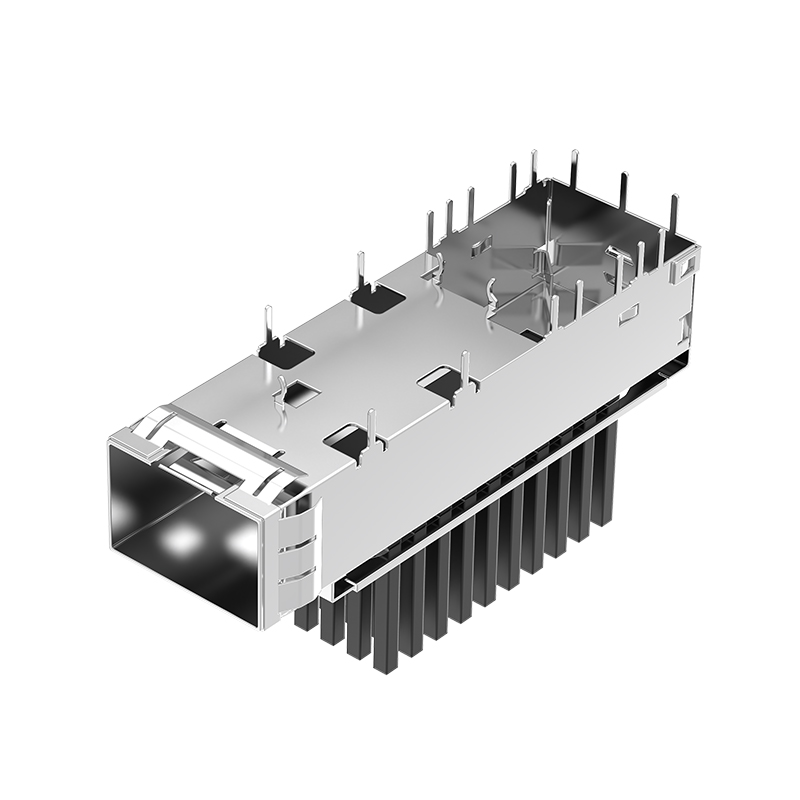

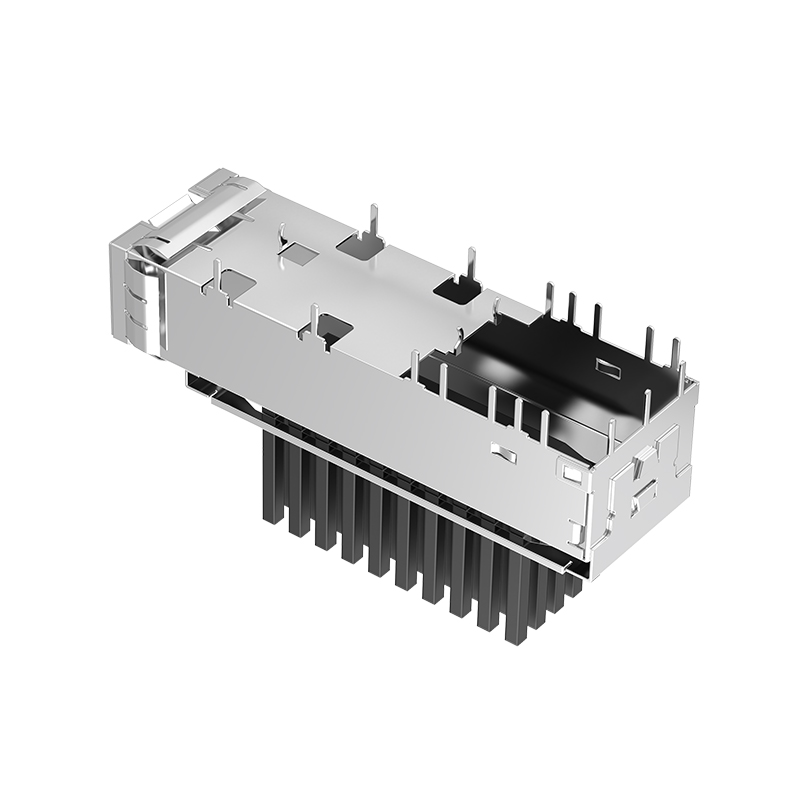

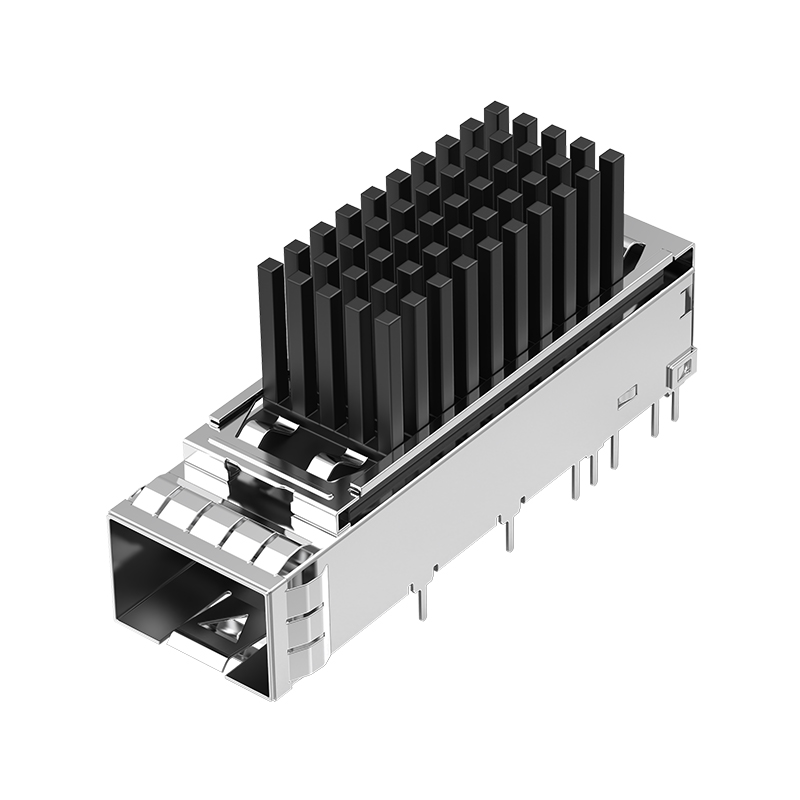

Trxcom TR11BCS2060 1x1 Port SFP+ Cage With Heat Sink Sorder

Trxcom TR11BCS2060 is a 1×1 port SFP+ cage with integrated heat sink and soldered mounting design. Built with EMI shielding structure, it ensures efficient heat dissipation and stable 10G high-speed transmission, ideal for switches, servers and high-power network module applications.

Part NumberTR11BCS2060Part StatusActive
Connector StyleCageConnector TypeSFP+
CageCOPPER ALLOY,Ni PLATEDPACKAGINGTRAY PACKAGING
Port Matrix Configuration1x1 PortNumber of Ports1
Operating Temperature Range-55 ~ +85°CMounting StyleThrough Hole, Right Angle
Included LightpipeWithoutTerminationSolder
Height (Inches/mm)14.75/0.581Length (Inches/mm)49.30/1.941
Width (Inches/mm)14.00/0.551EMI Containment Feature TypeEMI Springs
