TR11BCS2301 SFP+ Cage 1x1 Port With Light pipe
share
Parameter
Number ： TR11BCS2301
Brand ： Trxcom
Types ： SFP+
Number of Ports ： 1x1
Pluggable I/O Product Type ： Cage Assembly
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： With Lightpipe
Termination Method to Printed ： Through Hole - Solder
Operating Tem Perature Range(° ： -55℃ to 85℃
DetailReview(0)

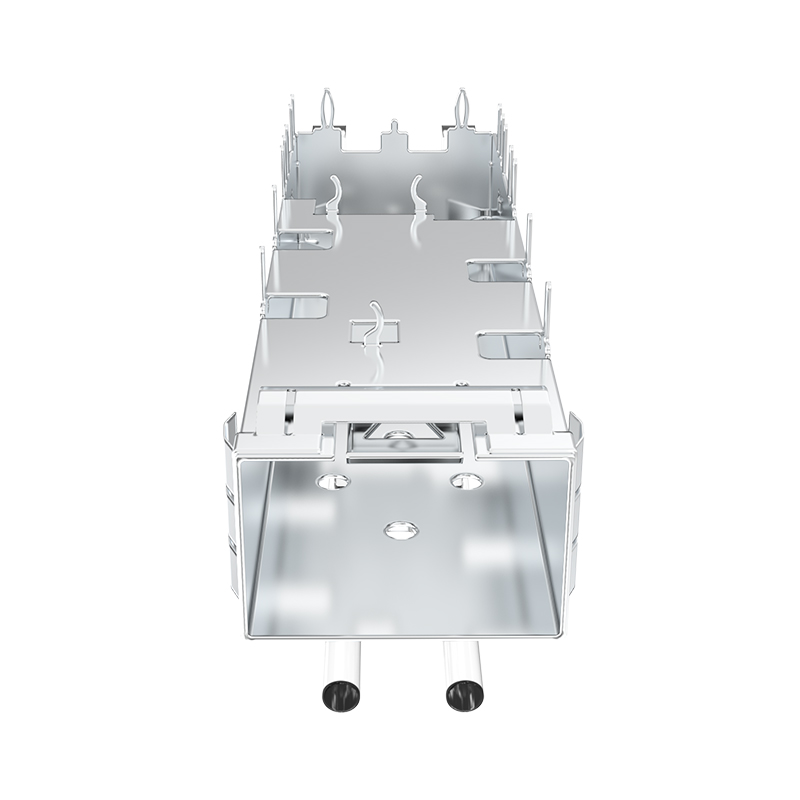

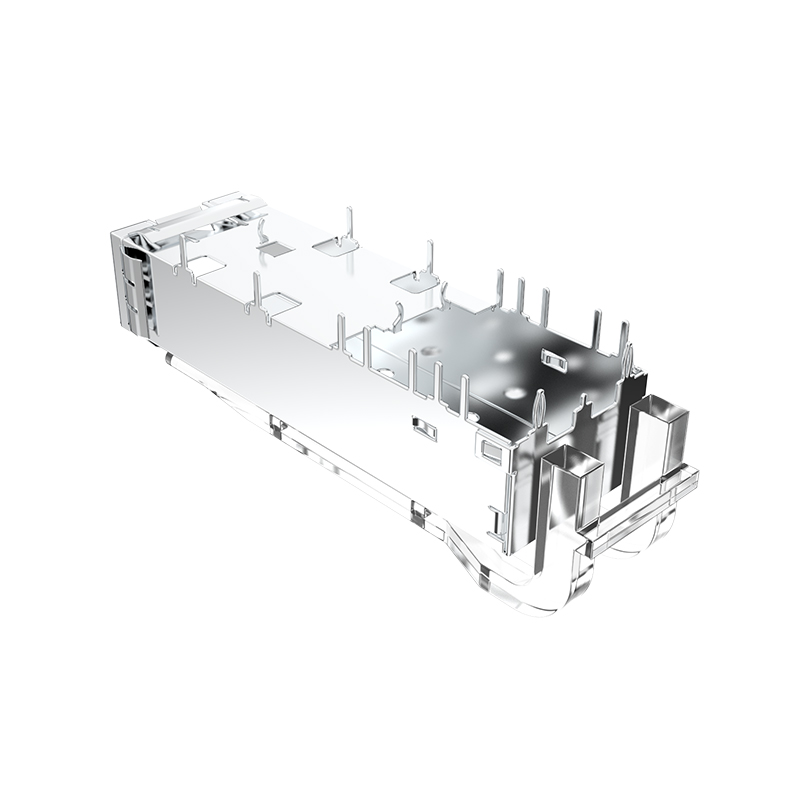

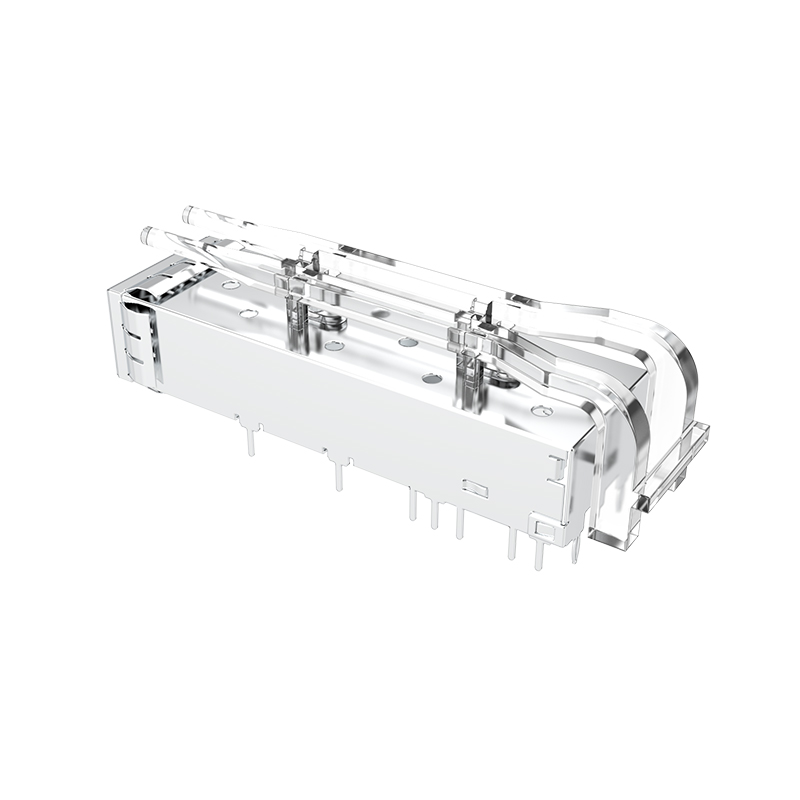

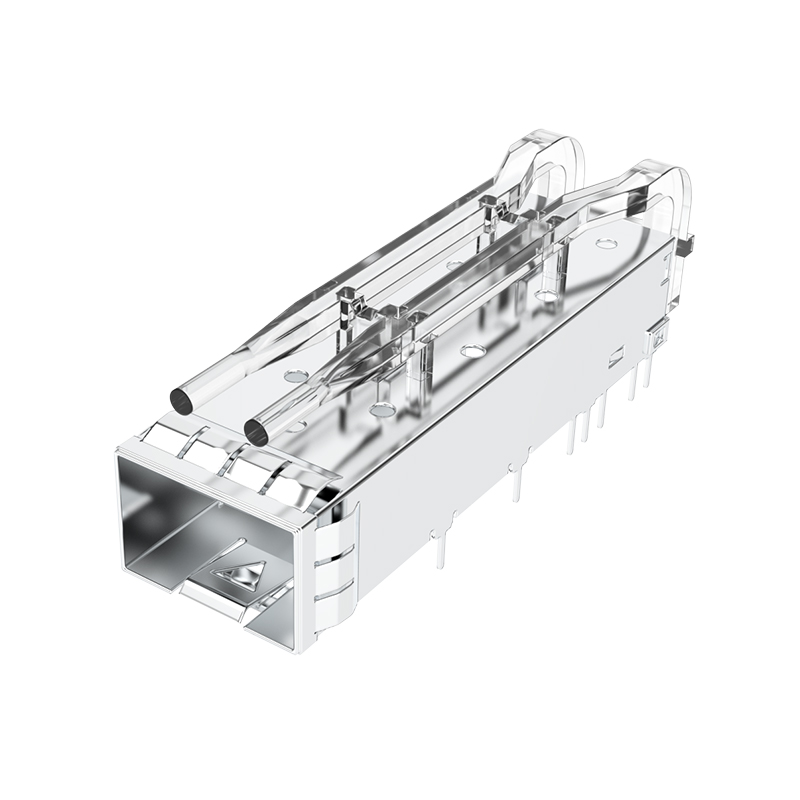

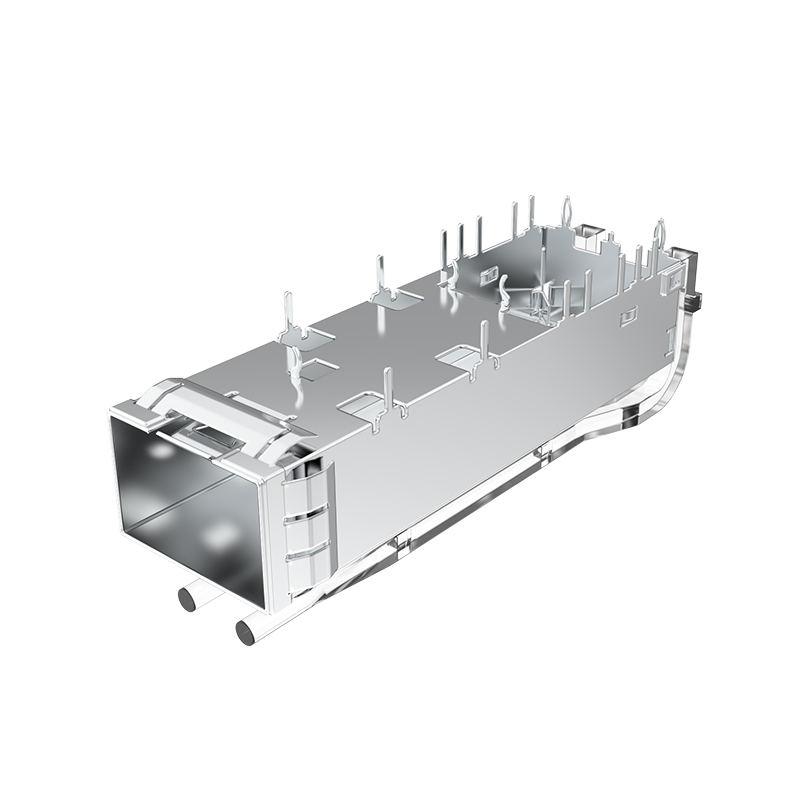

Trxcom TR11BCS2301 SFP+ Cage 1x1 Port With Light pipe
Trxcom TR11BCS2301 is a 1x1 port SFP+ cage connector built with integrated light pipe. Featuring excellent EMI shielding and compact design, it supports 10G high-speed transmission and clear LED status indication, ideal for switches, network adapters and other high-speed networking devices.
| Part Number | TR11BCS2301 | Part Status | Active |
| Connector Style | Cage | Connector Type | SFP+ |
| Cage | COPPER ALLOY,Ni PL ATED | THICKNESS | 0.25mm |
| LIGHT PIPE | CLEAR POLYCARBONATE | Mounting Type | Through Hole, Right Angle |
| Port Matrix Configuration | 1x1 Port | Number of Ports | 1 |
| Operating Temperature Range | -55 – 85°C | PCB Mounting Style | Through Hole - Press-Fit |
| Circuit Application | Signal | EMI Containment Feature Type | EMI Springs |
| Included Lightpipe | Yes | Height (Inches/mm) | 9.70/0.382 |
| Length (Inches/mm) | 53.20/2.094 | Width (Inches/mm) | 14.75/0.581 |
Data Center
Telecommunications
Medical Equipment
Industrial Control
Consumer Electronics
Security System
Military Industry
