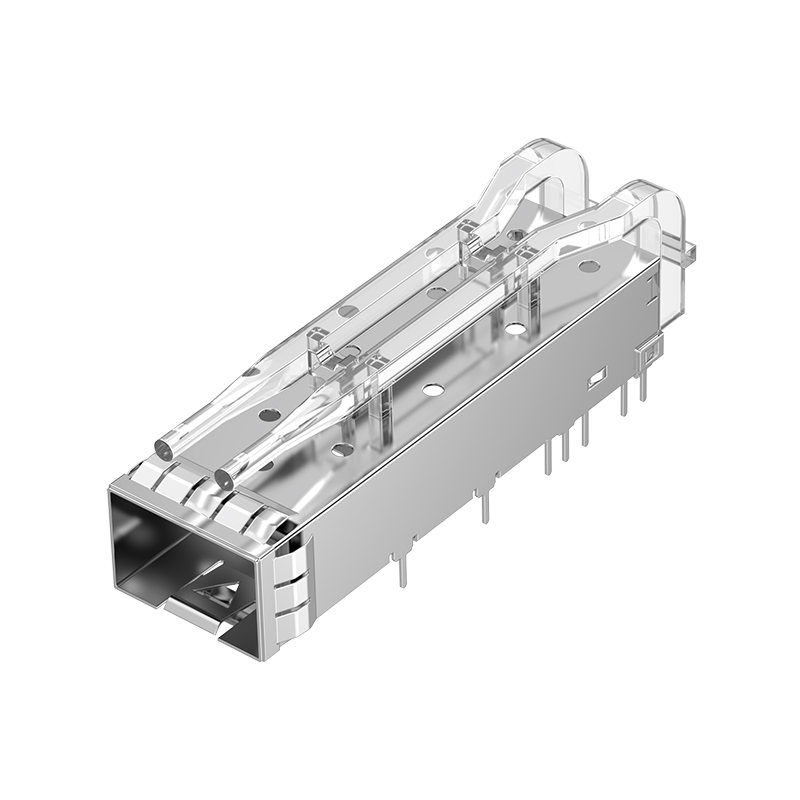

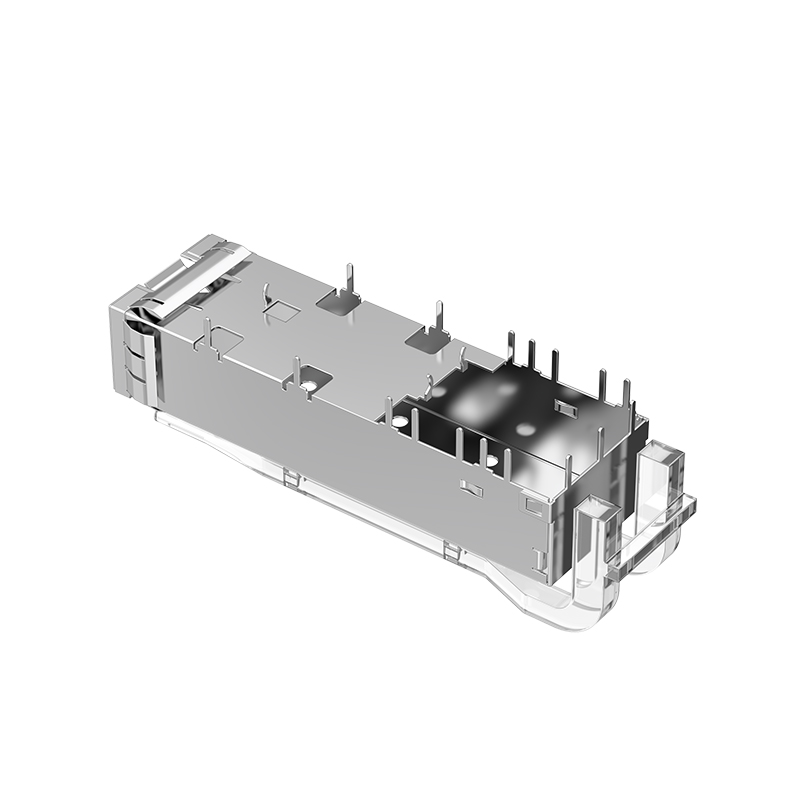

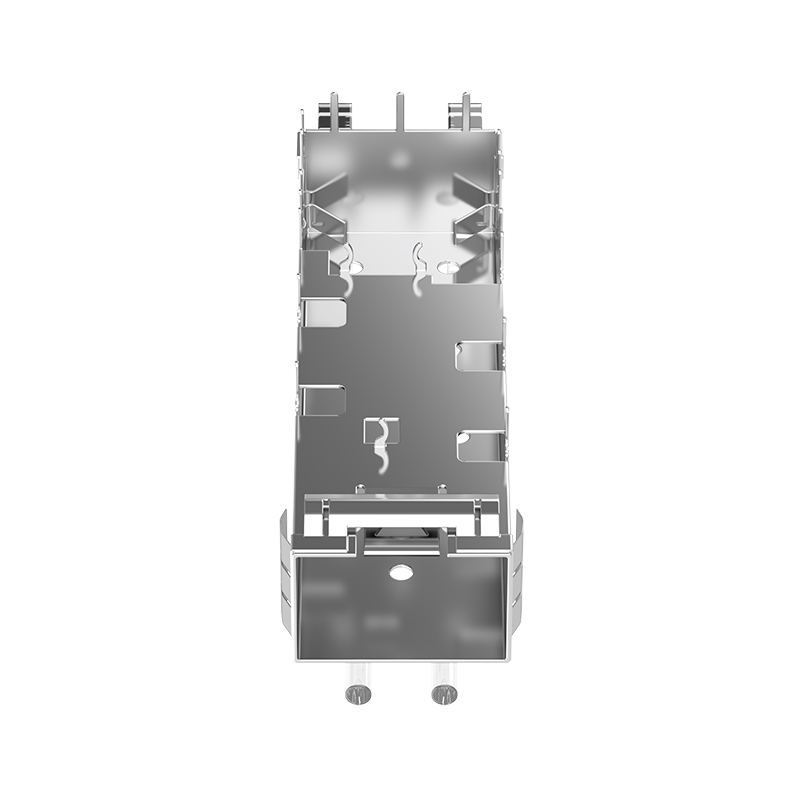

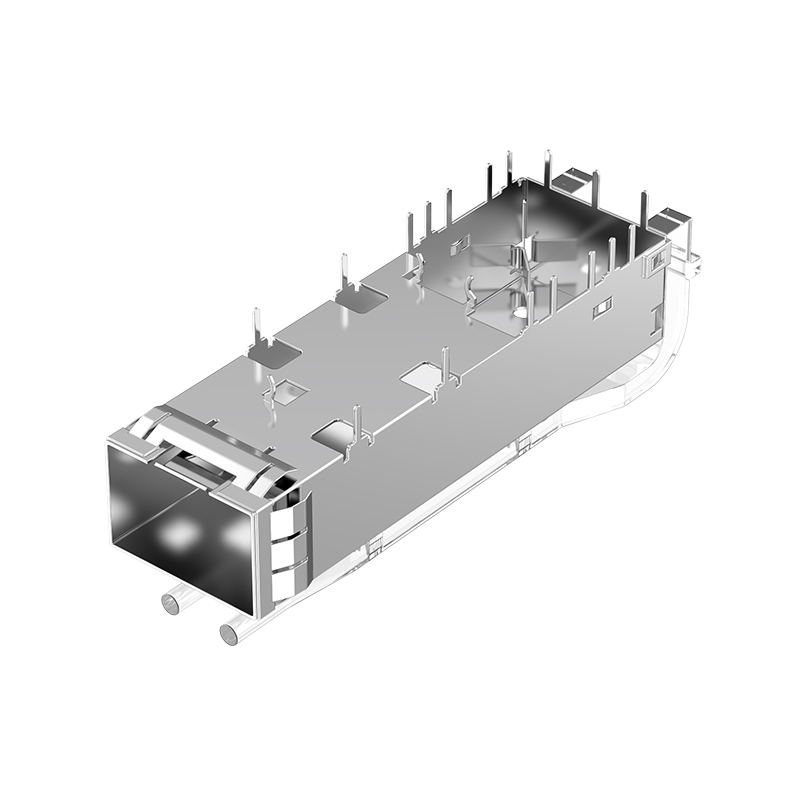

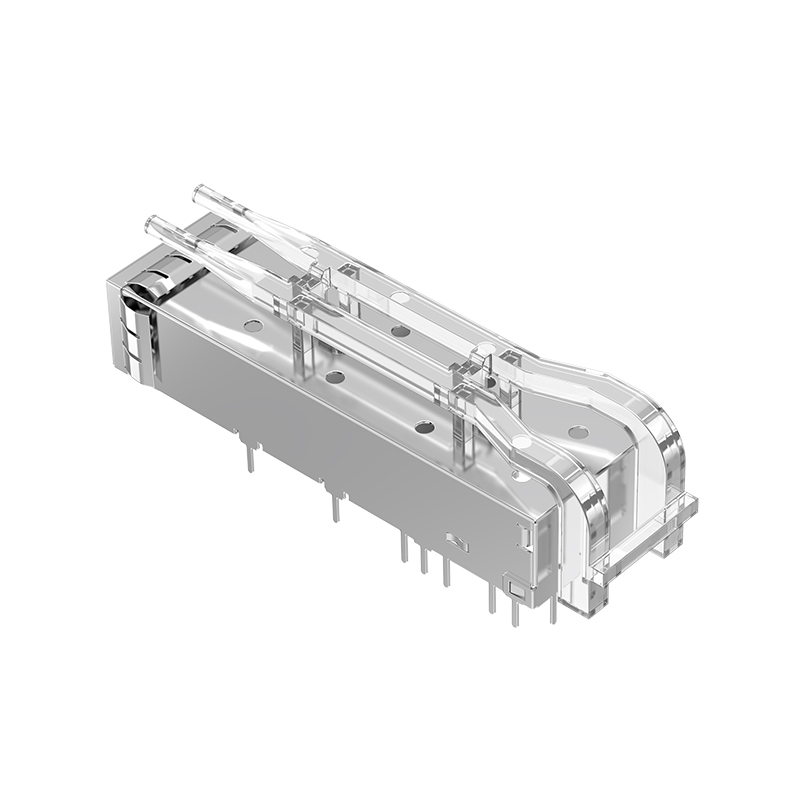

TR11BCS2200 1x1 Port SFP+ Cage Connector Solder With EMI Spring Finger
share
Parameter
Number ： TR11BCS2200
Brand ： Trxcom
Types ： SFP+
Number of Ports ： 1x1
Pluggable I/O Product Type ： Cage Assembly
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： With Lightpipe
Termination Method to Printed ： Through Hole - Solder
Operating Tem Perature Range(° ： -40℃ to 85℃
DetailReview(0)
Trxcom TR11BCS2200 1x1 Port SFP+ Cage Solder With EMI Spring Finger
Trxcom TR11BCS2200 is a 1x1 port SFP+ cage with solder type mounting and EMI spring fingers. It delivers superior electromagnetic shielding and stable 10G high-speed transmission, suitable for switches, network cards and server networking equipment.
| Part Number | TR11BCS2200 | Part Status | Active |
| Connector Style | Cage | Connector Type | SFP+ |
| Cage | COPPER ALLOY,Ni PL ATED | PACKAGING | TRAY PACKAGING |
| Port Matrix Configuration | 1x1 Port | Number of Ports | 1 |
| Operating Temperature Range | -40 – 85°C | Mounting Style | Through Hole, Right Angle |
| Included Lightpipe | Yes | Termination | Solder |
| Height (Inches/mm) | 9.70/0.382 | Length (Inches/mm) | 48.75/1.919 |
| Width (Inches/mm) | 14.00/0.551 | EMI Containment Feature Type | EMI Springs |
Data Center
Telecommunications
Medical Equipment
Industrial Control
Consumer Electronics
Security System
Military Industry
