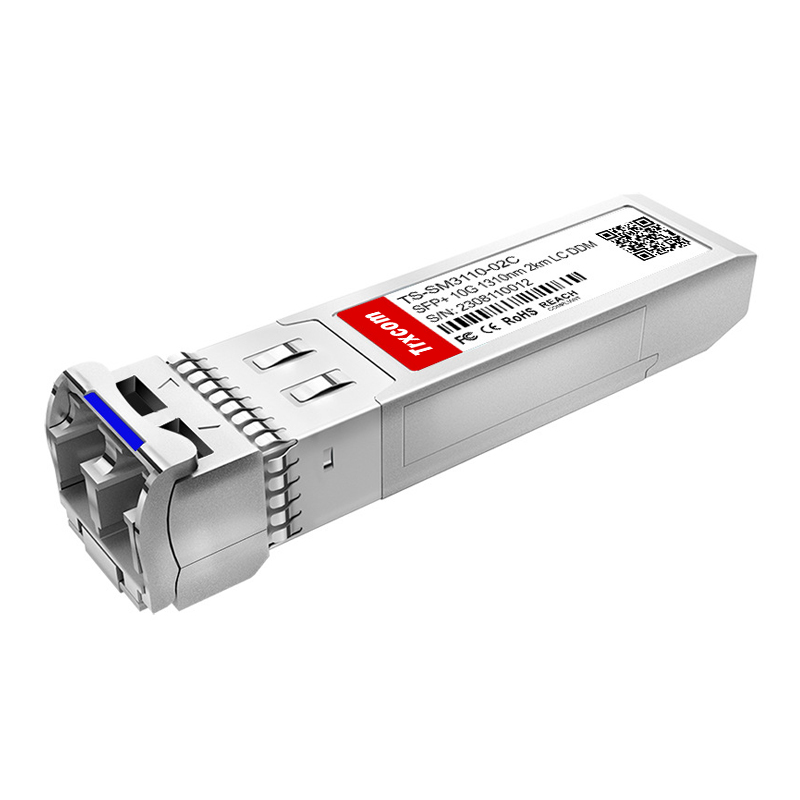

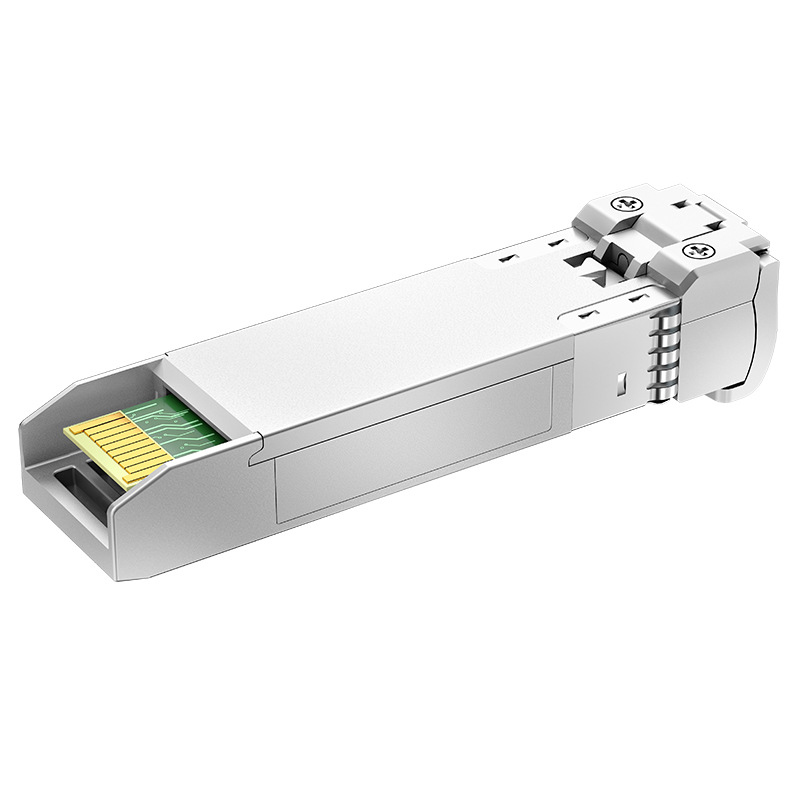

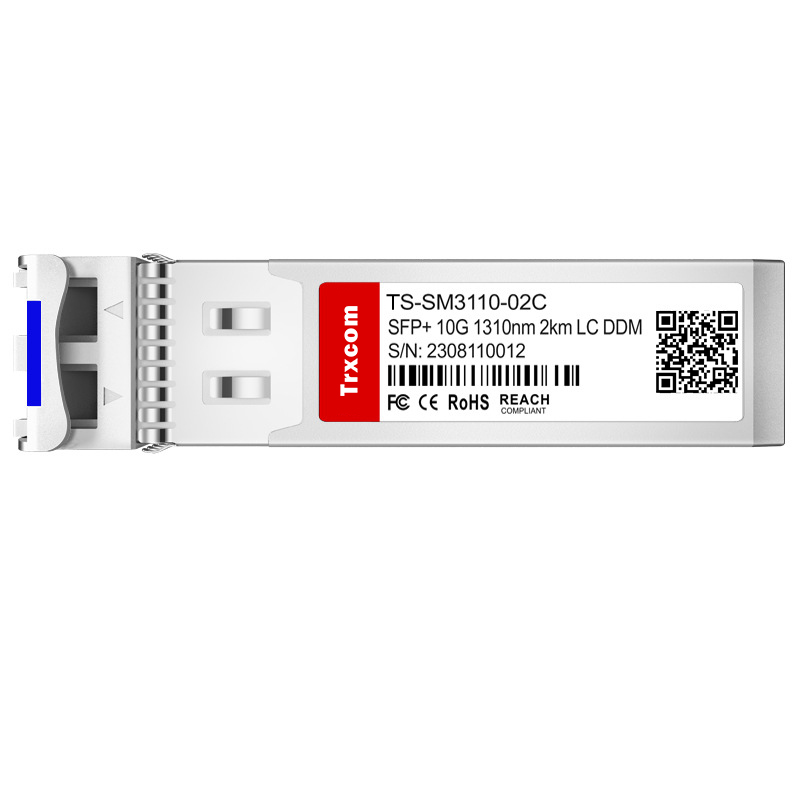

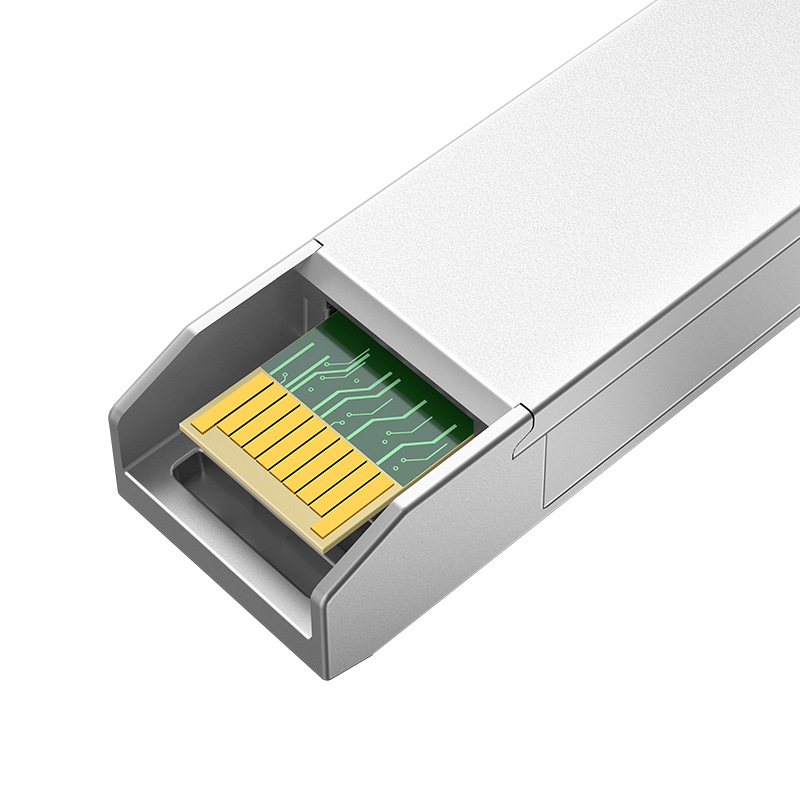

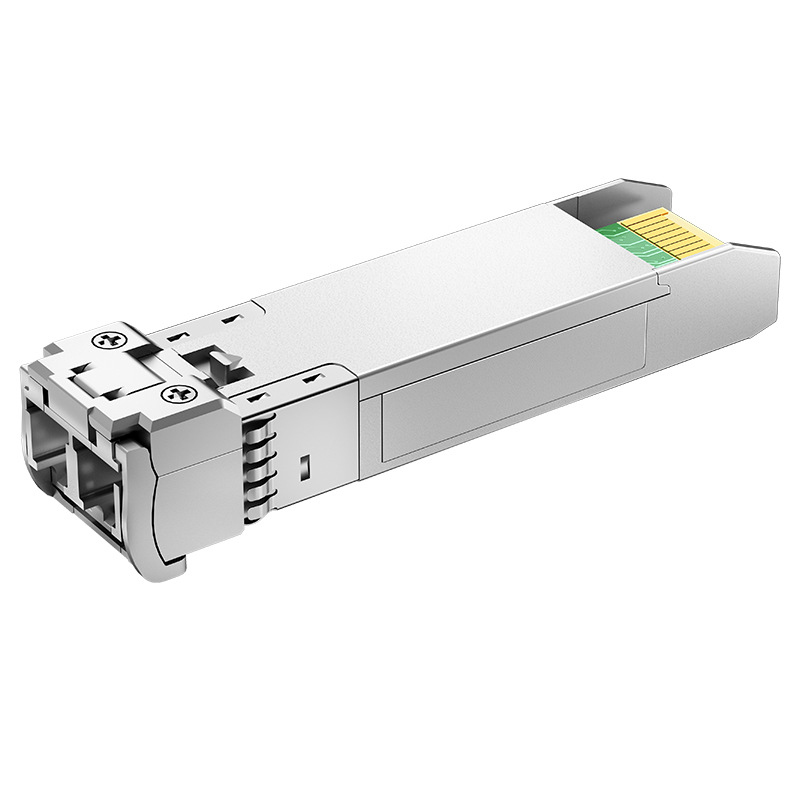

TS-SM3110-02C SFP+ 10GBASE-LRM 1310nm 2km DOM Duplex LC/UPC SMF Optical Transceiver Module

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
P/N ： TS-SM3110-02C
Form Factor ： SFP+
Type ： Single Mode
Data Rate ： 10G
Model ： LR
Connector ： Duplex LC
Distance ： ≤2km
Wavelength ： 1310nm
Get a Quote
Consult products
DetailReview(0)

Trxcom TS-SM3110-02C SFP+ 10GBASE-LRM Optical Transceiver Module (SMF, 1310nm, 2km, LC, DOM)

The TS-SM3110-02C SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 2km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a transimpedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Trxcom Part NumberTS-SM3110-02CVendor NameTrxcom
Form FactorSFP+Max Data Rate10.3Gbps
Wavelength1310nmMax Cable Distance2km
ConnectorDuplex LCOptical ComponentsFP 1310nm
MediaSMFDOM SupportYes
TX Power-6 to -0.5dBmRX Power-20 to -1dBm
Receiver Sensitivity-14.4dBmReceiver Overload0.5dBm
Operating case temperature0 to 70°CProtocolsSFP+ MSA Compliant, CPRI, eCPRI
