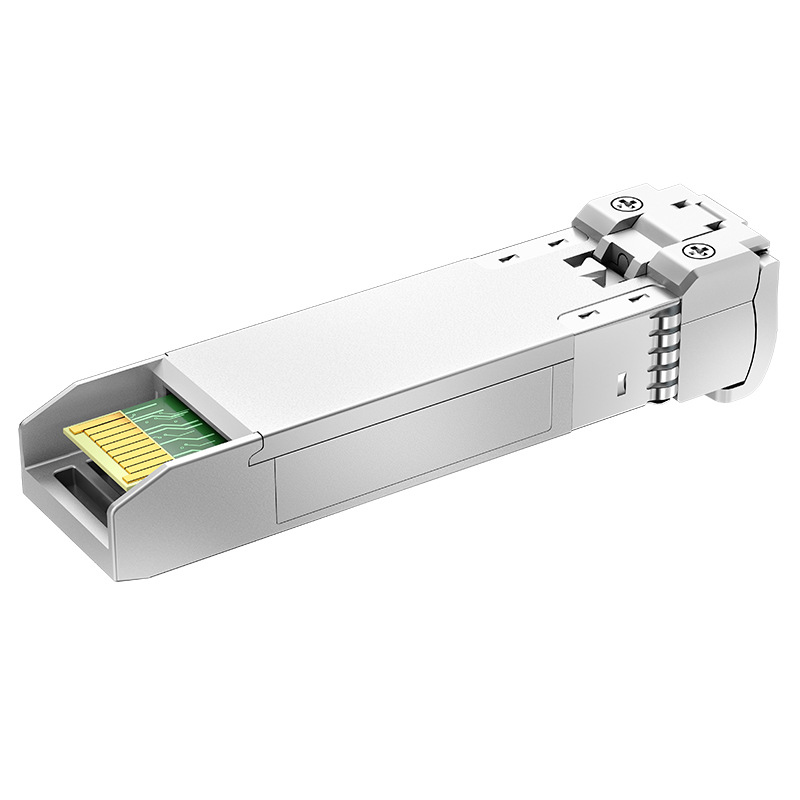

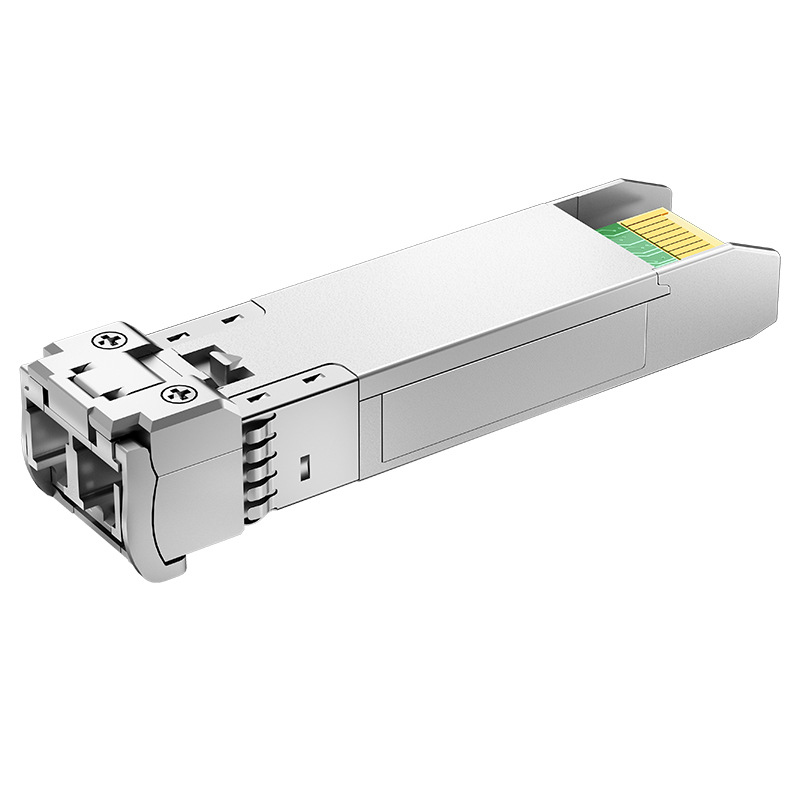

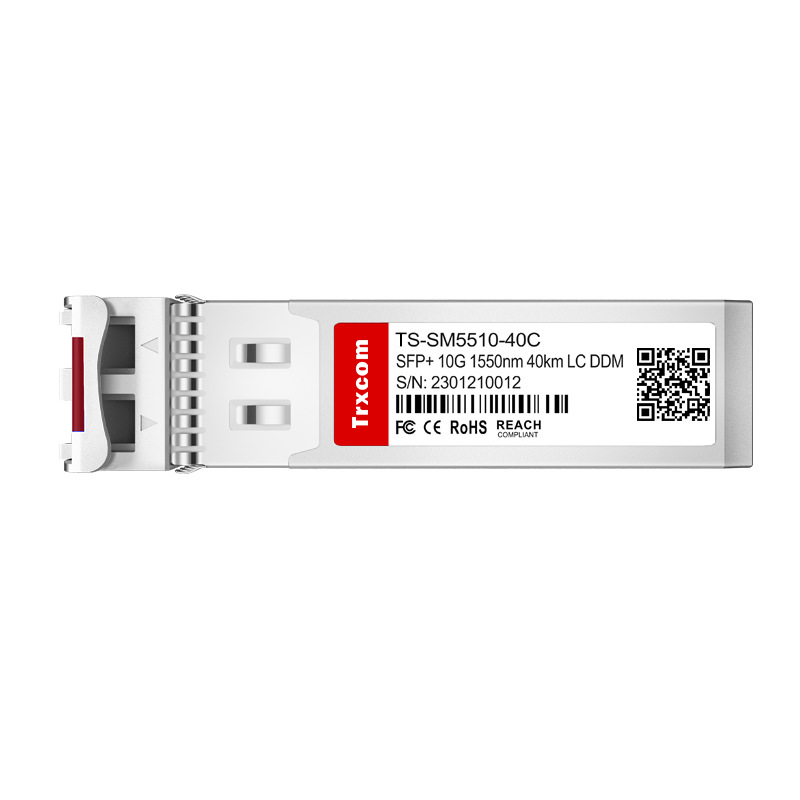

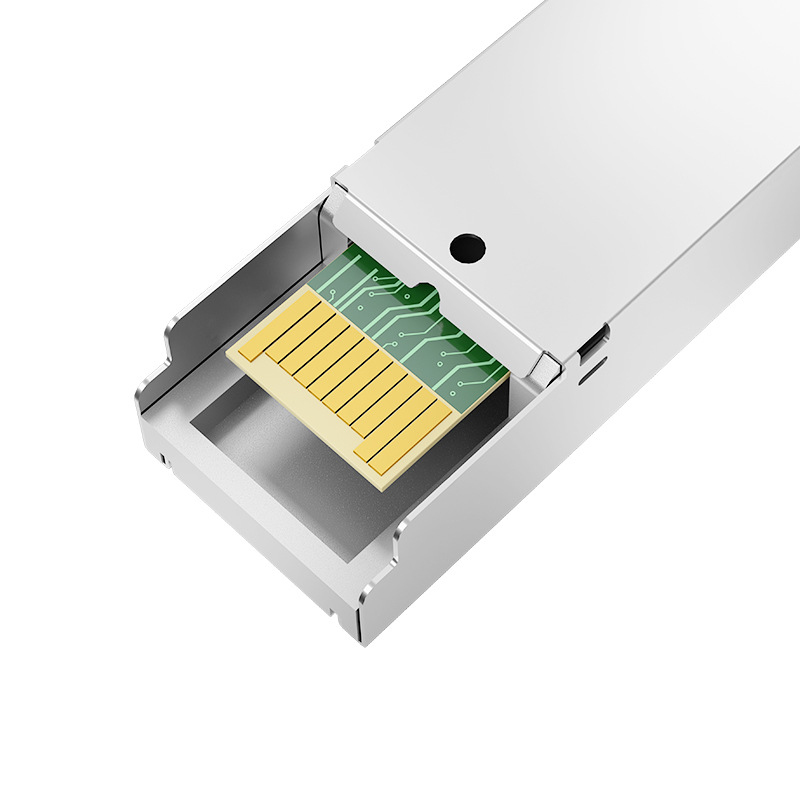

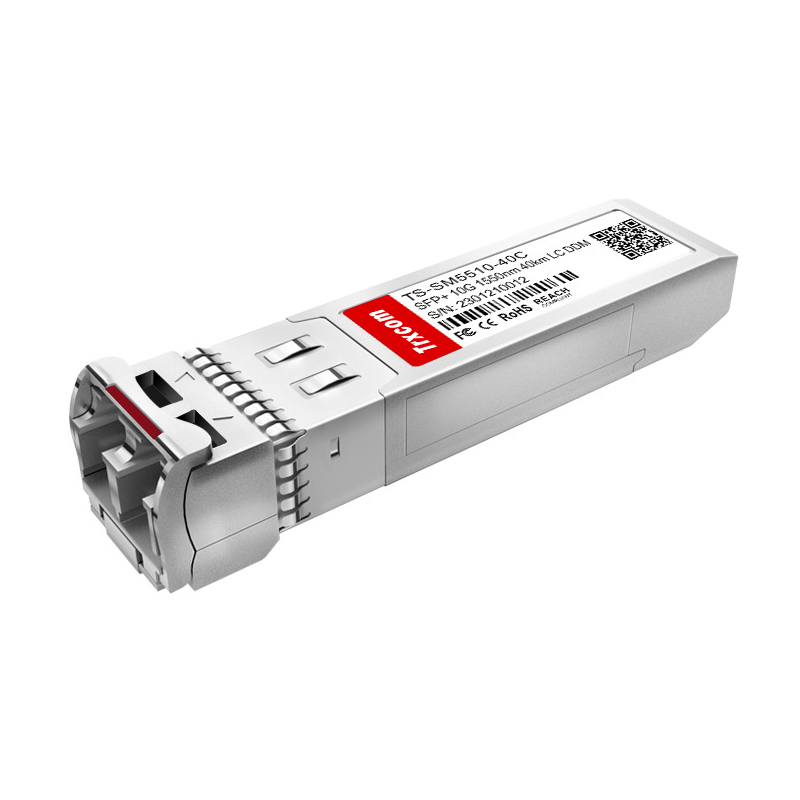

TS-SM5510-40C SFP+ 10GBASE-ER 1550nm 40km DOM Duplex LC/UPC SMF Optical Transceiver Module
share
Parameter
P/N ： TS-SM5510-40C
Form Factor ： SFP+
Type ： Single Mode
Data Rate ： 10G
Model ： ER
Connector ： Duplex LC
Distance ： ≤40km
Wavelength ： 1550nm
DetailReview(0)
Trxcom TS-SM5510-40C 10GBASE-ER Duplex LC/UPC SFP+ Optical Transceiver Module (SMF, 1550nm,40km,DOM)
The Trxcom TS-SM5510-40C SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 40km transmission distance with SMF. The transceiver consists of three sections: a Cooled EML laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
| Trxcom Part Number | TS-SM5510-40C | Vendor Name | Trxcom |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1550nm | Max Cable Distance | 40km |
| Connector | Duplex LC | Optical Components | EML 1550nm |
| Media | SMF | DOM Support | Yes |
| TX Power | -1 to +2dBm | RX Power | -16 to -1dBm |
| Receiver Sensitivity | -15.5dBm | Receiver Overload | -1dBm |
| Operating case temperature | 0 to 70°C | Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
Data Center
Telecommunications
Medical Equipment
Industrial Control
Consumer Electronics
Security System
Military Industry
