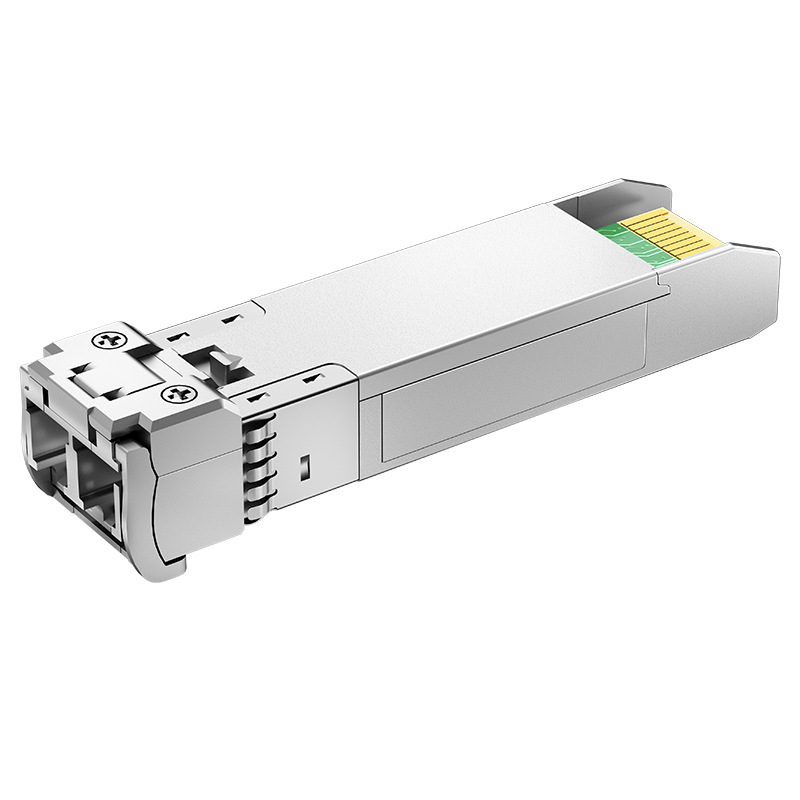

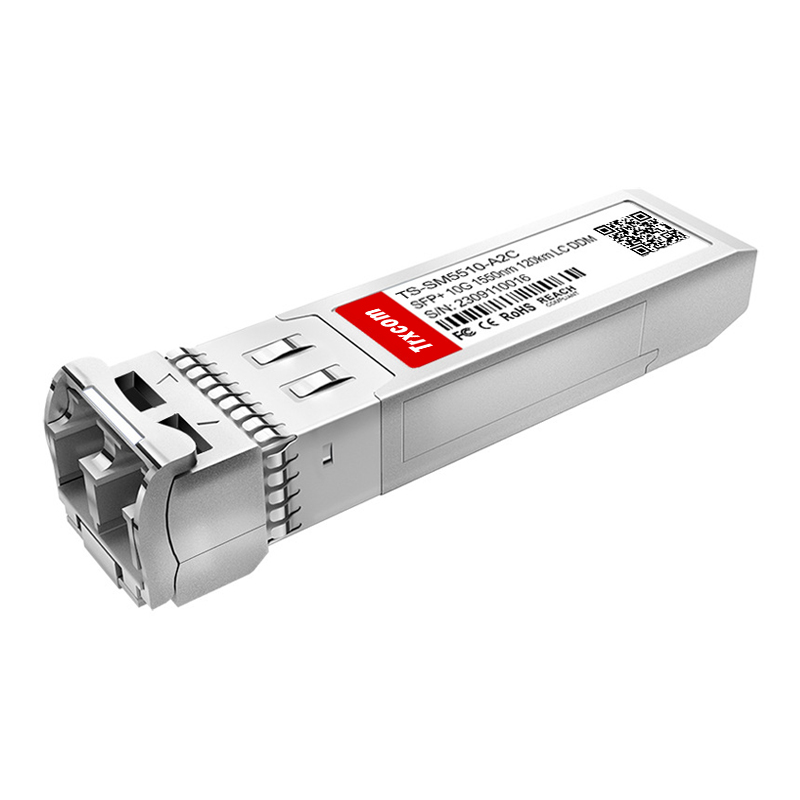

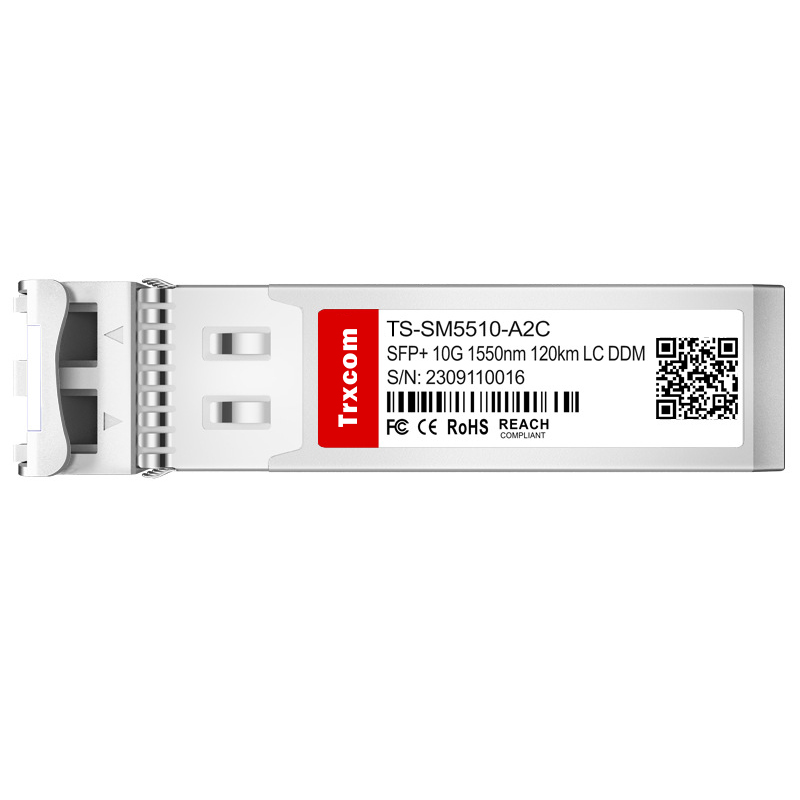

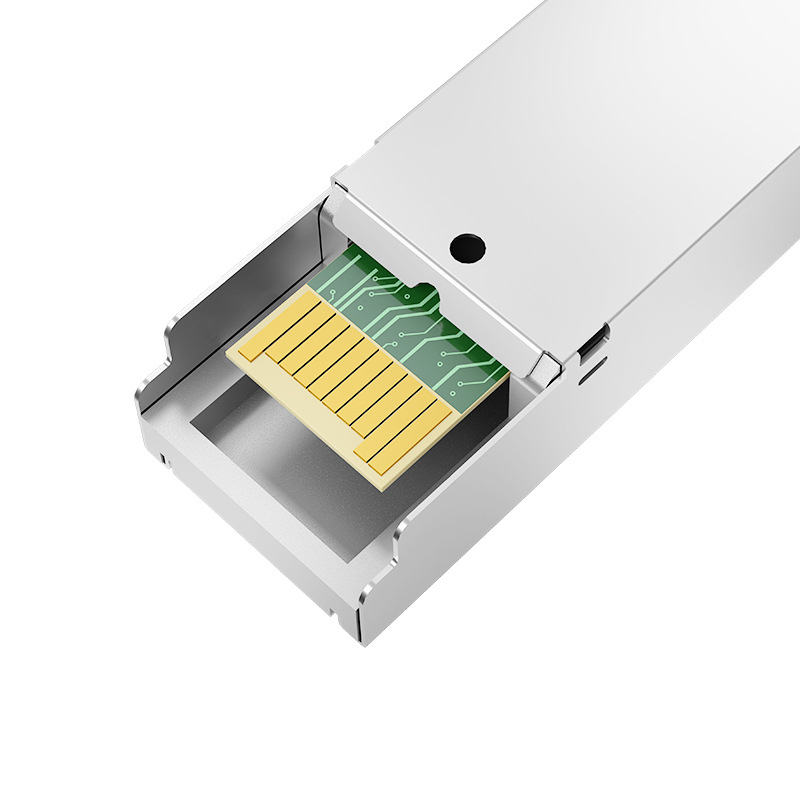

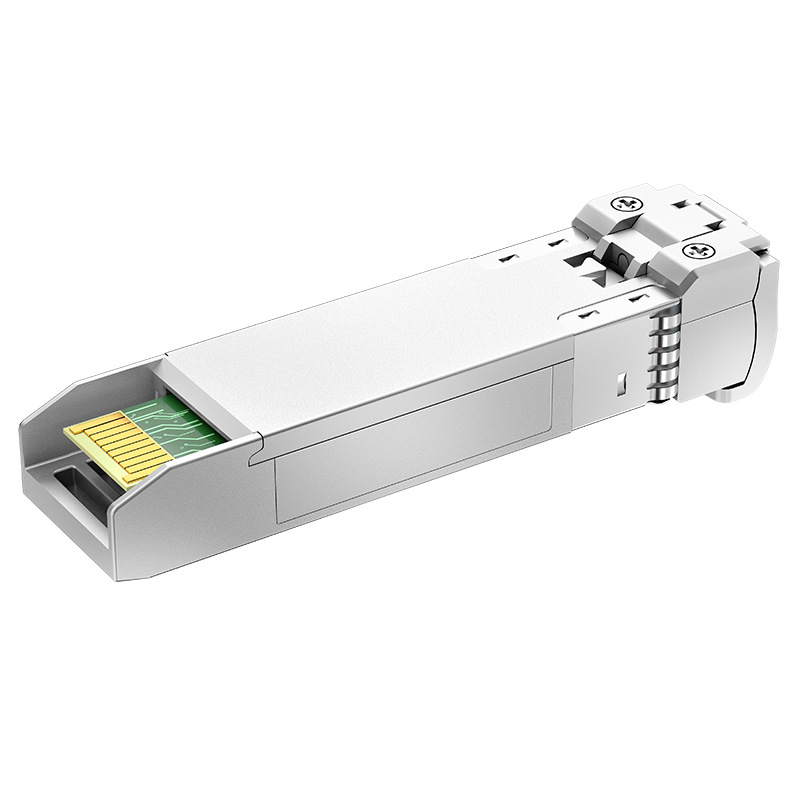

TS-SM5510-A2C 10G SFP+ 1550nm 120km DOM Duplex LC/UPC SMF Optical Transceiver Module
Trxcom TS-SM5510-A2C SFP+ 10GBASE-ZR SMF Optical Transceiver Module (SMF, 1550nm, 120km, LC, DOM)）
The TS-SM5510-A2C SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 120km transmission distance with SMF.The transceiver consists of three sections: a Cooled EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
| Trxcom Part Number | TS-SM5510-A2C | Vendor Name | Trxcom |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1550nm | Max Cable Distance | 120km |
| Connector | Duplex LC | Transmitter Type | EML |
| Media | SMF | Receiver Type | APD |
| TX Power | -1 to +5dBm | RX Power | -26 to -6dBm |
| Receiver Sensitivity | -25dBm | Receiver Overload | -7dBm |
| Operating case temperature | 0 to 70°C | Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, 10GBASE-ZR |
Product Certifications & Compliance
We strictly control product quality, including rigorous review of manufacturer qualifications, management of quality processes and production process standards, and compliance with various certification and safety standards. At present, our products meet industry standards and mainstream quality certifications, such as ISO 9001, ISO 14001, CE, FCC, RoHS, REACH, UL and more. For specific certification details, please visit the Compliance Center.
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

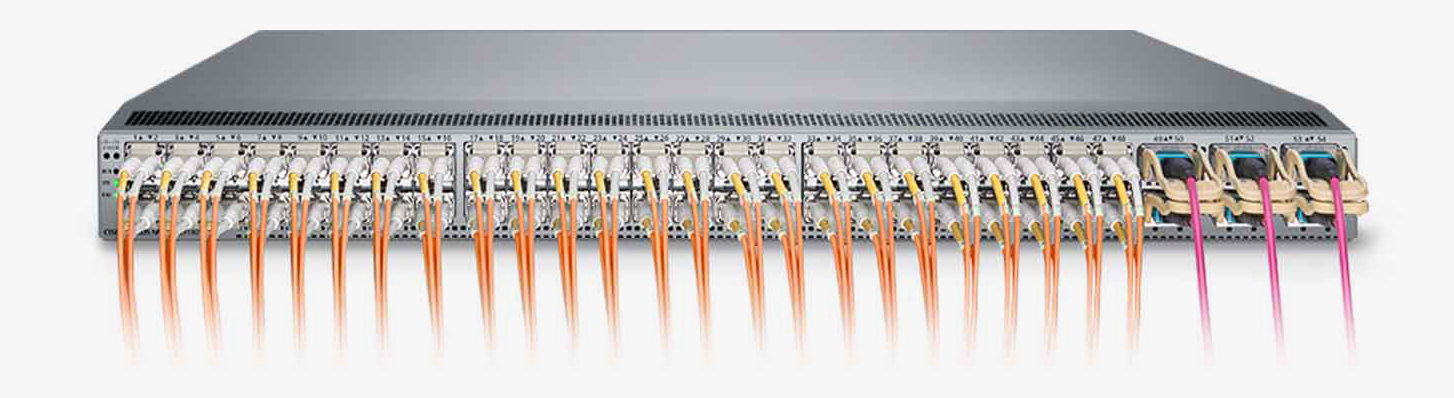

10G Connectivity for Data Center
Featured with 1W low-power, high-density and high-speed, the SFP+ transceiver offers a popular way to help you quickly ramp up to 10G transmission.

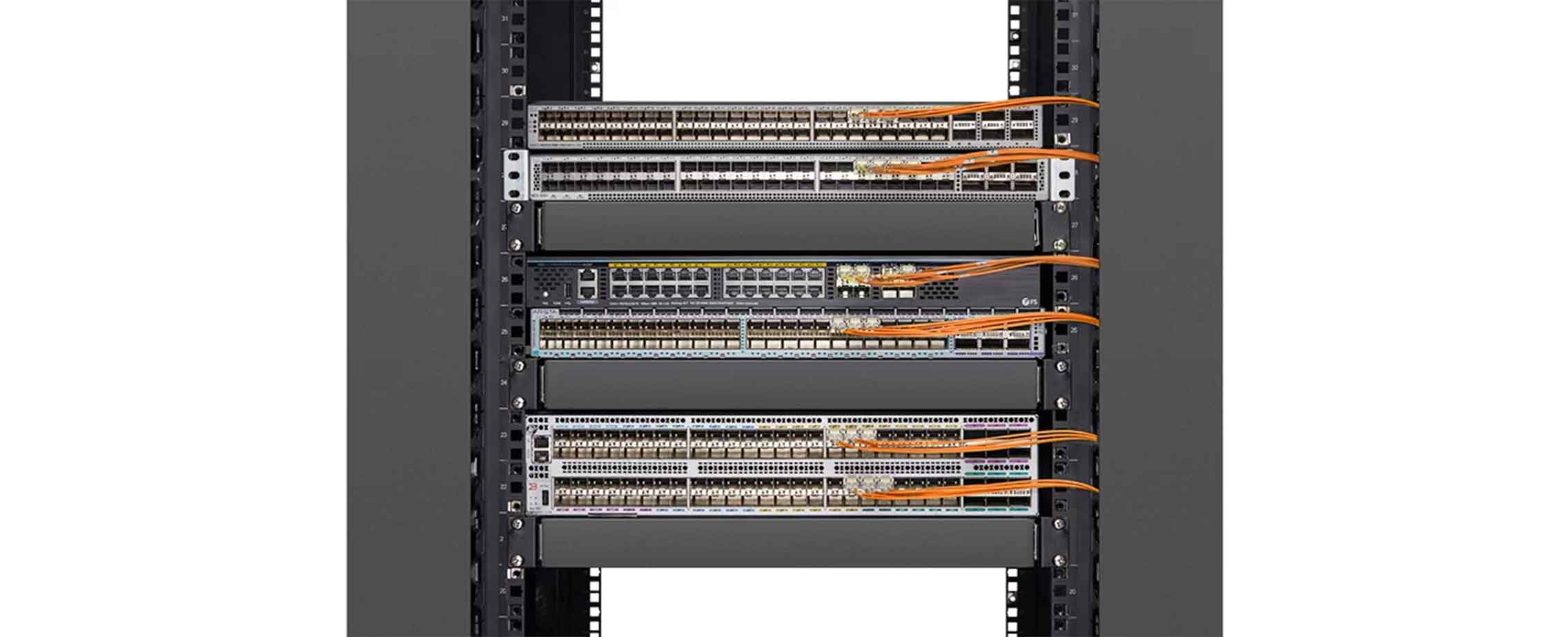

Tested in Host Devices for Proven Interoperability
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations. Check compatibility with our Optics-to-Device Compatibility Tool.

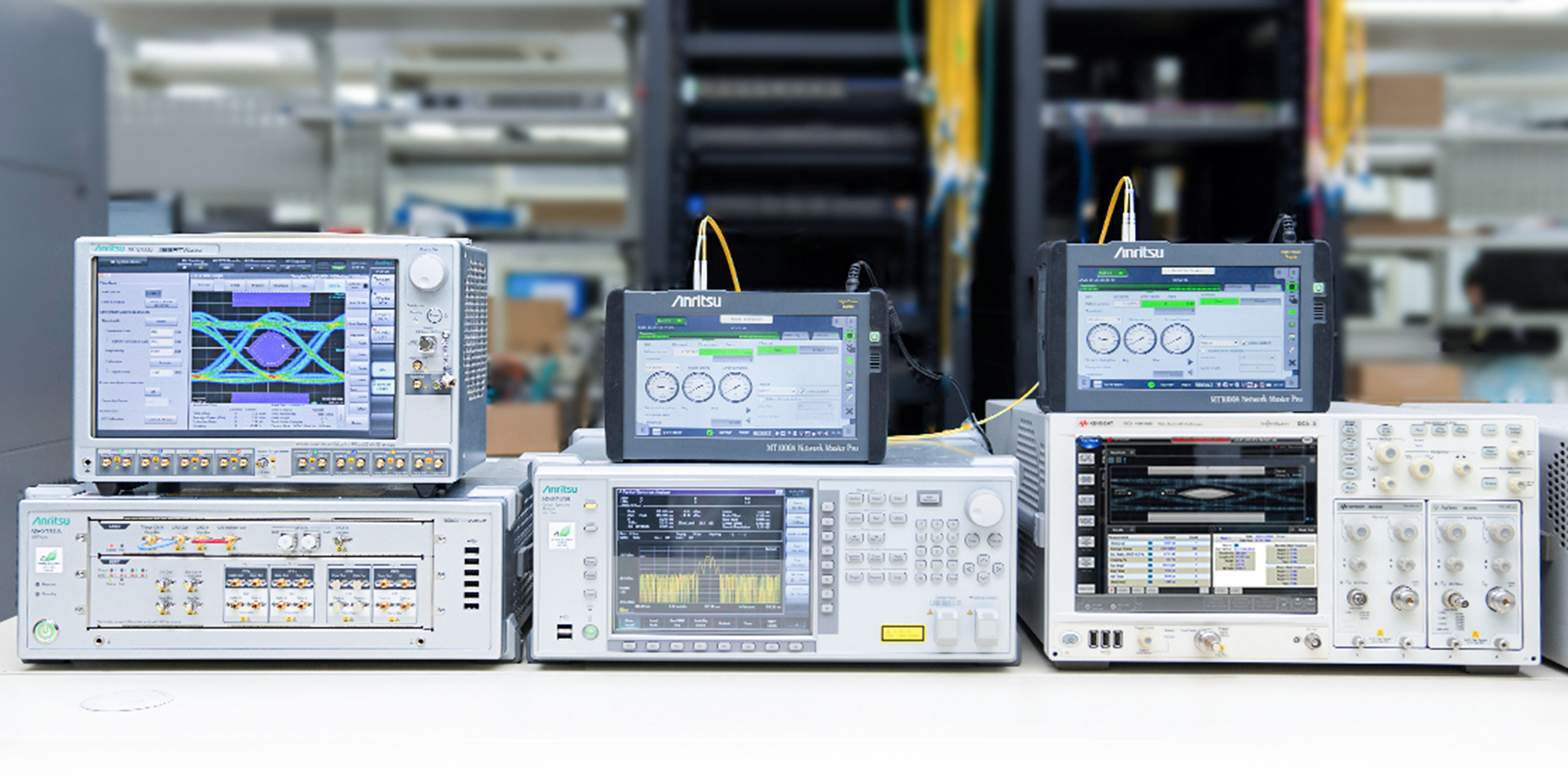

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics. Learn more at the Test Center.
Optical Spectrum Test
No Packet Loss & CRC
Eye Pattern Test
Mask Margin >20%
Bit Error Rate Test
BER 1E-12
Temperature Test
0~70°C

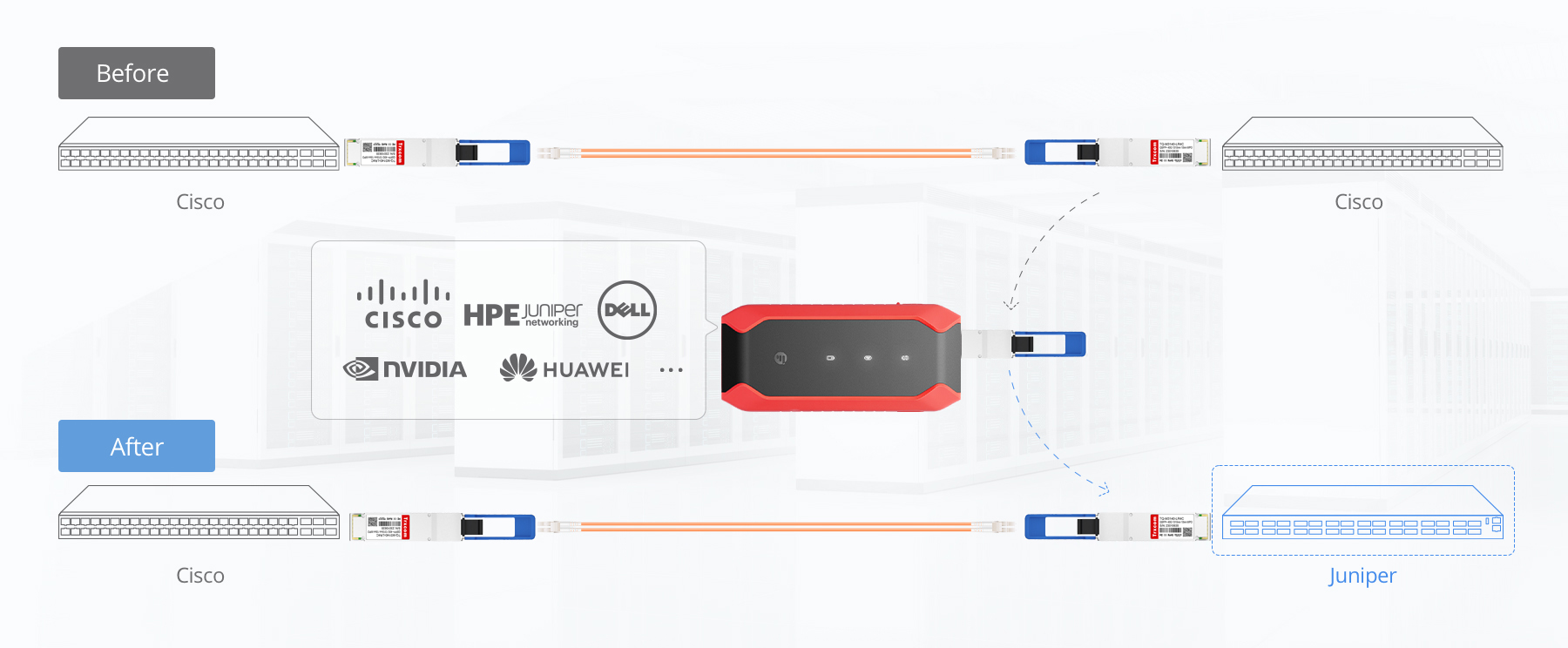

Enable Seamless Connectivity for Your Network
By reconfiguring transceivers to be compatible with different brands, Trxcom enjoys greater flexibility in terms of inventory costs.
