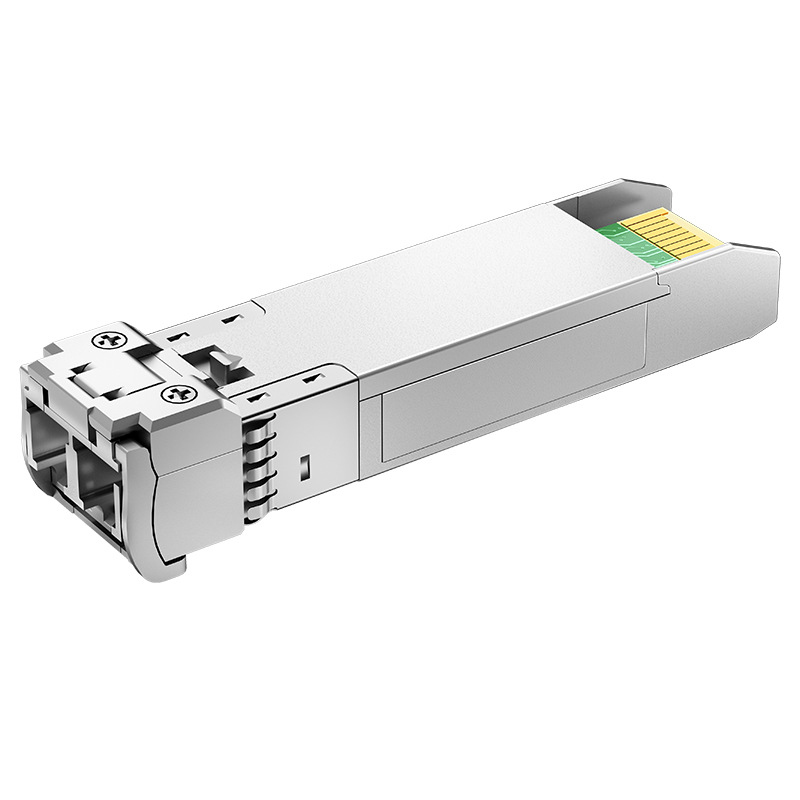

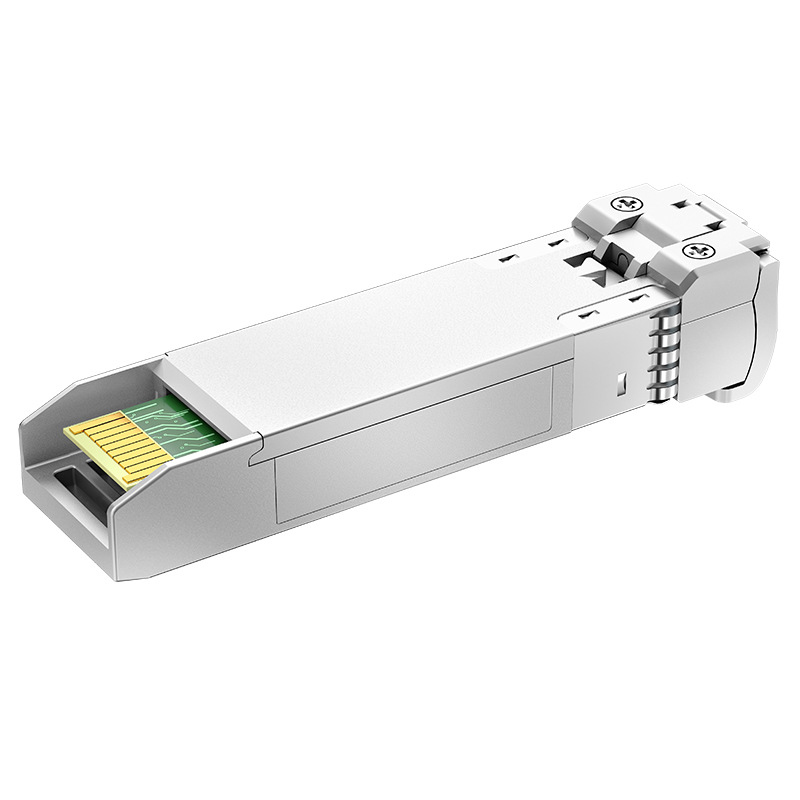

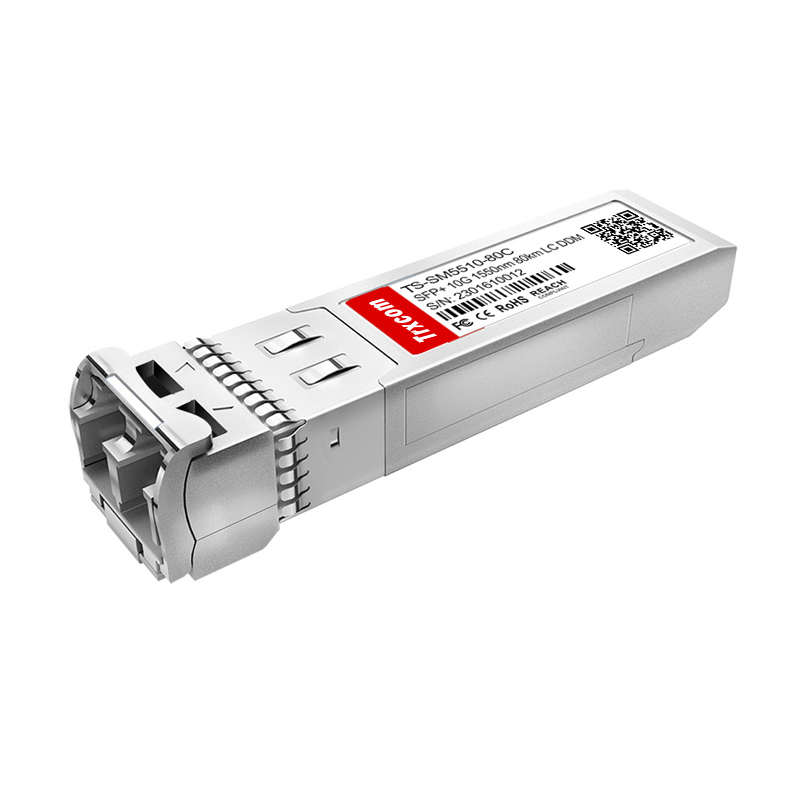

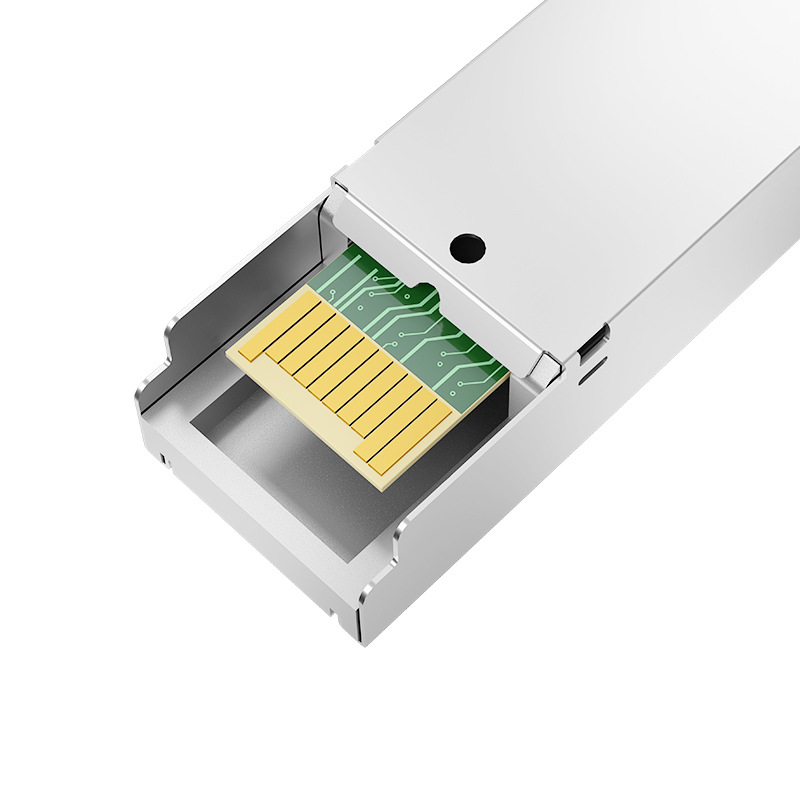

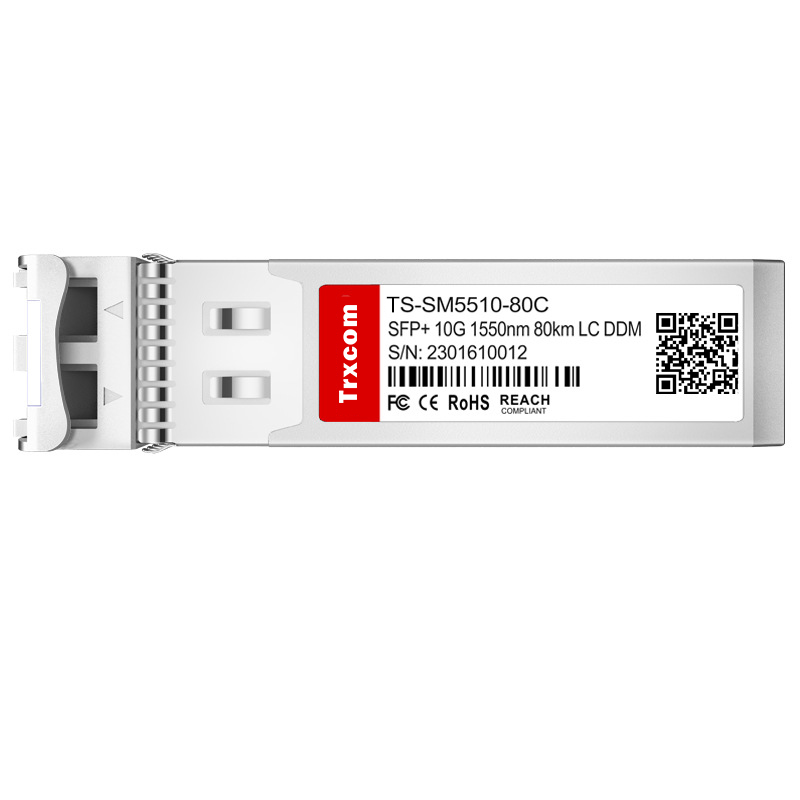

TS-SM5510-80C 10G SFP+ 1550nm 80km SMF Optical Transceiver Module DOM Duplex LC/UPC

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
P/N ： TS-SM5510-80C
Form Factor ： SFP+
Type ： Single Mode
Data Rate ： 10G
Model ： ZR
Connector ： Duplex LC
Distance ： ≤80km
Wavelength ： 1550nm
Get a Quote
Consult products
DetailReview(0)

Trxcom TS-SM5510-80C SFP+ 10GBASE-ZR Optical Transceiver Module Duplex LC/UPC (SMF,1550nm,80km, DOM)

The Trxcom TS-SM5510-80C SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 80km transmission distance with SMF. The transceiver consists of three sections: a Cooled EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Trxcom Part NumberTS-SM5510-80CVendor NameTrxcom
Form FactorSFPMax Data Rate10.7Gbps
Wavelength1550nmMax Cable Distance80km
ConnectorDuplex LCOptical ComponentsDFB
MediaSMFDOM SupportYes
TX Power-1 to +4dBmRX Power-23 to -6dBm
Receiver Sensitivity-26dBmReceiver Overload-1dBm
Operating case temperature0 to 70°CProtocolsSFP+ MSA Compliant, CPRI, eCPRI
