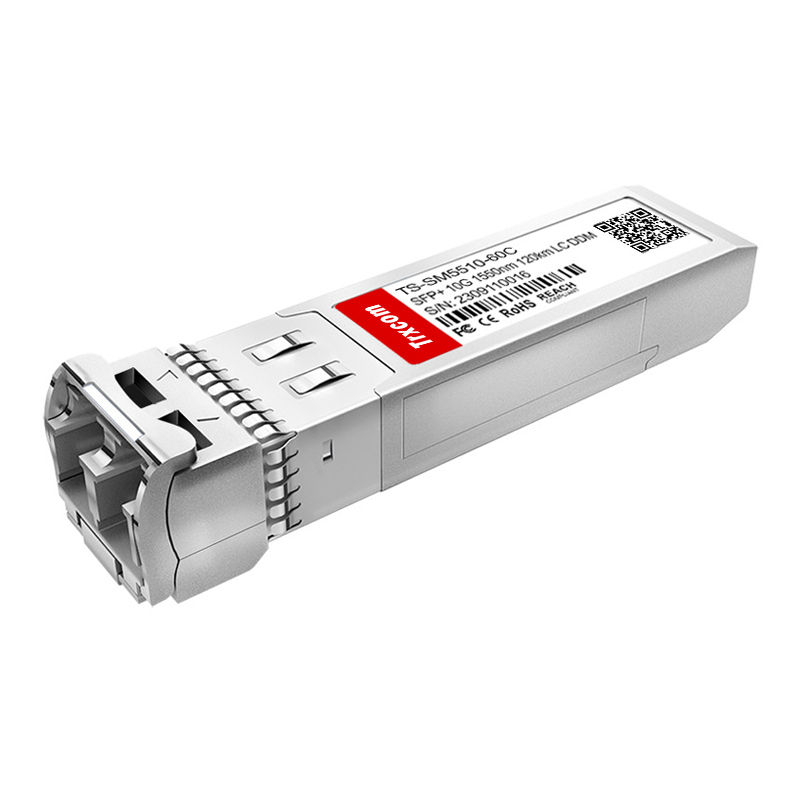

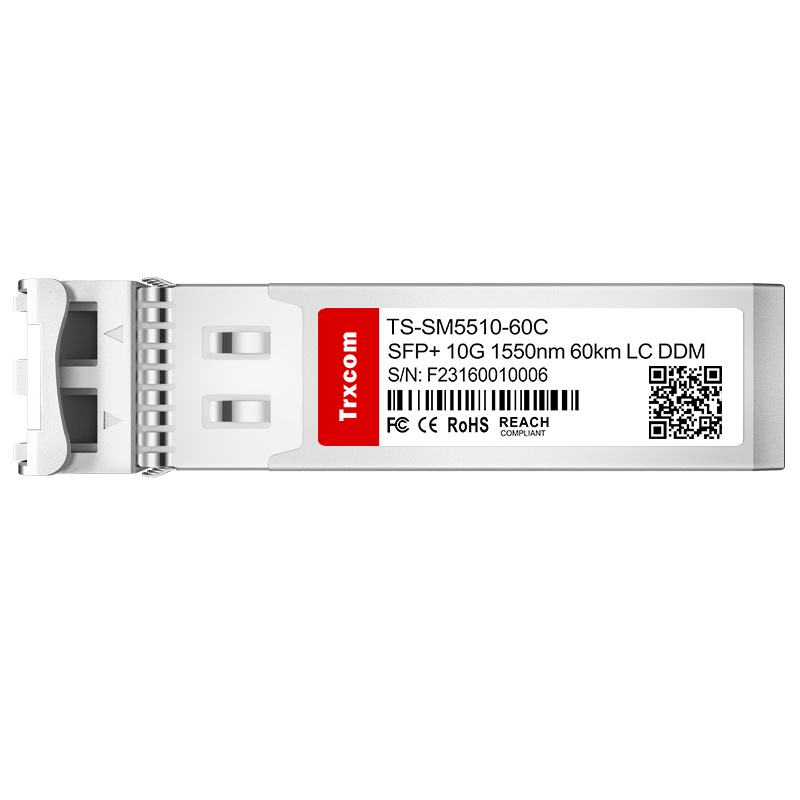

TS-SM5510-60C 10G SFP+ 1550nm 60km SMF Optical Transceiver Module DOM Duplex LC/UPC

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
P/N ： TS-SM5510-60C
Form Factor ： SFP+
Type ： Single Mode
Data Rate ： 10G
Model ： ZR
Connector ： Duplex LC
Distance ： ≤60km
Wavelength ： 1550nm
Get a Quote
Consult products
DetailReview(0)

Trxcom TS-SM5510-60C SFP+ 10GBASE-ZR Optical Transceiver Module Duplex LC/UPC (SMF, 1550nm, 60km, DOM)

The Trxcom TS-SM5510-60C SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 60km transmission distance with SMF. The transceiver consists of three sections: a Cooled EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Trxcom Part NumberTS-SM5510-60CVendor NameTrxcom
Form FactorSFP+Max Data Rate11.3Gbps
Wavelength1550nmMax Cable Distance60km
ConnectorDuplex LCOptical ComponentsEML 1550nm
MediaSMFDOM SupportYes
TX Power0 to +5dBmRX Power< -25dBm
Receiver Sensitivity-23dBmReceiver Overload-1dBm
Operating case temperature0 to 70°CProtocolsSFP+ MSA Compliant, CPRI, eCPRI
