TS-BL273310-10C SFP+ BiDi Module 1270nm-TX/1330nm-RX Single Mode 10km Reach

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
P/N ： TS-BL273310-10C
Form Factor ： SFP+
Type ： Single Mode
Data Rate ： 10G
Model ： LR
Connector ： Simplex LC
Distance ： ≤10km
Wavelength ： 1270nm-TX/1330nm-RX
Get a Quote
Consult products
DetailReview(0)

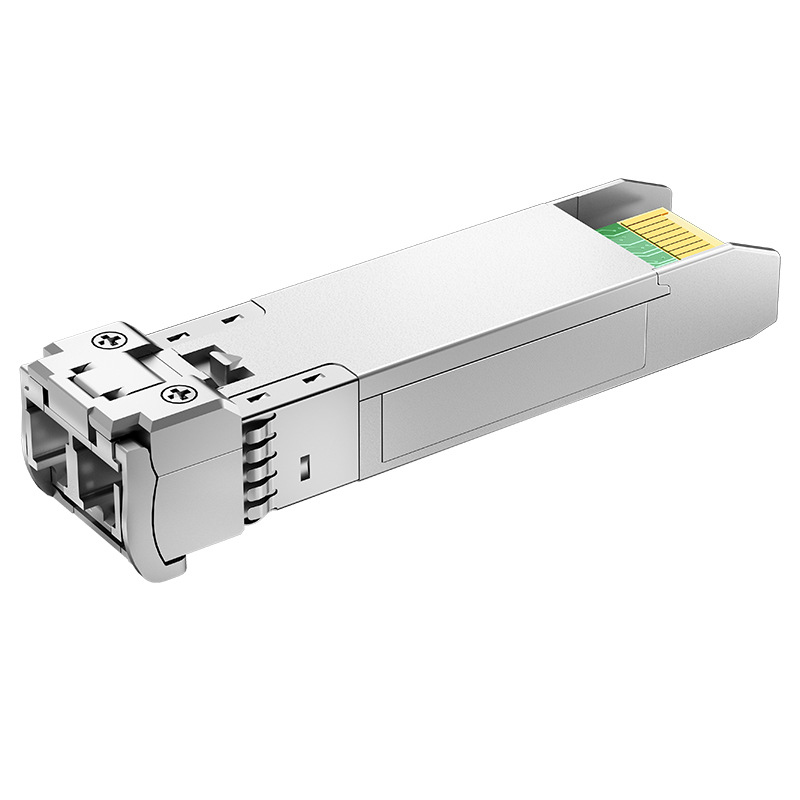

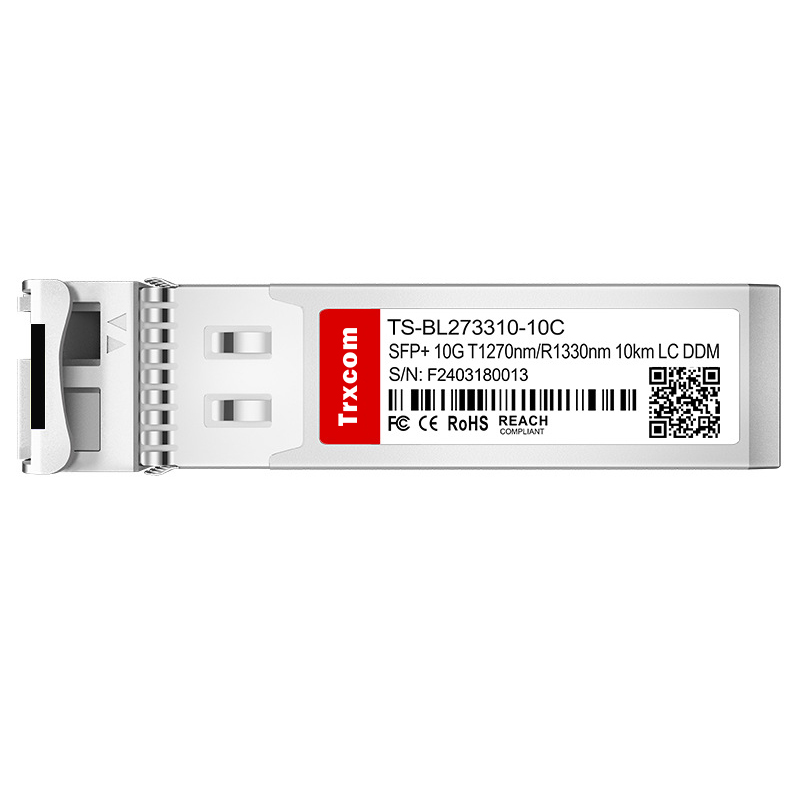

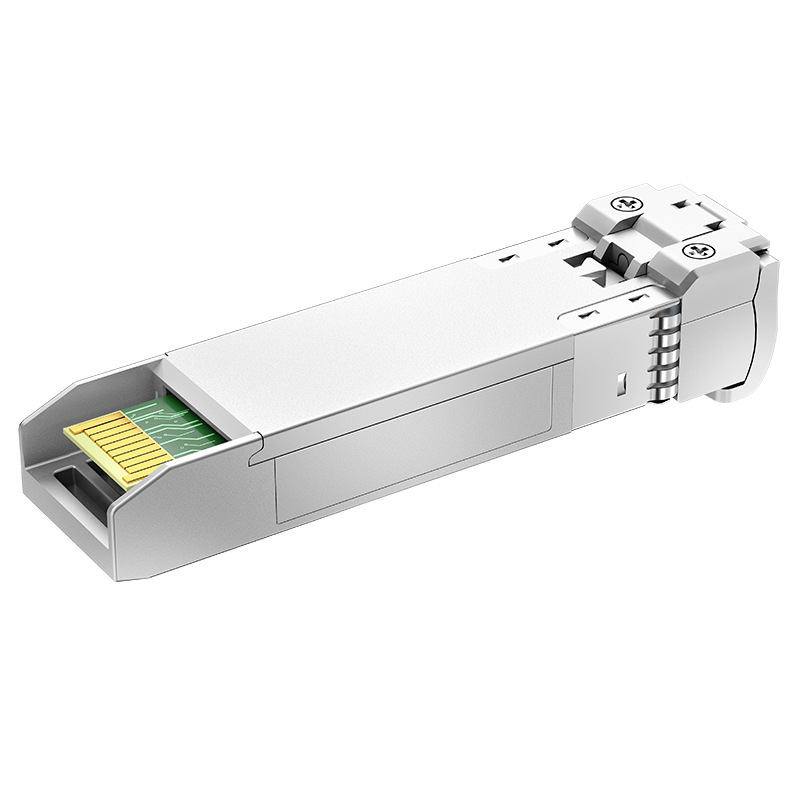

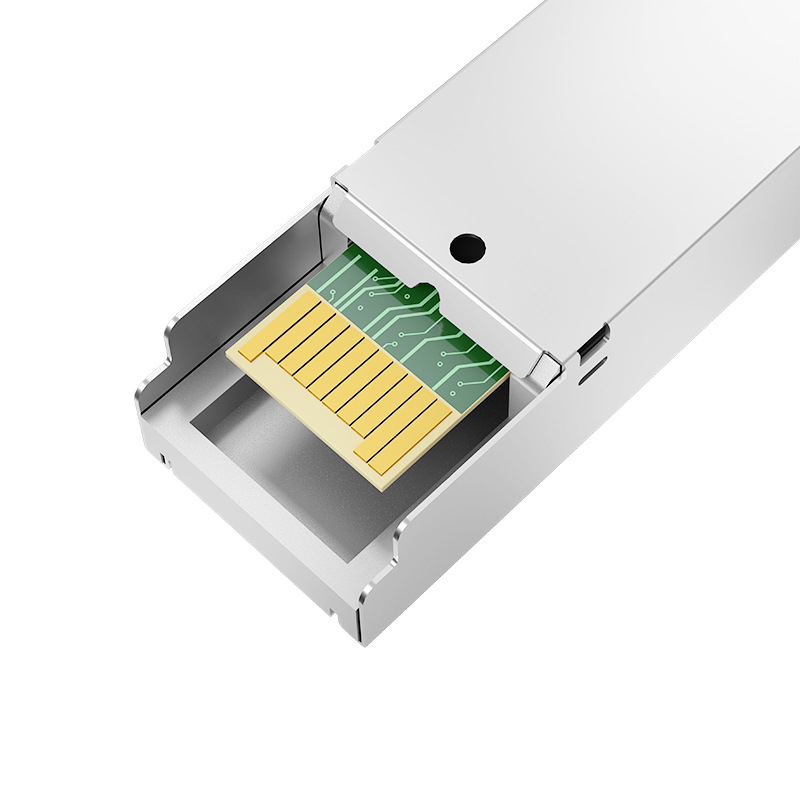

TRXCOM TS-BL273310-10C SFP+ 10Gbps BiDi Simplex LC/UPC Optical Transceiver Module(SMF, 1270nm-TX/1330nm-RX, 10km,DOM)

The TRXCOM TS-BL273310-10C is a high-performance SFP+ optical transceiver module for 10Gbps data transmission. It operates over single-mode fiber (SMF) with a reach of up to 10km. The module uses a 1270nm wavelength for transmission (TX) and a 1330nm wavelength for reception (RX), utilizing a Simplex LC/UPC connector. It supports Digital Optical Monitoring for real-time diagnostics and complies with SFP+   MSA standards. This transceiver is ideal for applications requiring high-speed, long-distance data links.

Trxcom Part NumberTS-BL273310-10CVendor NameTrxcom
Form FactorSFP+Max Data Rate10.7Gbps
Wavelength1270nm-TX/1330nm-RXMax Cable Distance10km
ConnectorSimplex LCOptical ComponentsDFB
MediaSMFReceiver TypePIN
TX Power-6.5 to +2dBmRX Power-17 to +1dBm
Receiver Sensitivity-14.4dBmReceiver Overload0.5dBm
Operating case temperature0 to 70°CProtocolsSFP+ MSA Compliant, CPRI, eCPRI

Matched Pairs: It must be used in pairs with SFP+ 1330nm-TX/1270nm-RX.
