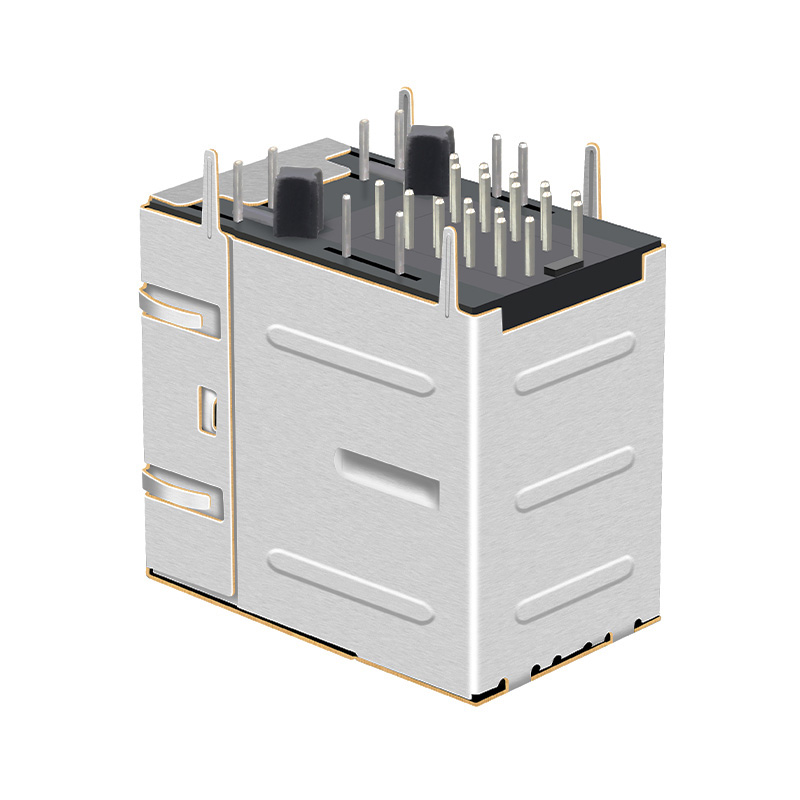

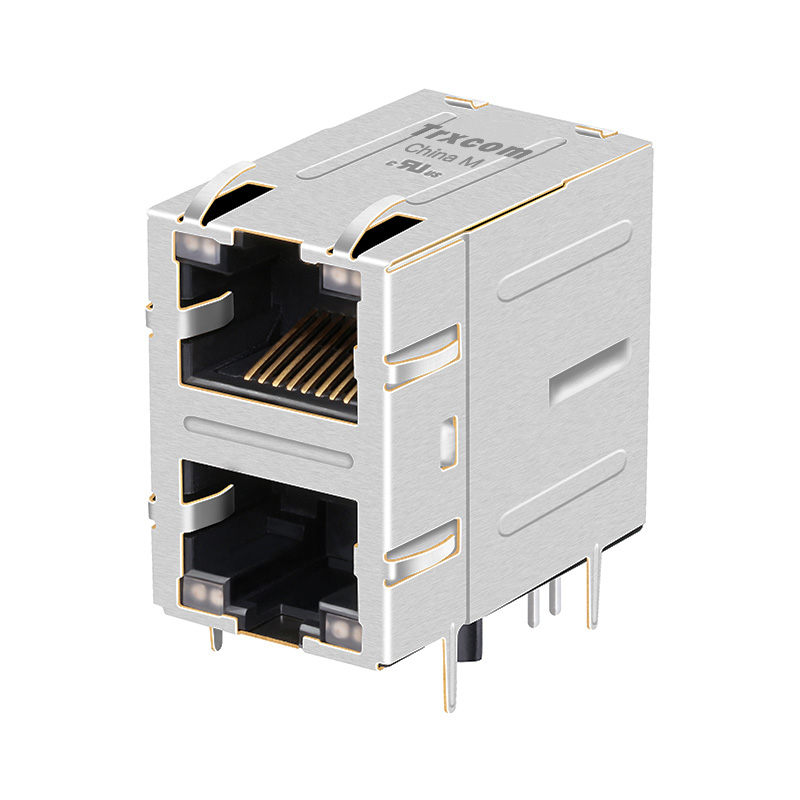

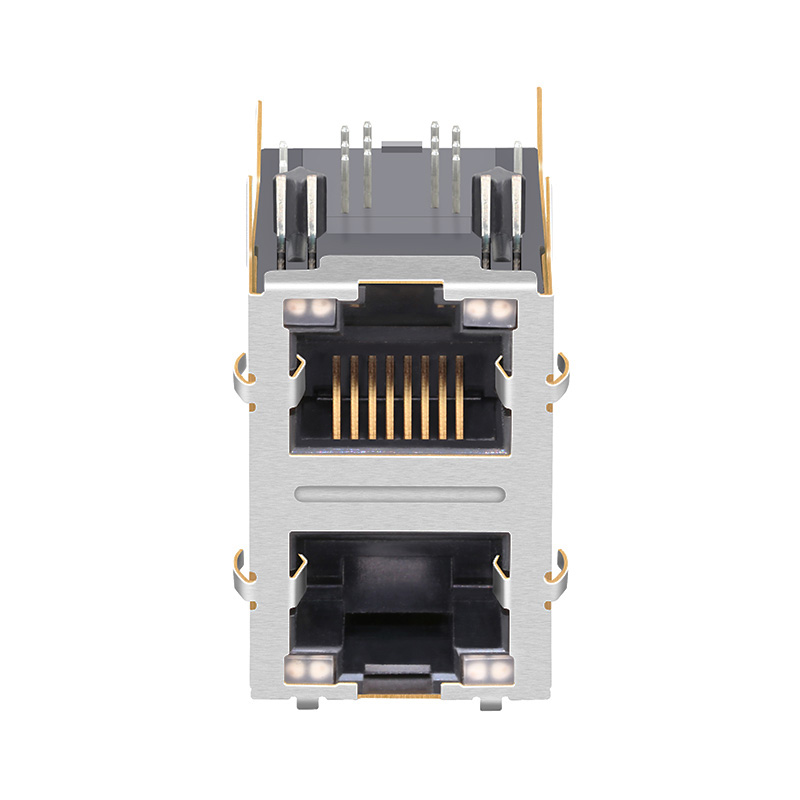

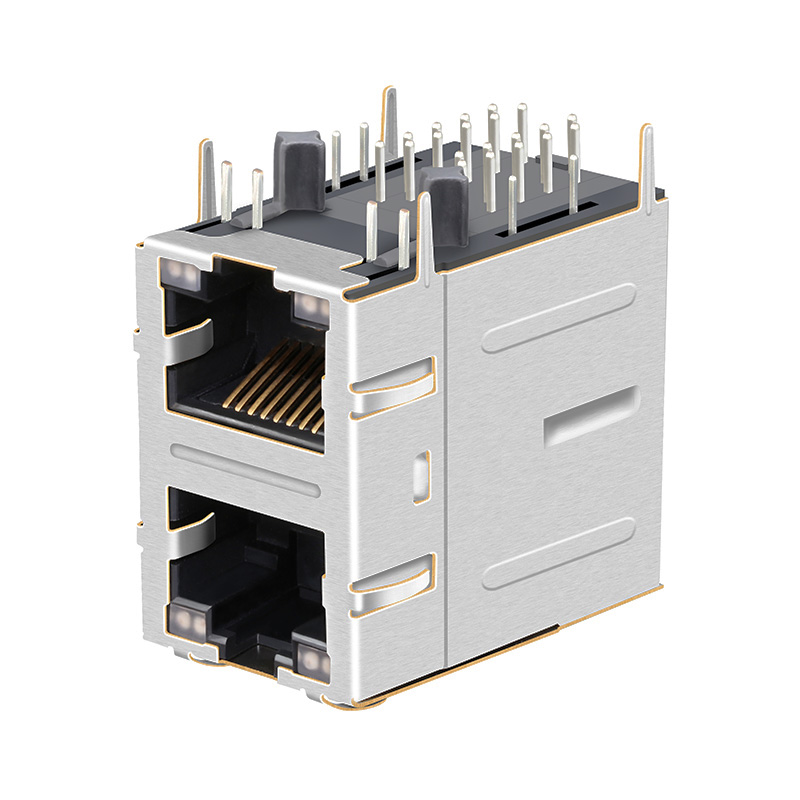

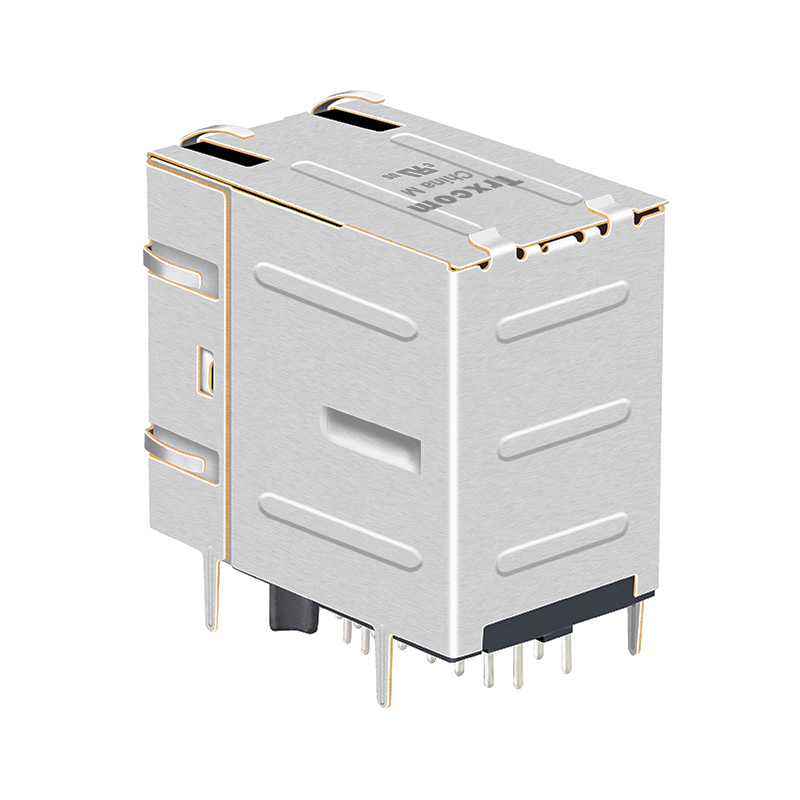

2X1 Port RJ45 MagJacks 1000 Base-T Yellow&Green/Yellow&Green Leds TRJG17020A4NL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJG17020A4NL
Port: ： 2X1
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up/Down
LED: ： Yellow/Green
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJG17020A4NL 1000 Base-T RJ45 2X1 Port MagJacks for Network Cardand Automation (Yellow&Green/Yellow&Green LED)）

The Trxcom TRJG17021A4NL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Card, Optical Terminal ,Game Controller and Automation.

Part NumberTRJG17020A4NLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts10p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports2x1 PortSpeed100/1000 Base-T
LatchUp/DownCores per Port8
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionYellow&Green/Yellow&Green
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)1.004/25.50Package Length (Inches/mm)1.130/28.70
Package Width (Inches/mm)0.676/17.16Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C

Quality Certifications

We strictly control product quality, including strict control of manufacturer qualifications, quality control processes and production process standards, and compliance with various certifications and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, ISO 14001, CE, RoHS, REACH, UL, etc. For more details, please visit the Compliance Center Center to get documents.

REACH
SGS ISO9001
SGS ISO 14001
UKCA
CE
CE
