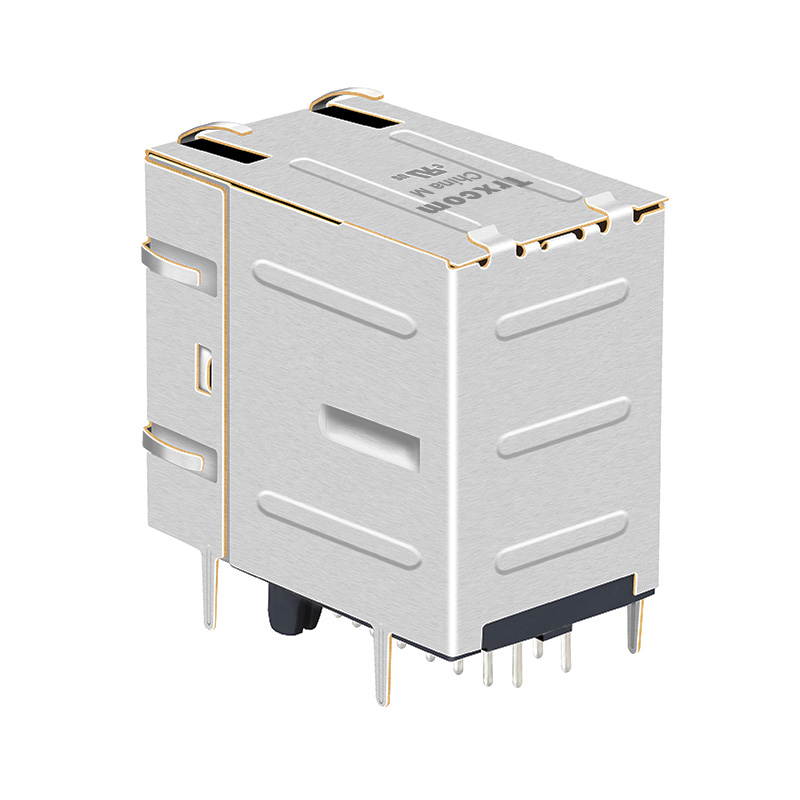

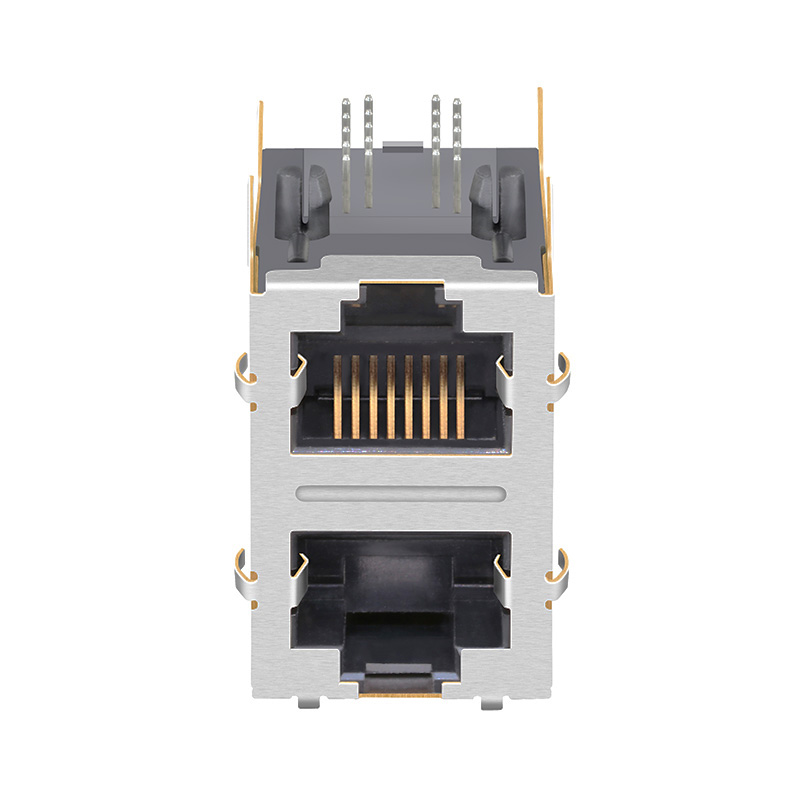

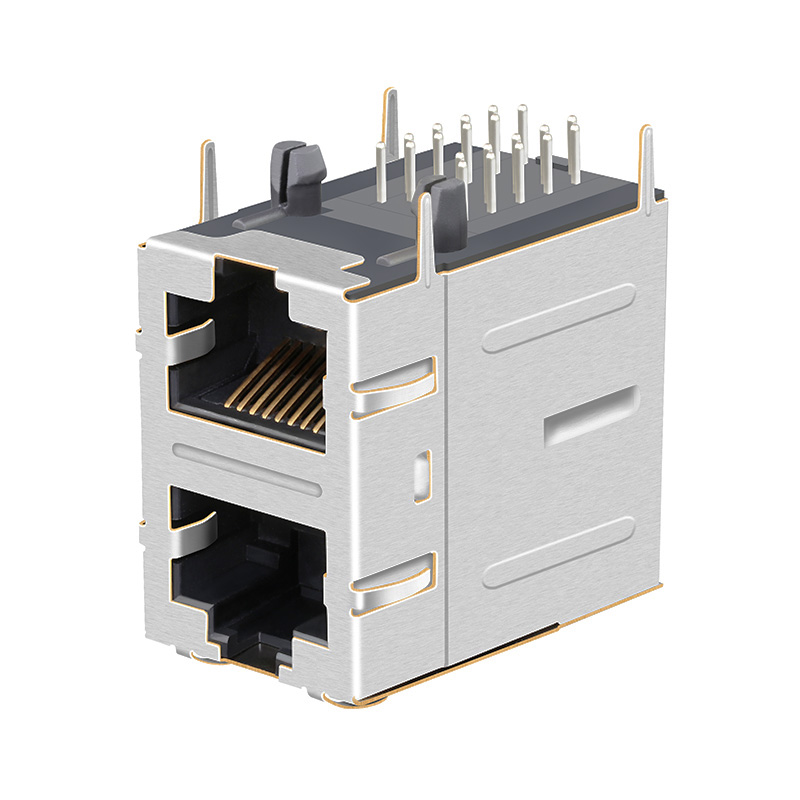

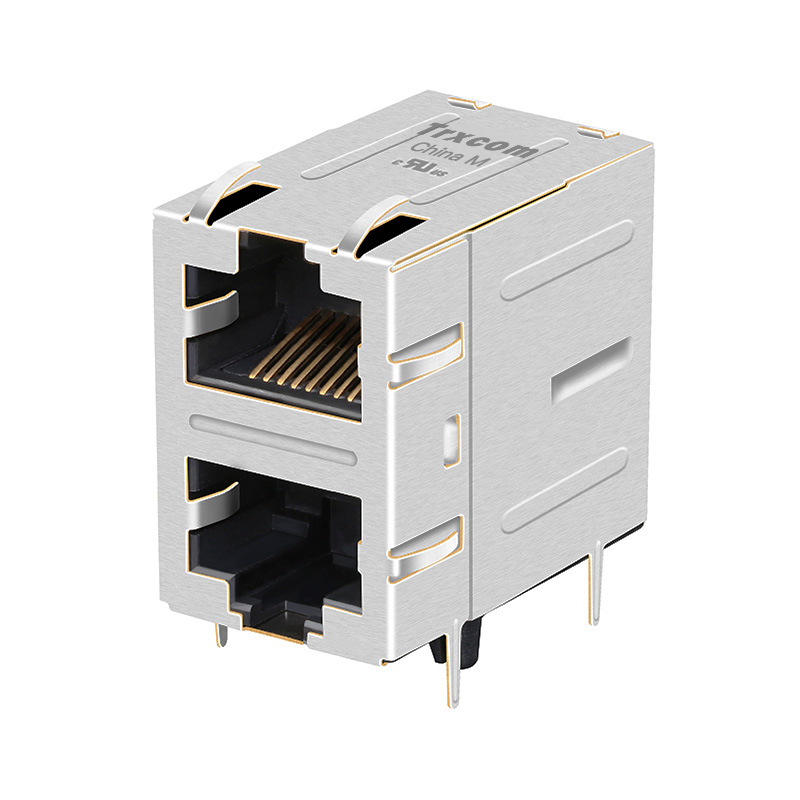

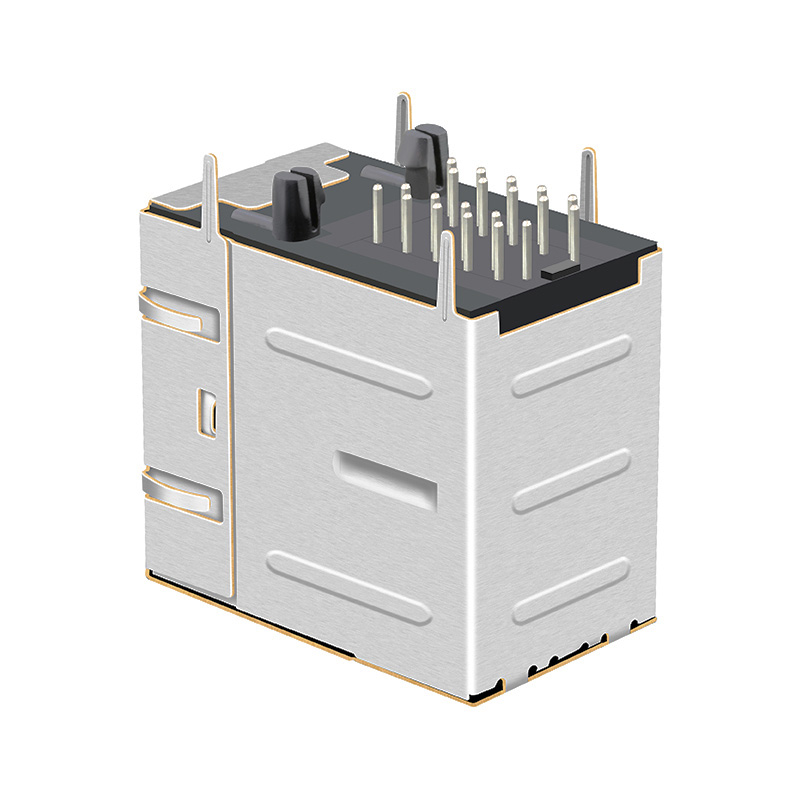

2X1 Port 10/100/1000 Base-T 10P8C RJ45 Magnetic Jack Tab Up Without LED TRJG17512CNL
share
Parameter
Brand: ： Trxcom
P/N: ： TRJG17512CNL
Port: ： 2X1
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up/Down
LED: ： No LED
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
DetailReview(0)
TRXCOM TRJG17512CNL 8P8C 2x1 Port RJ45 Connector with 10/100/1000 Base-T Integrated Magnetics, Without LED,Tab Up,RoHS
The TRJG17512CNL model from Trxcom supports 10/100/1000 Base‑T transmission rates and complies with IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001 standards. It is applicable to application scenarios such as intercom systems, optical terminals, embedded motherboards and Ethernet control.
| Part Number | TRJG17512CNL | Connector Type | Jack |
| Part Status | Active | Mounting Type | Through Hole |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 2x1 Port | Speed | 10/100/1000 Base-T |
| Latch | Up/Down | Cores per Port | 8 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With | LED Option | Without |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.996/25.30 | Package Length (Inches/mm) | 1.122/28.49 |
| Package Width (Inches/mm) | 0.677/17.20 | Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes | AutomDX | YES |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C |
Quality Certifications
We strictly control product quality, including strict control of manufacturer qualifications, quality control processes and production process standards, and compliance with various certifications and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, ISO 14001, CE, RoHS, REACH, UL, etc. For more details, please visit the Compliance Center Center to get documents.
