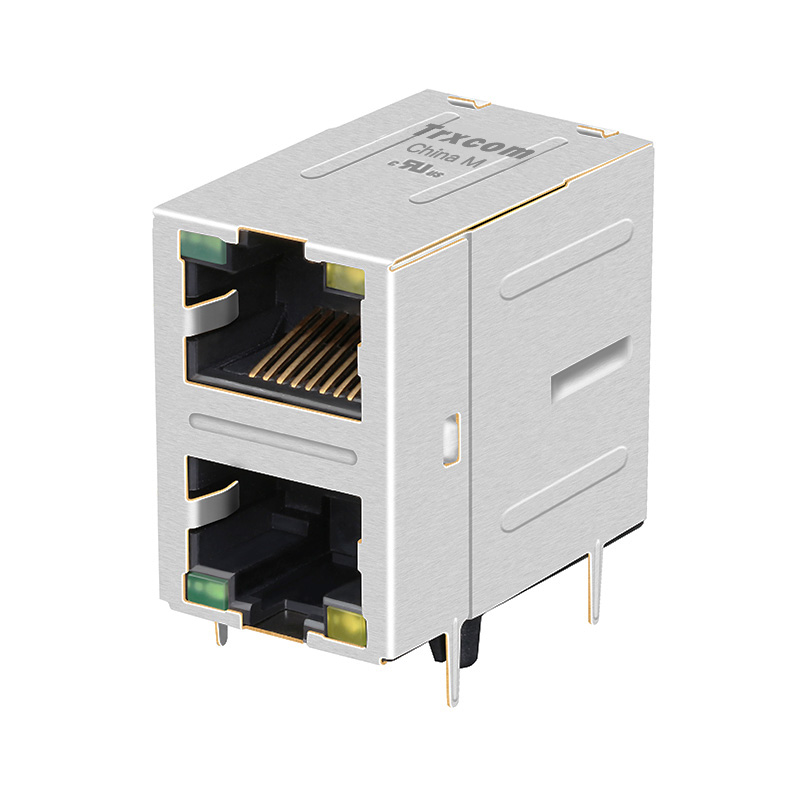

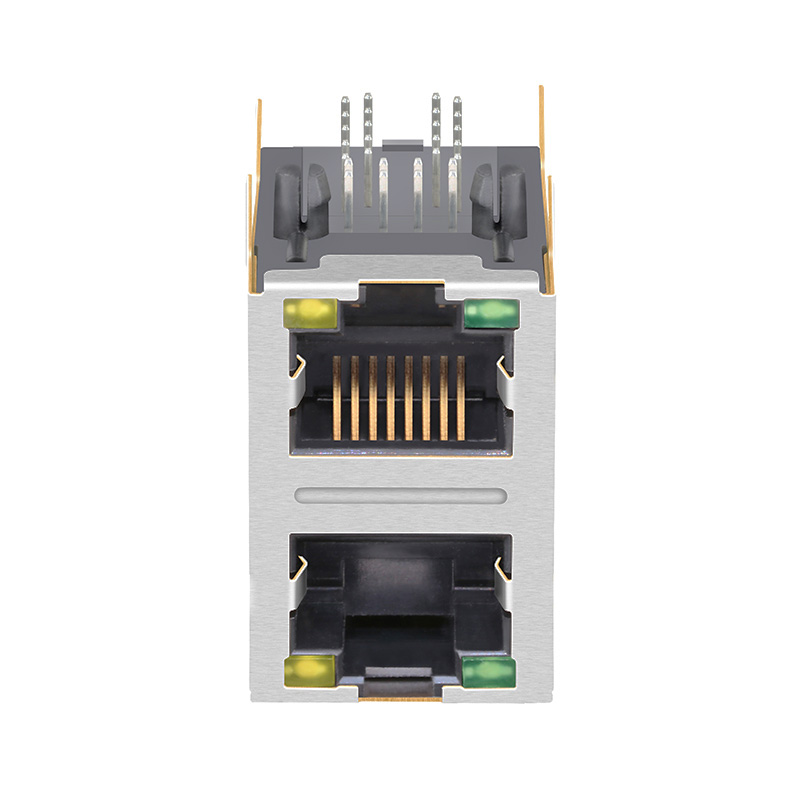

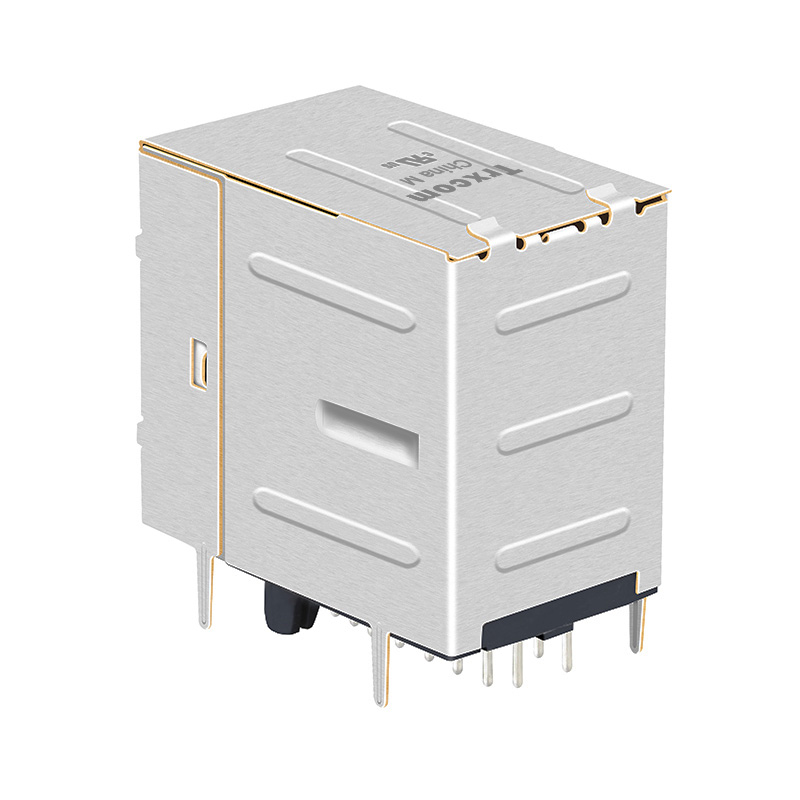

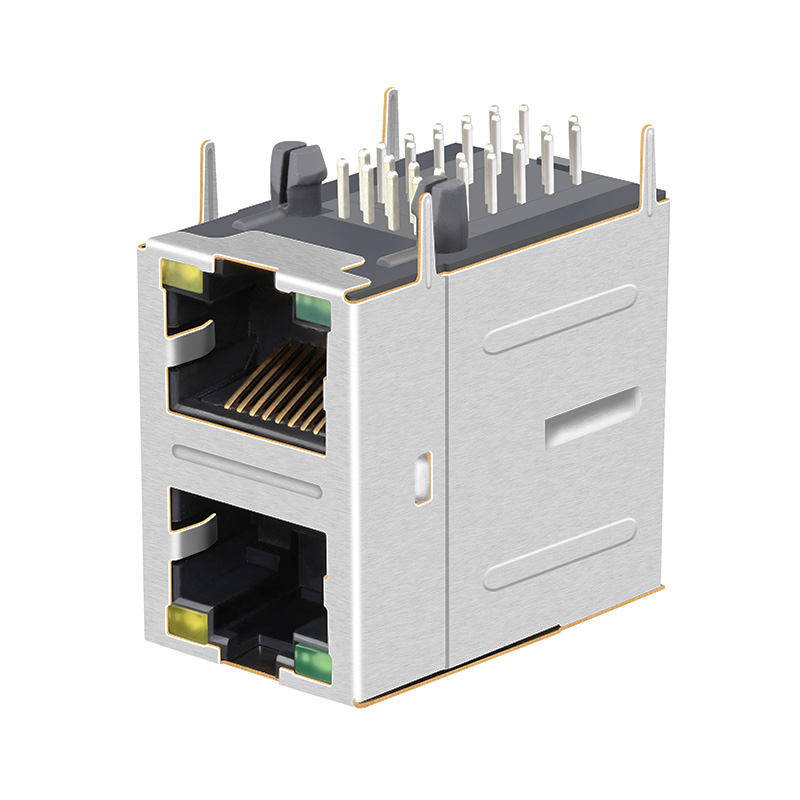

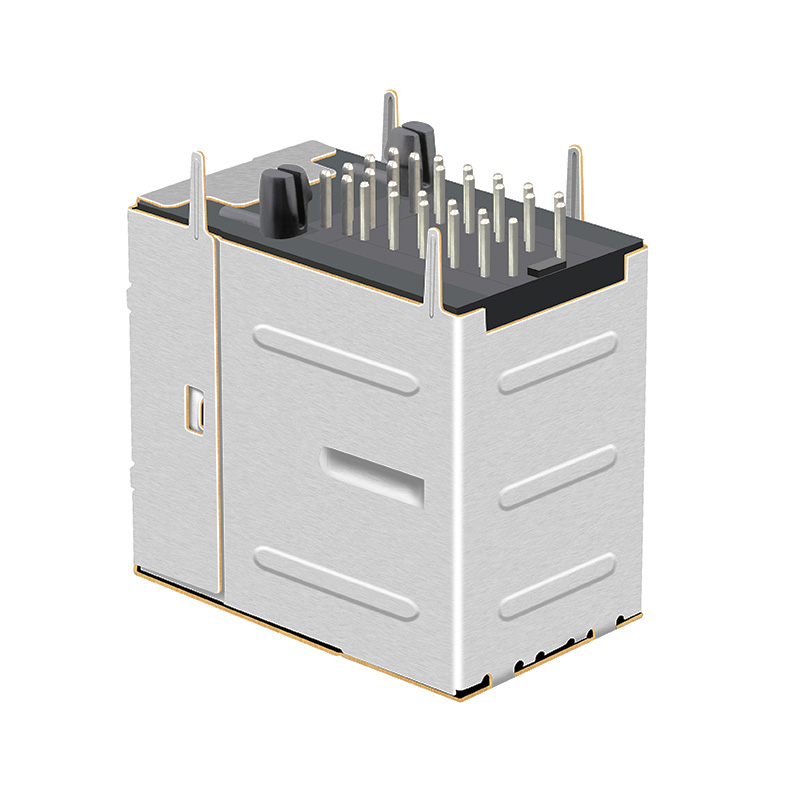

TRJG17512BHNL 2X1 Port 10/100/1000 Base-T Shielded RJ45 Jack Tab Up Green/Yellow LED

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJG17512BHNL
Port: ： 2X1
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up/Down
LED: ： Green/Yellow
Mount: ： 0℃ to 70℃
Shield Tabs: ： No
Get a Quote
Consult products
DetailReview(0)

TRXCOM TRJG17512BHNL 10/100/1000 Base-T Shielded RJ45 Jack for Intercom and Ethernet Control (2x1 Port,Green/Yellow LED)

The Trxcom TRJG17512AHNL supports speed 10/100/1000 Base-T, it is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support application, such as Intercom,Optical Terminal,Embedded Main Board and Ethernet Control.

Part NumberTRJG17512BHNLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts10p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports2x1 PortSpeed10/100/1000 Base-T
LatchUp/DownCores per Port8
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionGreen/Yellow
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)1.015/25.7Package Length (Inches/mm)1.122/28.50
Package Width (Inches/mm)0.678/17.21Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
