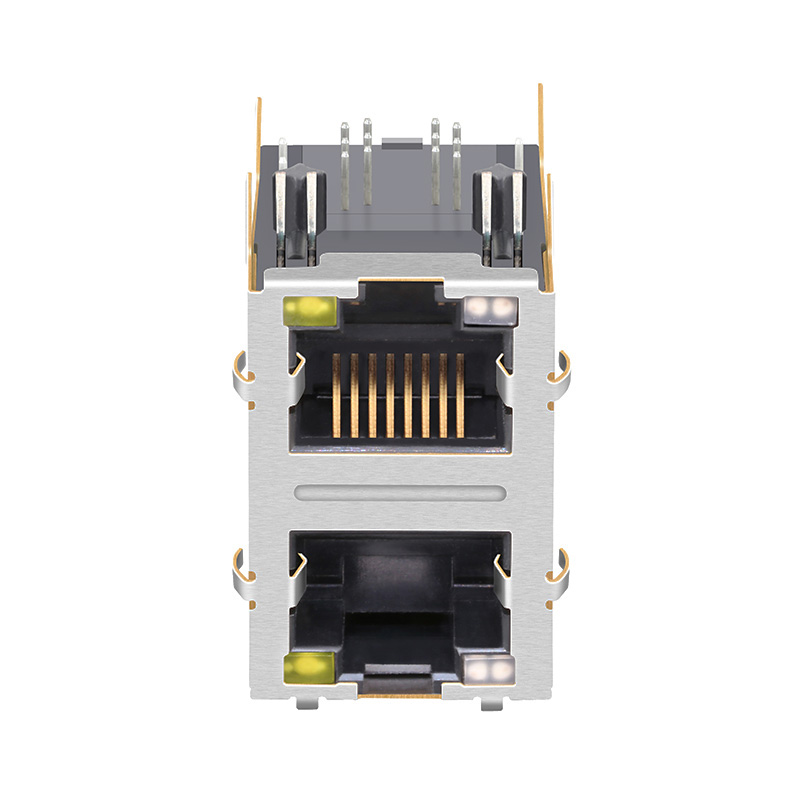

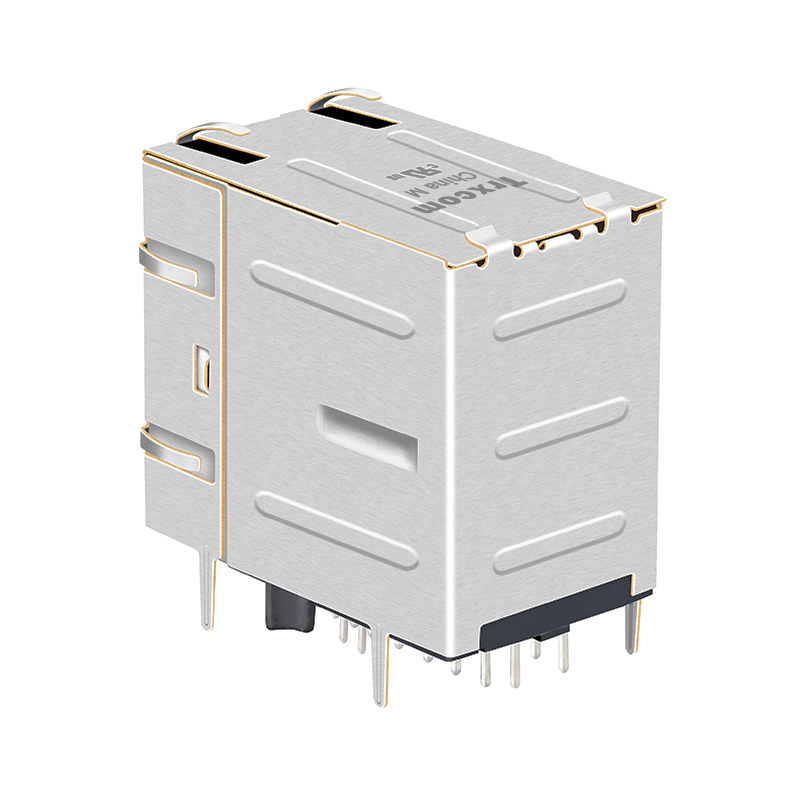

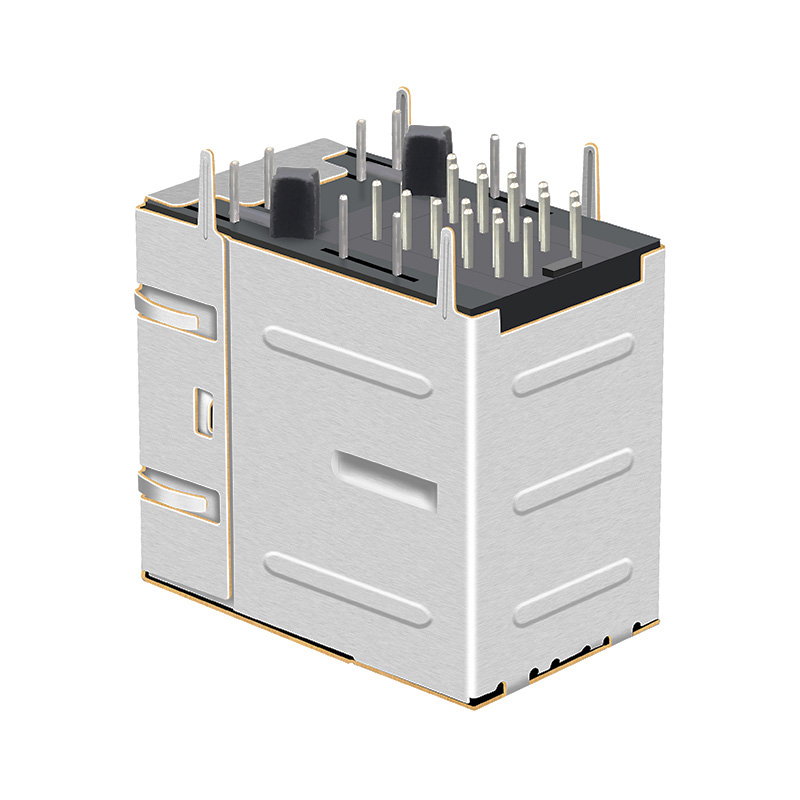

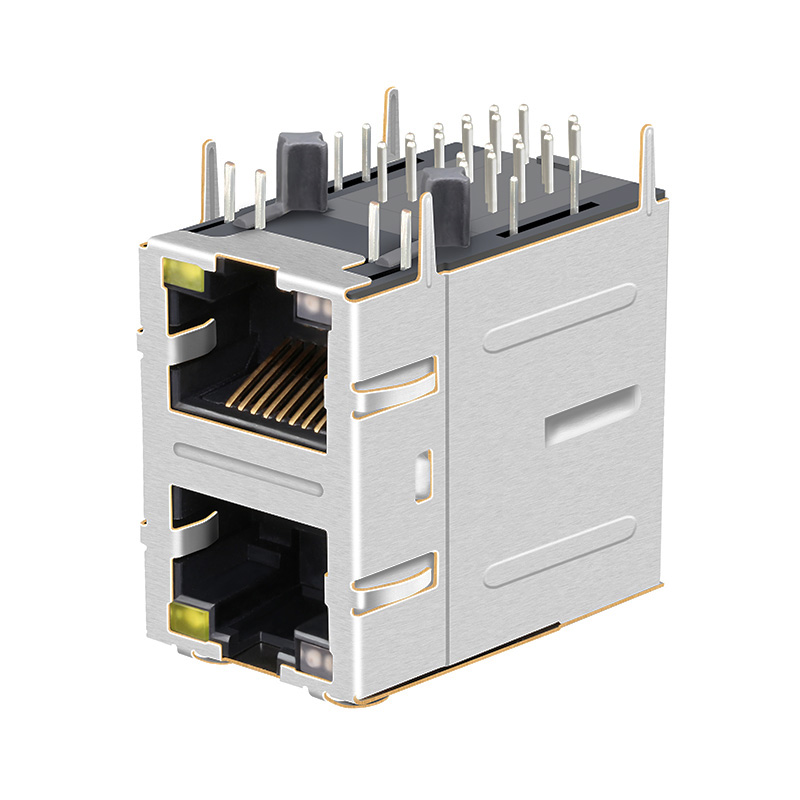

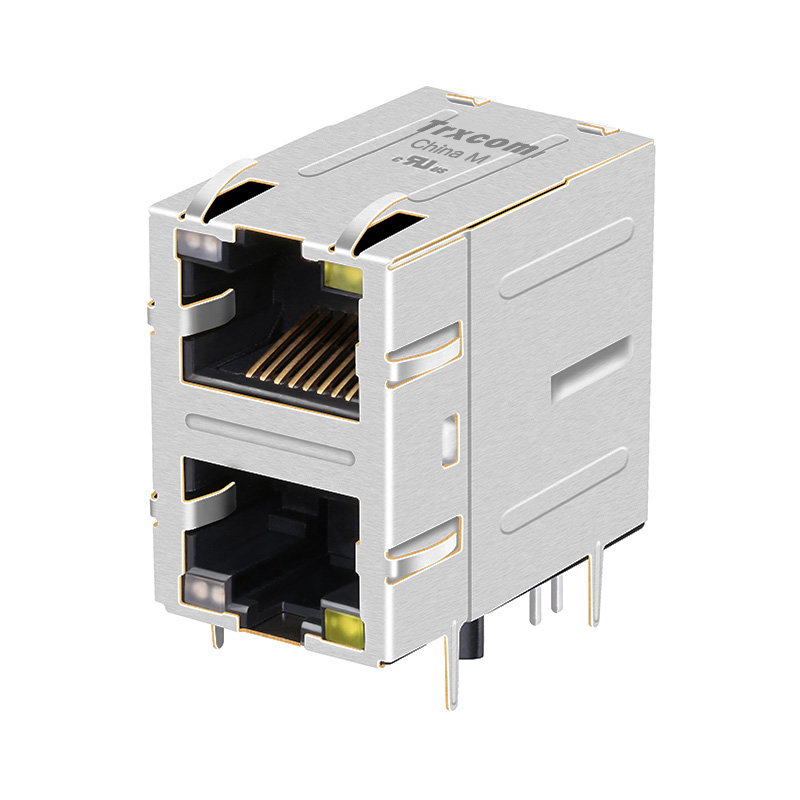

2X1 Port RJ45 MagJack Connectors 1000 Base-T Orange&Green/Yellow Leds TRJG17039A61NL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJG17039A61NL
Port: ： 2X1
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up/Down
LED: ： Orange & Green / Yellow
Mount: ： -40℃ to +85°C
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

TRXCOM TRJG17039A61NL 1000 Base-T RJ45 MagJack Connectors for Network Cardand Automation (2x1 Port, Orange&Green/Yellow LED)

The Trxcom TRJG17039A61NL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Card, Optical Terminal ,Game Controller and Automation.

Part NumberTRJG17039A61NLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts10p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports2x1 PortSpeed100/1000 Base-T
LatchUp/DownCores per Port8
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionOrange&Green/Yellow
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)1.004/25.50Package Length (Inches/mm)1.130/28.70
Package Width (Inches/mm)0.676/17.16Temperature-40℃ TO +85℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
