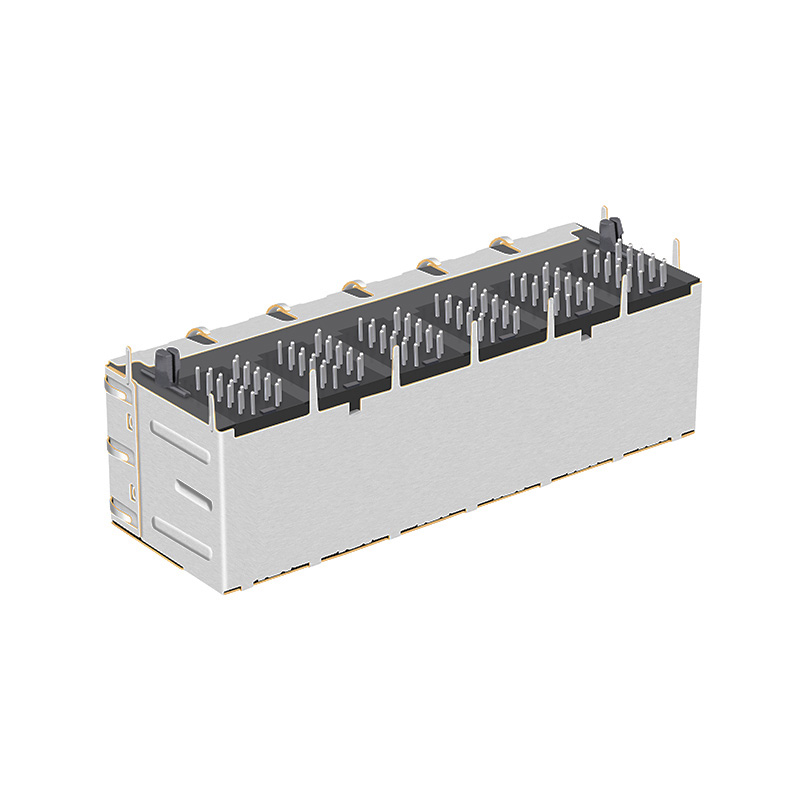

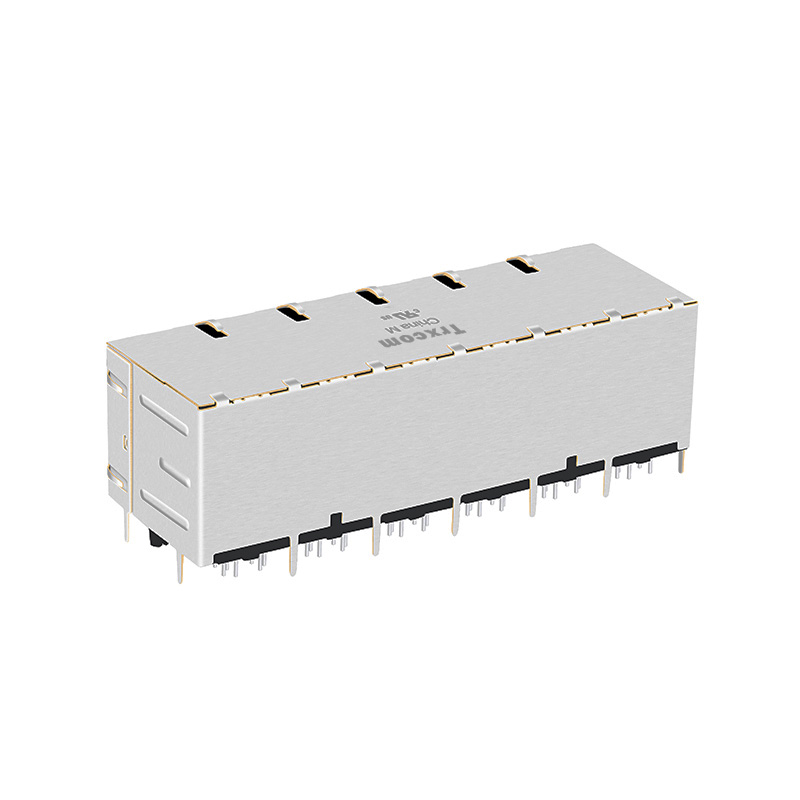

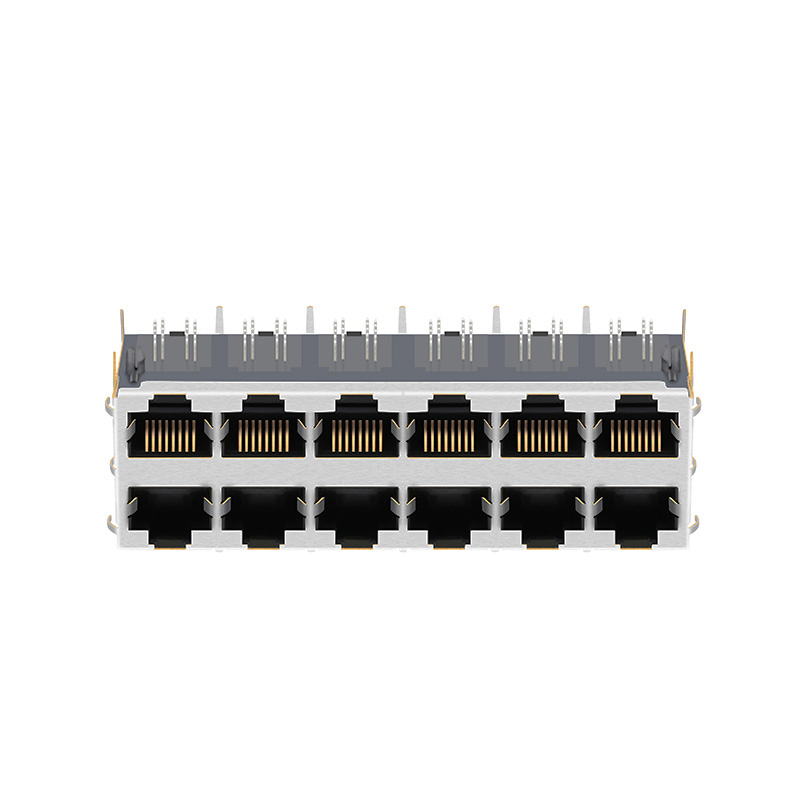

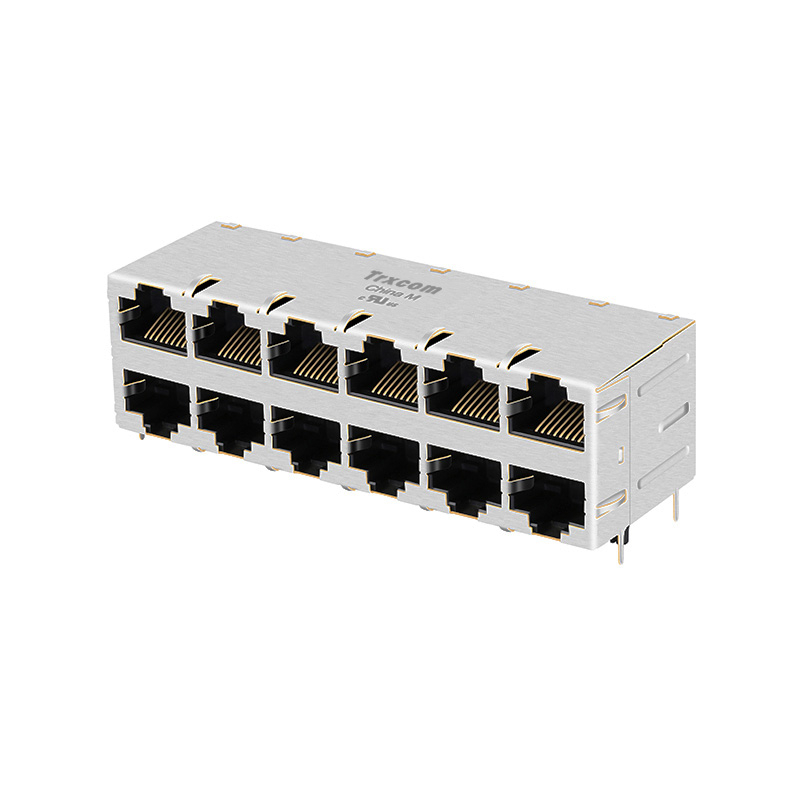

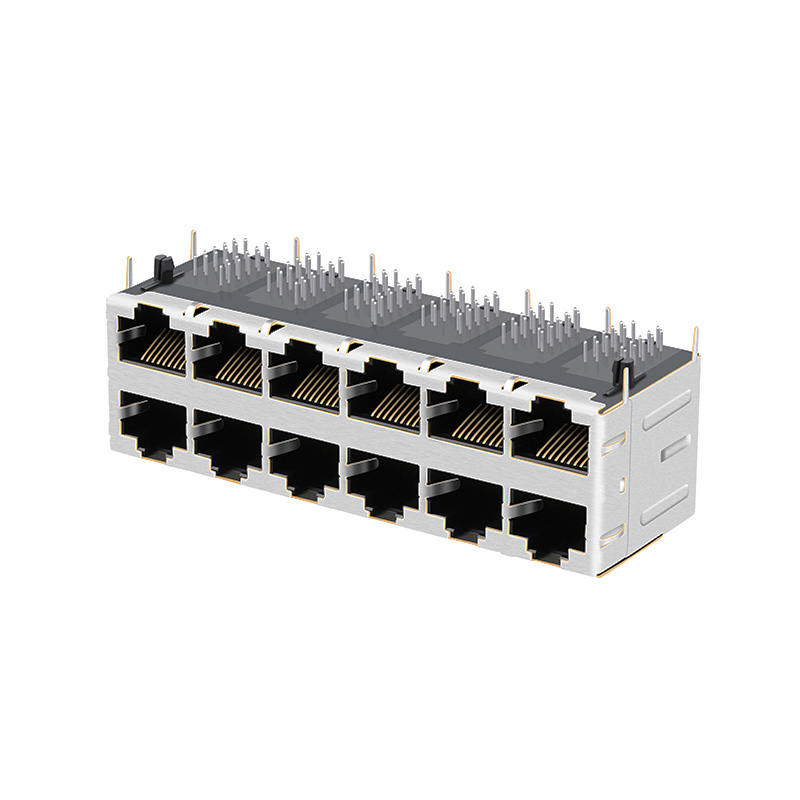

10/100/1000 Base-T 2x6 Port RJ45 Ethernet Connectors 10p8c Without LED TRJG67547CNL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJG67547CNL
Port: ： 2X6
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up/Down
LED: ： No LED
Mount: ： -40℃ to +85°C
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJG67547CNL 10/100/1000   Base-T RJ45 Network Connectors for Game Controller and Automation (2x6 Port , Without LED)

The Trxcom TRJG67547CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Card, Optical Terminal ,Game Controller and Automation.

Part NumberTRJG67547CNLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts10p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports2x6 PortSpeed10/100/1000 Base-T
LatchUp/DownCores per Port8
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionWithout Leds
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)1.015/25.79Package Length (Inches/mm)1.116/28.35
Package Width (Inches/mm) 3.430/87.12Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
