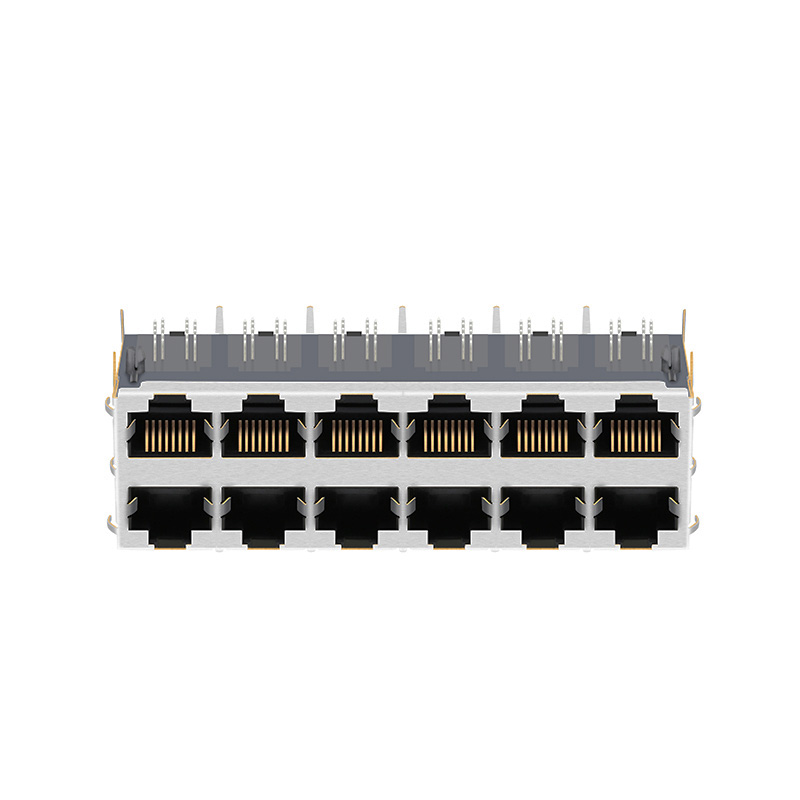

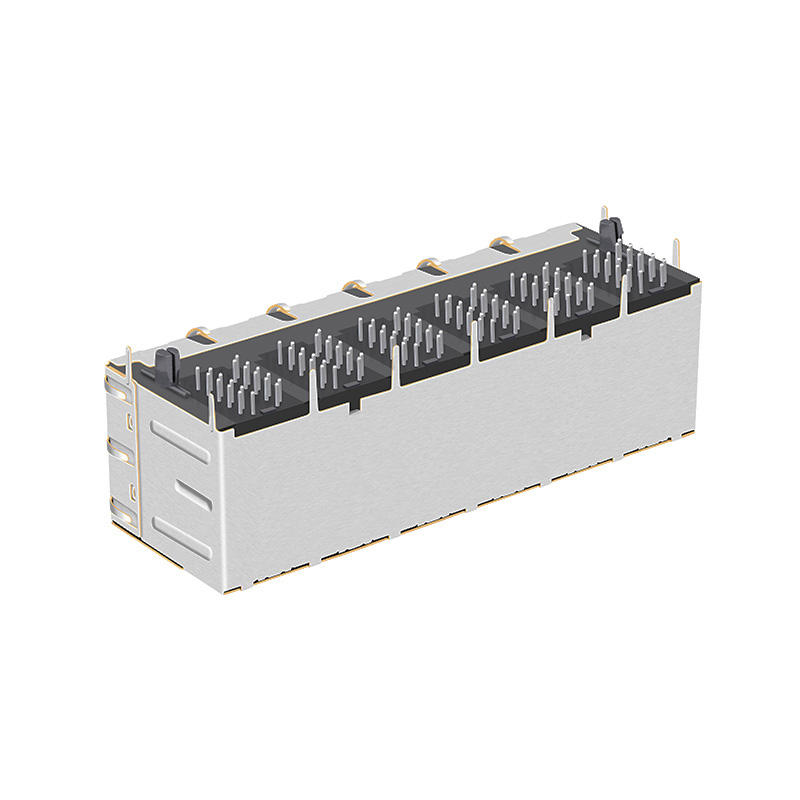

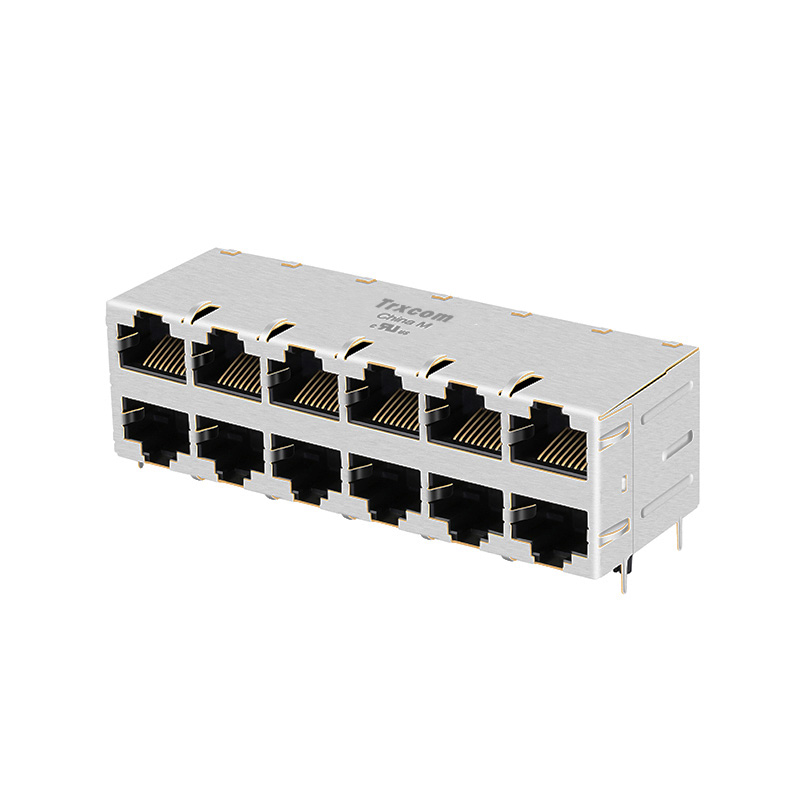

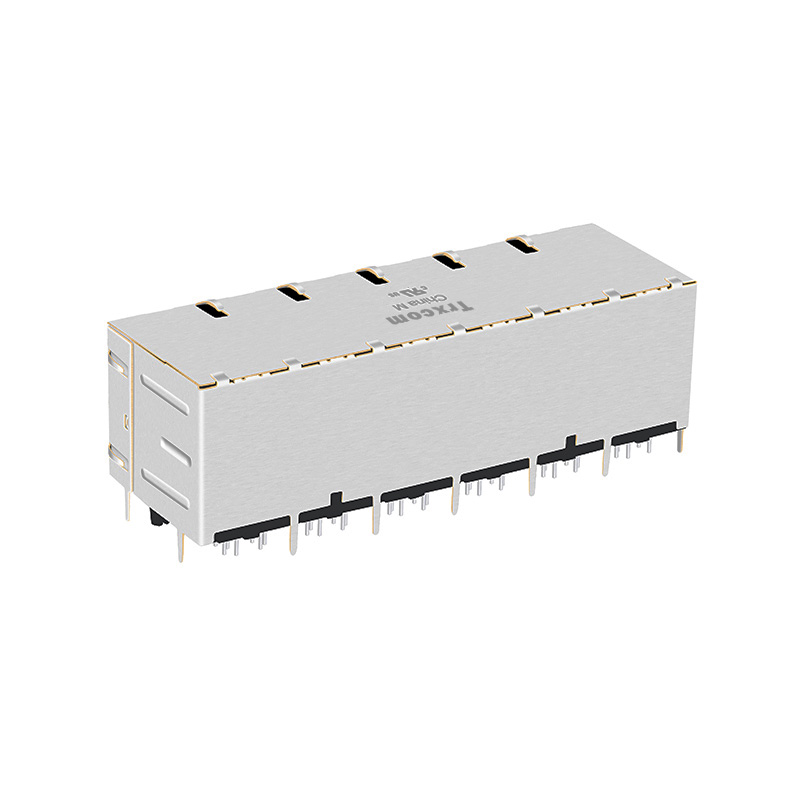

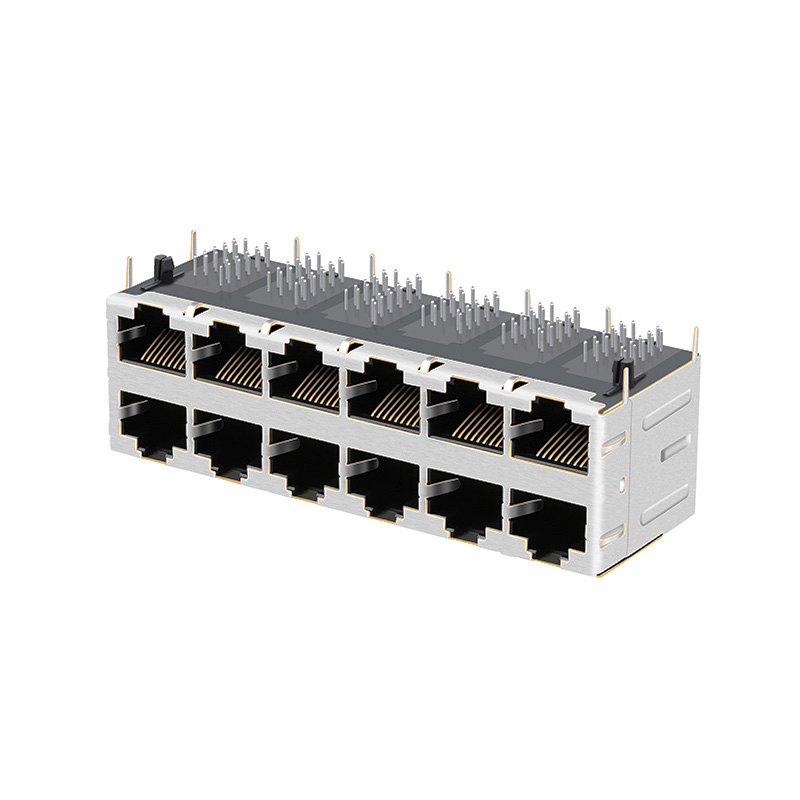

100/1000 Base-T 2x6 Port 10P8C Stacked RJ45 Connectors Without Led TRJG67537CNL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJG67537CNL
Port: ： 2X6
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up/Down
LED: ： No LED
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJG67537CNL 100/1000 Base-T Stacked RJ45 Connectors for Switches and Server (2x6 Port, Without Led)

The TRJG67537CNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Intercom, Network Firewall, Switches and Server.

Part NumberTRJG67537CNLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts10p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports2x6 PortSpeed10/100/1000 Base-T
LatchUp/DownCores per Port8
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionWithout
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)1.015/25.79Package Length (Inches/mm)1.116/28.35
Package Width (Inches/mm)3.430/87.12Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
