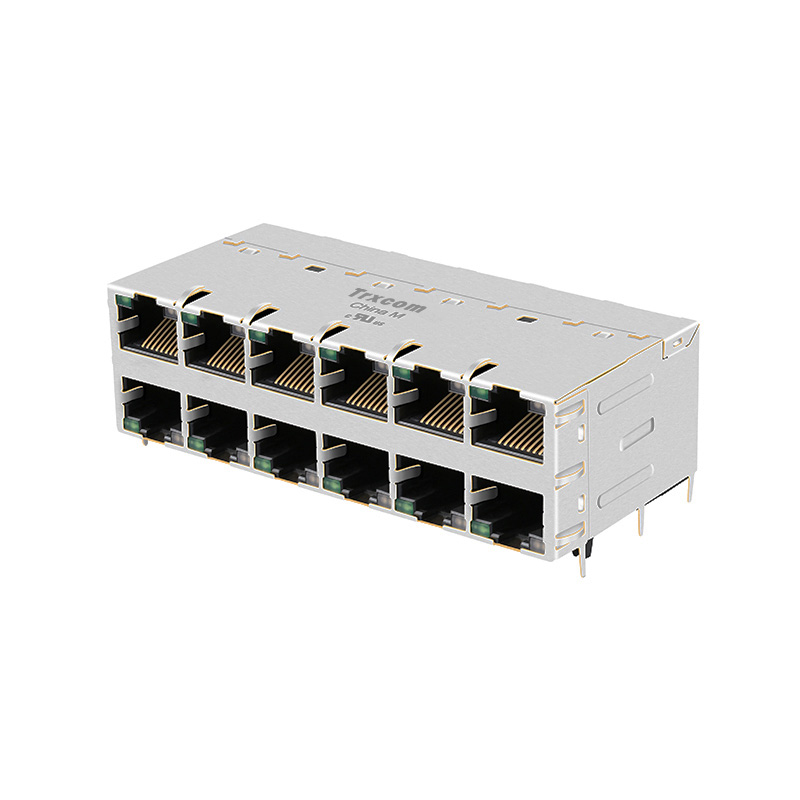

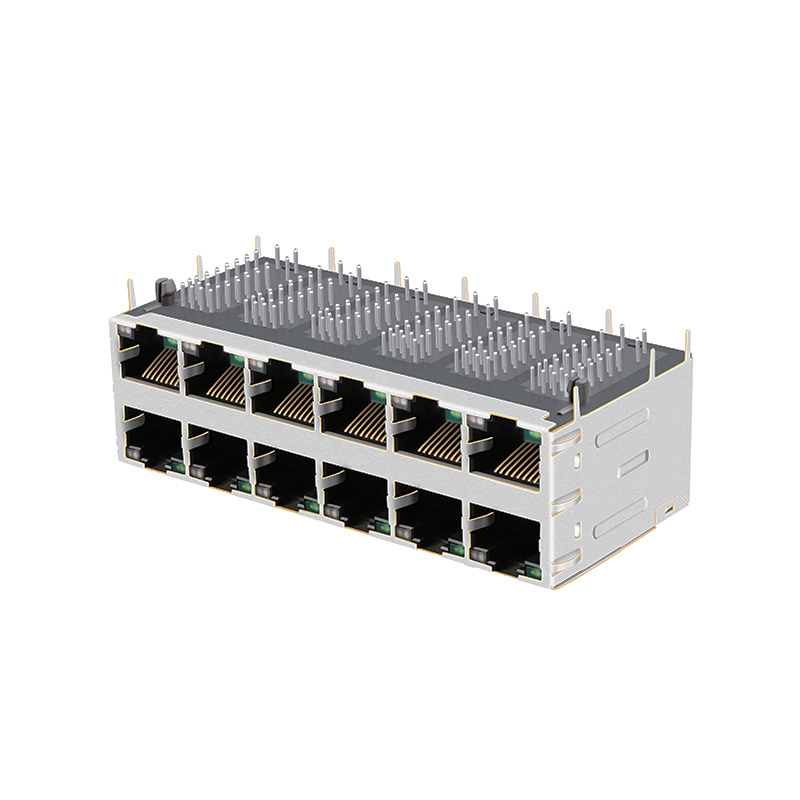

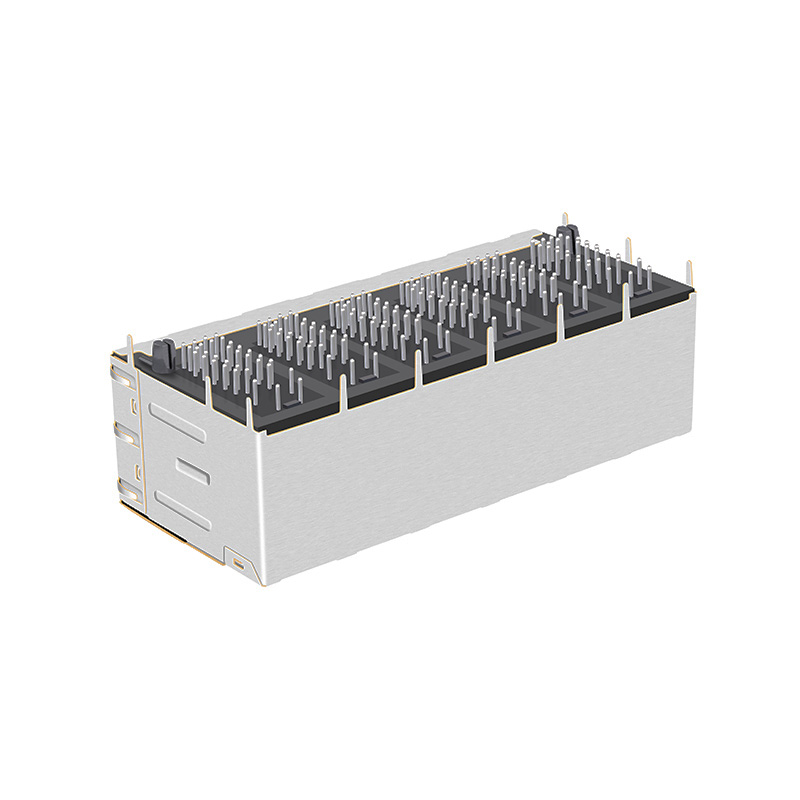

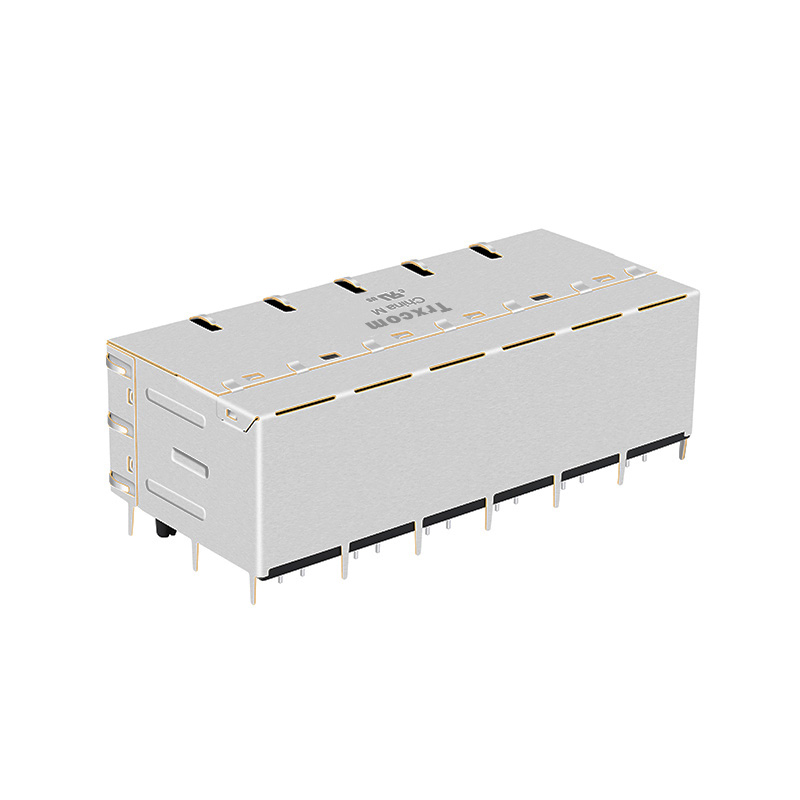

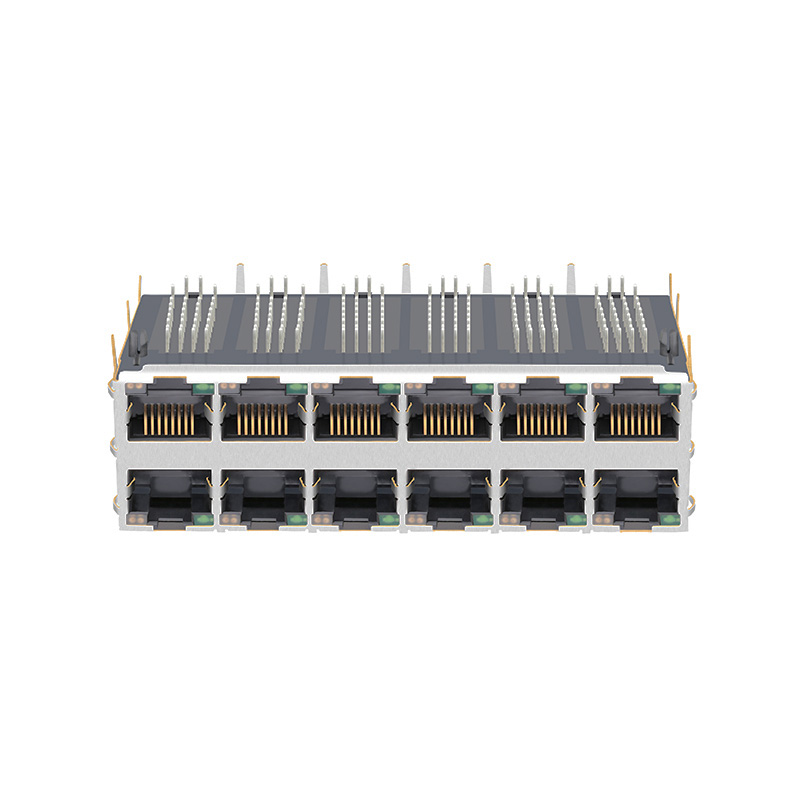

100/1000 Base-T RJ45 PoE+ Magnetics Jacks 2x6 Port Green/White LED TRJG67041A26NL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJG67041A26NL
Port: ： 2X6
Rate: ： 1000Base-T
PoE: ： PoE+
Latch: ： Up/Down
LED: ： Green/White
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

TRJG67041A26NL 100/1000 Base-T RJ45 PoE+ Magnetics Jacks 2x6 Port Green/Withe LED

TRJG67041A26NL supports 100/1000 Base-T rate and complies with IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001 standards. It can be applied to network cards, optical terminals, game controllers, automation equipment and other scenarios.

Part NumberTRJG67041A26NLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts10p8c (RJ45, Ethernet)Application-LanEthernet(PoE+)
Number of Ports2x6 PortSpeed100/1000 Base-T
LatchUp/DownCores per Port8
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionGreen/Withe
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)1.015/25.79Package Length (Inches/mm)1.517/38.53
Package Width (Inches/mm)3.430/87.12Temperature-40℃ TO +85℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
