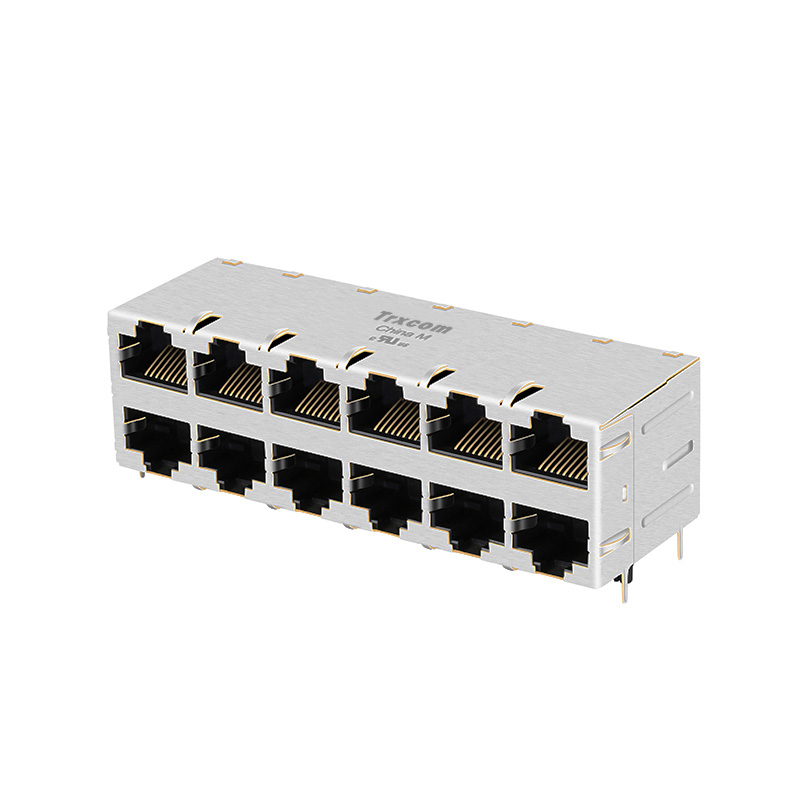

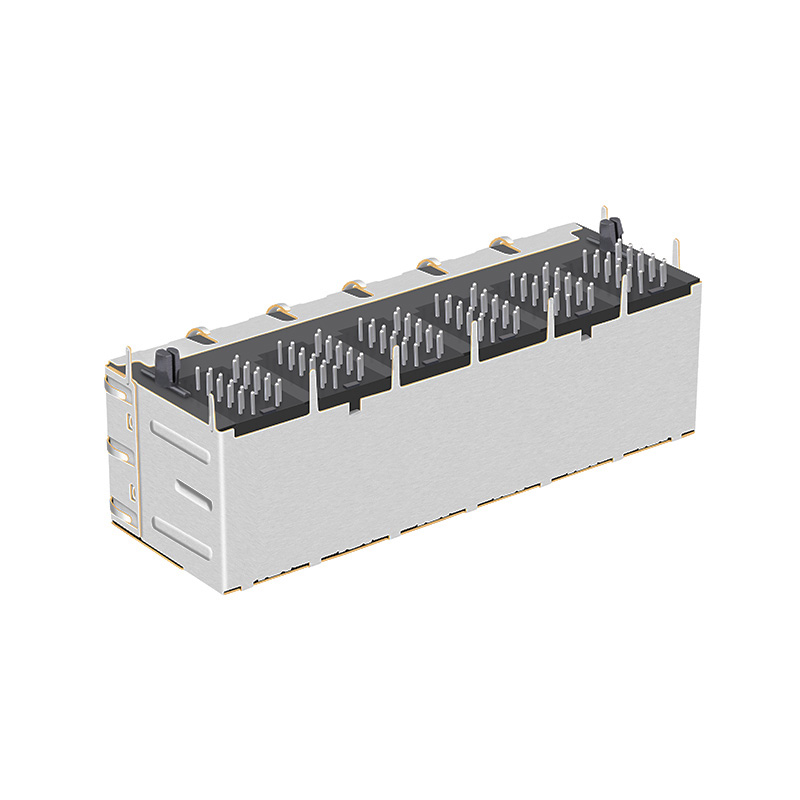

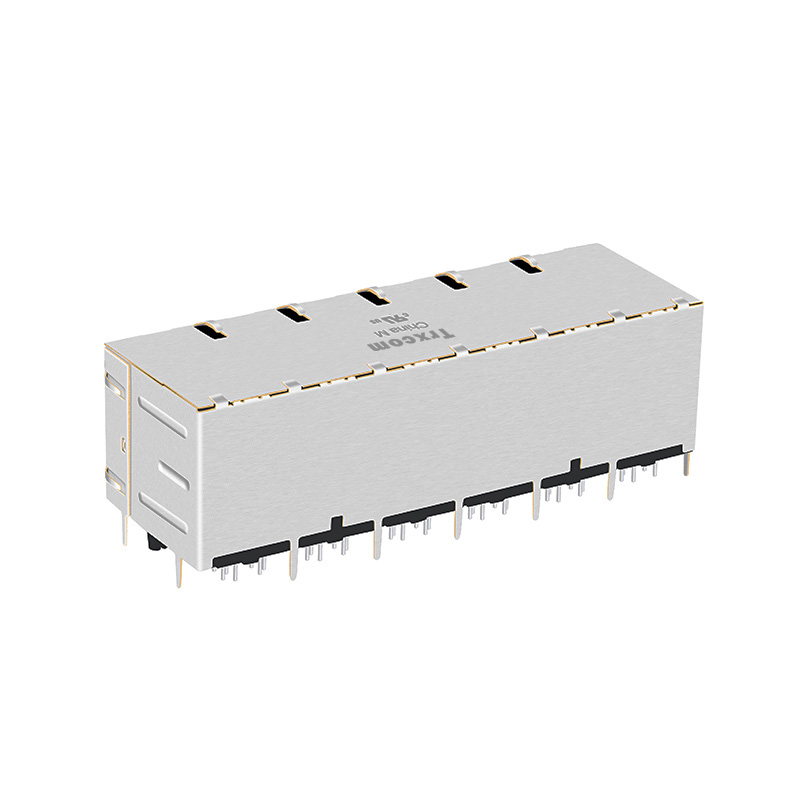

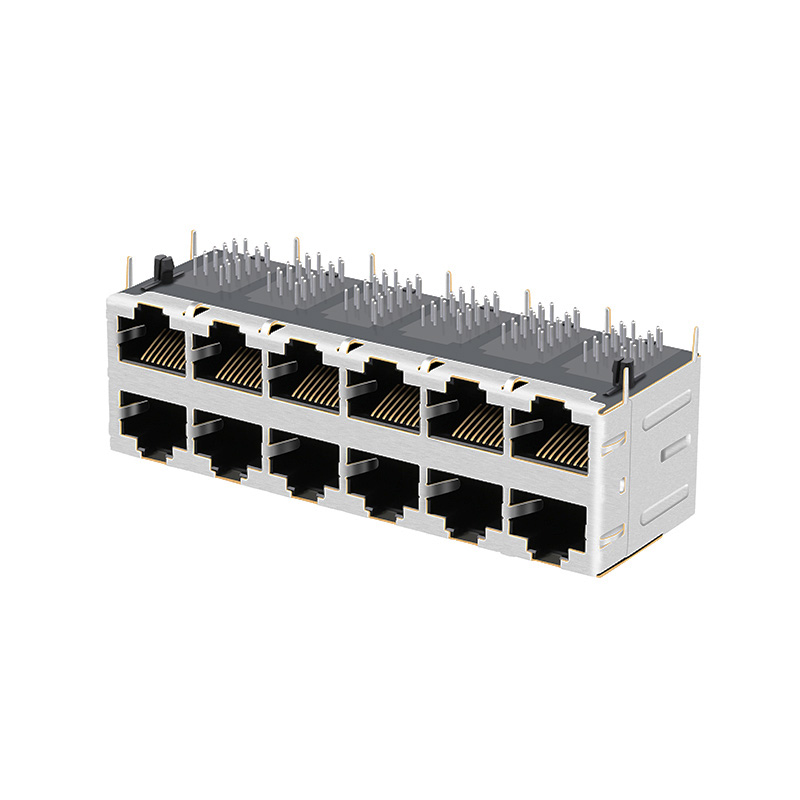

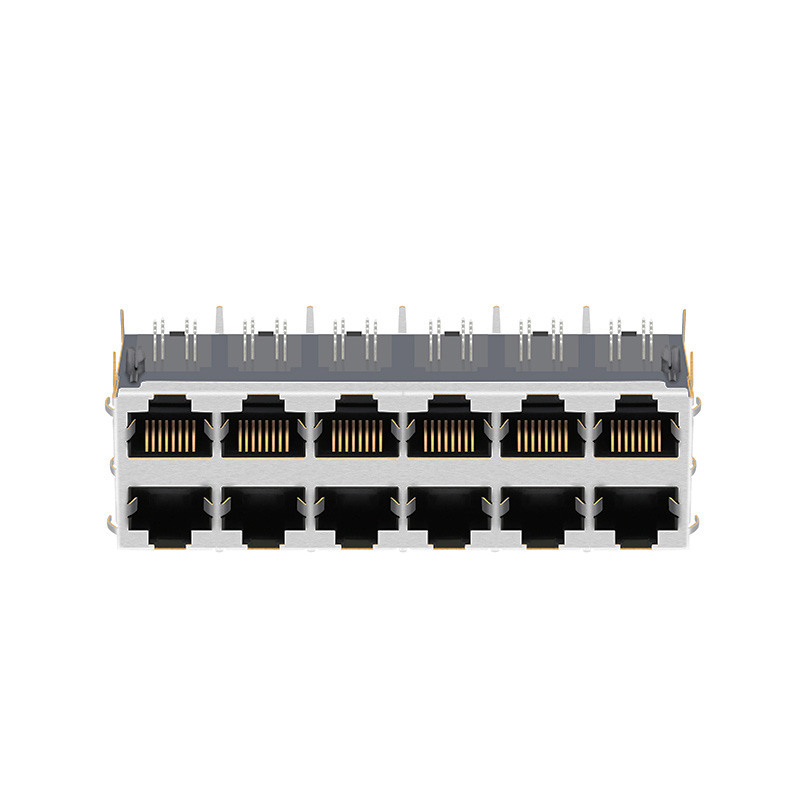

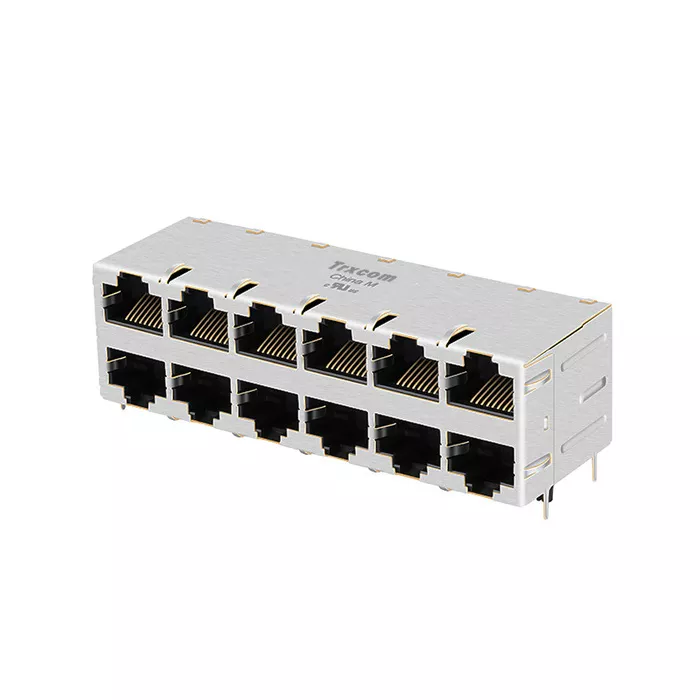

TRJG67548CNL 2X6 Port 100/1000Base-T RJ45 Connector with Integrated Magnetis
share
Parameter
Brand: ： Trxcom
P/N: ： TRJG67548CNL
Port: ： 2X6
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up/Down
LED: ： No LED
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
DetailReview(0)
Trxcom TRJG67548CNL 10/100/1000 Base-T RJ45 Ethernet Connector, Suitable for Game Controllers and Automation Equipment (2×6 Ports, Without Indicator Lights)
The Trxcom TRJG67548CNL supports 10/100/1000 Base-T transmission rates and complies with IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001 standards. It can be applied to scenarios such as network cards, optical terminals, game controllers and automation equipment.
| Part Number | TRJG67548CNL | Brand | Trxcom |
| Connector Type | Jack | Mounting Type | Through Hole |
| Number of Positions/Contacts | 10p8c(RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 2x6 Port | Speed | 10/100/1000 Base-T |
| Latch | UP | Cores per Port | 8 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | THT Solder |
| Shield EMI Tabs | With | LED Option | Without Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 1.015/25.79 | Package Length (Inches/mm) | 1.116/28.35 |
| Package Width (Inches/mm) | 3.430/87.12 | Temperature | 0℃ to 70℃ |
| Bst Circuit | Yes | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
