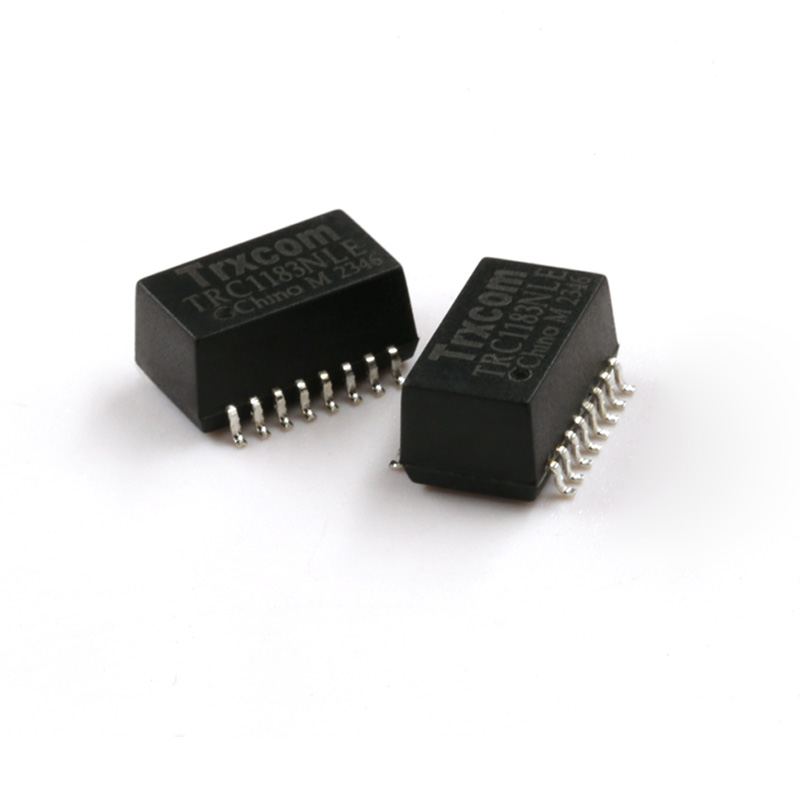

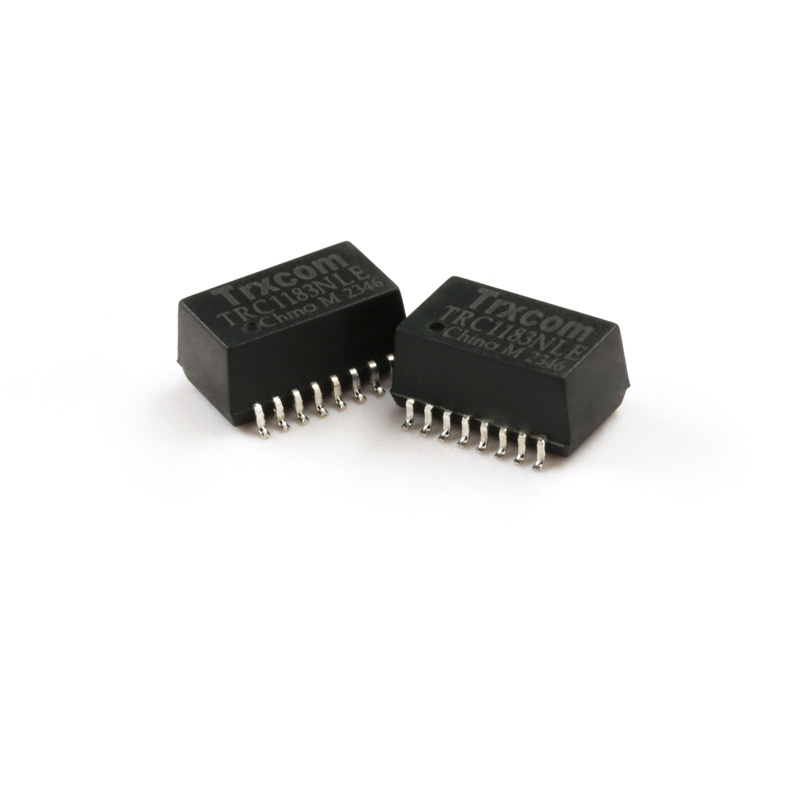

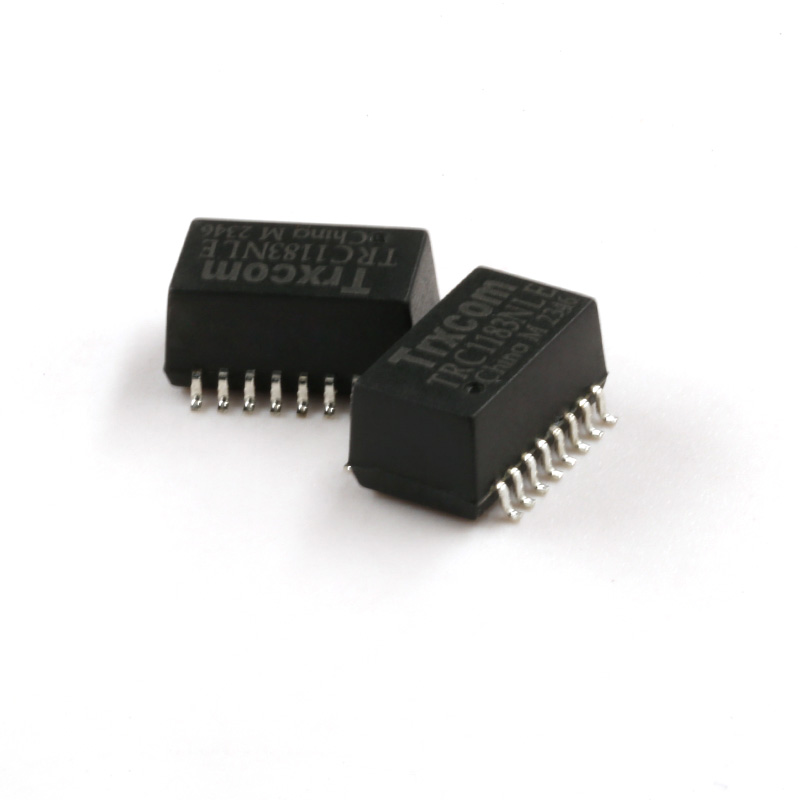

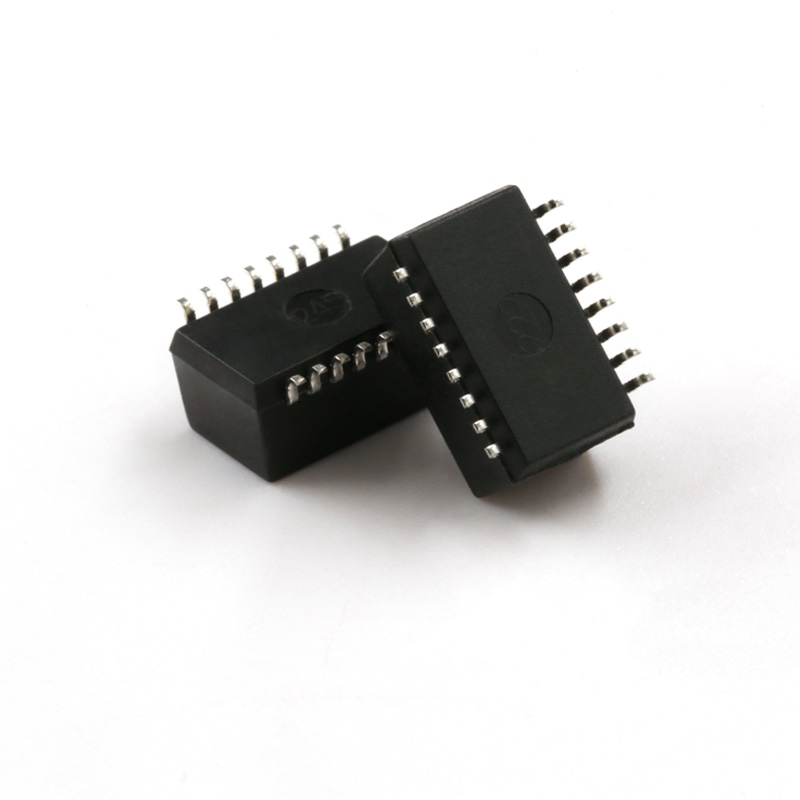

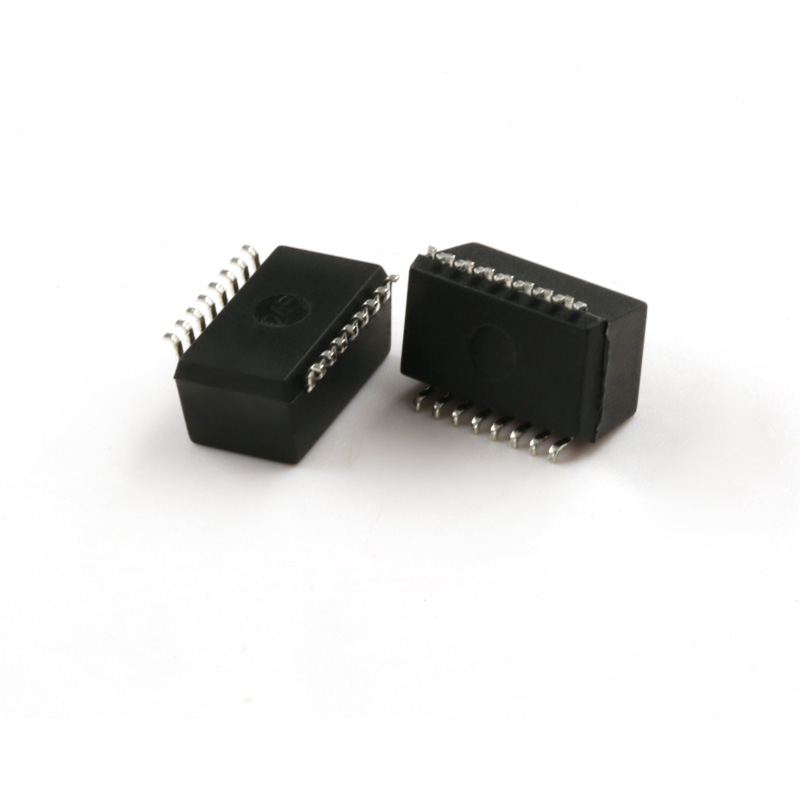

Single Port 10/100 BASE-T SMD 16 Pin Ethernet Networking Transformers Modules TRC1183NLE
share
Parameter
Brand ： Trxcom
Model ： TRC1183NLE
Data Rate ： 10/100Base-T
PoE ： No
Mount ： SMT
Temperature ： 0℃ to +70℃
PIN ： 16PIN
DetailReview(0)
Trxcom TRC1183NLE Single Port, 10/100 BASE-T Ethernet Networking Transformers Modules, SMT,Rohs
The Trxcom TRC1183NLE LAN transformer supports 10/100 BASE-T Ethernet transmission rates and complies with the IEEE 802.3 specification. It is designed for applications including SOHO devices (ADSL modems), LAN-on-Motherboard (LOM), hubs and switches.
| Part Number | TRC1183NLE | Transformer Type | Lan Transformer |
| Part Status | Active | Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Construction | OPEN FRAME | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Single Port | Speed | 10/100 Base-T |
| Package | Tape & Reel | Cores per Port | 4 |
| AutomDX | Yes | Comment | SAME AS NL VERSION |
| PIN number | 16 | Mounting Type | Surface Mount |
| Package Height (Inches/mm) | 0.244/6.20 | Package Length (Inches/mm) | 0.500/12.70 |
| Package Width (Inches/mm) | 0.366/9.30 | Temperature | 0℃ TO +70℃ |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
