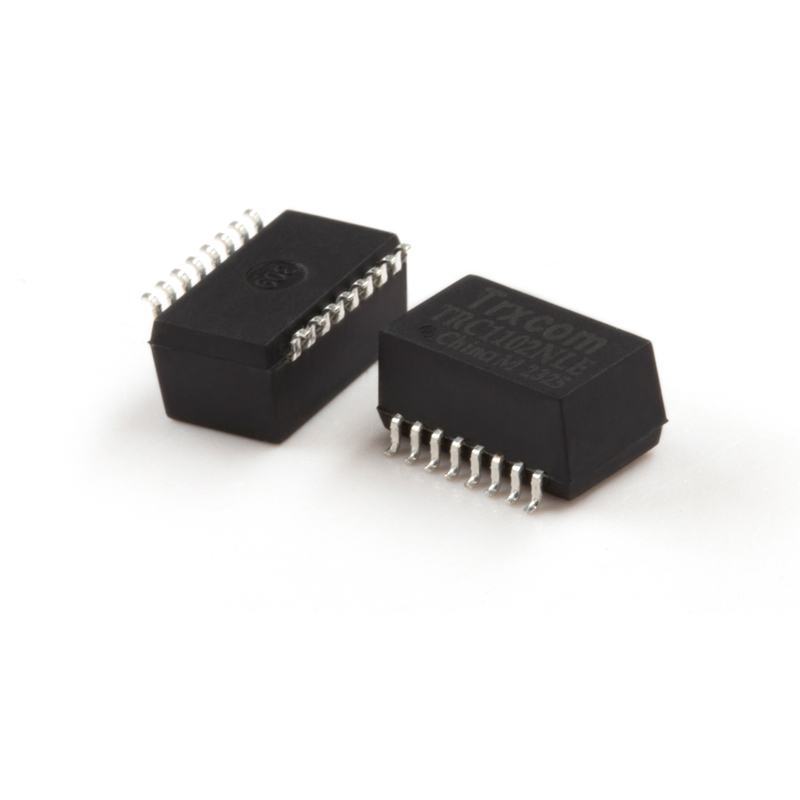

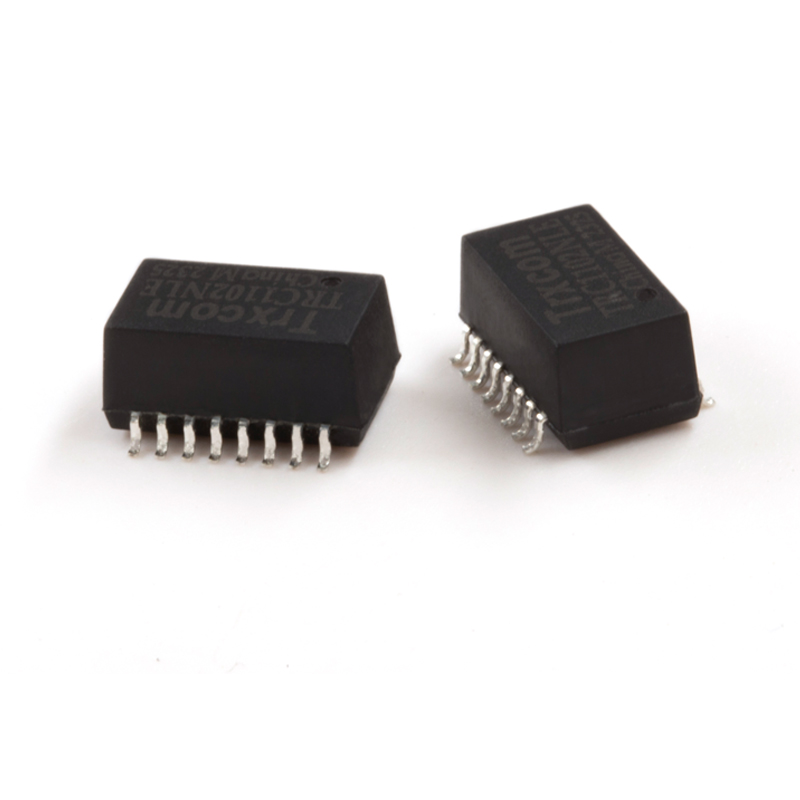

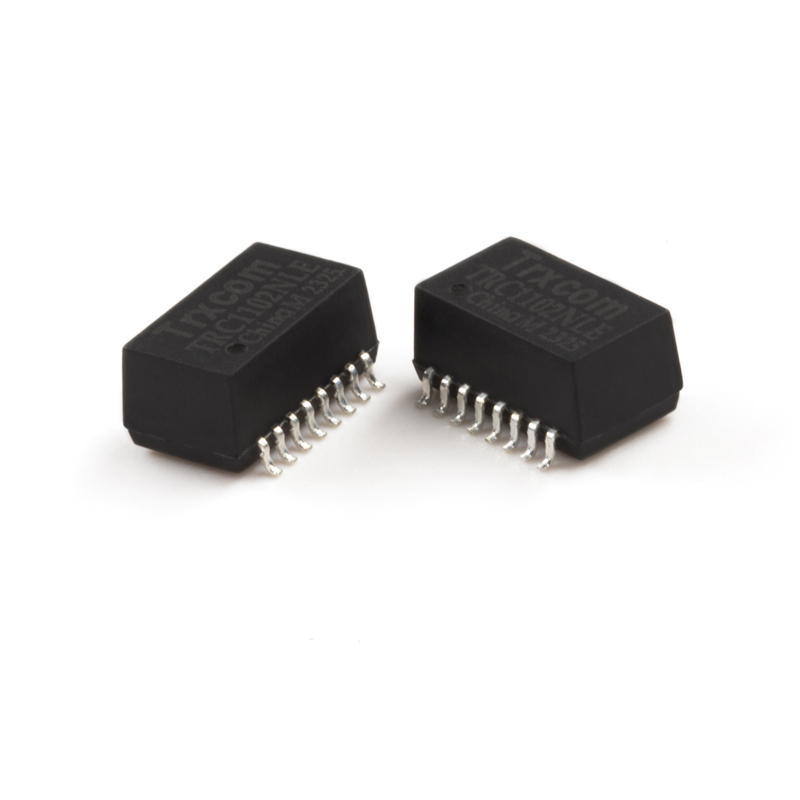

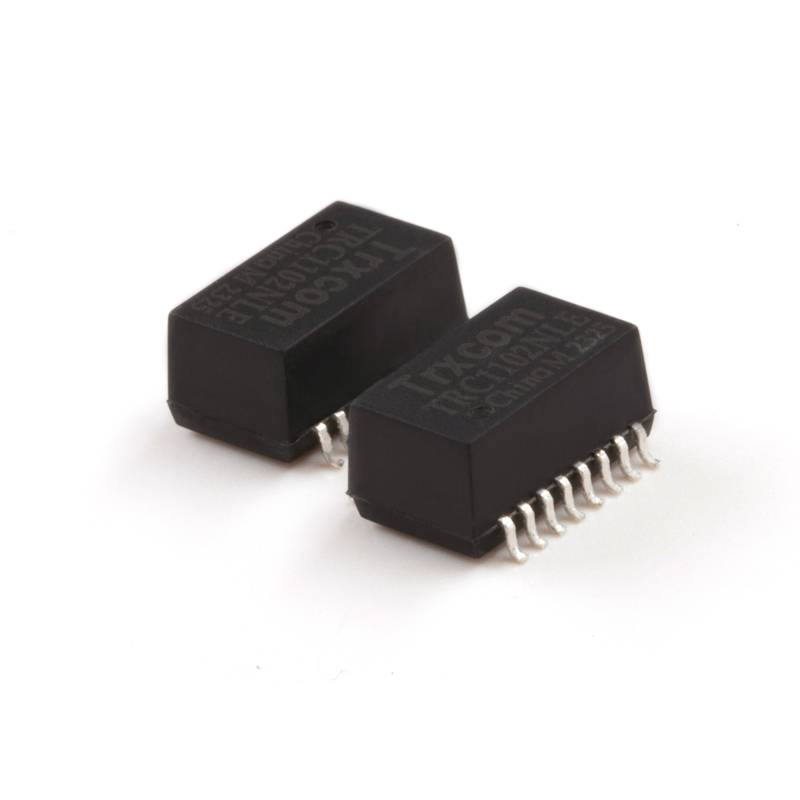

100 Base-T Single Port SMD 16Pin LAN Transformer TRC1102NLE
share
Parameter
Brand ： Trxcom
Model ： TRC1102NLE
Data Rate ： 10/100Base-T
PoE ： No
Mount ： SMT
Temperature ： -40℃ to +85℃
PIN ： 16PIN
DetailReview(0)
Trxcom TRC1102NL 10/100 Base-T LAN Magnetic Transformer for Automation Equipment (SMT, 16 Pins, Single Port)
The Trxcom TRC1102NL supports 10/100 Base-T speed and complies with IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001 standards. It can be applied in fields such as industrial computers, new energy equipment, network firewalls and smart electricity meters.
| Part Number | TRC1102NL | Transformer Type | Lan Transformer |
| Part Status | Active | Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Construction | OPEN FRAME | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | SINGLE | Speed | 10/100 Base-T |
| Package | Tape & Reel | Cores per Port | 4 |
| AutomDX | Yes | Comment | SAME AS NL VERSION |
| PIN number | 16 | Mounting Type | Surface Mount |
| Package Height (Inches/mm) | 0.201/5.10 | Package Length (Inches/mm) | 0.504/12.80 |
| Package Width (Inches/mm) | 0.366/9.30 | Temperature | -40℃ TO +85℃ |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
