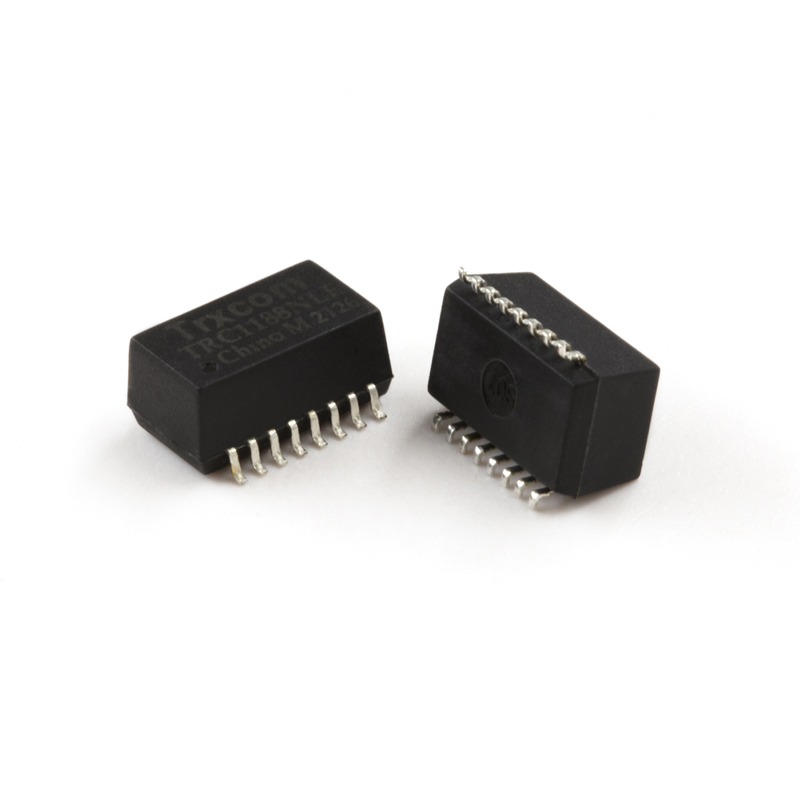

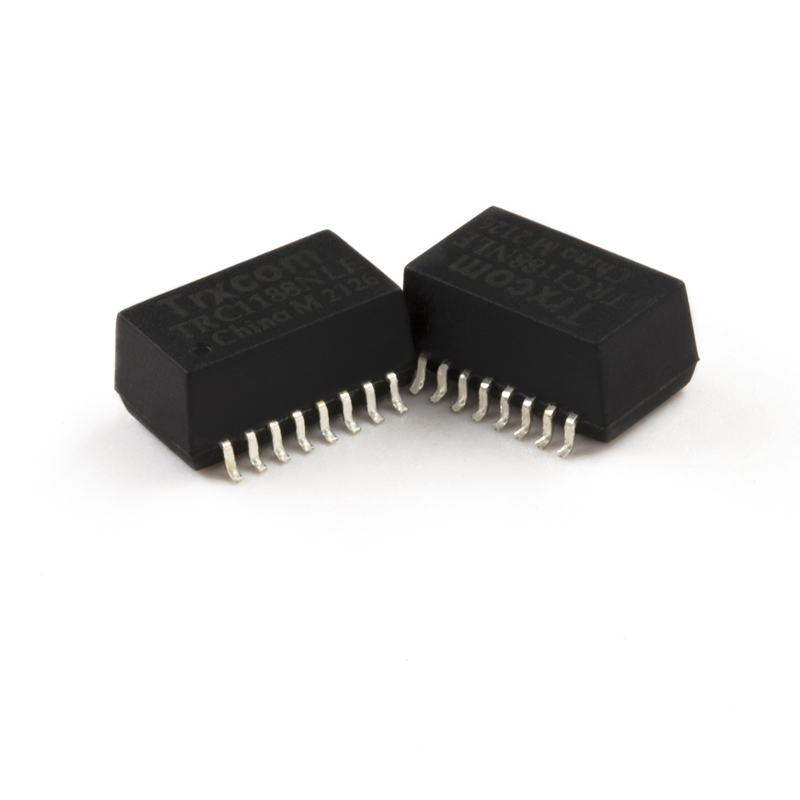

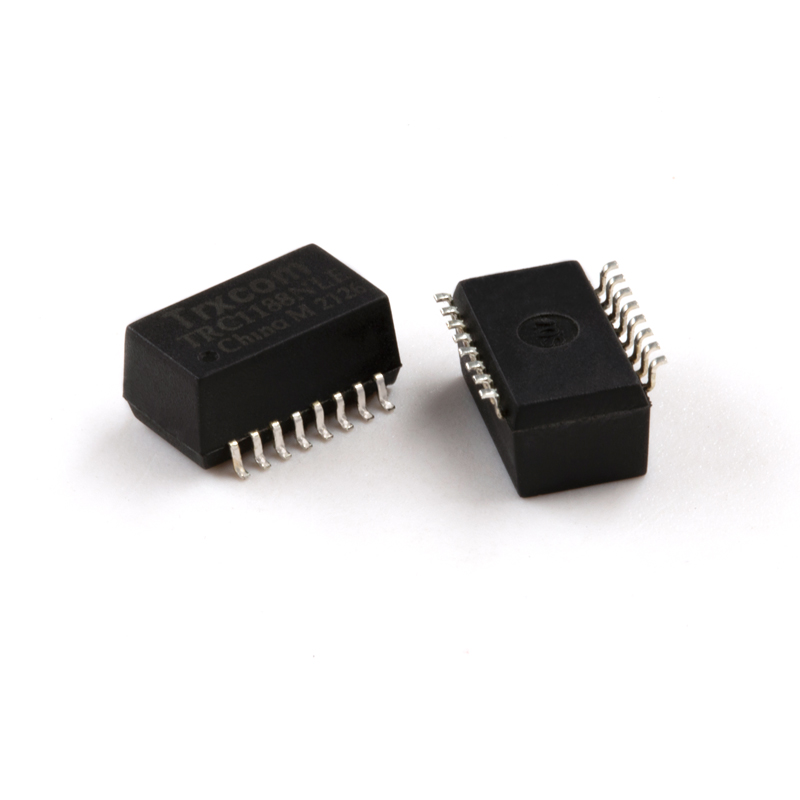

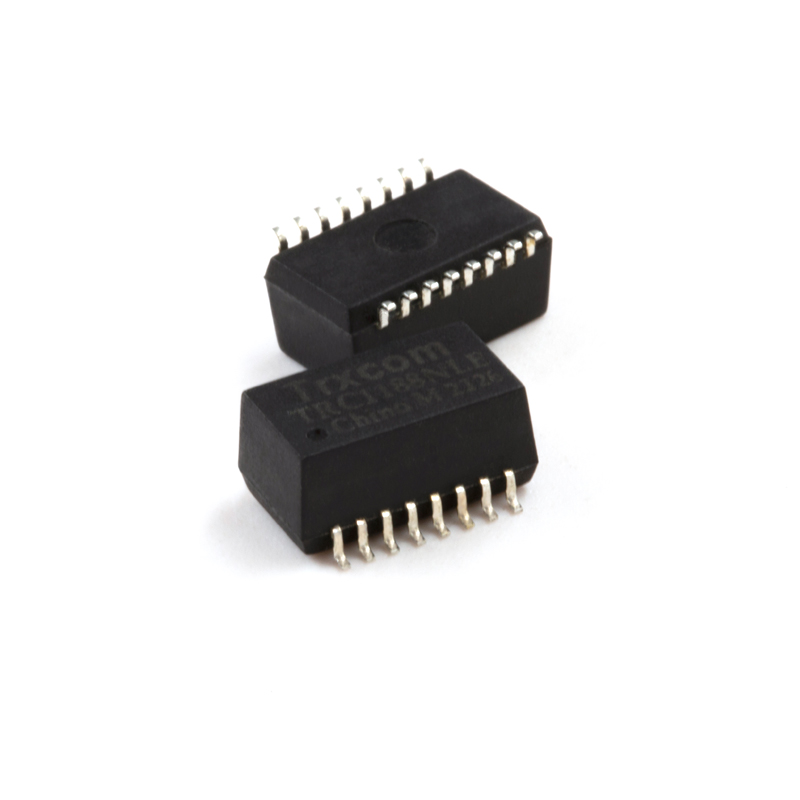

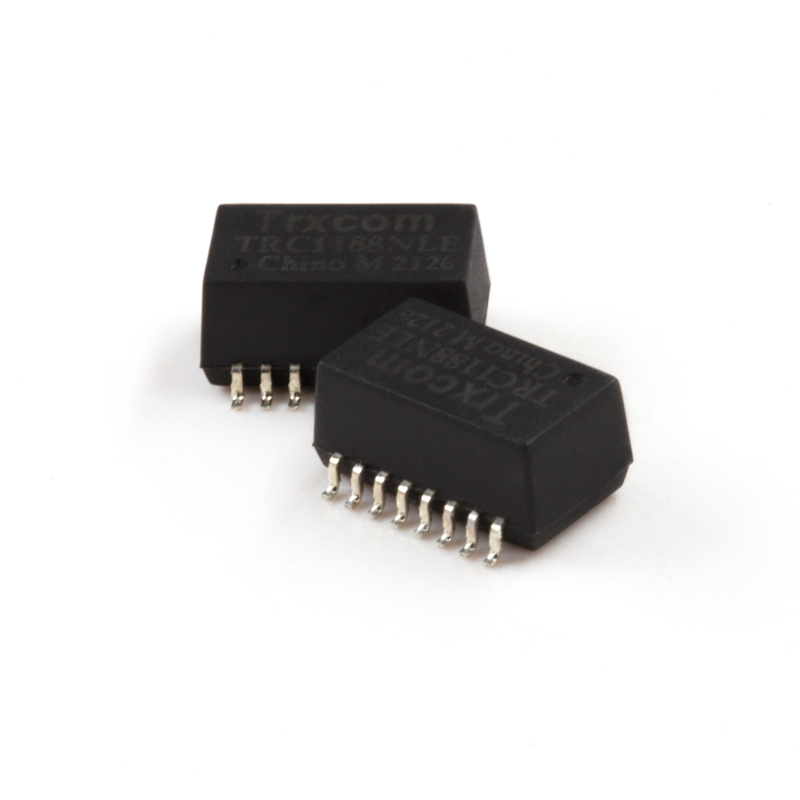

10/100 Base-T Single Port SMD 16 PIN Ethernet Telecom Transformer TRC1188NLE
share
Parameter
Brand ： Trxcom
Model ： TRC1188NLE
Data Rate ： 10/100Base-T
PoE ： No
Mount ： SMT
Temperature ： -40℃ to +85℃
PIN ： 16PIN
DetailReview(0)
Trxcom TRC1188NL Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD, Rohs
Trxcom TRC1188NLE supports a speed of 10/100 Base-T and complies with IEEE 802.3, UL, Reach, RoHS, ISO9001 and ISO14001 standards. It can be applied to routers, set-top boxes, switching power supplies and digital cameras.
| Trxcom Part Number | TRC1188NLE | Transformer Type | Lan Transformer |
| Part Status | Active | Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Construction | OPEN FRAME | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Single Port | Speed | 10/100 Base-T |
| Package | Tape & Reel | Cores per Port | 4 |
| AutomDX | Yes | Comment | SAME AS NL VERSION |
| PIN number | 16 | Mounting Type | Surface Mount |
| Package Height (Inches/mm) | 0.201/5.10 | Package Length (Inches/mm) | 0.504/12.80 |
| Package Width (Inches/mm) | 0.366/9.30 | Temperature | -40℃ TO +105℃ |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
