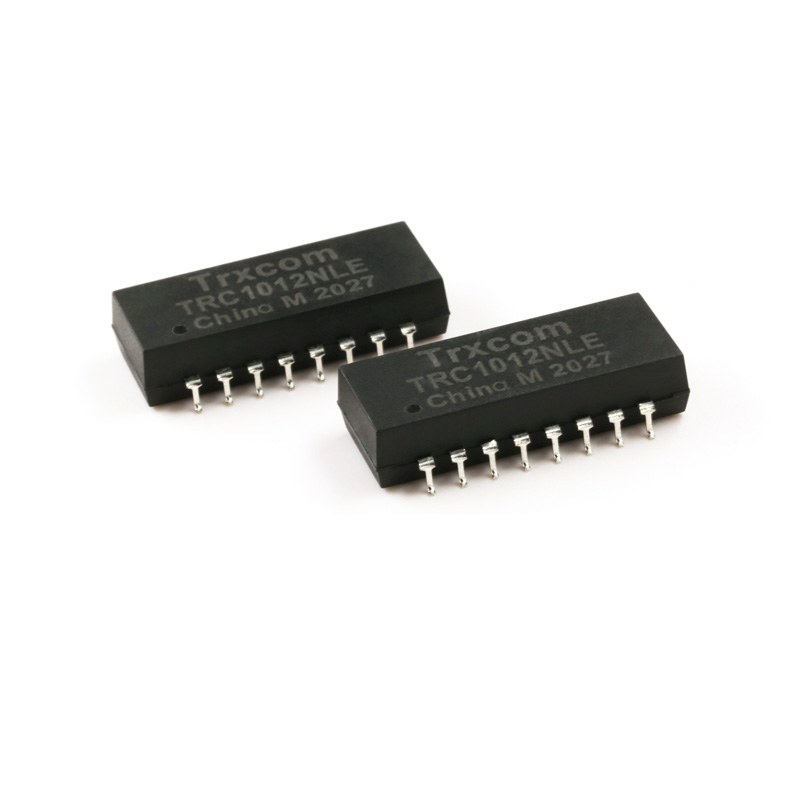

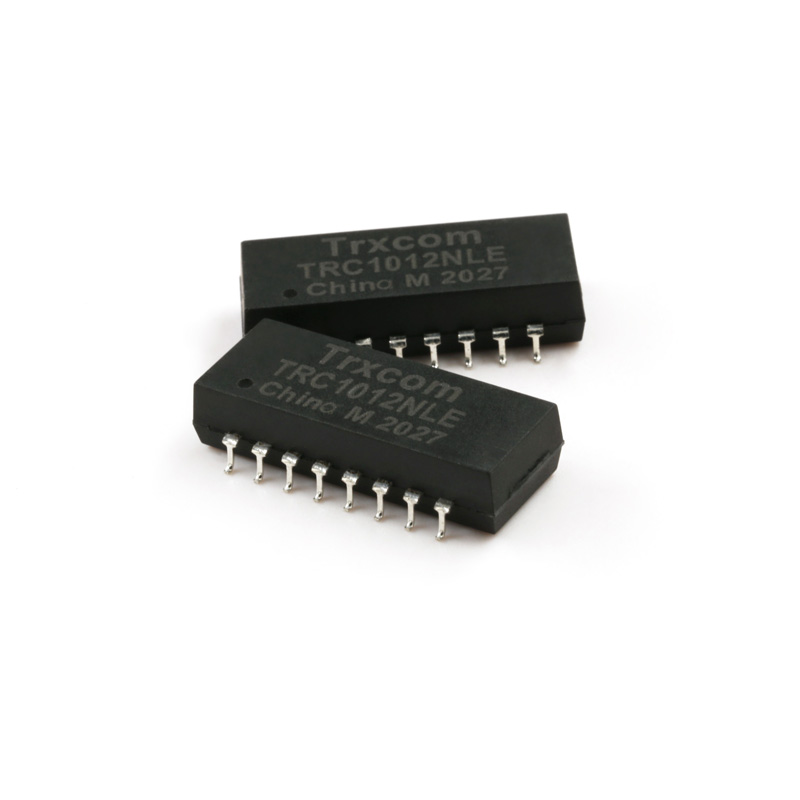

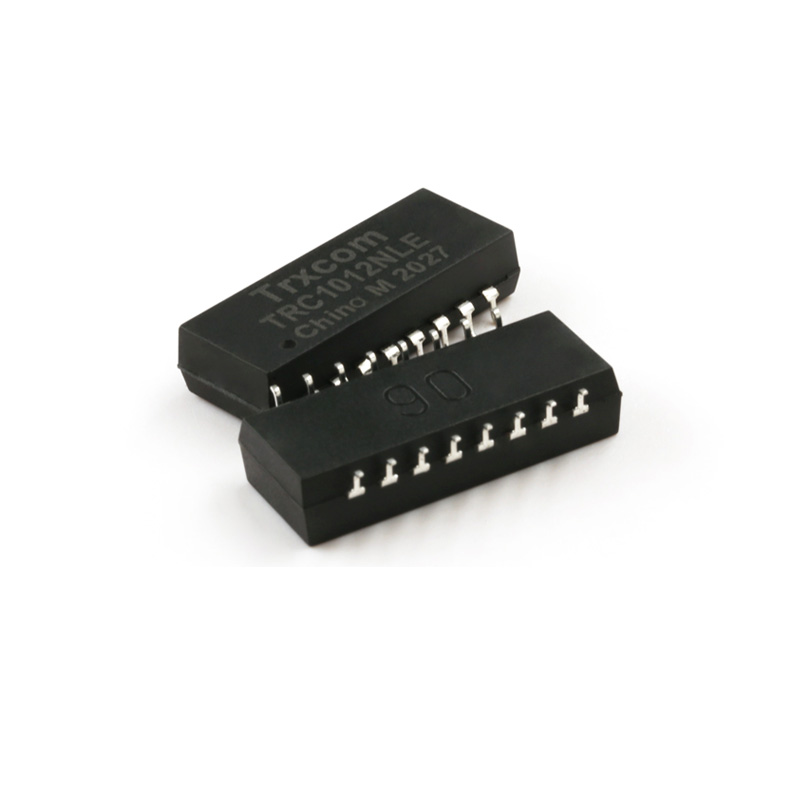

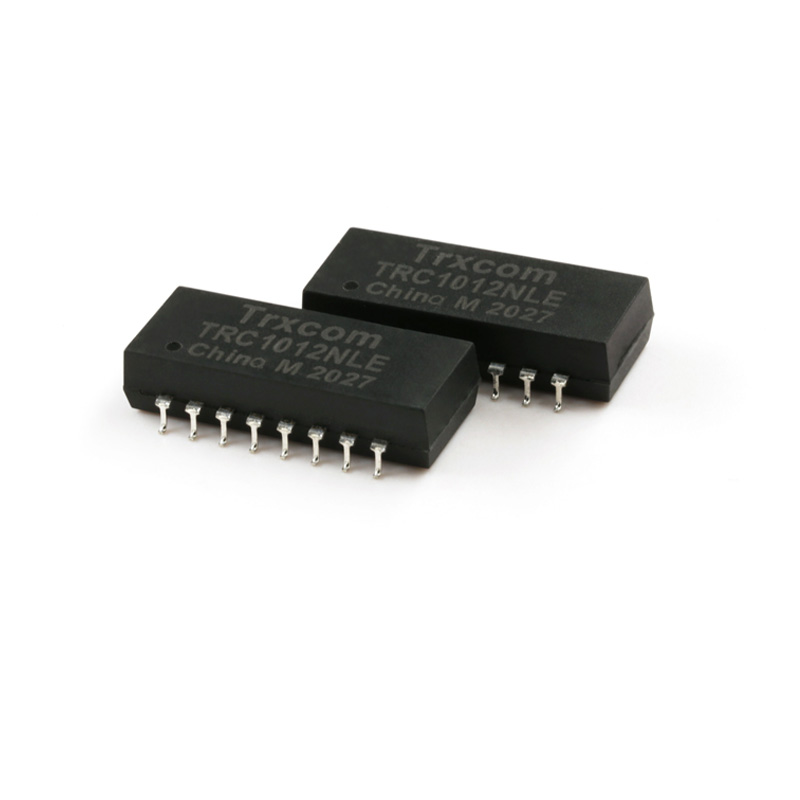

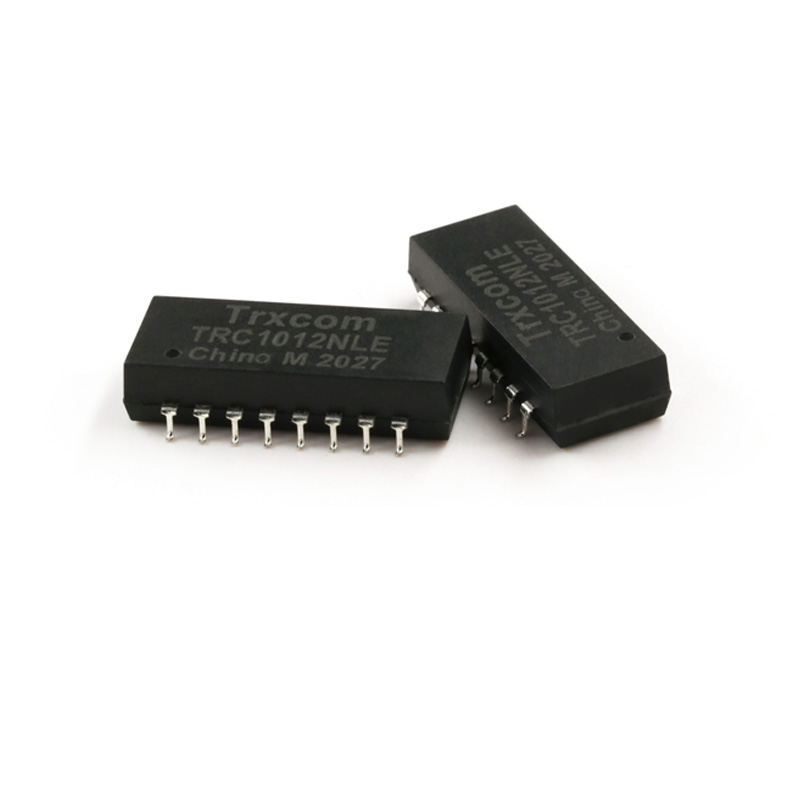

TRC1012NLE 10/100 Base-T Lan Transformer Single Port SMD 16Pin
share
Parameter
Brand ： Trxcom
Model ： TRC1012NLE
Data Rate ： 10/100Base-T
PoE ： No
Mount ： SMT
Temperature ： -40℃ to +85℃
PIN ： 16PIN
DetailReview(0)
Trxcom TRC1012NLE Single-Port 10/100 BASE-T Ethernet Transformer Module, Surface Mount Device, RoHS Compliant
The Trxcom TRC1012NLE supports 10/100 Base-T speed and complies with IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001 standards. It can be applied in fields such as industrial computers, new energy equipment, network firewalls and smart electricity meters.
| Trxcom Part Number | TRC1012NLE | Transformer Type | Lan Transformer |
| Part Status | Active | Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Construction | OPEN FRAME | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | SINGLE | Speed | 10/100 Base-T |
| Package | Tape & Reel | Cores per Port | 4 |
| AutomDX | Yes | Comment | SAME AS NL VERSION |
| PIN number | 16 | Mounting Type | Surface Mount |
| Package Height (Inches/mm) | 0.231/5.86 | Package Length (Inches/mm) | 0.994/25.25 |
| Package Width (Inches/mm) | 0.507/12.87 | Temperature | 0℃ TO +70℃ |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
