TS-MM851G-S5C SFP 1000 BASE-SX 850nm 550m DOM Duplex LC/UPC MMF Optical Transceiver Module
share
Parameter
P/N ： TS-MM851G-S5C
Form Factor ： SFP
Type ： Multi Mode
Data Rate ： 10/100/1000BASE-T
Connector ： Simplex LC
Distance ： ≤550m
Wavelength ： 850nm
DetailReview(0)

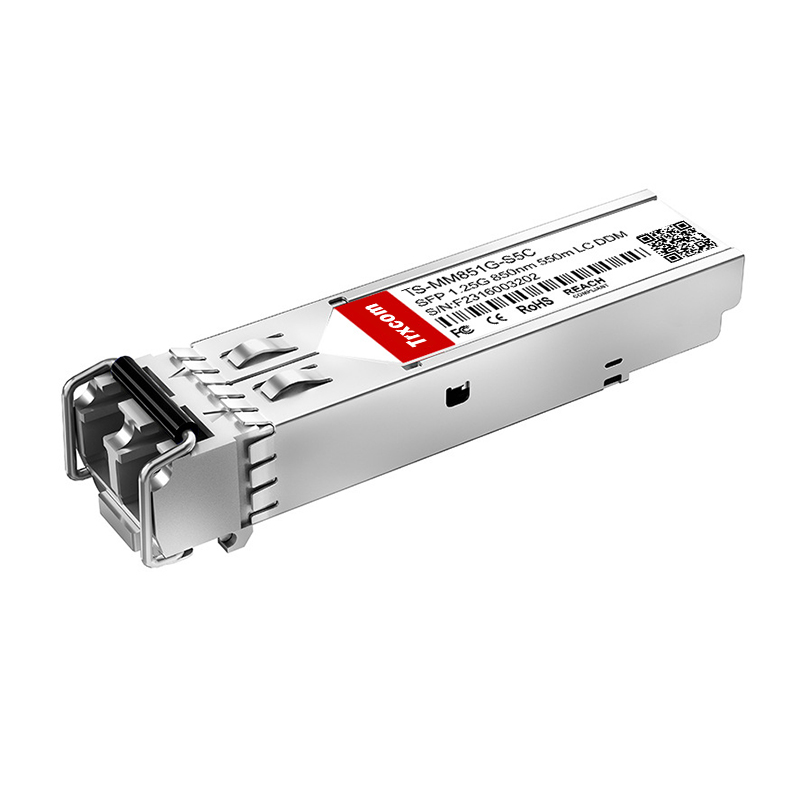

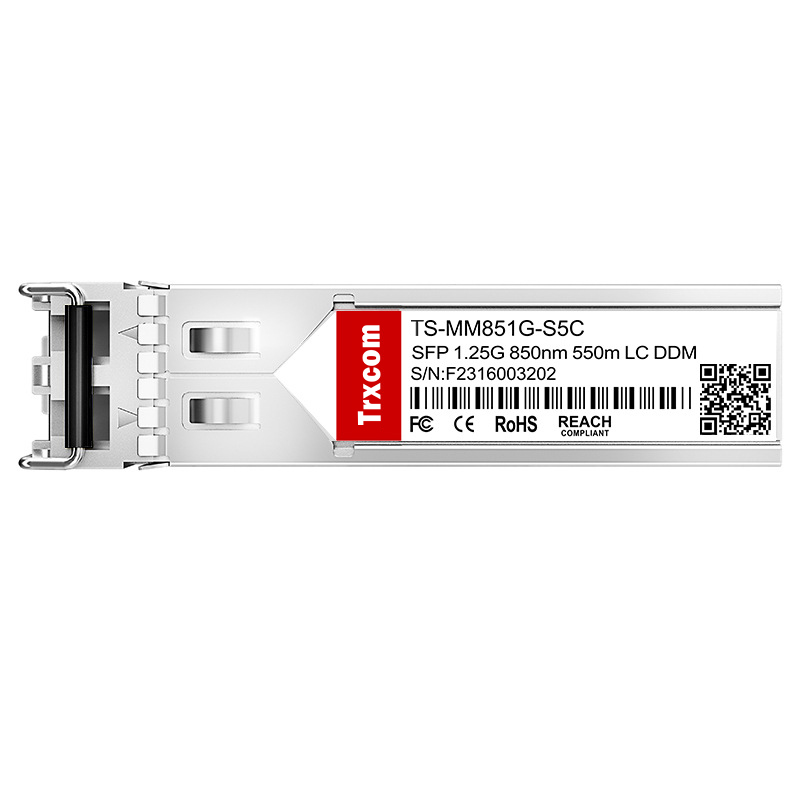

TRXCOM TS-MM851G-S5C SFP 1.25G BASE-SX Duplex LC/UPC Optical Transceiver Module (MMF, 850nm, 550m, LC, DOM)
The TS-MM851G-S5C SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 500m transmission distance with MMF. The transceiver consists of three sections: a VSCEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
| Trxcom Part Number | TS-MM851G-S5C | Vendor Name | Trxcom |
| Form Factor | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | 850nm | Max Cable Distance | 550m over OM2 MMF |
| Connector | Duplex LC | Optical Components | VCSEL 850nm |
| Media | SMF | DOM Support | Yes |
| TX Power | -9 to 0dBm | RX Power | -20 to -1dBm |
| Receiver Sensitivity | -18dBm | Receiver Overload | -1dBm |
| Operating case temperature | 0 to 70°C | Protocols | IEEE 802.3z, SFF-8472, FC-PI, SFP MSA (INF-8074i) Compliant |
