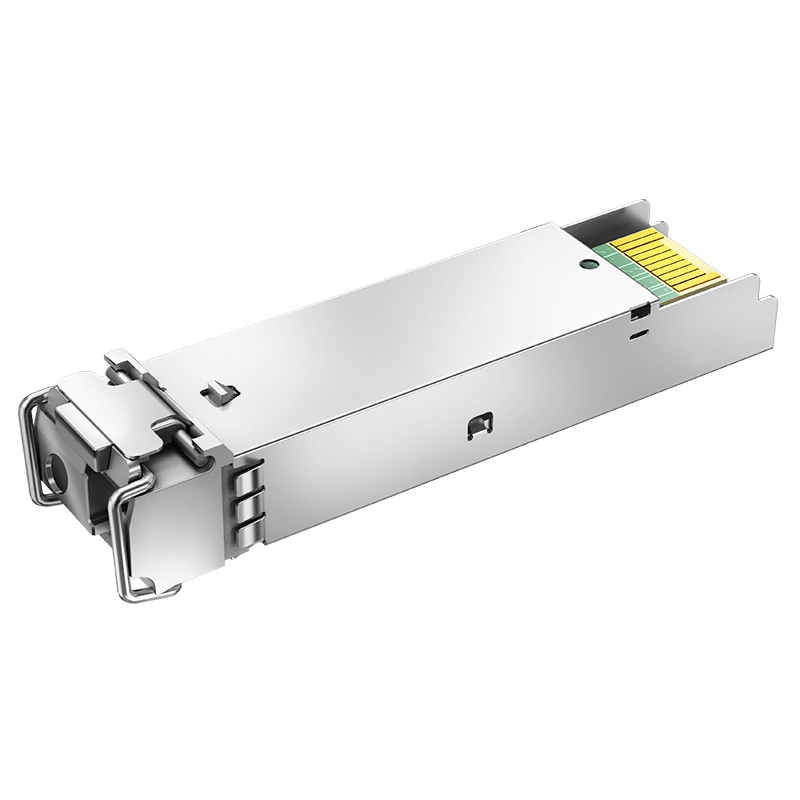

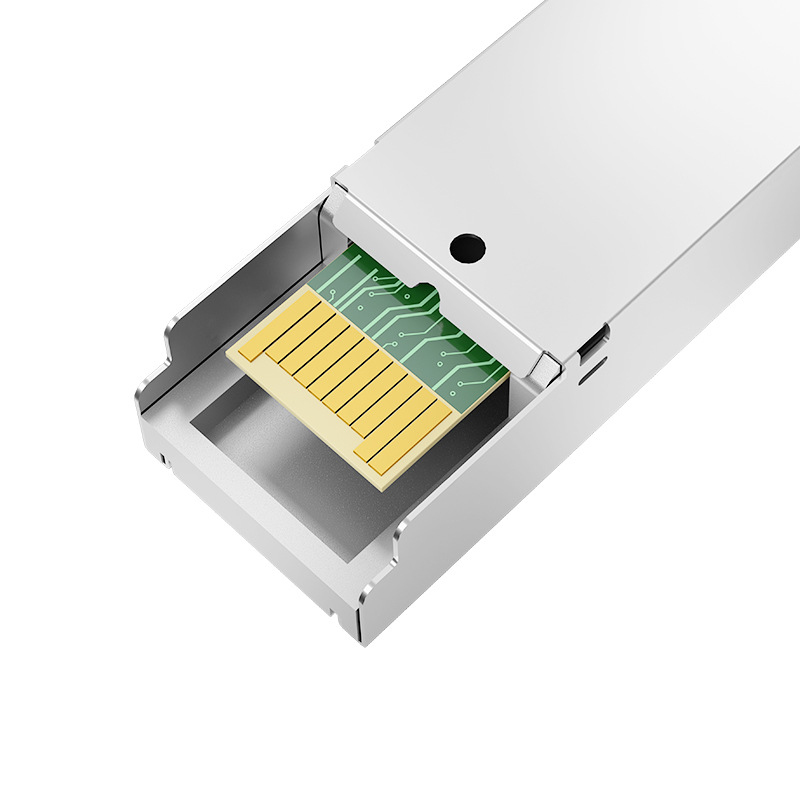

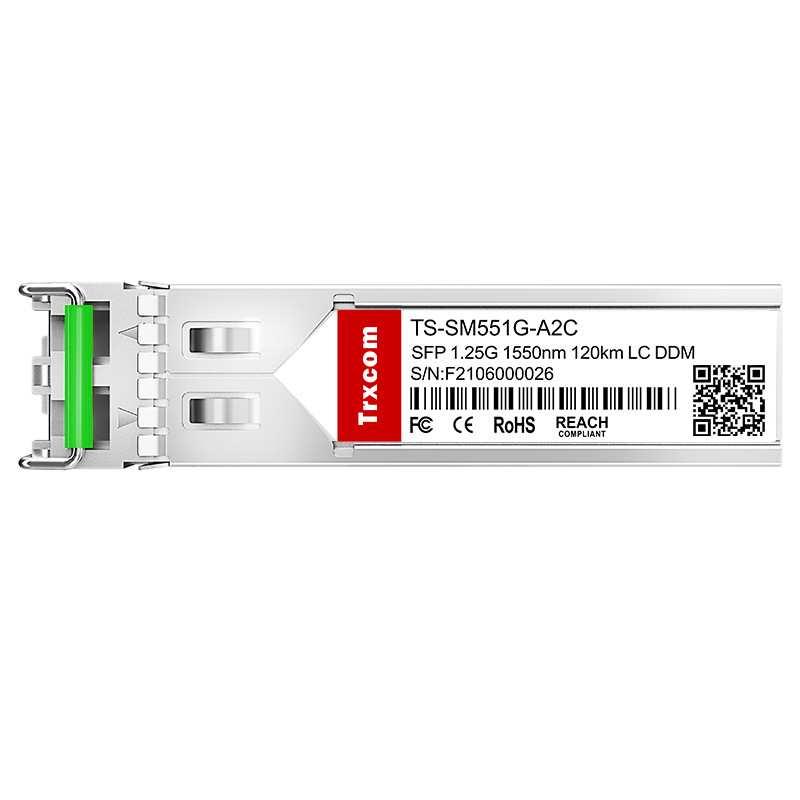

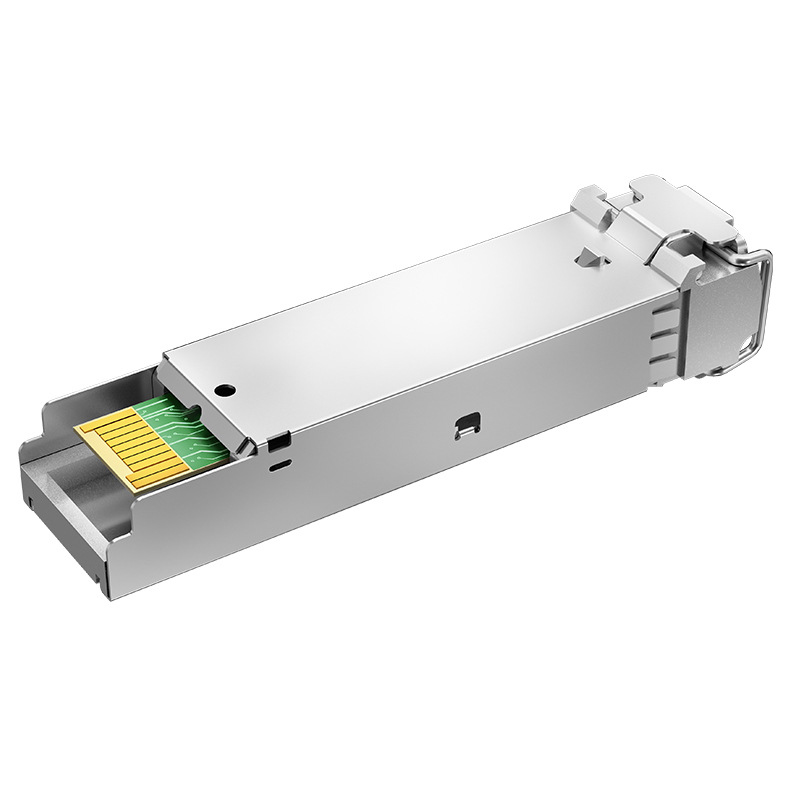

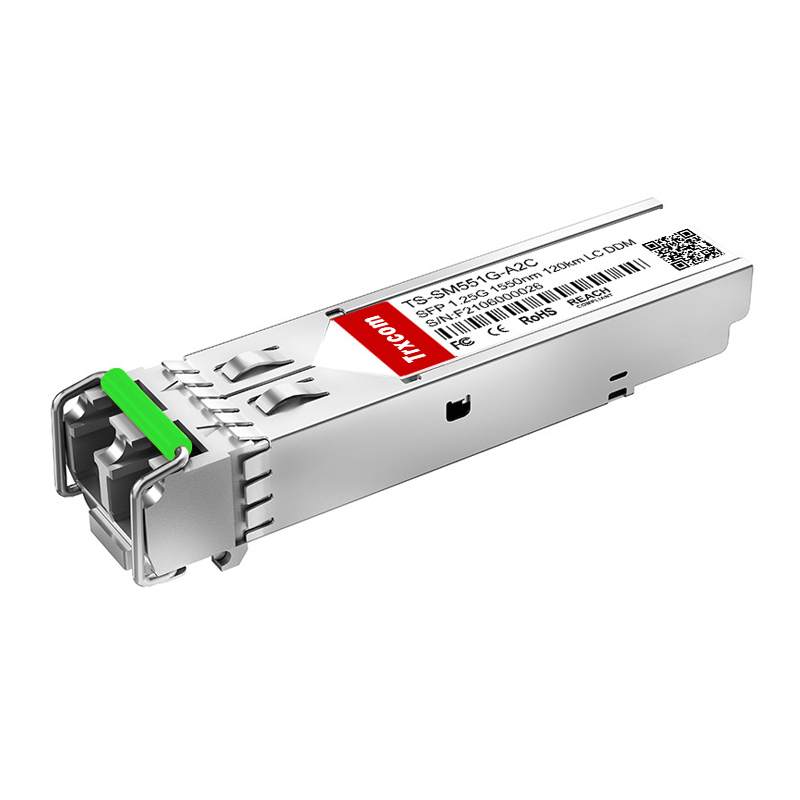

TS-SM551G-A2C 1.25G SFP 1550nm 120km DOM Duplex LC/UPC SMF Optical Transceiver Module

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
P/N ： TS-SM551G-A2C
Form Factor ： SFP
Type ： Single Mode
Data Rate ： 1G
Connector ： Duplex LC
Distance ： ≤120km
Wavelength ： 1550nm
Get a Quote
Consult products
DetailReview(0)

Trxcom TS-SM551G-A2C 1.25G SFP Duplex LC/UPC Optical Transceiver Module(SMF, 1550nm, 120km, LC, DOM)

The TS-SM551G-A2C SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 120km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Trxcom Part NumberTS-SM551G-A2CVendor NameTrxcom
Form FactorSFPMax Data Rate1.25Gbps
Wavelength1550nmMax Cable Distance120km
ConnectorDuplex LCOptical ComponentsDFB 1550nm
MediaSMFDOM SupportYes
TX Power0 to +5dBmRX Power-30 to -1dBm
Receiver Sensitivity-28dBmReceiver Overload-1dBm
Operating case temperature0 to 70°CProtocolsSFF-8472 MSA Compliant, IEEE 802.3ah-2004
