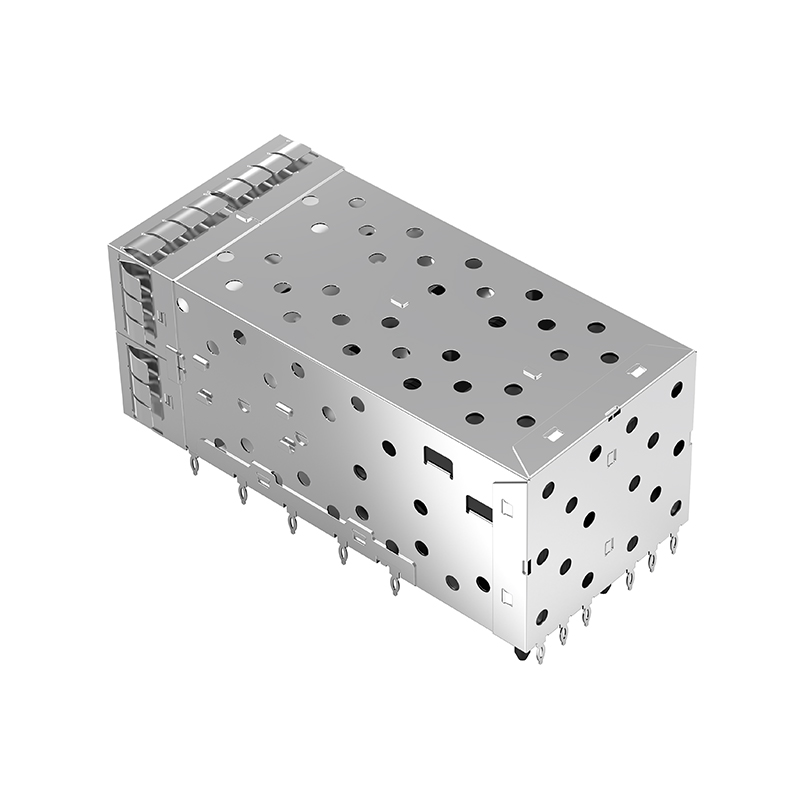

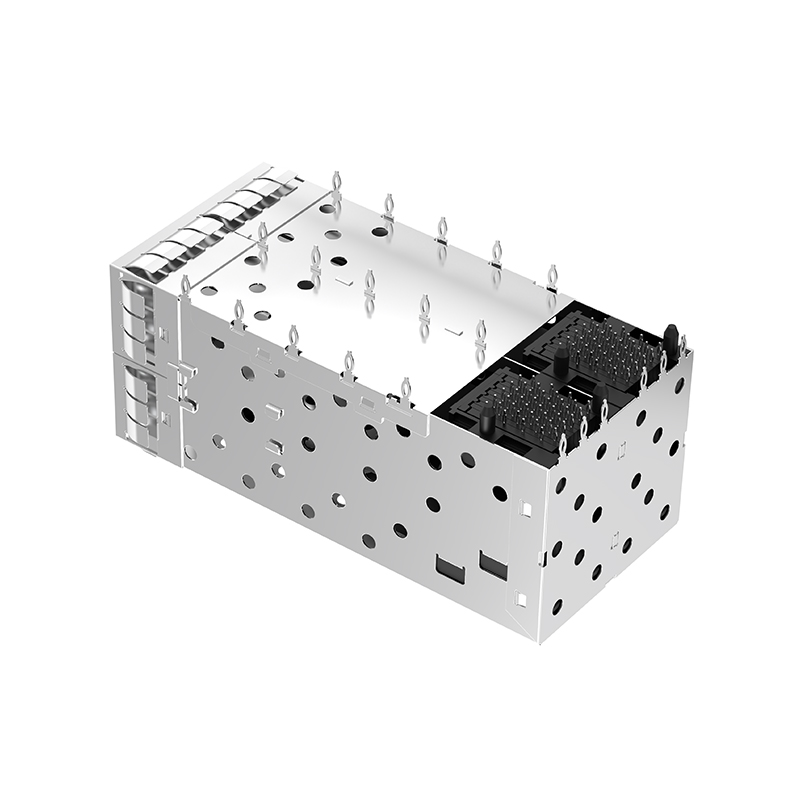

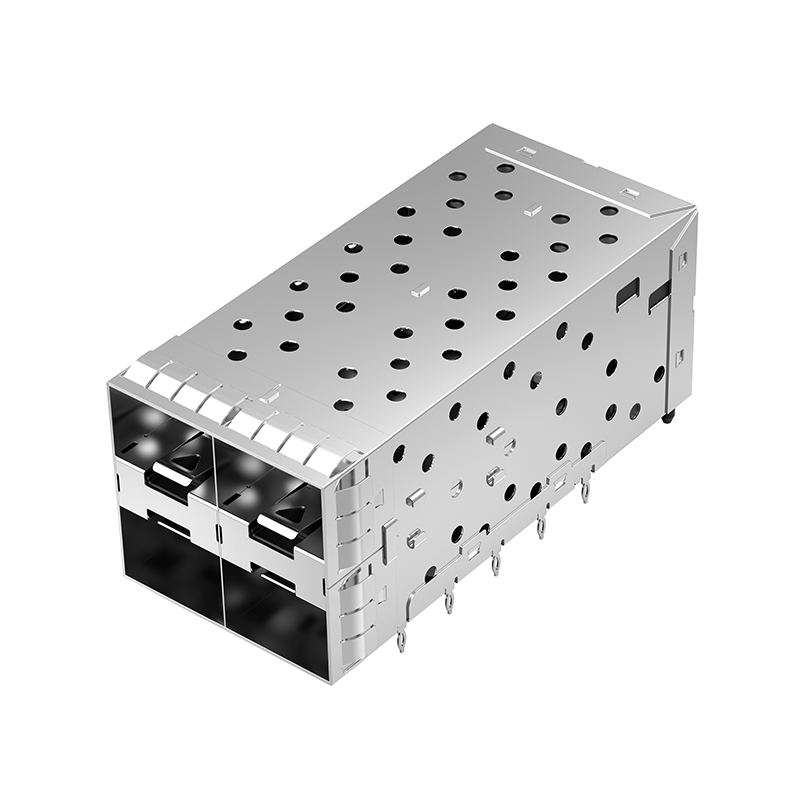

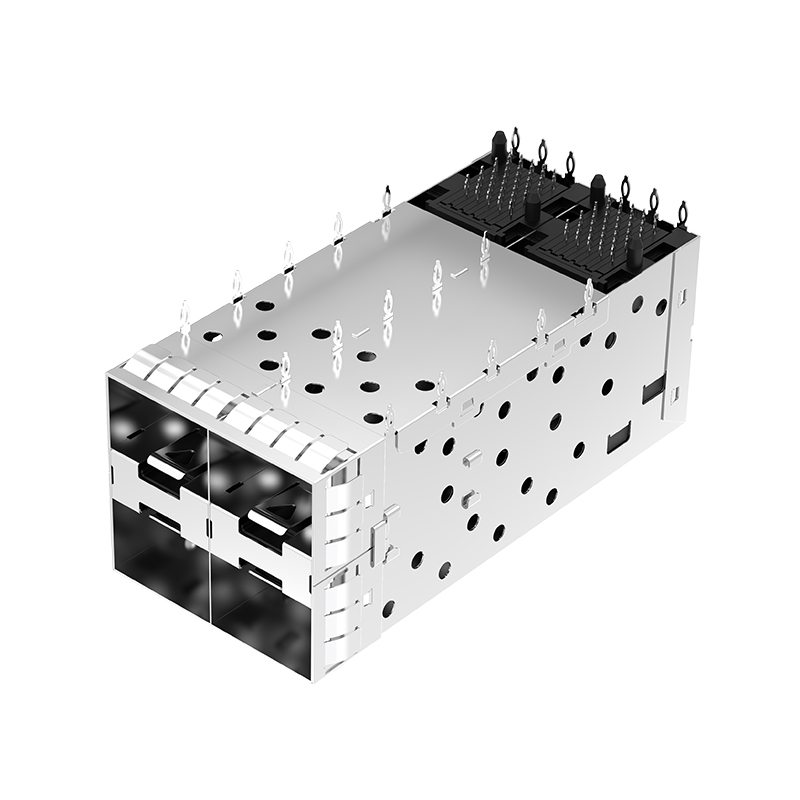

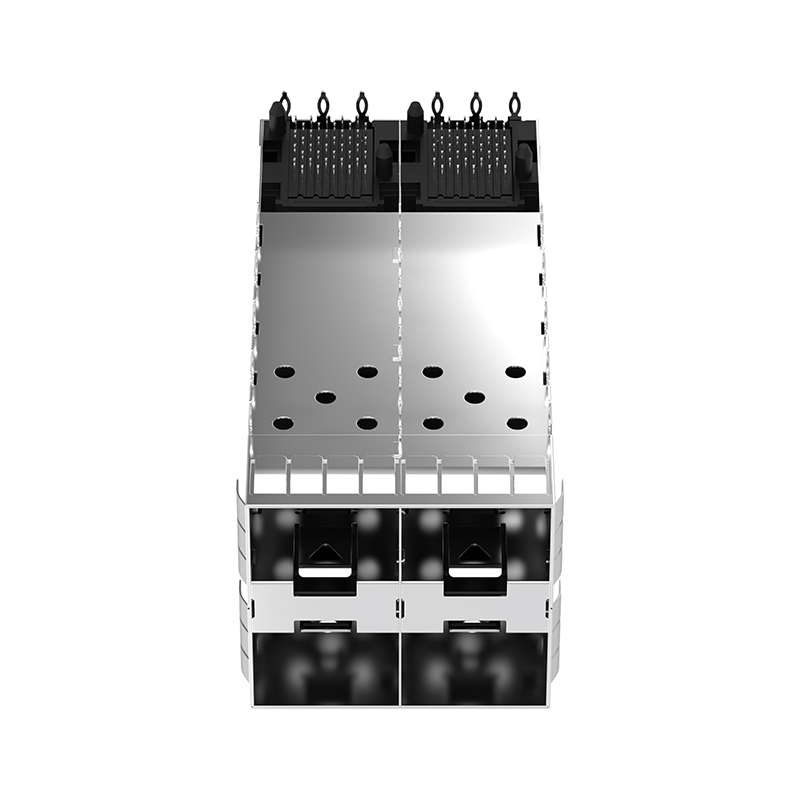

TR22BC01001 2x2 Port SFP+ Cage Connector
share
Parameter
Number ： TR22BC01001
Brand ： Trxcom
Types ： SFP+
Number of Ports ： 2x2
Pluggable I/O Product Type ： Cage Assembly with Integrated Connector
Data Rate (Max)(Gb/s) ： 16
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： Without Lightpipe
Termination Method to Printed ： Through Hole - Press-Fit
Operating Tem Perature Range(° ： -40℃ to 85℃
DetailReview(0)
Trxcom TR22BC01001 2x2 Port SFP+ Cage Connector
The Trxcom TR22BC01001 is a high-performance, stacked SFP+ 2×2 cage connector, designed for 10G high-speed data communication systems. It provides 4 ports in a compact 2×2 matrix, enabling high-density I/O deployment on enterprise switches, servers, storage, and industrial networking devices.
| Part Number | TR22BC01001 | Part Status | Active |
| Connector Style | Cage | Connector Type | SFP+ |
| Cage | COPPER ALLOY,Ni PL ATED | THICKNESS | 0.25mm |
| PACKAGING | TRAY PACKAGING | Mounting Type | Through Hole, Right Angle |
| Port Matrix Configuration | 2x2 Port | Number of Ports | 4 |
| Operating Temperature Range | -40 – 85°C | PCB Mounting Style | Through Hole - Press-Fit |
| Included Lightpipe | No | Height (Inches/mm) | 25.53/1.005 |
| Length (Inches/mm) | 63.25/2.490 | Width (Inches/mm) | 29.00/1.142 |
Consumer Electronics
Security System
Military Industry
