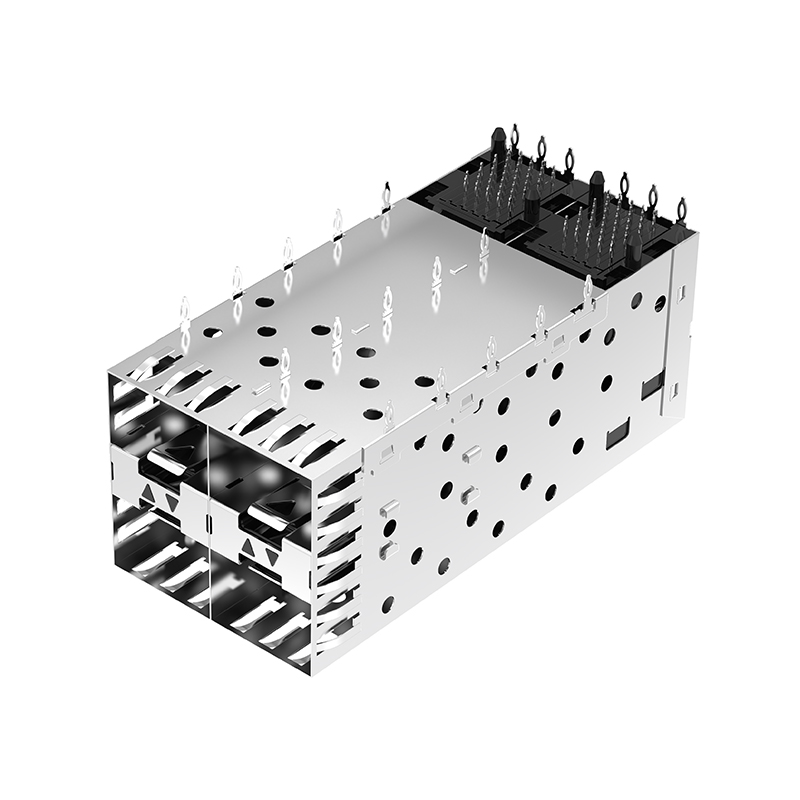

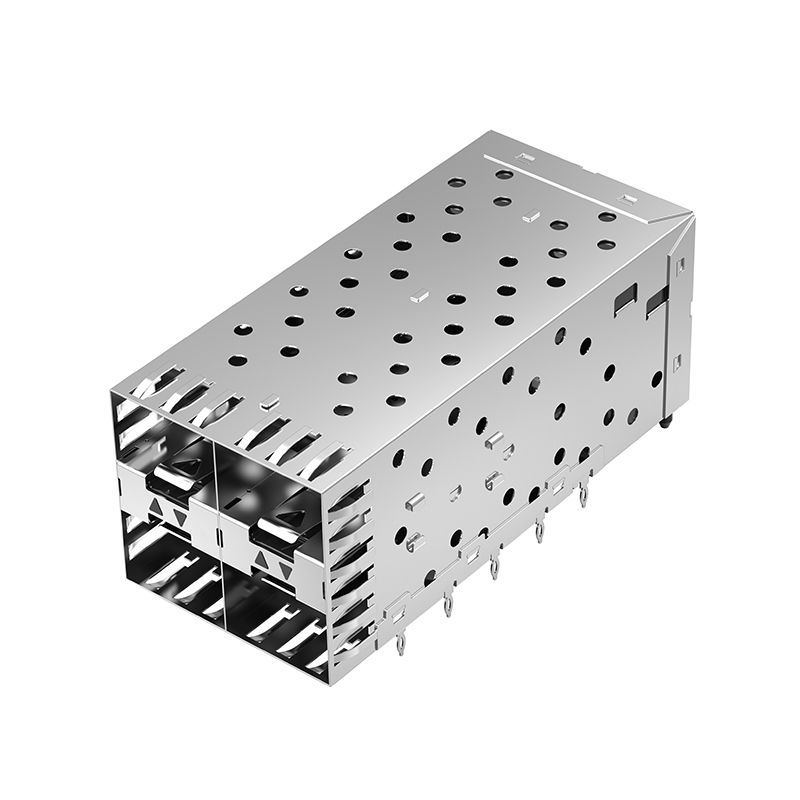

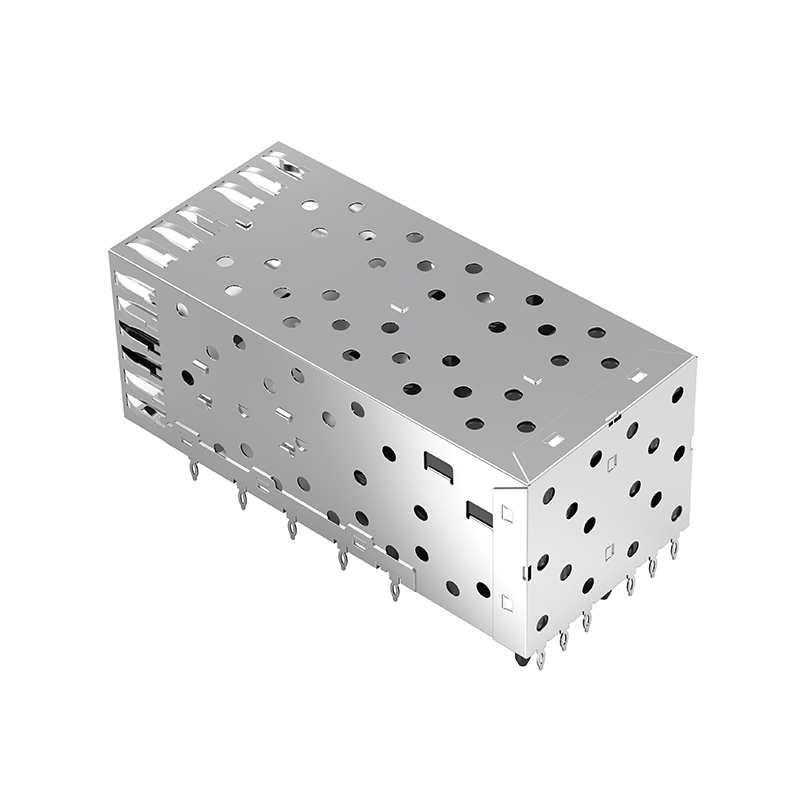

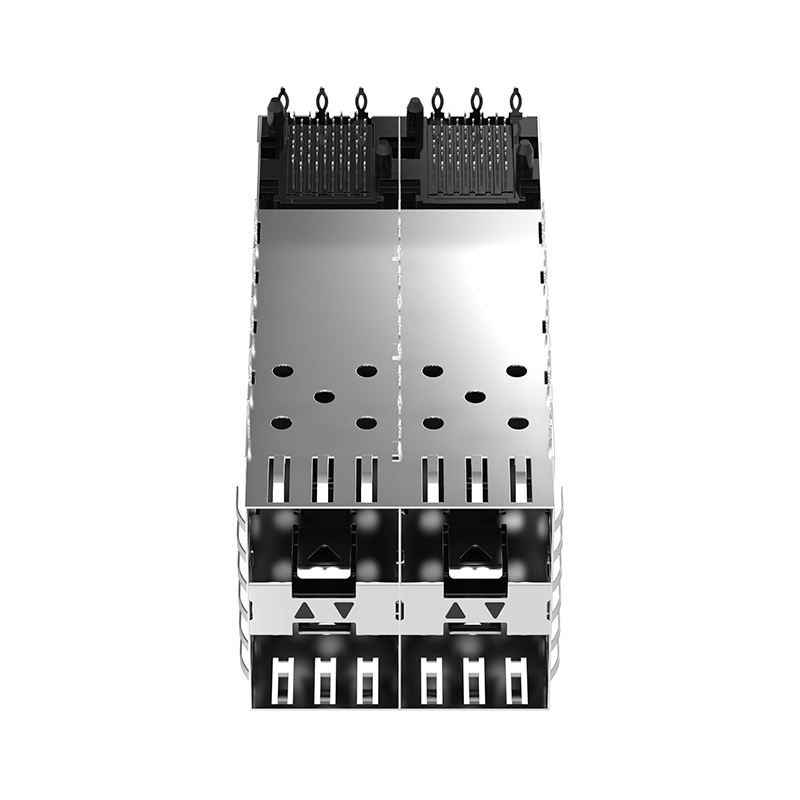

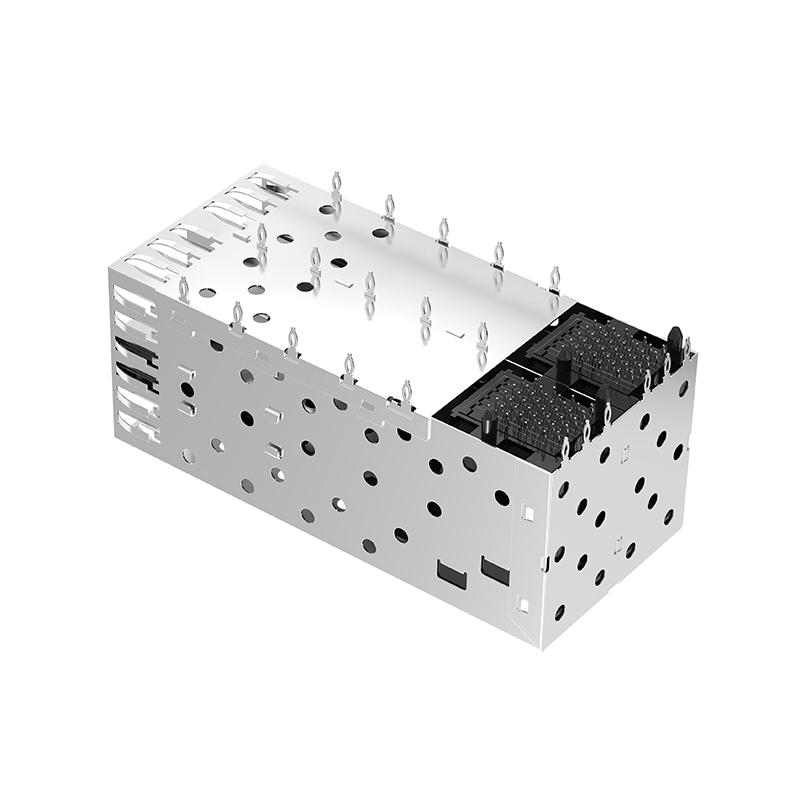

TR22AC01201 SFP 2x2 Cage Connector Press-Fit With Inner Light Pipe

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Number ： TR22AC01201
Brand ： Trxcom
Types ： SFP
Number of Ports ： 2x2
Pluggable I/O Product Type ： Cage Assembly with Integrated Connector
Data Rate (Max)(Gb/s) ： 4
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： With Lightpipe
Termination Method to Printed ： Through Hole - Press-Fit
Operating Tem Perature Range(° ： -40℃ to 85℃
Get a Quote
Consult products
DetailReview(0)

Trxcom TR22AC01201 SFP SFP 2x2 Cage Connector Press-Fit With Inner Light Pipe

Trxcom TR22AC01201 is a high-density, press-fit SFP 2×2 cage connector with an Inner Light Pipe built-in. It is specially designed for Gigabit/high-speed digital communication, meeting the demand for miniaturized and multi-port I/O in enterprise networks, data centers and industrial equipment.

Part NumberTR22AC01201Part StatusActive
Connector StyleCageConnector TypeSFP
CageCOPPER ALLOY,Ni PL ATEDPACKAGINGTRAY PACKAGING
Port Matrix Configuration2x2 PortNumber of Ports4
Operating Temperature Range-40 – 85°CMounting StyleThrough Hole, Right Angle
Included LightpipeInner Light PipeTerminationPress-Fit
Height (Inches/mm)25.20/0.992Length (Inches/mm)63.25/2.490
Width (Inches/mm)28.75/1.132EMI Containment Feature TypeEMI Springs
