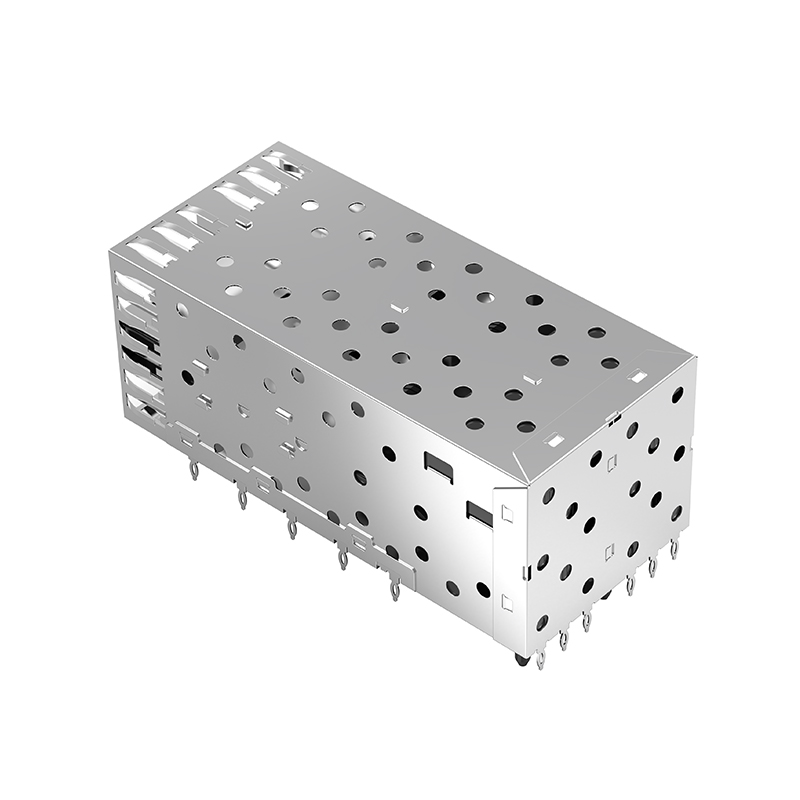

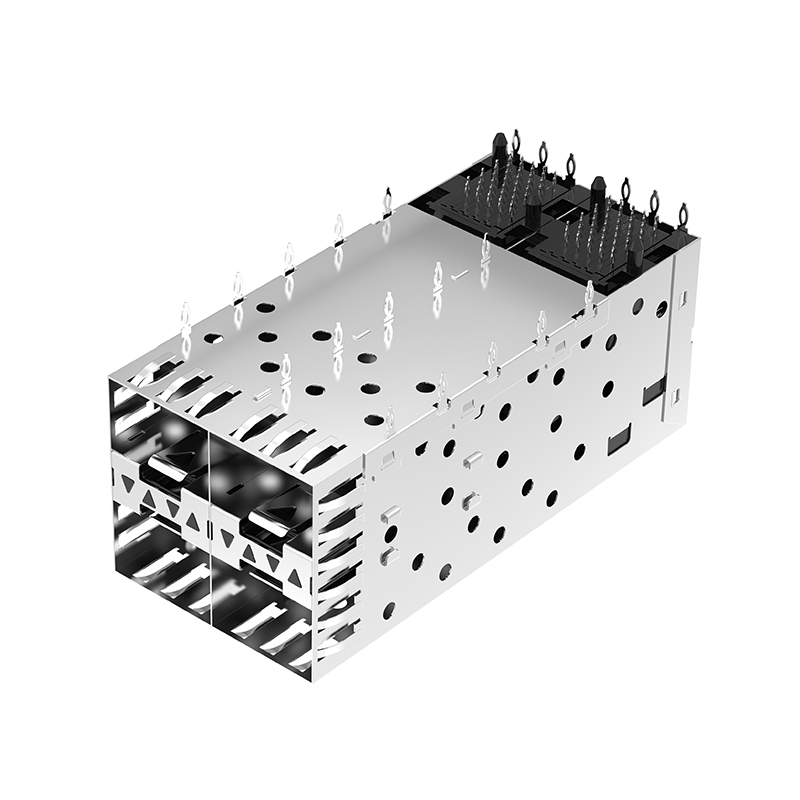

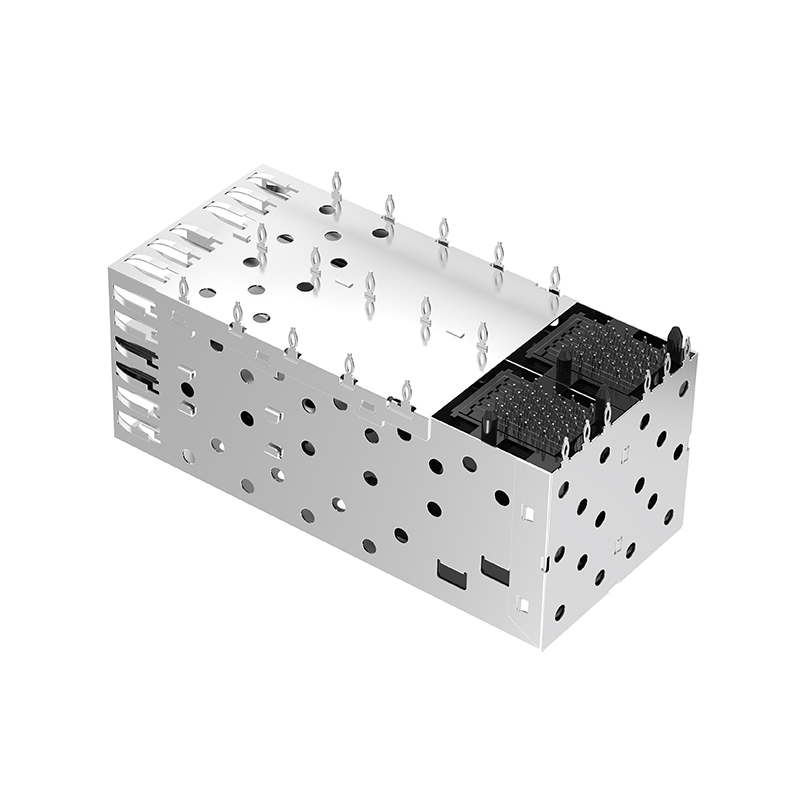

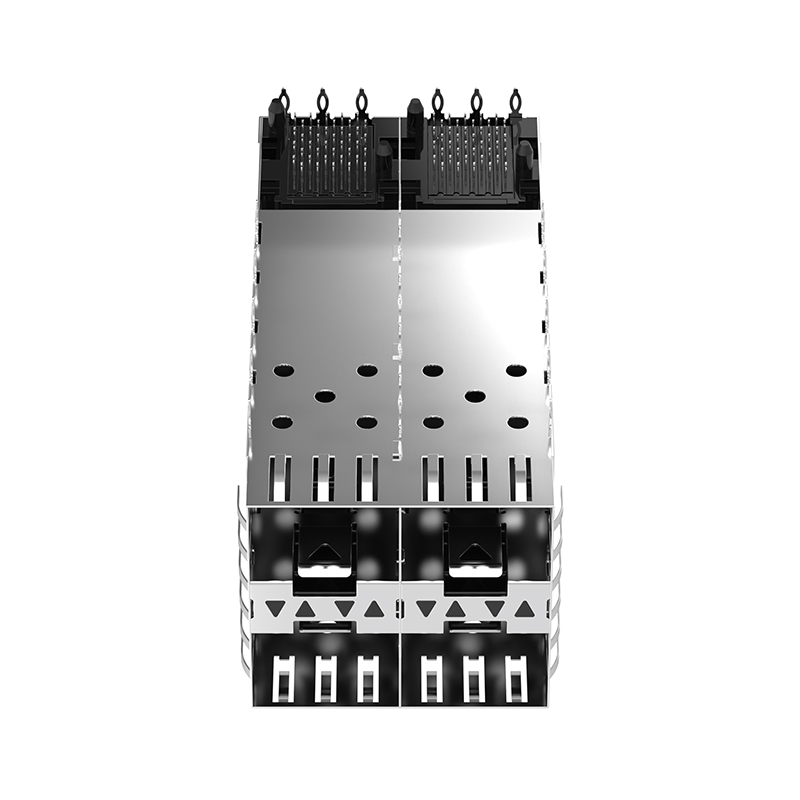

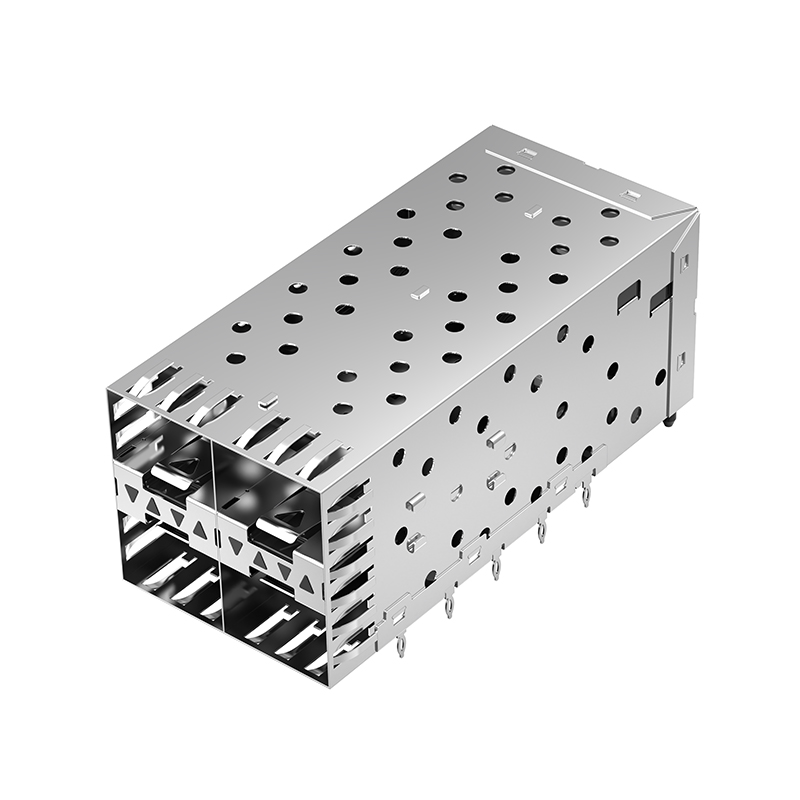

TR22AC01101 SFP 2x2 Cage Connector Press-Fit With Inner/Outer Light Pipe
share
Parameter
Number ： TR22AC01101
Brand ： Trxcom
Types ： SFP
Number of Ports ： 2x2
Pluggable I/O Product Type ： Cage Assembly with Integrated Connector
Data Rate (Max)(Gb/s) ： 4
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： With Lightpipe
Termination Method to Printed ： Through Hole - Press-Fit
Operating Tem Perature Range(° ： -40℃ to 85℃
DetailReview(0)
Trxcom TR22AC01101 SFP SFP 2x2 Cage Connector Press-Fit With Inner/Outer Light Pipe
Trxcom TR22AC01101 is an SFP 2×2 press-fit cage connector integrated with internal and external light pipes and an EMI shielding structure. It adopts a high-density layout with 2 rows, 2 columns and four ports. Manufactured from high-quality nickel-plated copper alloy and designed for through-hole press-fit mounting, it supports wide-temperature operation and complies with environmental industry regulations. Featuring outstanding shielding performance and signal integrity, it is widely applied in enterprise switches, servers, storage devices and industrial network communication equipment.
| Part Number | TR22AC01101 | Part Status | Active |
| Connector Style | Cage | Connector Type | SFP |
| Cage | COPPER ALLOY,Ni PL ATED | PACKAGING | TRAY PACKAGING |
| Port Matrix Configuration | 2x2 Port | Number of Ports | 4 |
| Operating Temperature Range | -40 – 85°C | Mounting Style | Through Hole, Right Angle |
| Included Lightpipe | Inner/Outer Light Pipe | Termination | Press-Fit |
| Height (Inches/mm) | 25.20/0.992 | Length (Inches/mm) | 63.25/2.490 |
| Width (Inches/mm) | 28.75/1.132 | EMI Containment Feature Type | EMI Springs |
