Quad Port 10/100 Base-T 40Pin SMD LAN Transformer TRC1164NL
share
Parameter
Brand ： Trxcom
Model ： TRC1164NL
Data Rate ： 10/100Base-T
PoE ： No
Mount ： SMT
Temperature ： 0℃ to +70℃
PIN ： 40PIN
DetailReview(0)

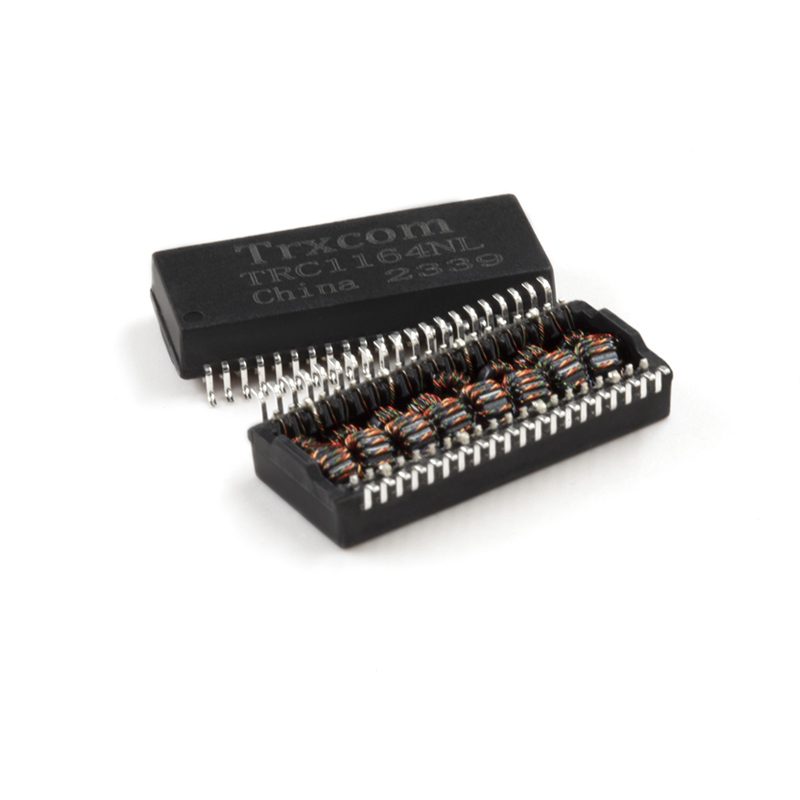

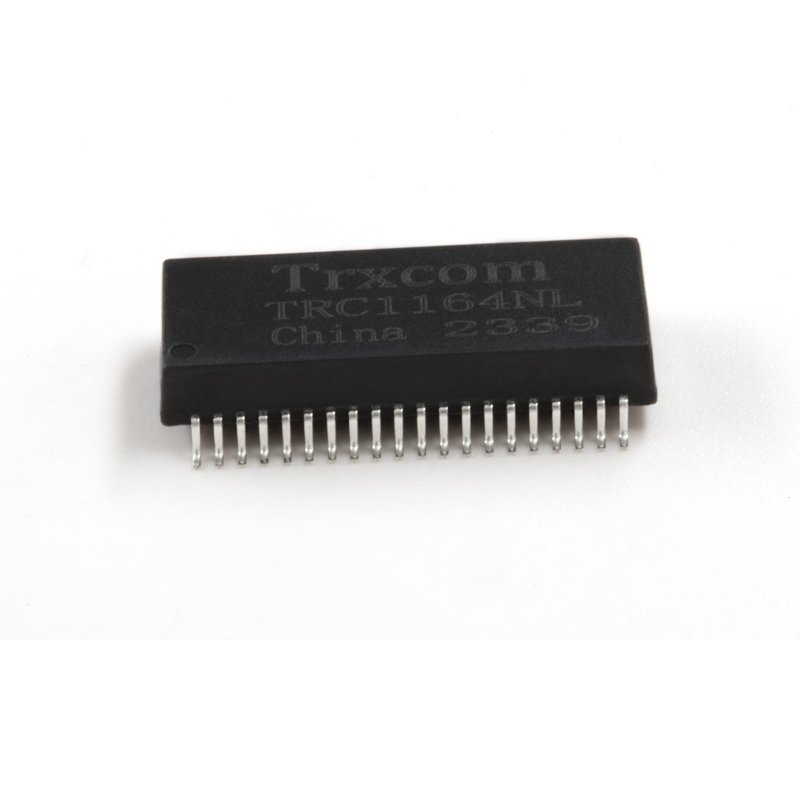

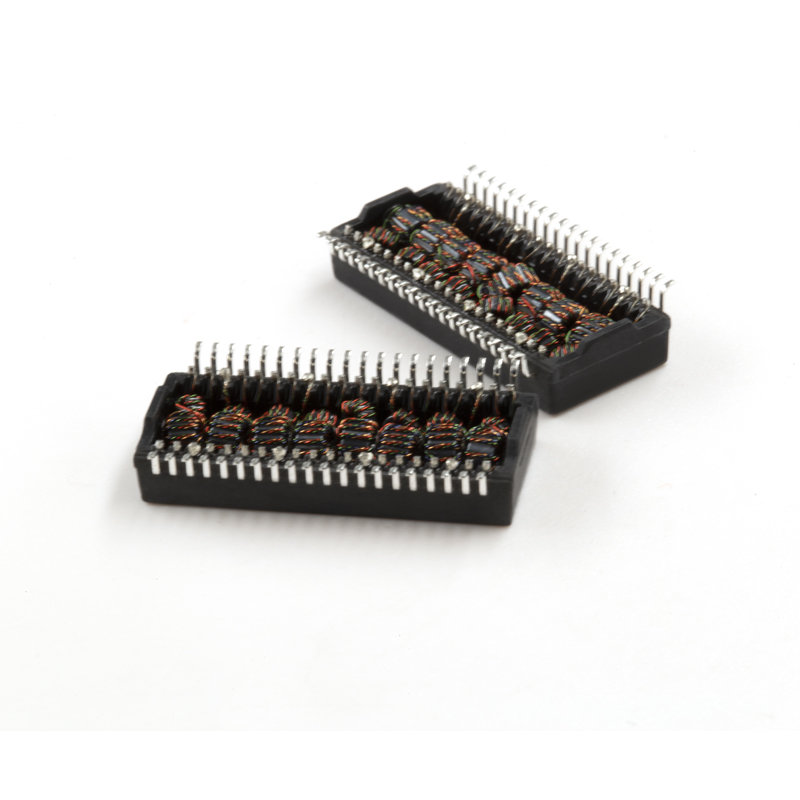

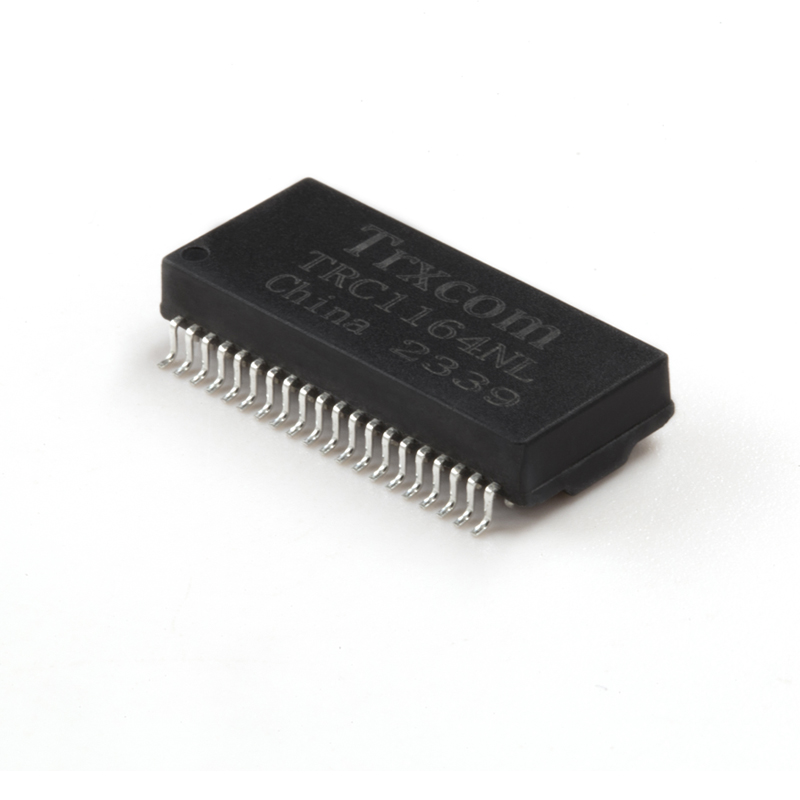

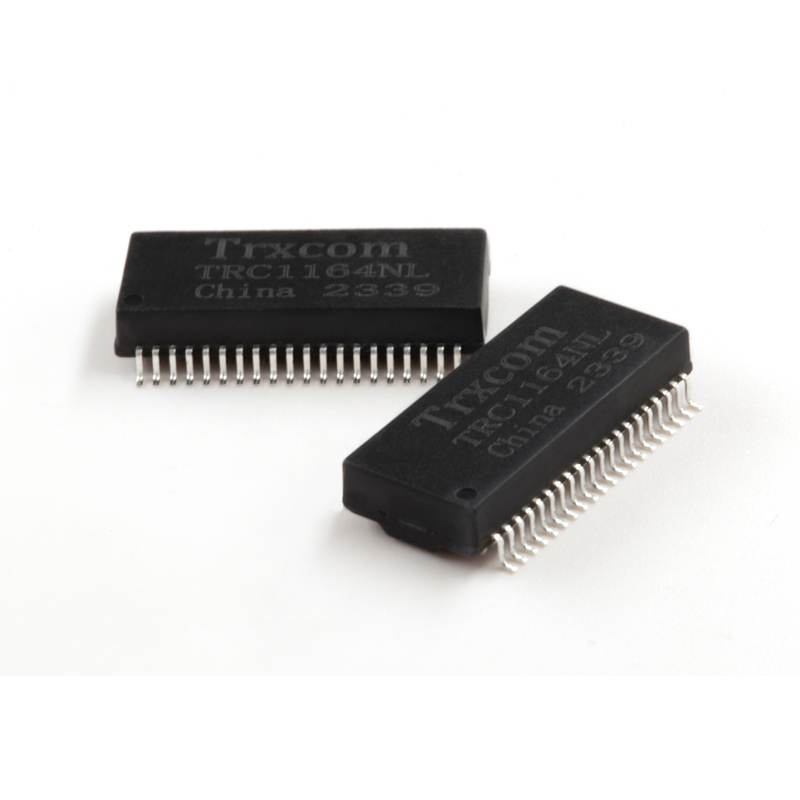

Trxcom TRC1164NL Quad Port 10/100 BASE-T Ethernet Transformer Module, Surface Mount Device, RoHS Compliant
The Trxcom TRC1164NL quad port lan magnetic transformer supports 10/100BASE-T data transmission rates, features various turns ratios, complies with the IEEE 802.3 specification, and is RoHS compliant with the "NL" version. It is designed for applications including SOHO (ADSL modems), LAN-on-Motherboard (LOM), hubs and switches.
| Trxcom Part Number | TRC1164NL | Transformer Type | Lan Transformer |
| Part Status | Active | Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Construction | OPEN FRAME | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Quad Port | Speed | 10/100 Base-T |
| Package | Tape & Reel | Cores per Port | 16 |
| AutomDX | Yes | Comment | SAME AS NL VERSION |
| PIN number | 40 | Mounting Type | Surface Mount |
| Package Height (Inches/mm) | 0.260/6.60 | Package Length (Inches/mm) | 1.125/28.58 |
| Package Width (Inches/mm) | 0.630/16.00 | Temperature | 0℃ TO +70℃ |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
