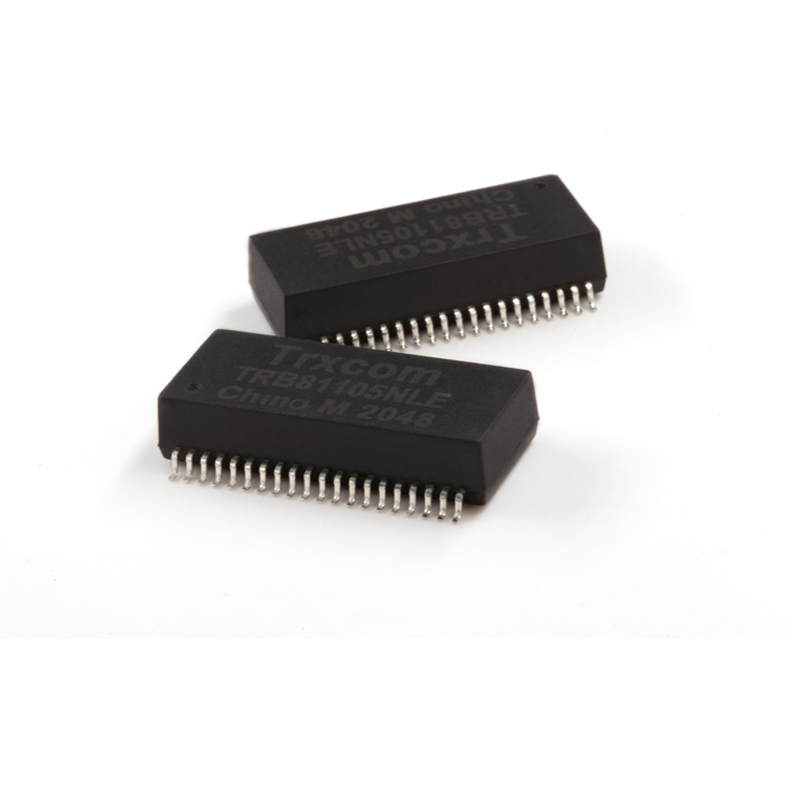

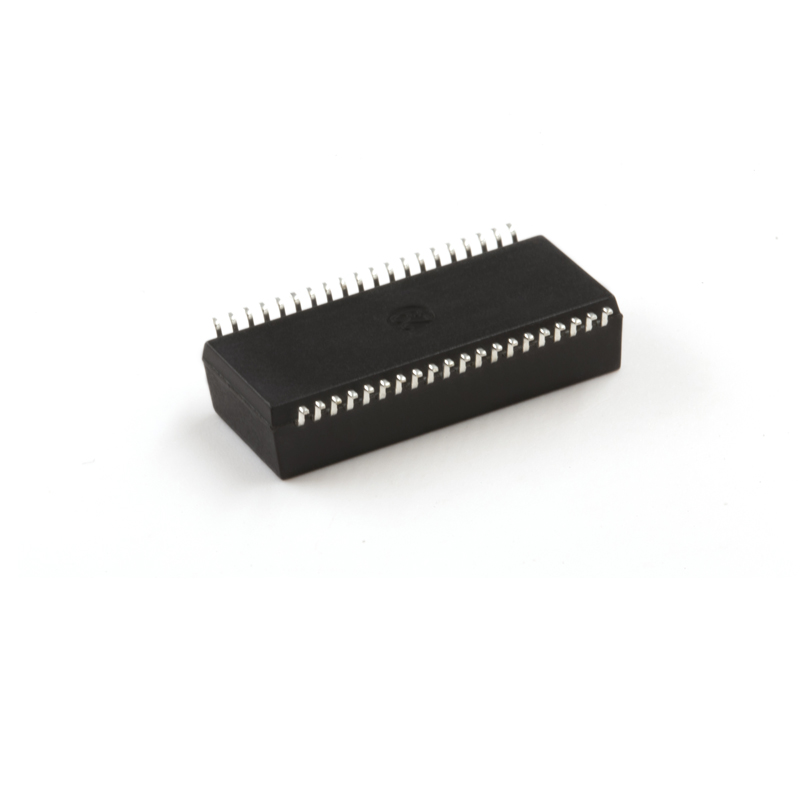

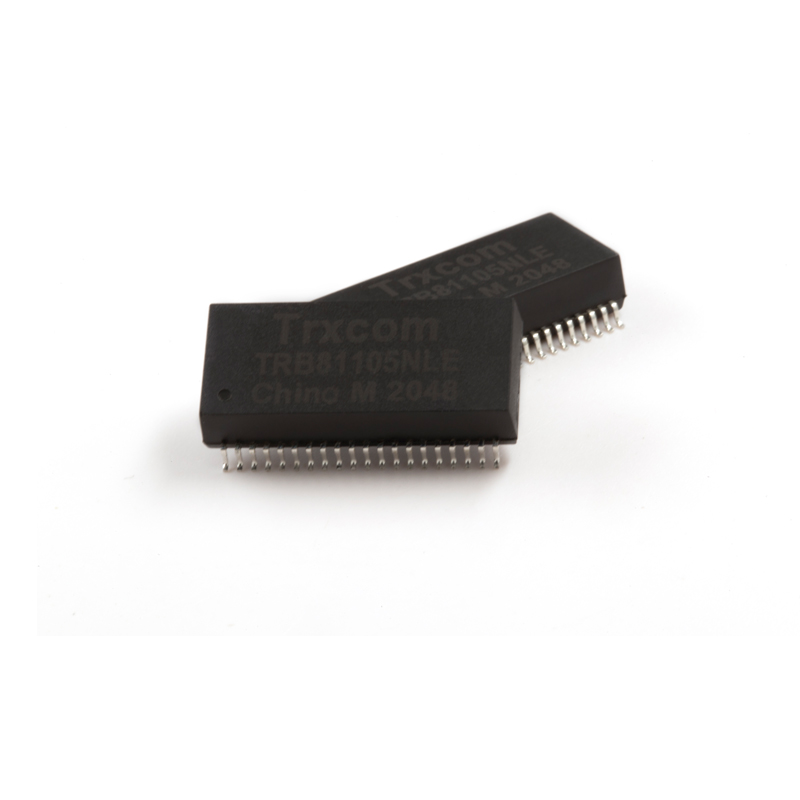

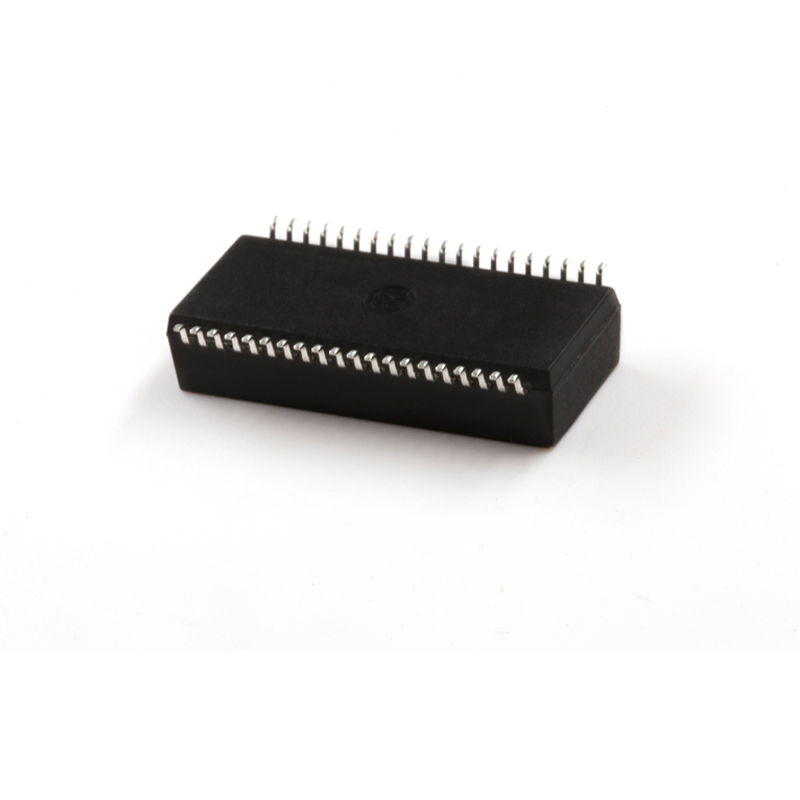

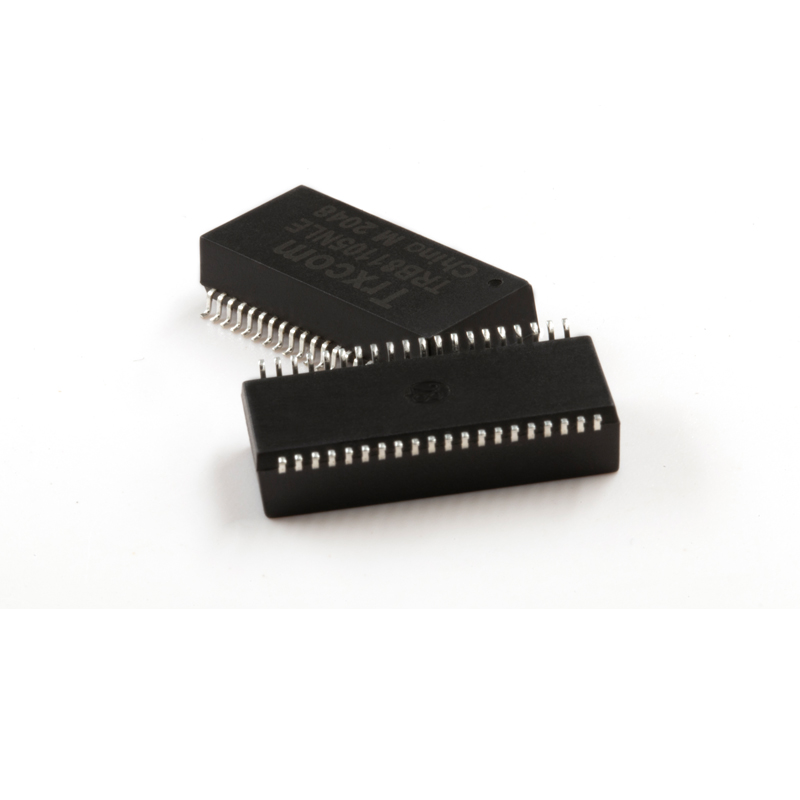

Quad Port 10/100 Base-T Lan Magnetic Transformer SMD 40Pin TRB81105NLE
share
Parameter
Brand ： Trxcom
Model ： TRB81105NLE
Data Rate ： 10/100Base-T
PoE ： No
Mount ： SMT
Temperature ： 0℃ to +70℃
PIN ： 40PIN
DetailReview(0)
Trxcom TRB81105NLE Quad Port 10/100 BASE-T Ethernet Transformer Module, Surface Mount Device, RoHS Compliant
The TRB81105NLE speed 10/100 Base-T complies with IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used for Industrial PC, Automation, Game Controller, and Satellite.
| Part Number | TRB81105NLE | Transformer Type | Lan Transformer |
| Part Status | Active | Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Construction | OPEN FRAME | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Quad Port | Speed | 10/100 Base-T |
| Package | Tape & Reel | Cores per Port | 8 |
| AutomDX | Yes | Comment | SAME AS NL VERSION |
| PIN number | 40 | Mounting Type | Surface Mount |
| Package Height (Inches/mm) | 0.260/6.60 | Package Length (Inches/mm) | 1.125/28.58 |
| Package Width (Inches/mm) | 0.630/16.00 | Temperature | 0℃ TO +70℃ |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
