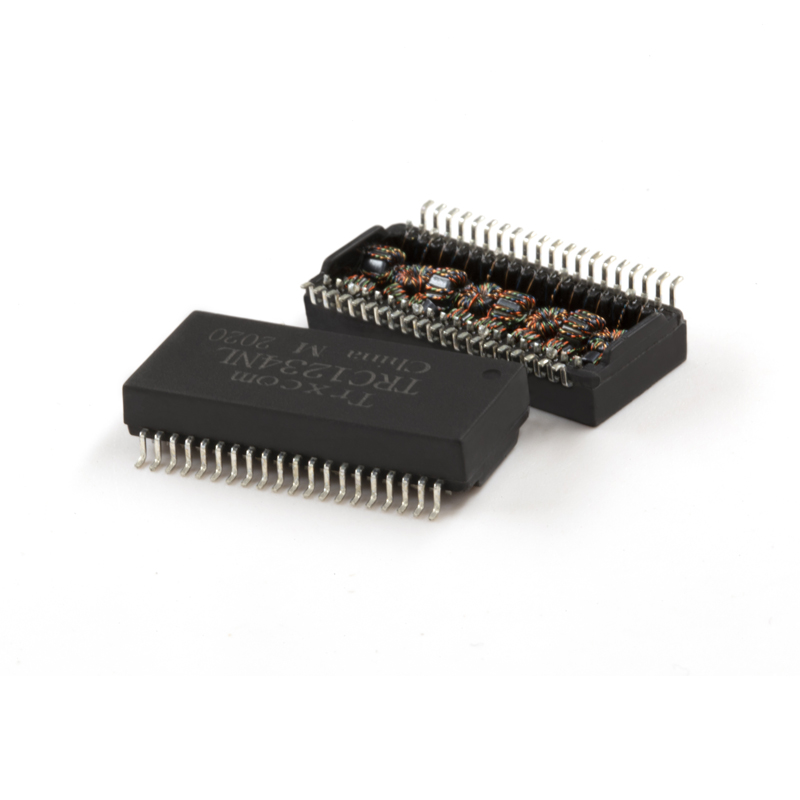

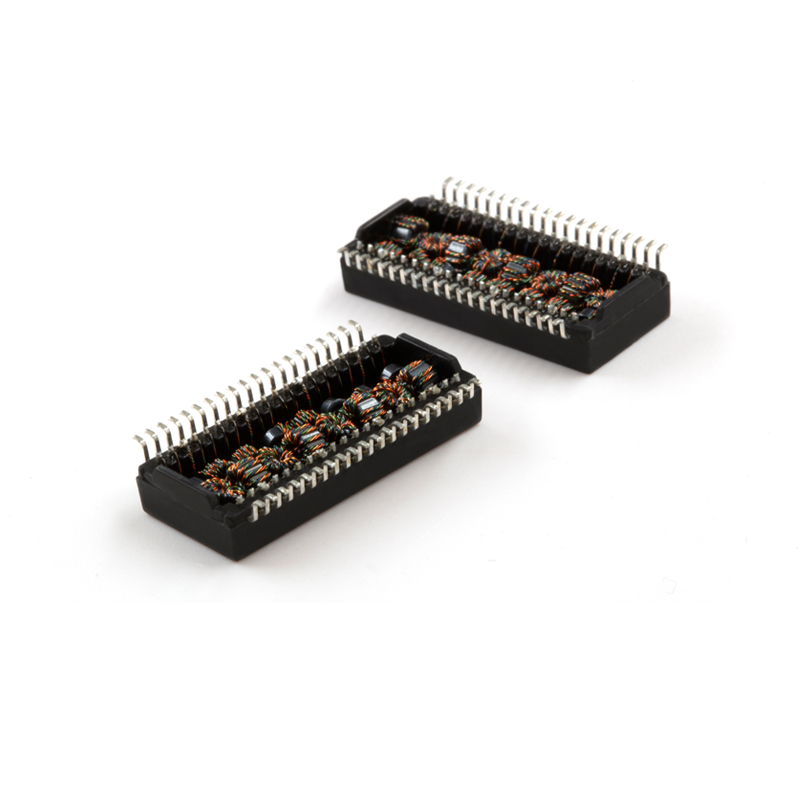

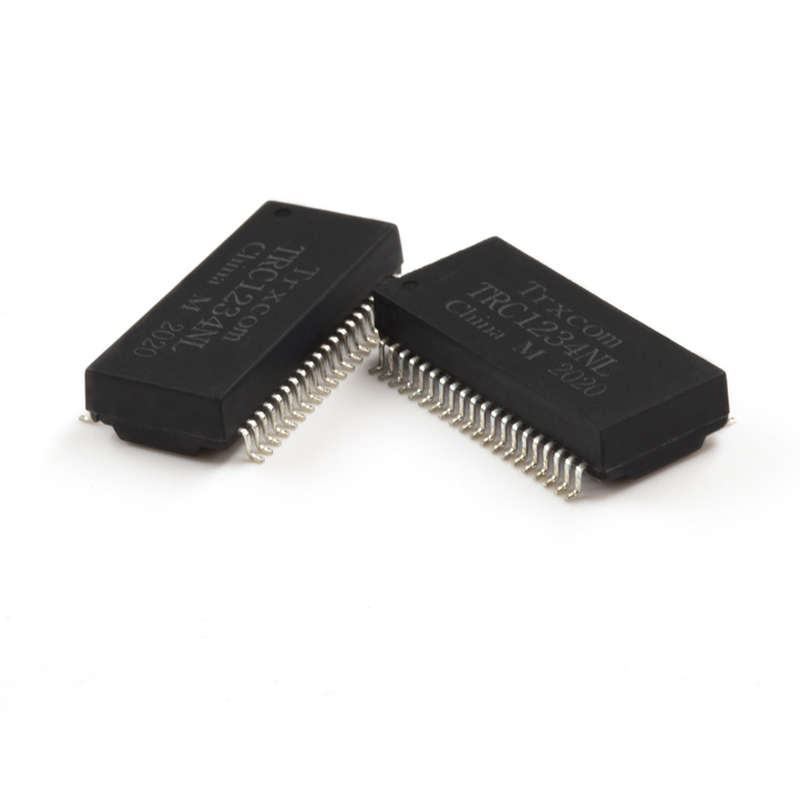

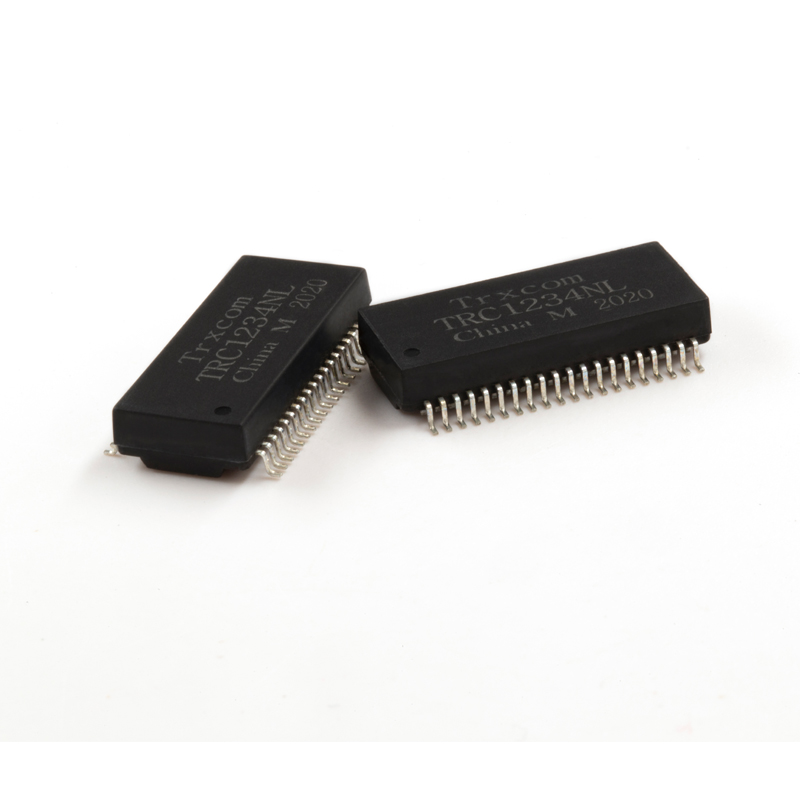

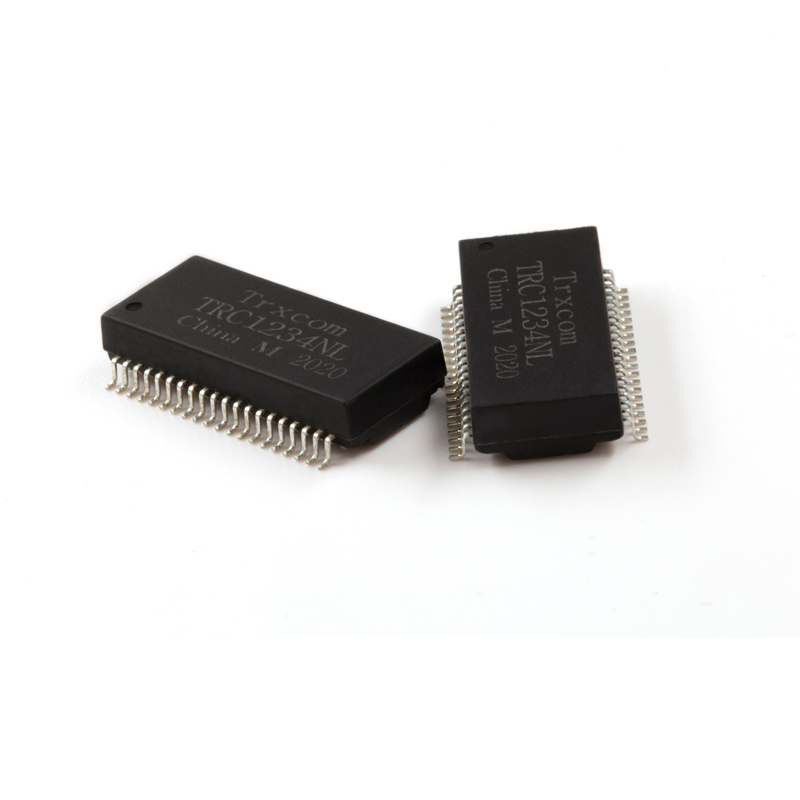

Quad Port 10/100 Base-T Lan Transformer Module SMD 40Pin TRC1234NL
share
Parameter
Brand ： Trxcom
Model ： TRC1234NL
Data Rate ： 10/100Base-T
PoE ： No
Mount ： SMT
Temperature ： -40℃ to +85℃
PIN ： 40PIN
DetailReview(0)
Trxcom TRC1234NL Quad Port 10/100 BASE-T Ethernet Transformer Module, Surface Mount Device, 40Pin,RoHS Compliant
The TRC1234NL speed 10/100 Base-T, is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001, and ISO14001 standards. It can be used for routers, Smart Homes, Smart Meters, and satellites.
| Part Number | TRC1234NL | Transformer Type | Lan Transformer |
| Part Status | Active | Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Construction | OPEN FRAME | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Quad Port | Speed | 10/100 Base-T |
| Package | Tape & Reel | Cores per Port | 16 |
| AutomDX | Yes | Comment | SAME AS NL VERSION |
| PIN number | 40 | Mounting Type | Surface Mount |
| Package Height (Inches/mm) | 0.260/6.60 | Package Length (Inches/mm) | 1.125/28.58 |
| Package Width (Inches/mm) | 0.630/16.00 | Temperature | 0℃ TO +70℃ |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
