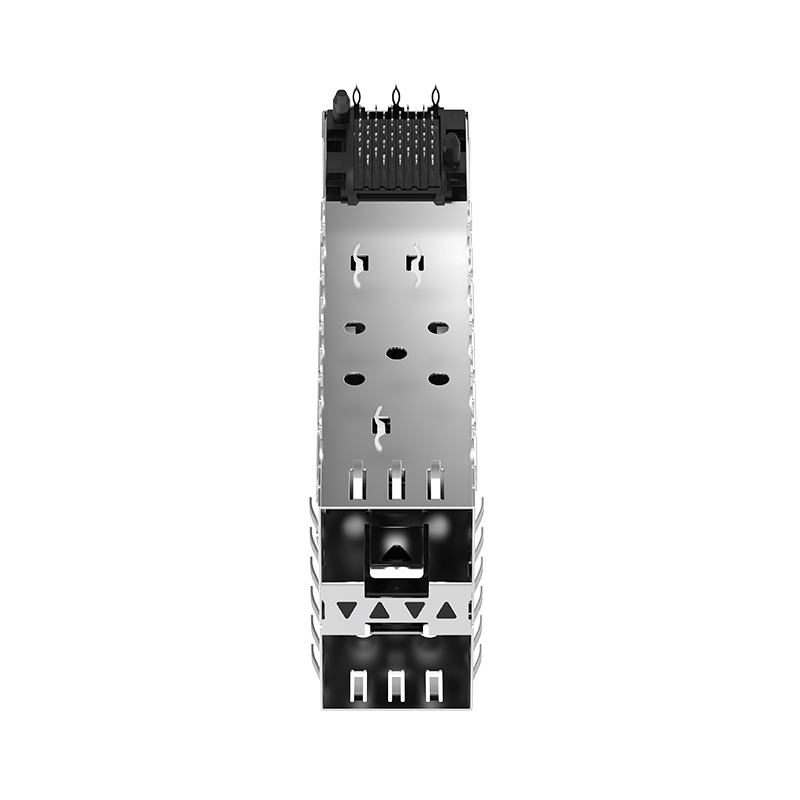

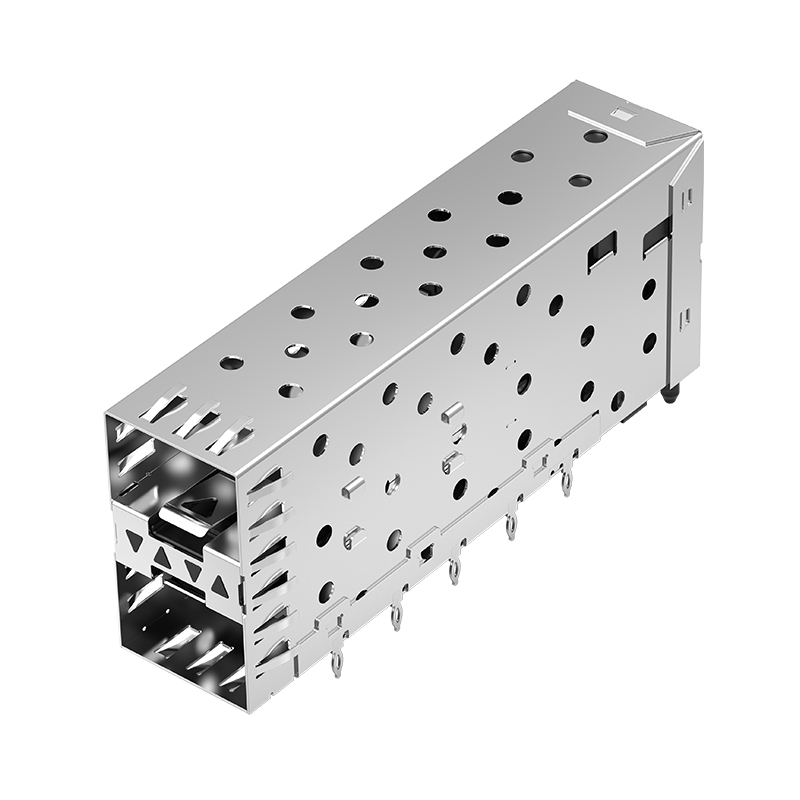

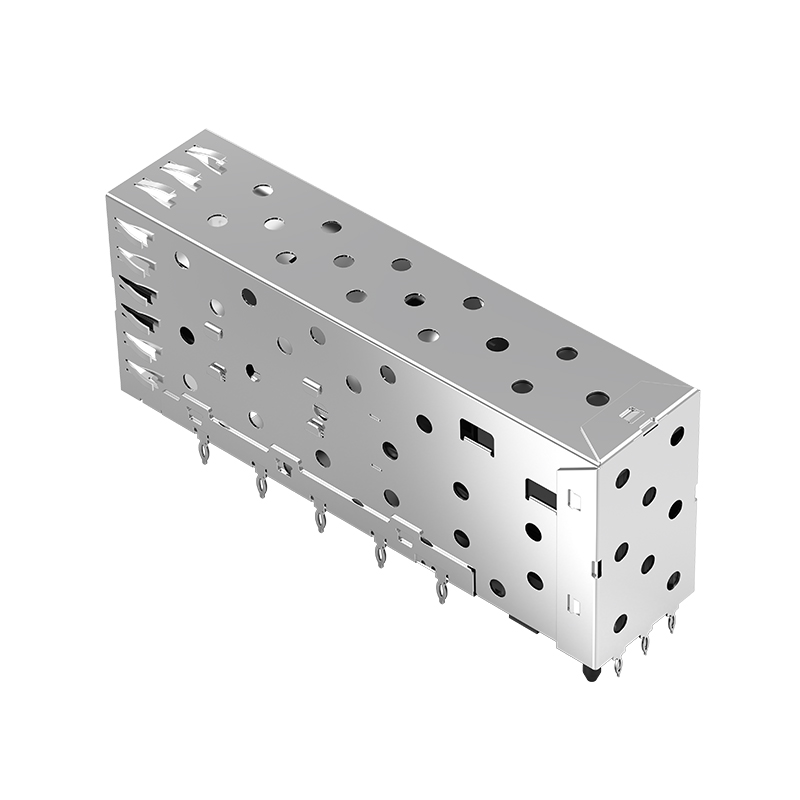

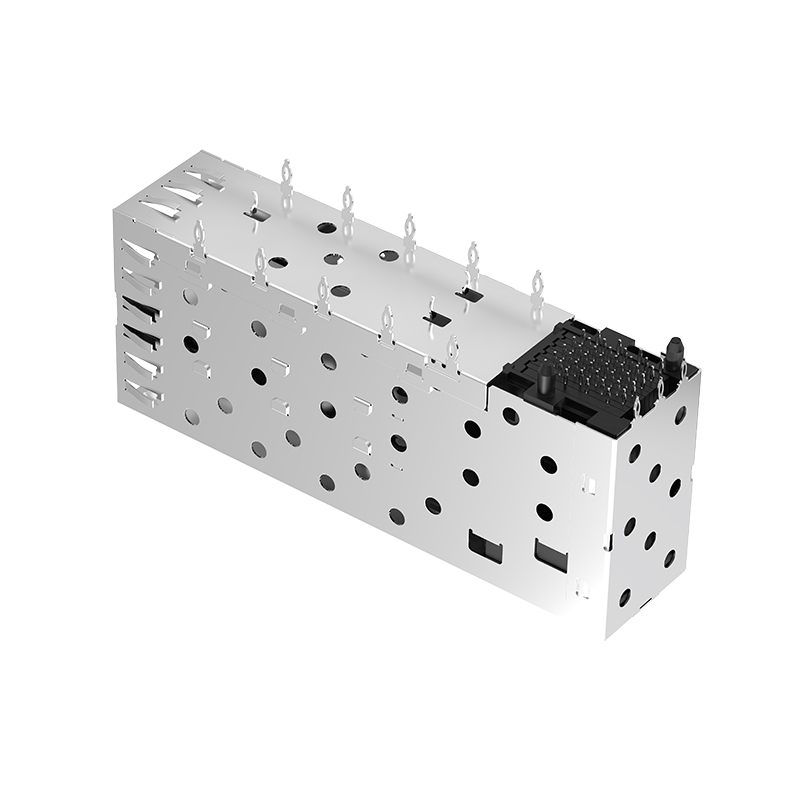

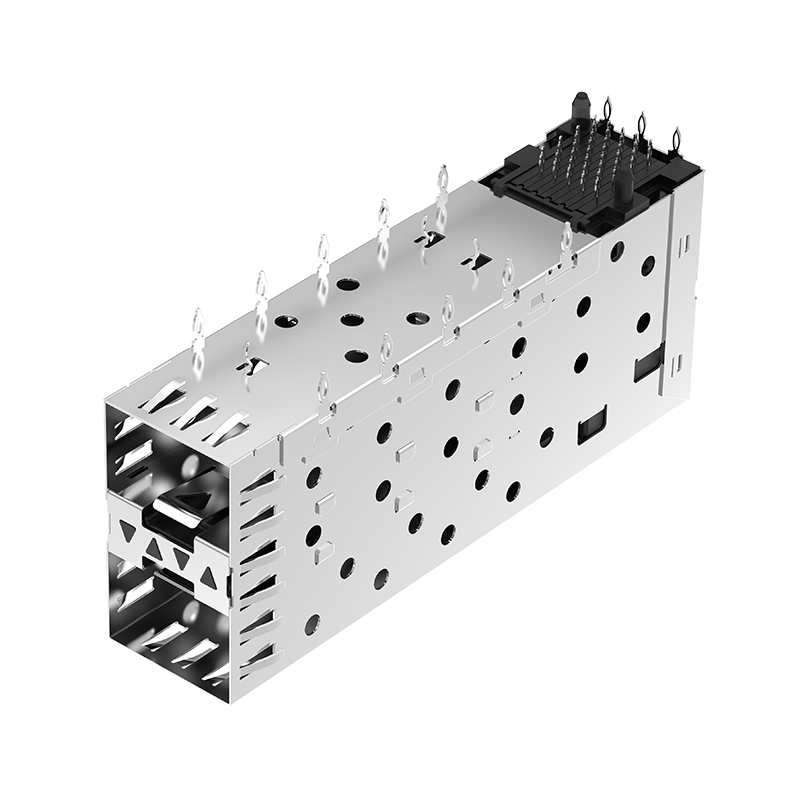

TR21AC02101 2x1 SFP Cage Connector Press-Fit With Inner/Outer LightPipe

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Number ： TR21AC02101
Brand ： Trxcom
Types ： SFP
Number of Ports ： 2x1
Pluggable I/O Product Type ： Cage Assembly with Integrated Connector
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： With Lightpipe
Termination Method to Printed ： Through Hole - Press-Fit
Operating Tem Perature Range(° ： -40℃ to 85℃
Get a Quote
Consult products
DetailReview(0)

Trxcom TR21AC02101 2x1 SFP Cage Connector Press-Fit With Inner/Outer LightPipe

The Trxcom TR21AC02101 is a 2×1 port SFP cage connector with press-fit design and integrated inner/outer lightpipes. Equipped with effective EMI shielding, it supports clear LED status indication and stable high-speed transmission, ideal for enterprise switches, servers and industrial networking devices.

Part NumberTR21AC02101Part StatusActive
Connector StyleCageConnector TypeSFP
CageCOPPER ALLOY,Ni PL ATEDPACKAGINGTRAY PACKAGING
Port Matrix Configuration2x1 PortNumber of Ports2
Operating Temperature Range-40 – 85°CMounting StyleThrough Hole, Right Angle
Included LightpipeInner/Outer LightPipeTerminationPress-Fit
Height (Inches/mm)25.20/0.992Length (Inches/mm)63.25/2.490
Width (Inches/mm) 14.00/0.551EMI Containment Feature TypeEMI Springs
