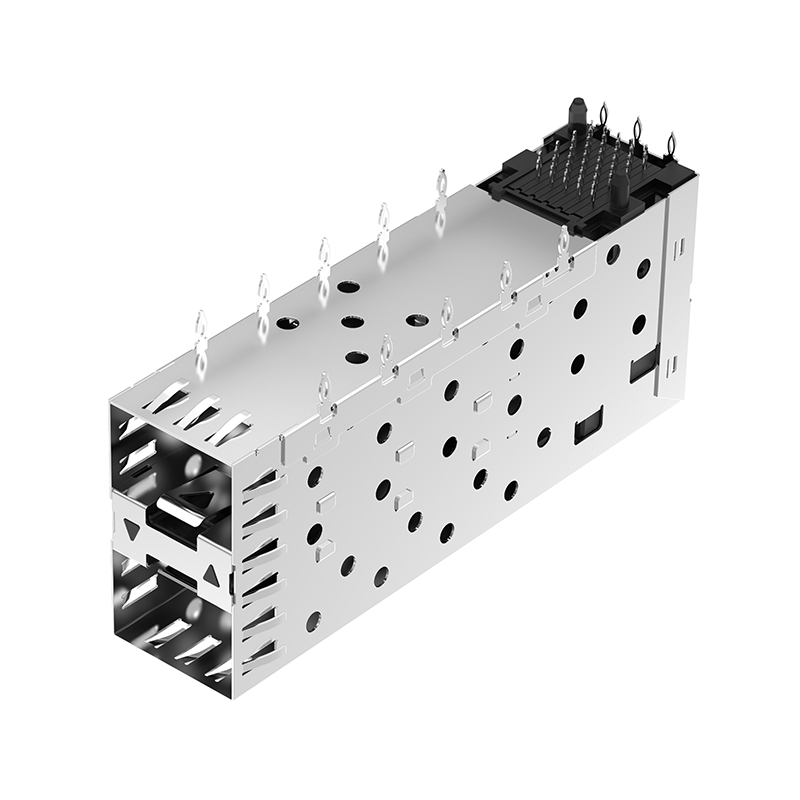

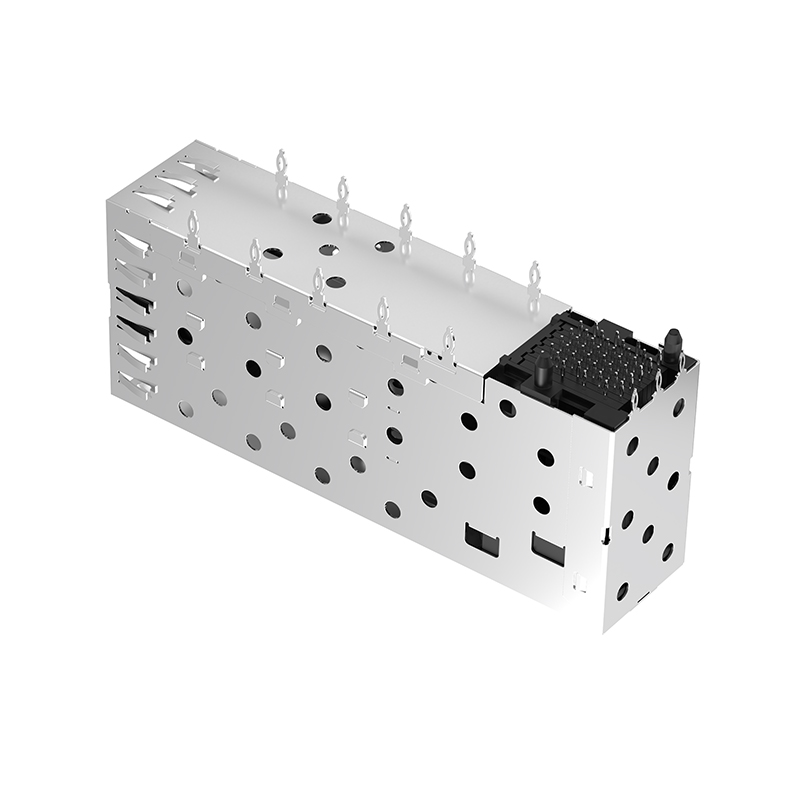

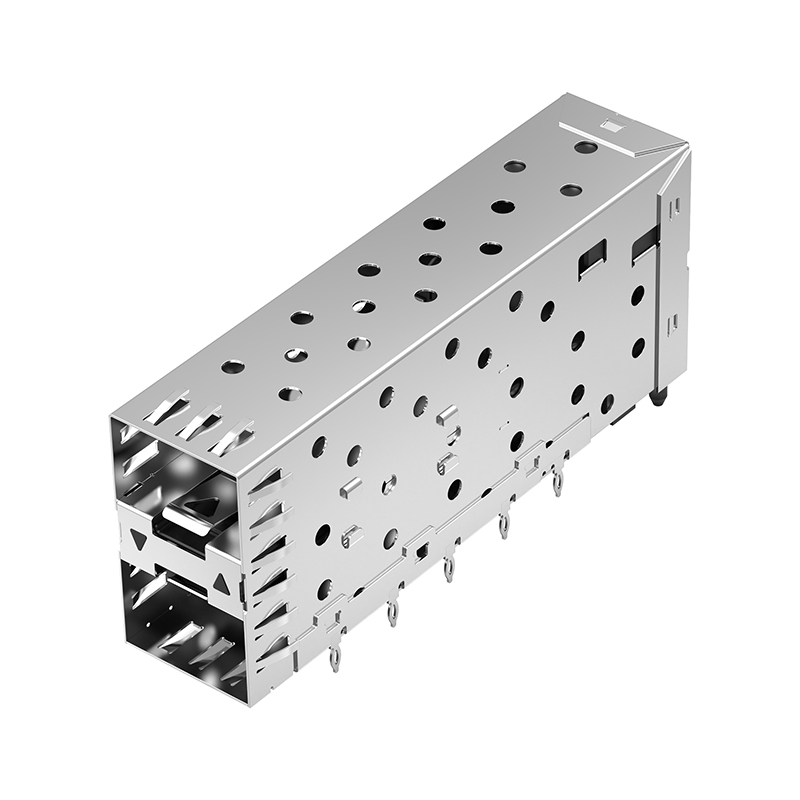

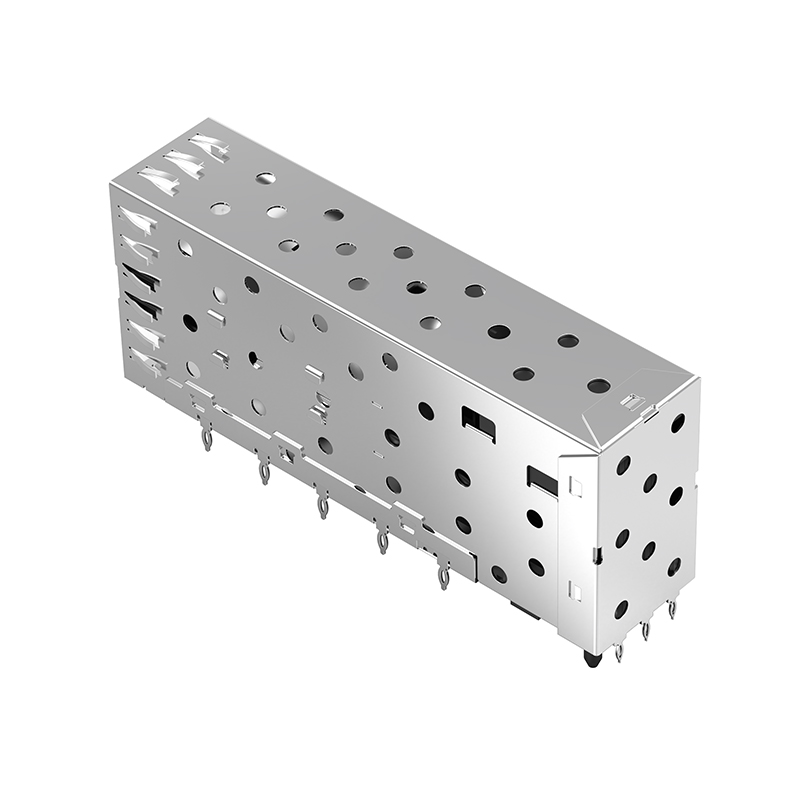

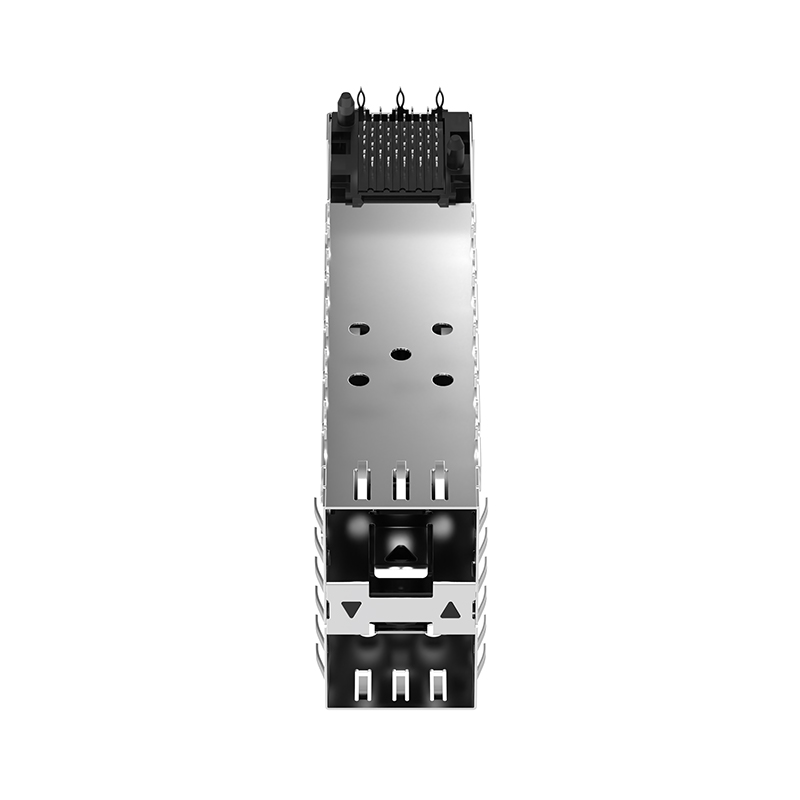

TR21AC01301 SFP 2x1 Cage Connector With Outer LightPipe
share
Parameter
Number ： TR21AC01301
Brand ： Trxcom
Types ： SFP
Number of Ports ： 2x1
Pluggable I/O Product Type ： Cage Assembly with Integrated Connector
EMI Containment Feature Type ： Internal/External EMI Springs
Lightpipe Options ： With Lightpipe
Termination Method to Printed ： Through Hole - Press-Fit
Operating Tem Perature Range(° ： -40℃ to 85℃
DetailReview(0)
Trxcom TR21AC01301 SFP 2x1 Cage Connector With Outer LightPipe
Trxcom TR21AC01301 is a high-performance 2x1 stacked SFP cage connector integrated with an outer lightpipe, designed for 1G/10G SFP transceiver applications in enterprise switches, routers, and industrial Ethernet devices. It combines rugged mechanical design, reliable EMI shielding, and efficient status indication, delivering a cost-effective I/O solution for high-density networking ports.
| Part Number | TR21AC01301 | Part Status | Active |
| Connector Style | Receptacle with Cage, Ganged (2x1) | Connector Type | SFP |
| Data Rate (Max)(Gb/s) | - | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 2x1 Ports | Number of Ports | 2 |
| Operating Temperature Range | -40 – 85°C | Pluggable I/O Applications | SFP |
| Circuit Application | Signal | EMI Containment Feature Type | External Springs |
| Included Lightpipe | With Outer LightPipe | Cage Material | COPPER ALLOY 30u” |
| Length (Inches/mm) | 63.25/2.490 | Width (Inches/mm) | 14.00/0.551 |
| Height (Inches/mm) | 25.50/1.005 | PCB Thickness (Recommended) | 2.36MM( .093 INCH) |
