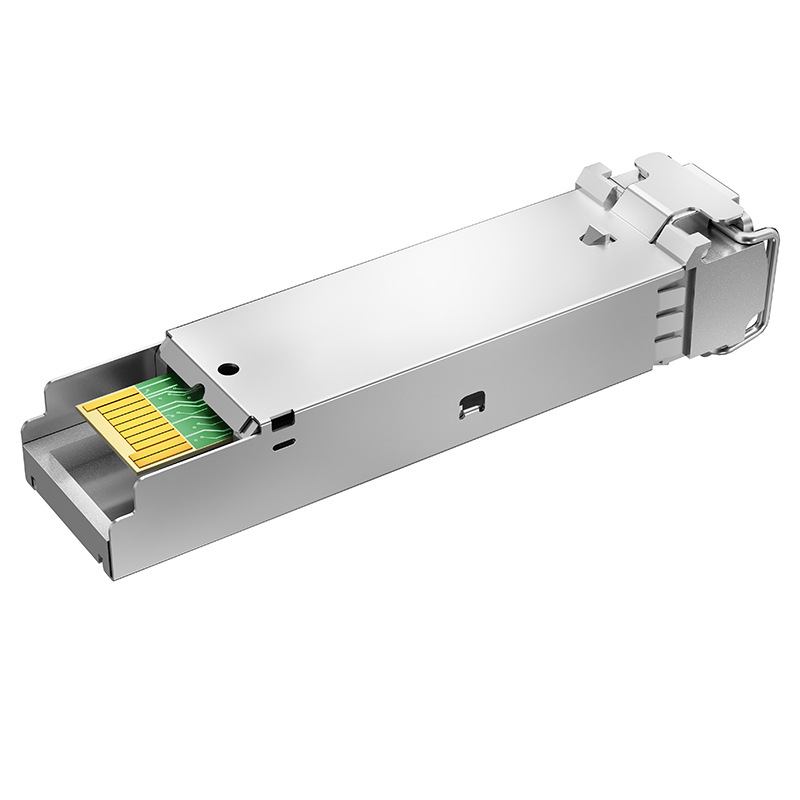

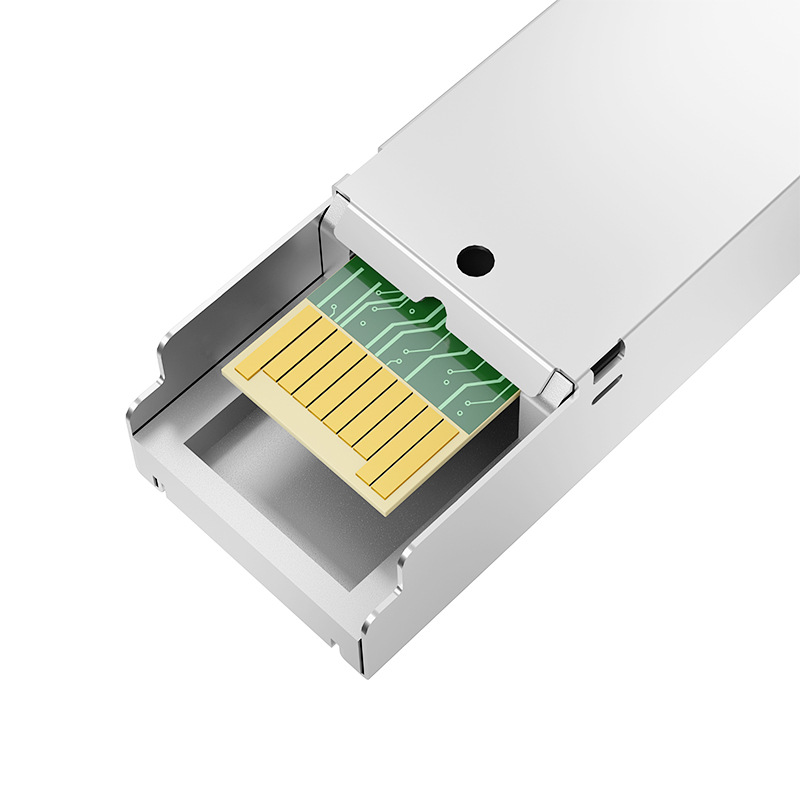

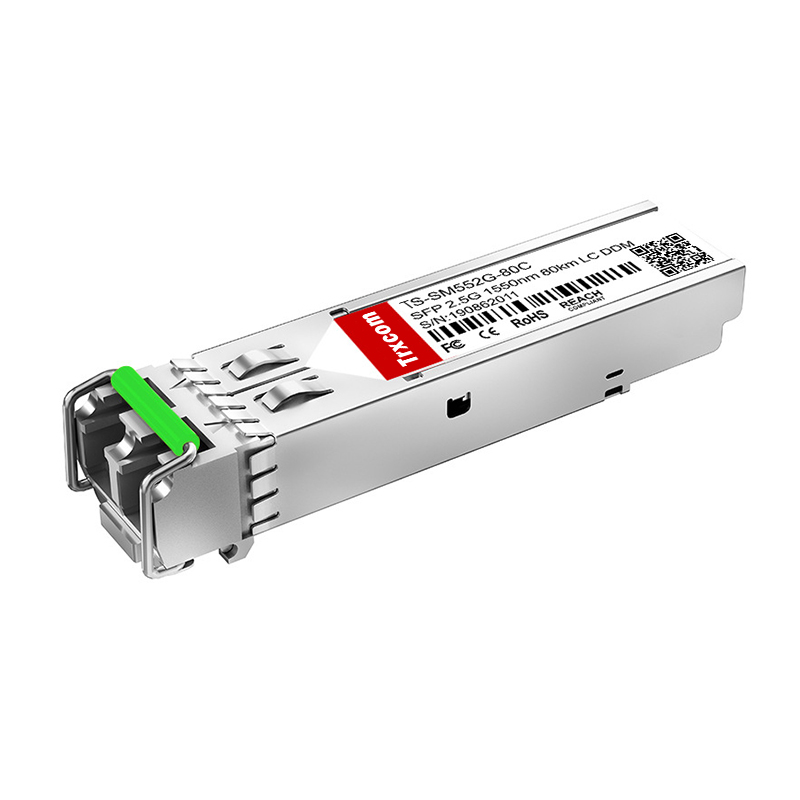

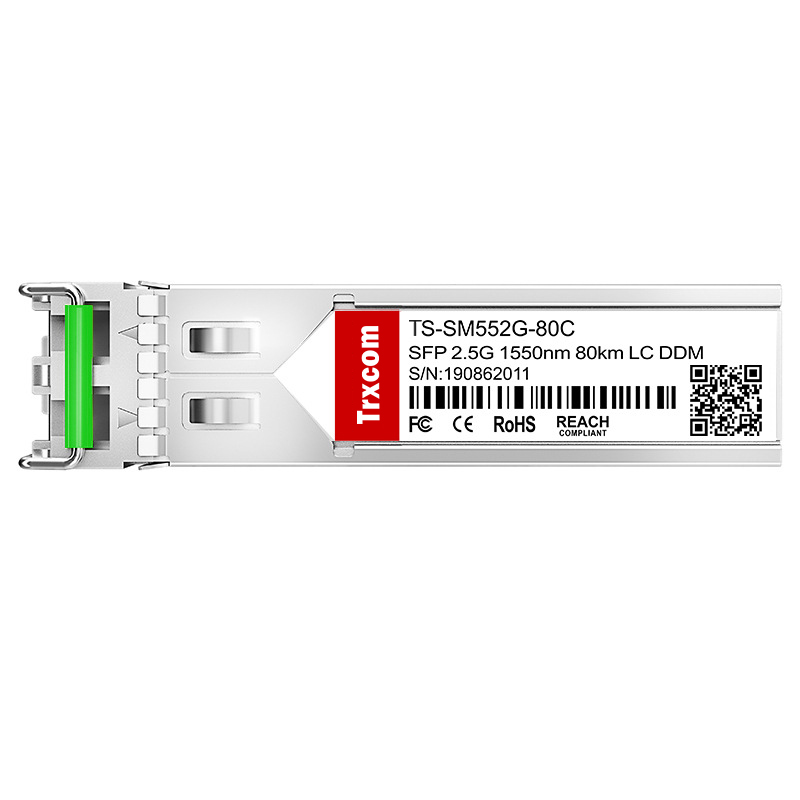

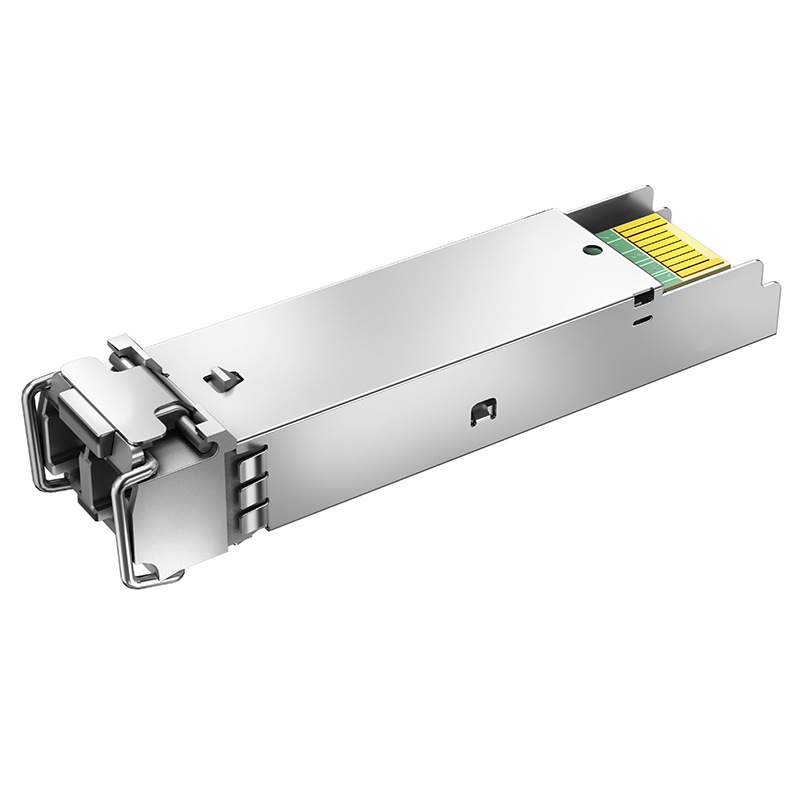

TS-SM552G-80C 2.5Gbps OC-48/STM-16 LR-2 SFP 1550nm 80km DOM Duplex LC SMF Optical Transceiver Module
share
Parameter
P/N ： TS-SM552G-80C
Form Factor ： SFP
Type ： Single Mode
Data Rate ： 2.5G
Connector ： Duplex LC
Distance ： ≤80km
Wavelength ： 1550nm
DetailReview(0)
Trxcom TS-SM552G-80C 2.5Gbps OC-48/STM-16 LR-2 SFP Duplex Optical Transceiver Module(SMF, 1550nm, 80km, LC, DOM)
The LS-SM552G-80C SFP transceivers are high performance, cost effective modules supporting data rate of 2.5Gbps and 80km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
| Trxcom Part Number | TS-SM552G-80C | Vendor Name | Trxcom |
| Form Factor | SFP | Max Data Rate | 2.5Gbps |
| Wavelength | 1550nm | Max Cable Distance | 80km |
| Connector | Duplex LC | Optical Components | DFB 1550nm |
| Media | SMF | DOM Support | Yes |
| TX Power | -2 to +3dBm | RX Power | -26 to -1dBm |
| Receiver Sensitivity | -26dBm | Receiver Overload | -1dBm |
| Operating case temperature | 0 to 70°C | Protocols | MSA Compliant |
