TS-SM312G-40C 2.5Gbps SFP 1310nm 40km DOM Duplex LC SMF Optical Transceiver Module
share
Parameter
P/N ： TS-SM312G-40C
Form Factor ： SFP
Type ： Single Mode
Data Rate ： 2.5G
Connector ： Duplex LC
Distance ： ≤40km
Wavelength ： 1310nm
DetailReview(0)

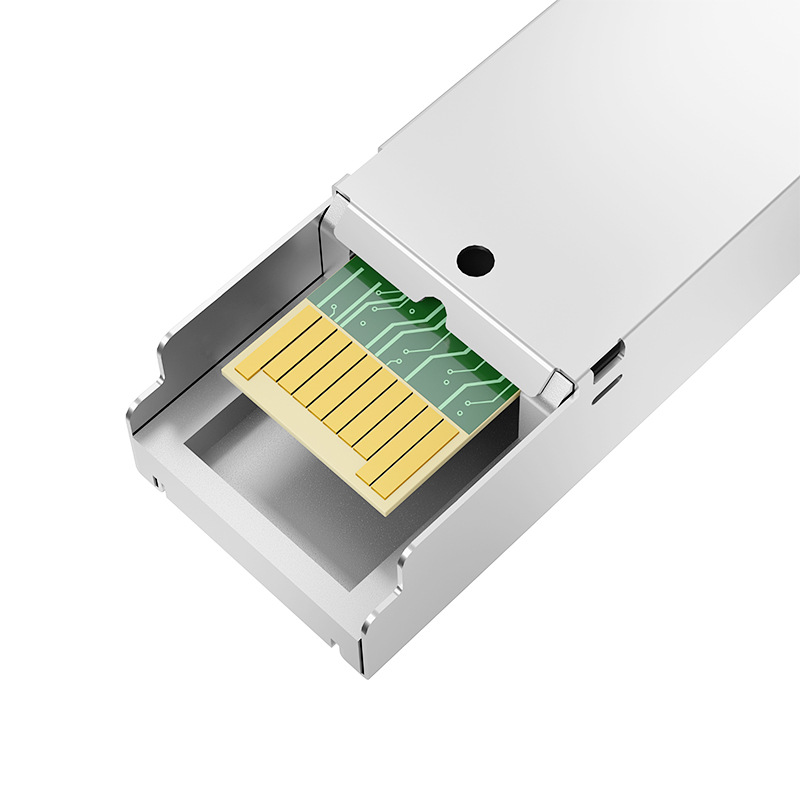

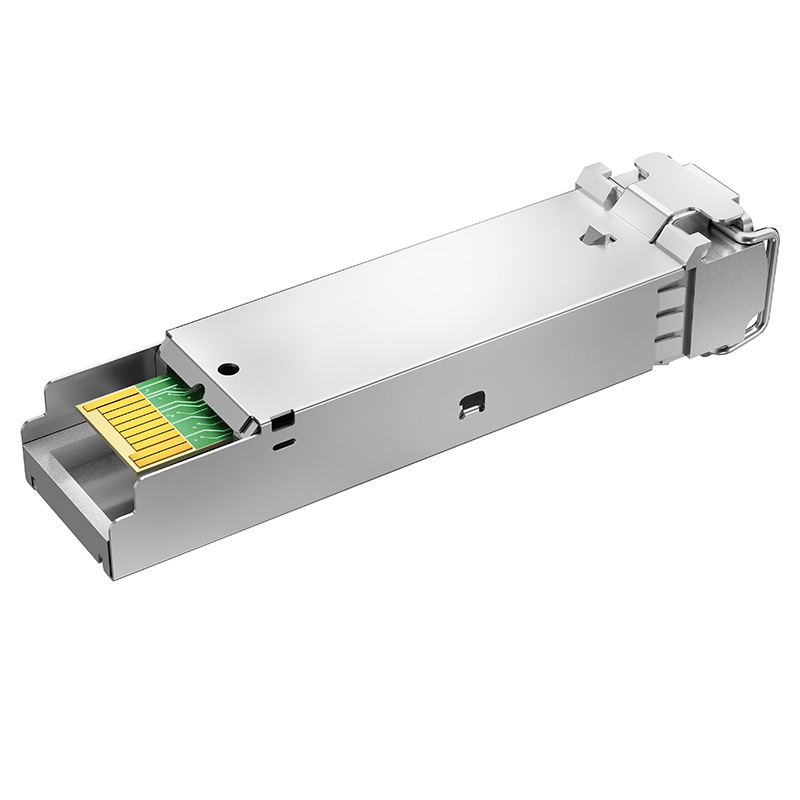

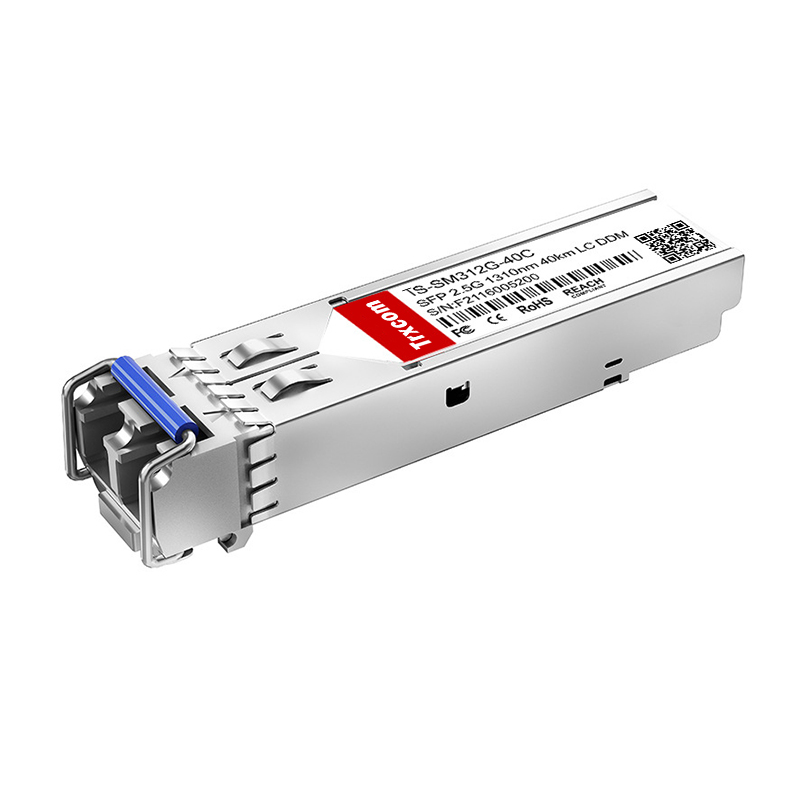

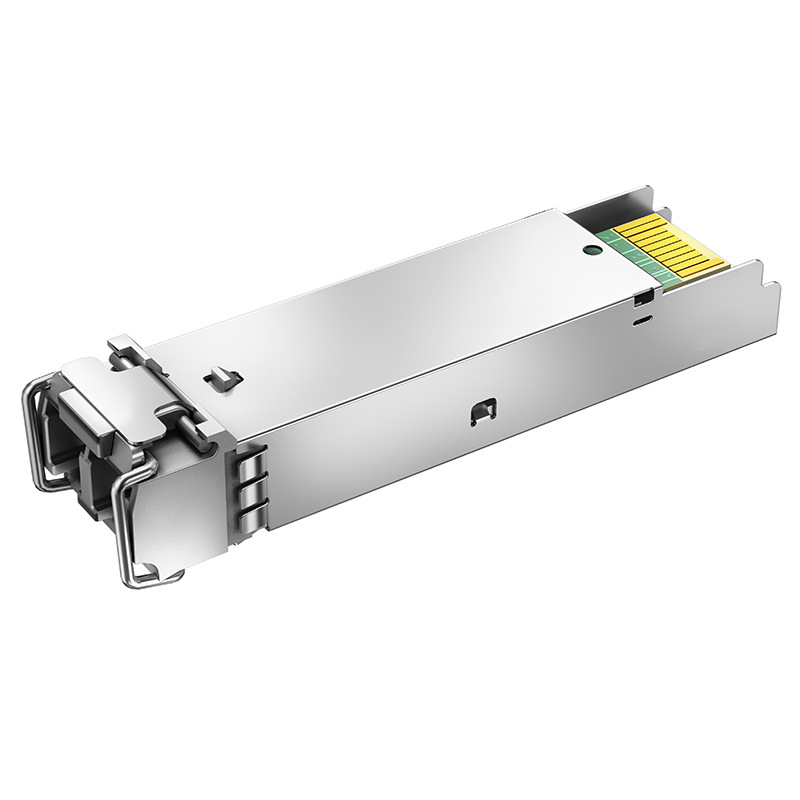

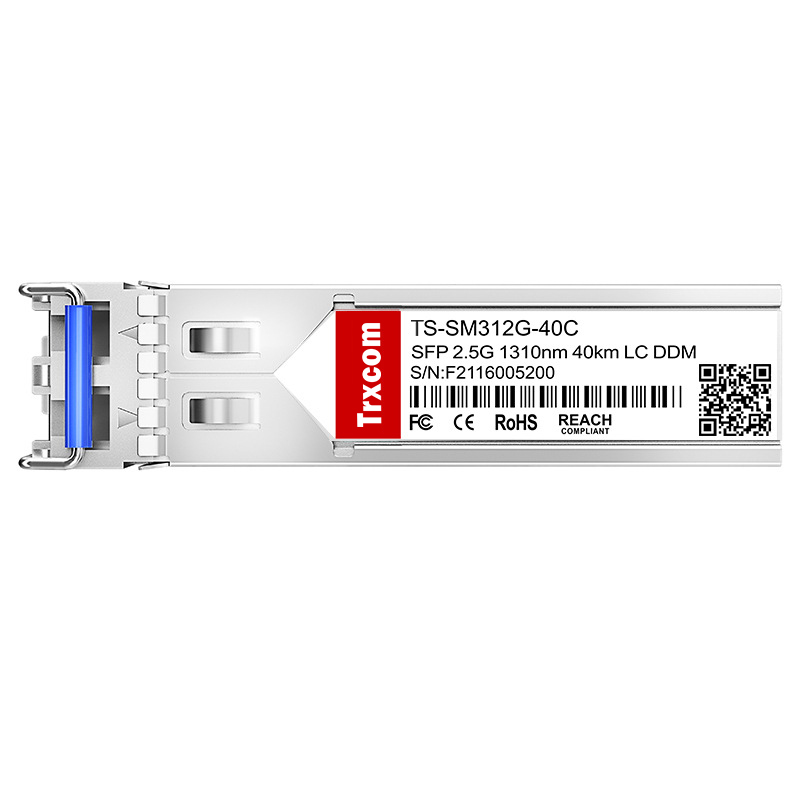

Trxcom TS-SM312G-40C 2.5Gbps SFP Duplex LC Optical Transceiver Module(SMF, 1310nm, 40km, LC, DOM)
The TS-SM312G-40C SFP transceivers are high performance, cost effective modules supporting data rate of 2.5Gbps and 40km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
| Trxcom Part Number | TS-SM312G-40C | Vendor Name | Trxcom |
| Form Factor | SFP | Max Data Rate | 2.5Gbps |
| Wavelength | 1310nm | Max Cable Distance | 40km |
| Connector | Duplex LC | Optical Components | DFB 1310nm |
| Media | SMF | DOM Support | Yes |
| TX Power | -2 to +3dBm | RX Power | -20 to -1dBm |
| Receiver Sensitivity | -20dBm | Receiver Overload | -1dBm |
| Operating case temperature | 0 to 70°C | Protocols | MSA Compliant |
