Trxcom TRJG0926HENL Single Port 100/1000 Base-T RJ45 PoE+ Gigabit Magjack Tab Down Green/Yellow Led

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJG0926HENL
Port: ： 1X1
Rate: ： 1000Base-T
PoE: ： PoE+
Latch: ： Down
LED: ： Green/Yellow
Mount: ： 0℃ to 70℃
Shield Tabs: ： No
Get a Quote
Consult products
DetailReview(0)

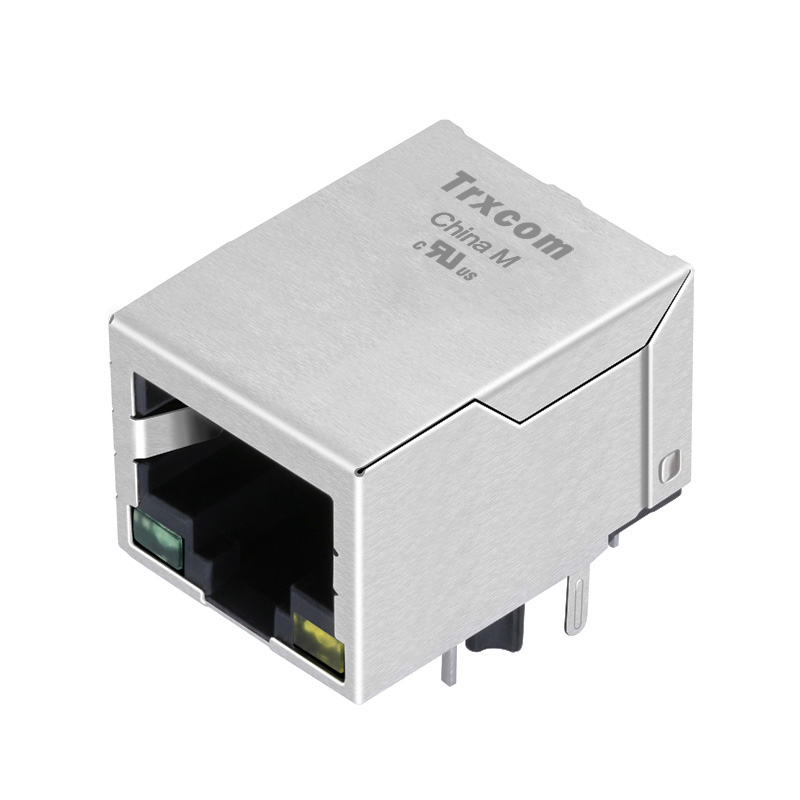

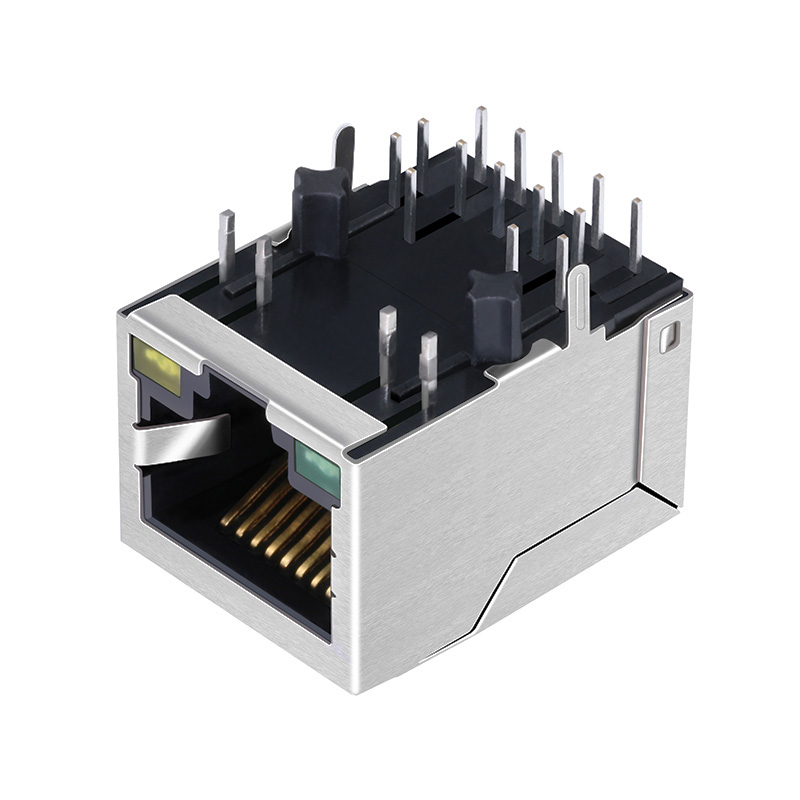

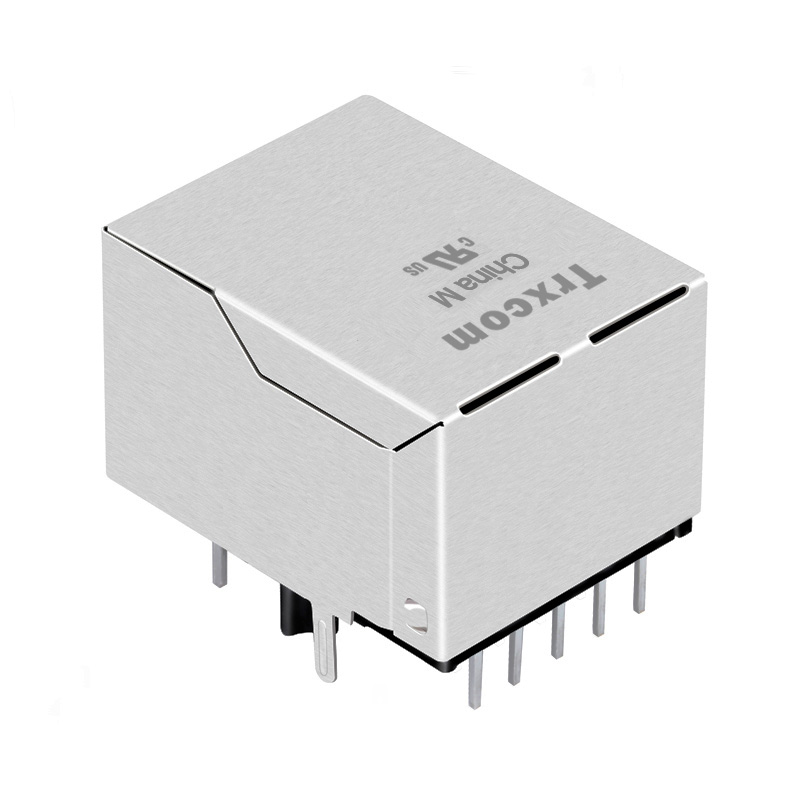

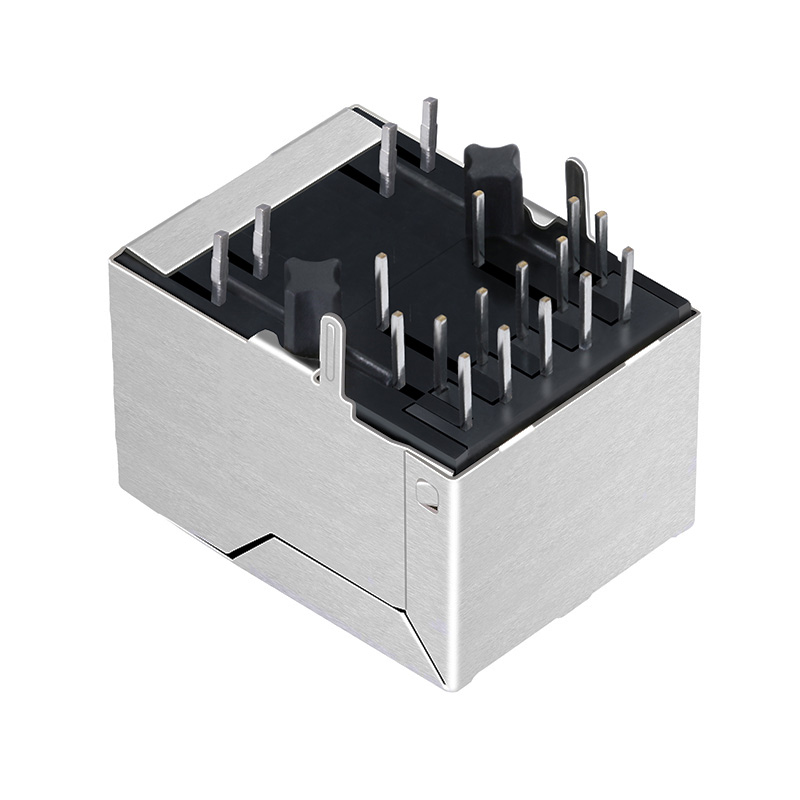

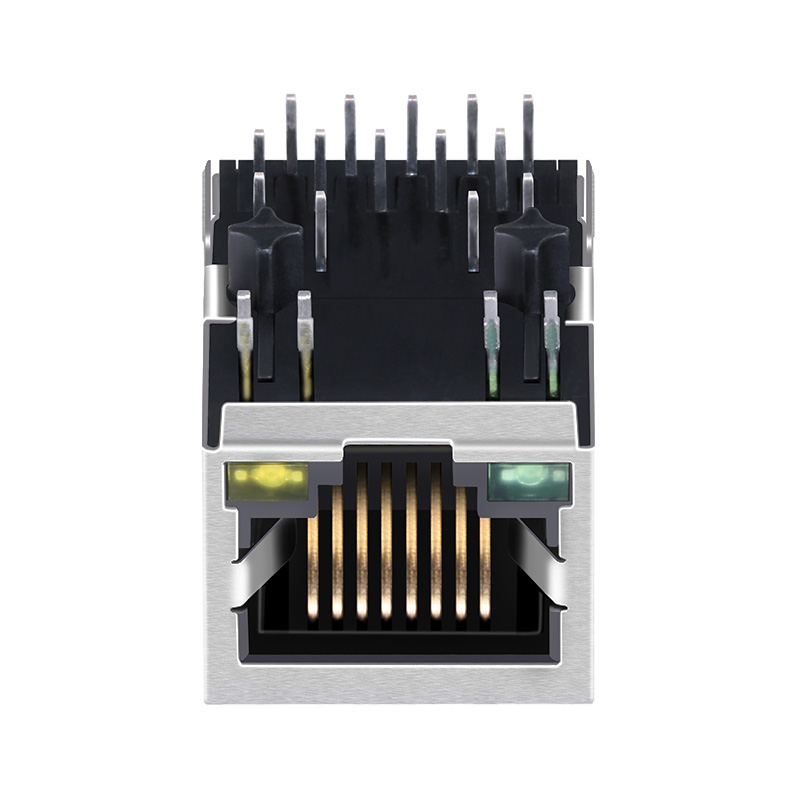

Trxcom TRJG0926HENL Single Port 100/1000 Base-T RJ45 PoE+ Gigabit MagJack (POE+,Tab Down, Green/Yellow Led)

The Trxcom TRJG0926HENL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Raspberry Pi 3B+, Digital Camera, Industrial PC and Embedded Main Board.

Part NumberTRJG0926HENLVendor NameTrxcom
Connector TypeJackMounting TypeThrough Hole
Number of Positions/Contacts14p8c (RJ45, Ethernet)Application-LanEthernet(PoE+)
Number of Ports1x1 PortSpeed10/100/1000 Base-T
LatchDownCores per Port8
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithoutLED OptionGreen/Yellow
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.528/13.40Package Length (Inches/mm)0.839/21.30
Package Width (Inches/mm)0.626/15.90Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
