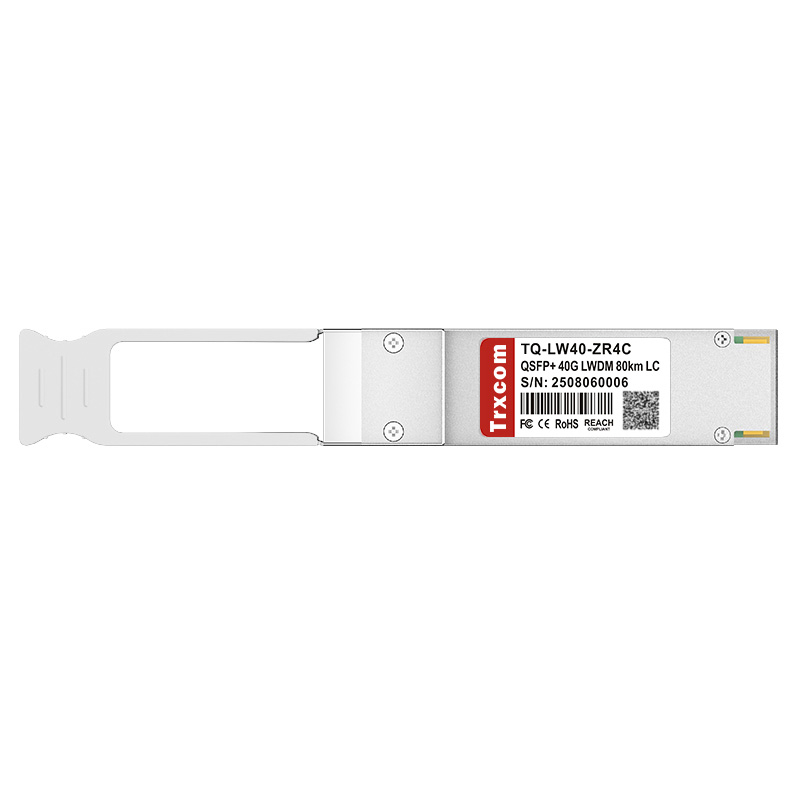

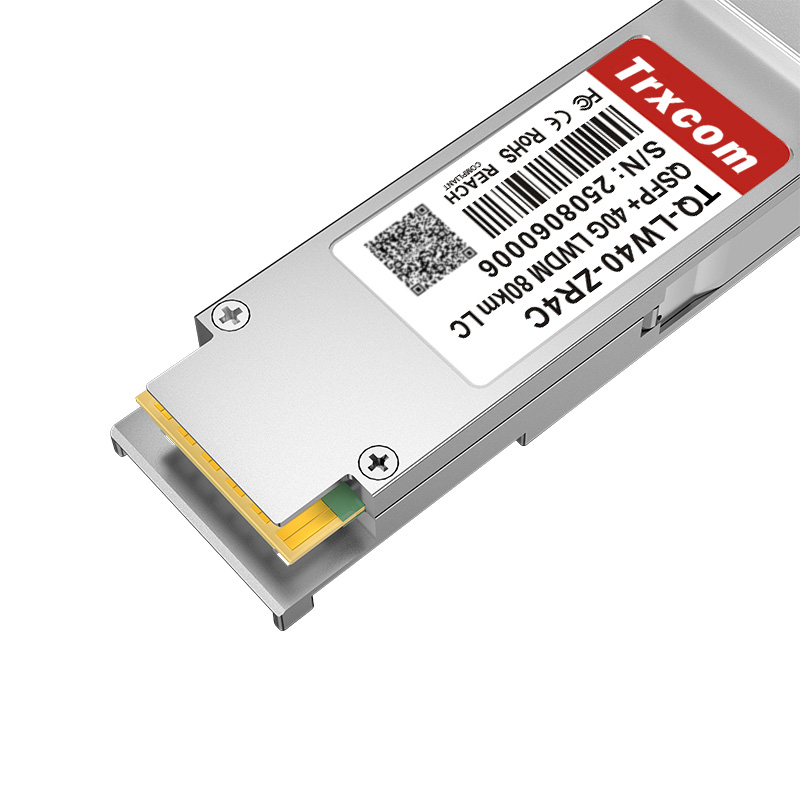

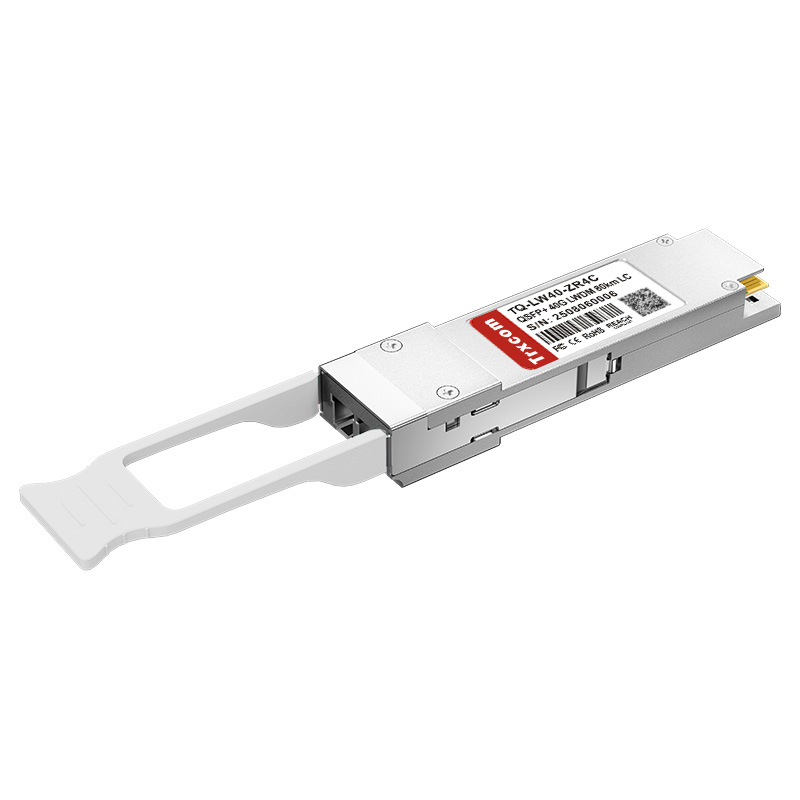

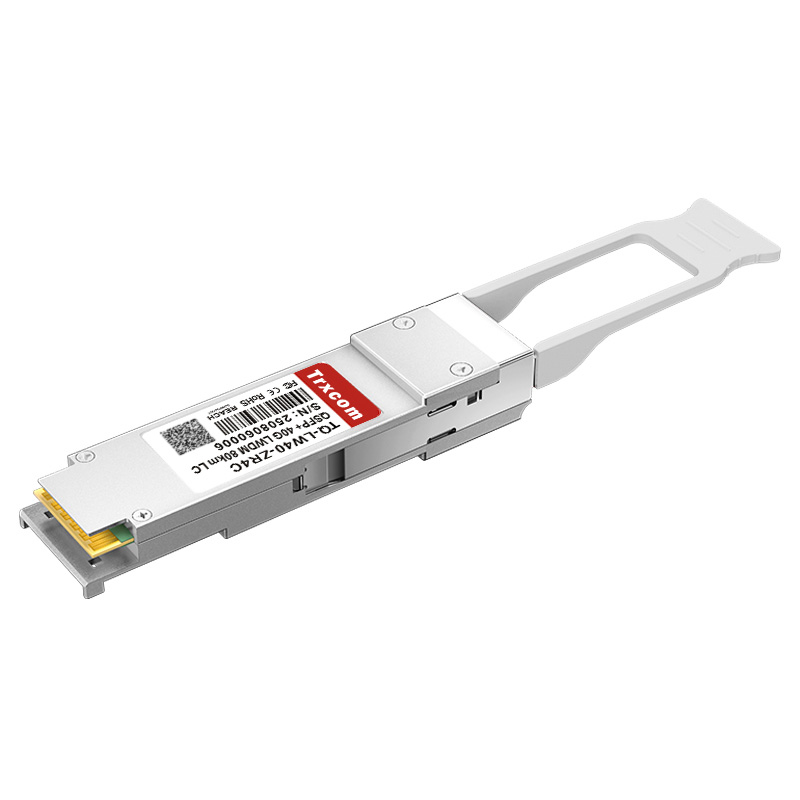

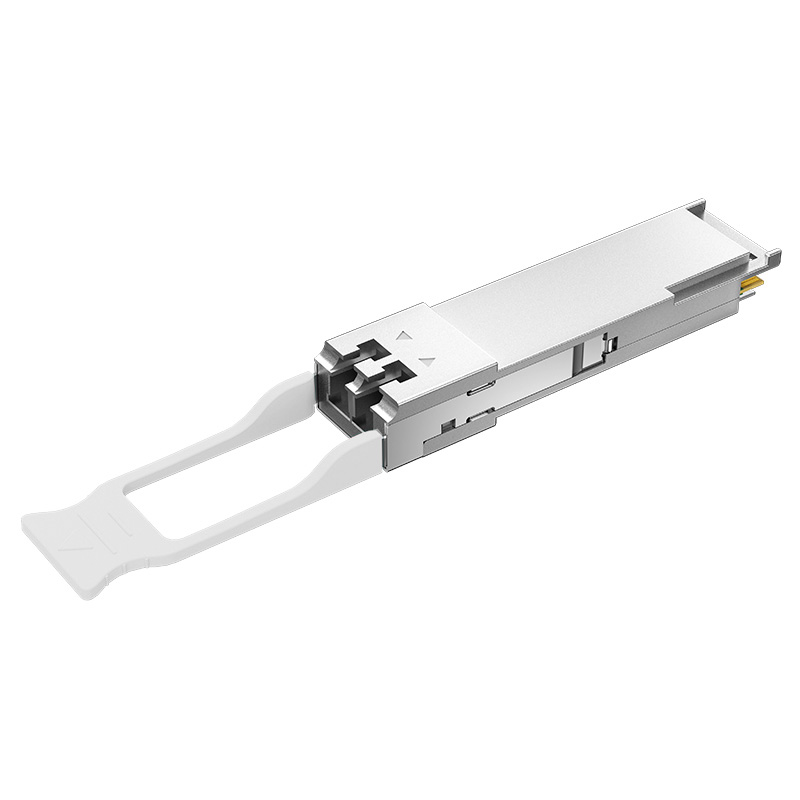

TQ-LW40-ZR4C 40G QSFP+ 80km Duplex LC Connector Single mode Optical Transceiver Module

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
P/N ： TQ-LW40-ZR4C
Form Factor ： QSFP+
Type ： Single Mode
Data Rate ： 40G
Model ： ZR4
Connector ： Duplex LC
Distance ： ≤80km
Get a Quote
Consult products
DetailReview(0)

Trxcom TQ-LW40-ZR4C 40Gb/s 80km QSFP+ Transceiver Single mode Hot Pluggable Duplex LC Connector

Features:

4 lanes MUX/DEMUX design

Integrated LAN WDM TOSA / ROSA

Up to 11.2Gbps per channel bandwidth

Aggregate bandwidth of > 40Gbps

Duplex LC connector

Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ZR4

QSFP MSA compliant

APD photo-detector

Up to 80 km transmission

Compliant with QDR/DDR Infiniband data rates

Single +3.3V power supply operating

Built-in digital diagnostic functions

Temperature range 0°C to 70°C

RoHS Compliant Part

Trxcom Part NumberTQ-LW40-ZR4CVendor NameTrxcom
Form FactorQSFP+Max Data Rate40Gbps
WavelengthLAN WDMMax Cable Distance80km
ConnectorDuplex LCMediaSMF
Transmitter TypeEMLReceiver TypePIN
Power Consumption≤3.3WTemperature range0°C to +70°C
Host FECSupportedProtocolsCaseQSFP+ MSA, IEEE 802.3ba Compliant
