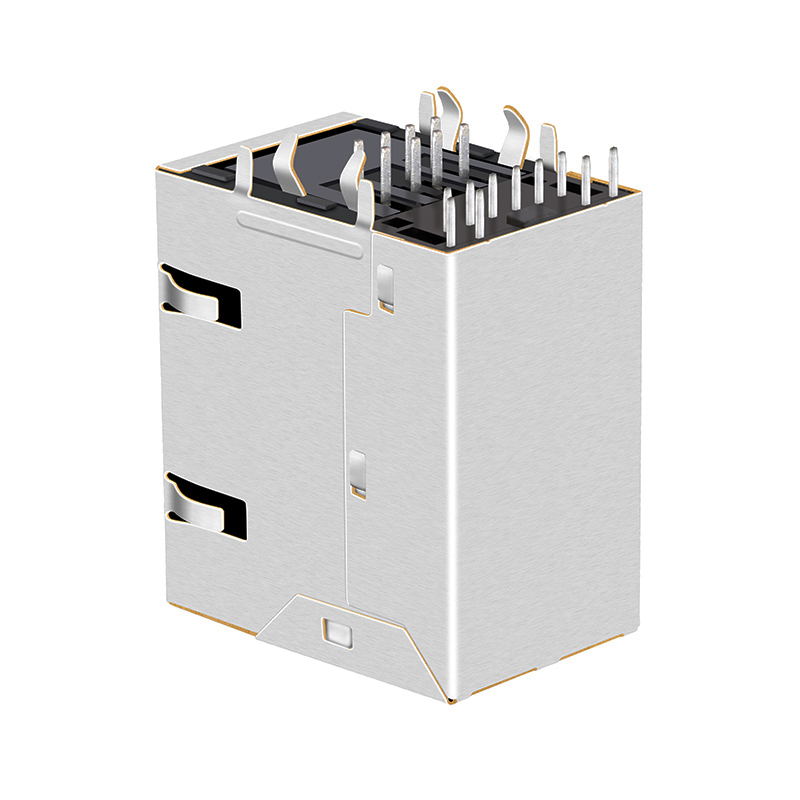

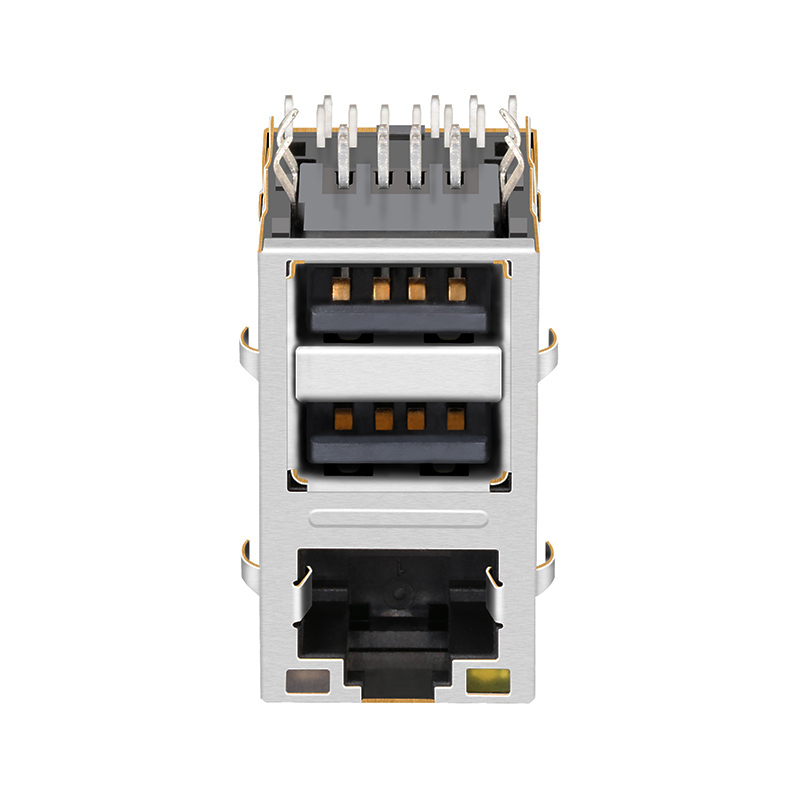

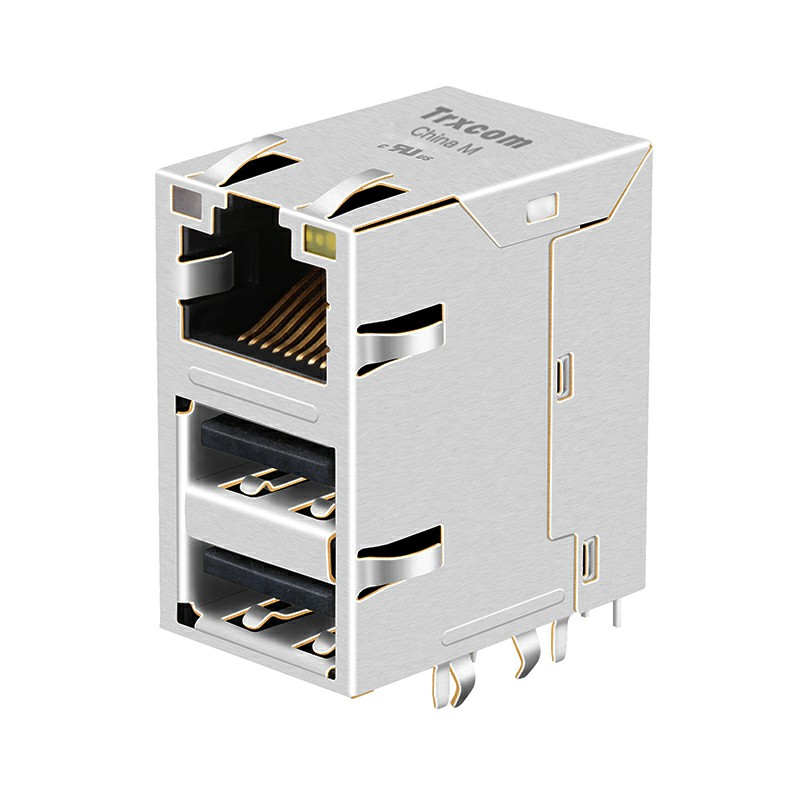

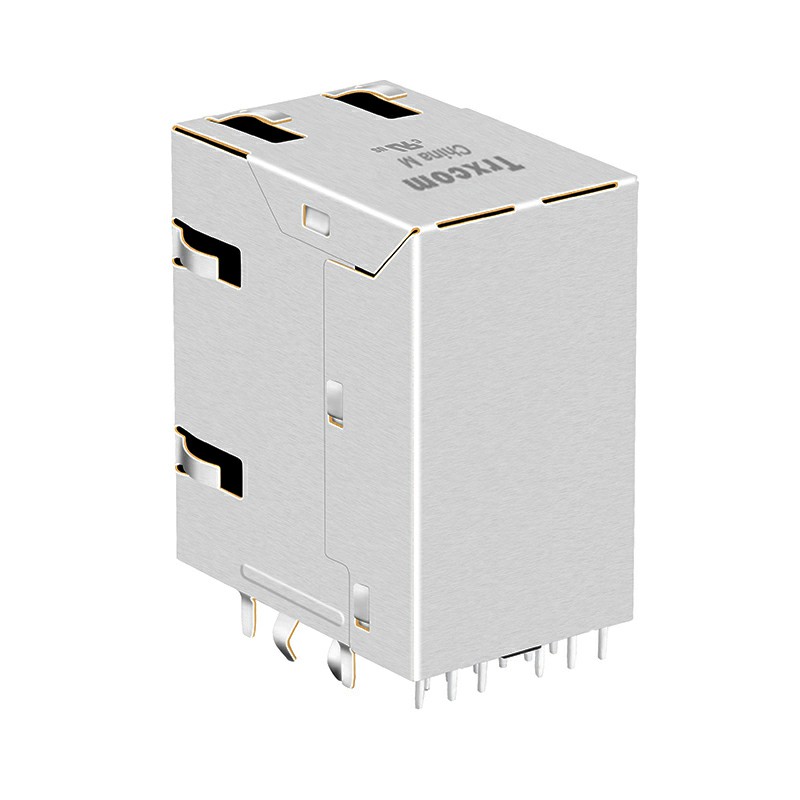

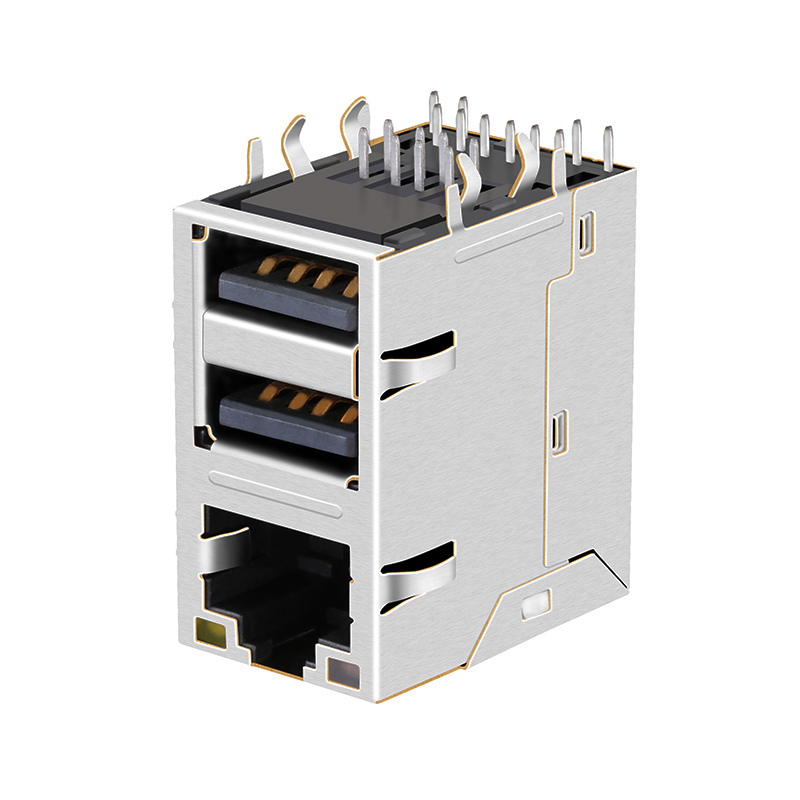

TRJU4130AONL 10/100 Base-T Tab Up Green&Orange/Yellow LED with DUAL USB RJ45 Modular Jack Connector

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJU4130AONL
Port: ： RJ45/USB
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： Green & Orange/Yellow
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJU4130ALNL 10/100 Base-T Tab Up Green&Orange/Yellow LED with DUAL USB RJ45 Modular Jack Connector

The Trxcom TRJU4130ALNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as TV, Industrial PC,Embedded Main Board and Ethernet Control.

Part NumberTRJU4130ALNLBrandTrxcom
Connector TypeJackMounting TypeThrough Hole
Number of Positions/Contacts8p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of PortsSingle Port with Dual USBSpeed10/100 Base-T
LatchUpCores per Port5
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionGreen&Orange/Yellow Led
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)1.157/29.40Package Length (Inches/mm)1.019/25.88
Package Width (Inches/mm)0.682/17.32Temperature0℃ to 70℃
Bst CircuitYesAutomDXYes
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT、C
