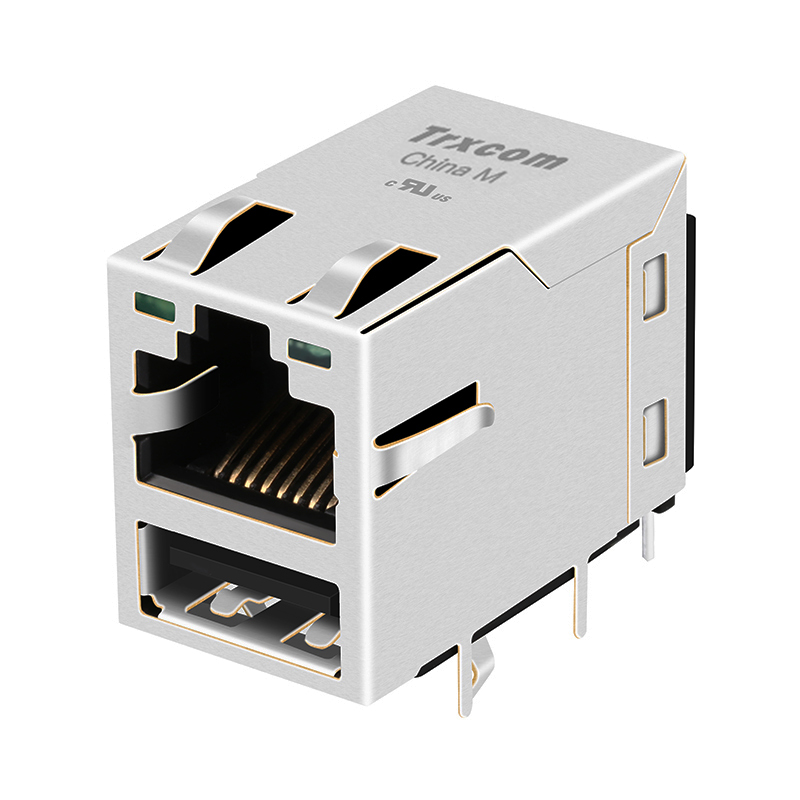

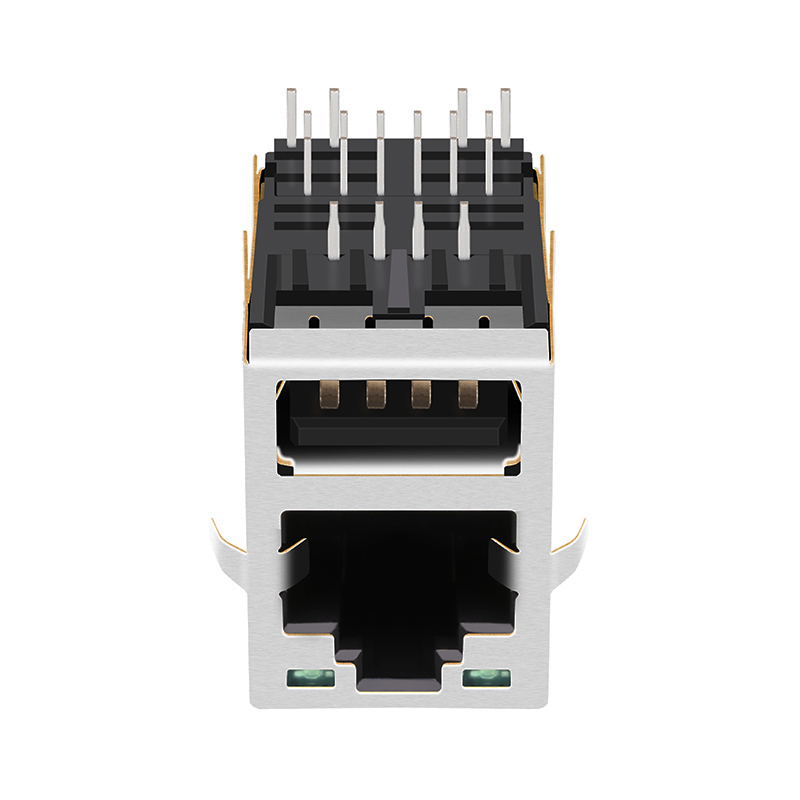

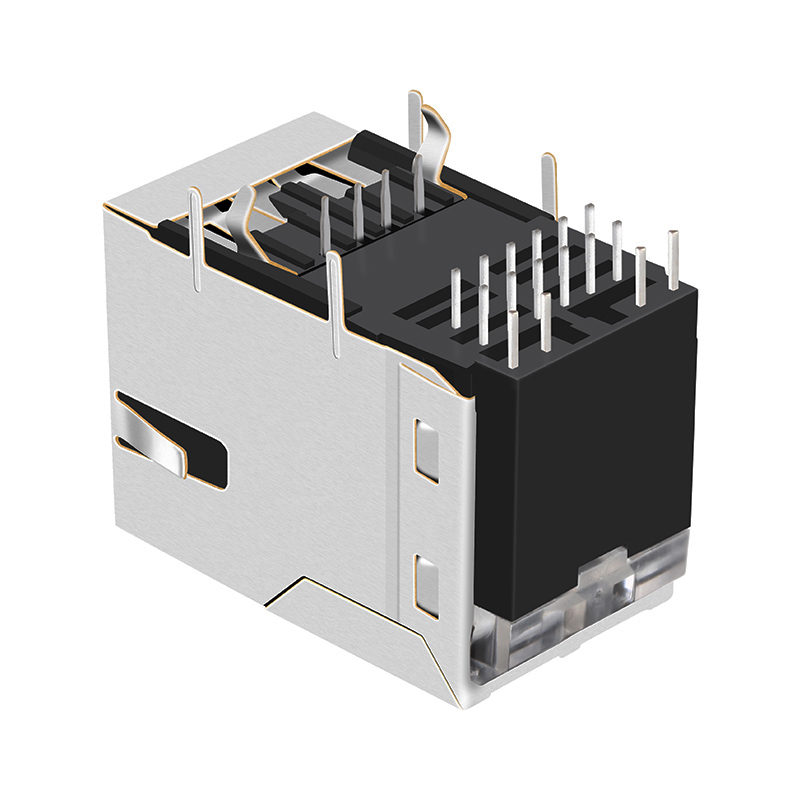

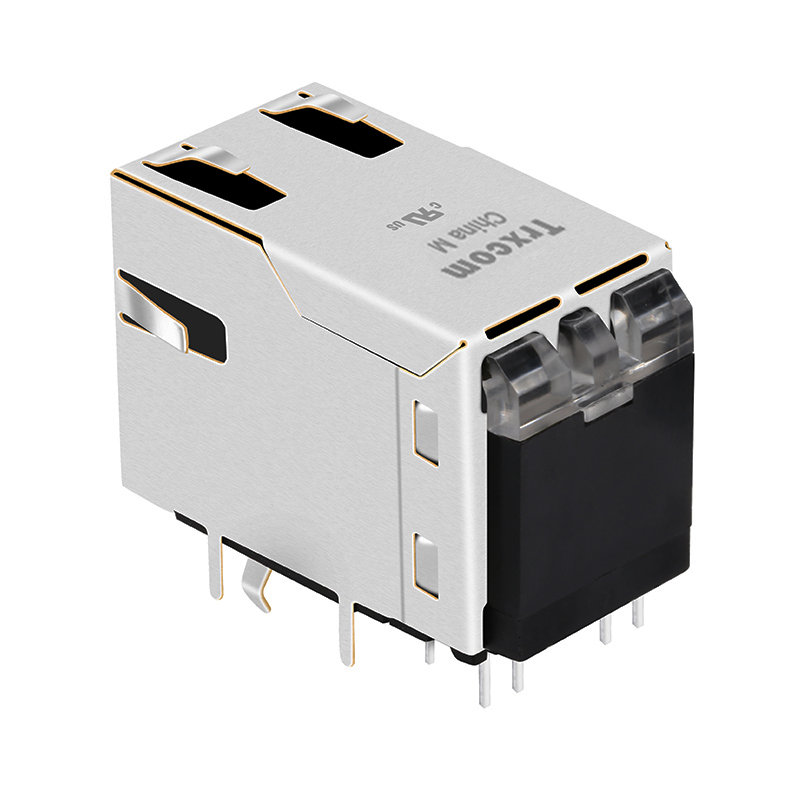

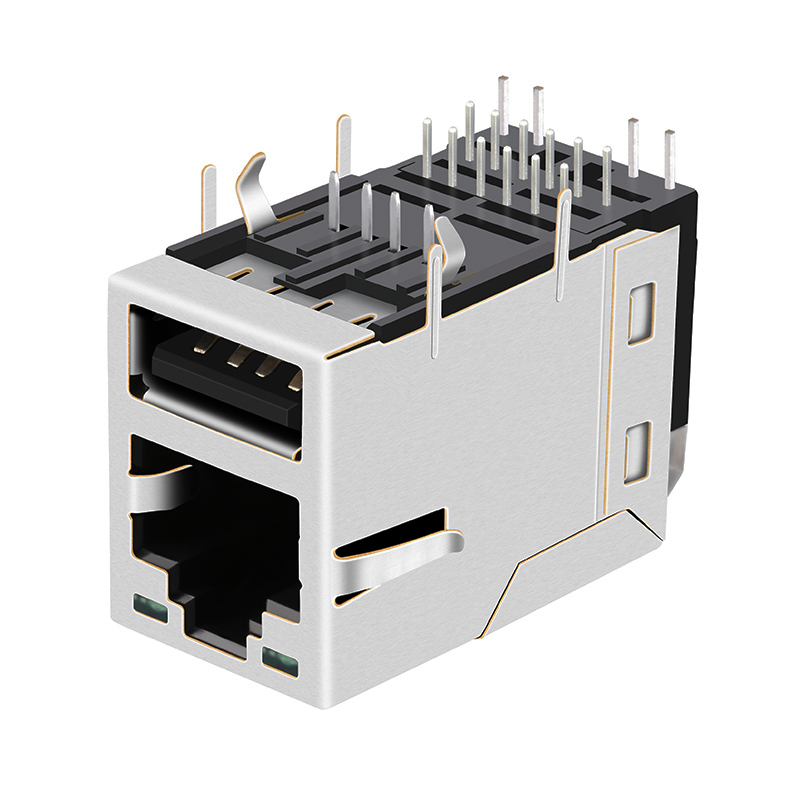

TRJU3936AWNL 1000 Base-T RJ45 jack with Single USB Orange&Green/Yellow Leds

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJU3936AWNL
Port: ： RJ45/USB
Rate: ： 10/100Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： Orange&Green/Yellow
Mount: ： -40℃ to +85°C
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJU3936AWNL 100/1000 Base-T RJ45 Jack for Monitoring System(with Single USB ,Tab Up,Orange&Green/Yellow LED)

The Trxcom TRJU3936AWNL   supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Camera, Monitoring System,1/0 Controller and Alarm.

Part NumberTRJU3936AWNLBrandTrxcom
Connector TypeJackMounting TypeThrough Hole
Number of Positions/Contacts8p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of PortsSingle Port with USBSpeed10/100 Base-T
LatchUPCores per Port4
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionOrange&Green/Yellow Led
PCBFR4PCB 固定柱T POST
Package Height (Inches/mm)0.822/20.89Package Length (Inches/mm)1.142/29.00
Package Width (Inches/mm)0.654/16.60Temperature-40℃ to 85℃
Bst CircuitYesAutomDXYes
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT、C
