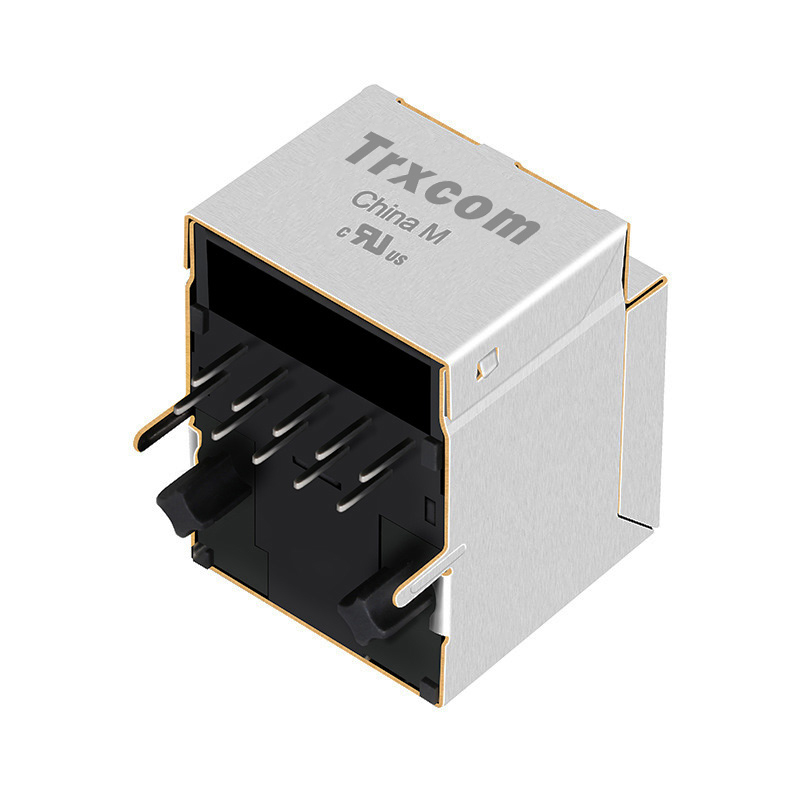

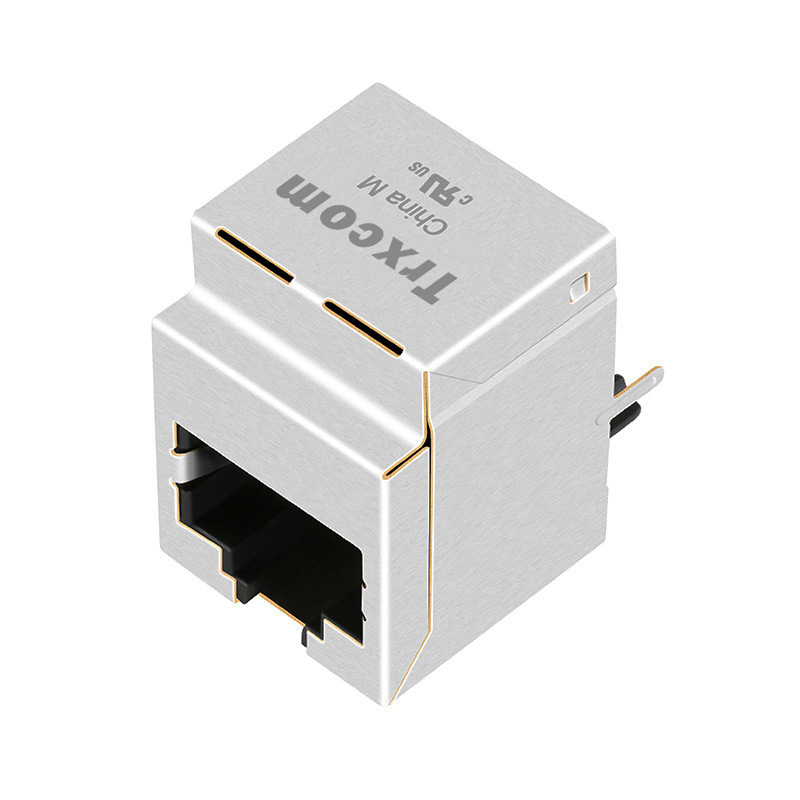

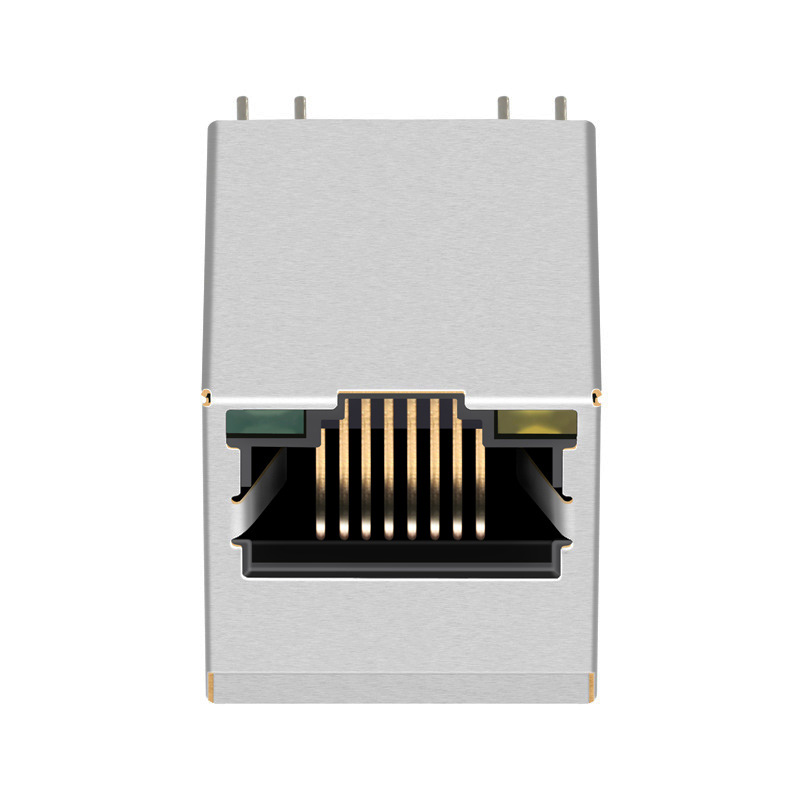

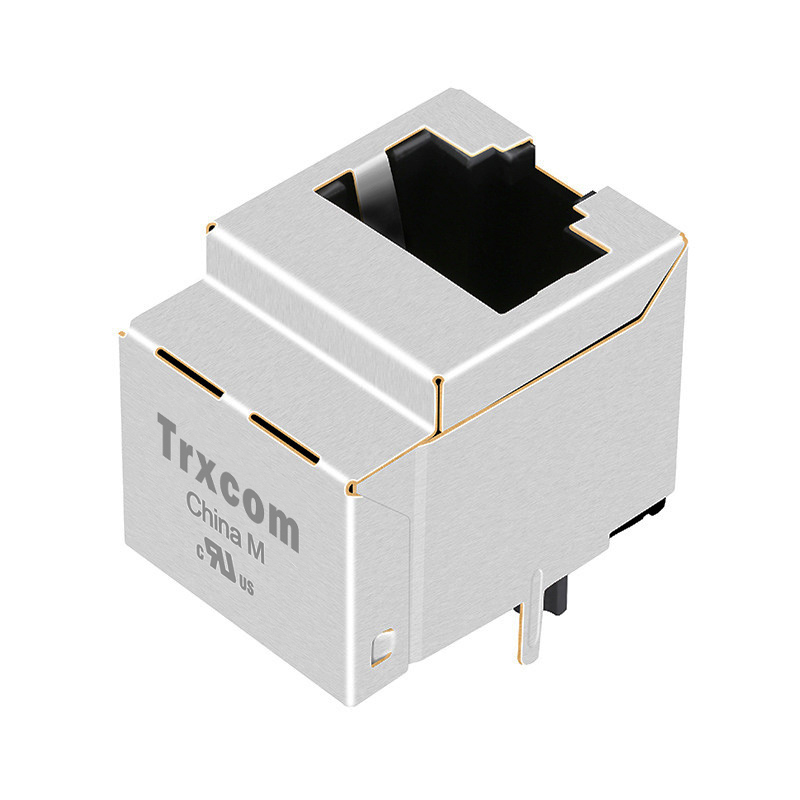

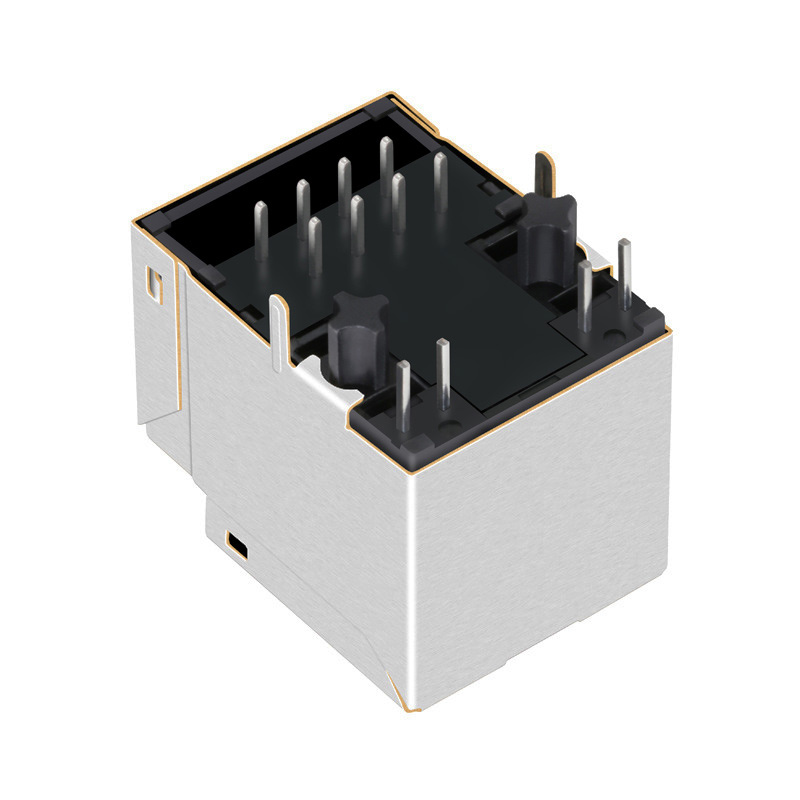

TRJD0773BDNL 1000 Base-T Gigabit RJ45 Magnetics Vertical Jack With Yellow/Green Leds

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJD0773BDNL
Port: ： 1X1
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Vertical
LED: ： No LED
Mount: ： 0℃ to 70℃
Shield Tabs: ： No
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJD0773BDNL 1000 Base-T Gigabit Vertical RJ45 Jack with Integrated Magnetics For Smart Home (Top Entry,Yellow/Green Leds)

The TRJD0773BDNL model from Trxcom supports 10/100/1000 Base-T transmission rates and complies with IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001 standards. It is applicable to various scenarios including intercom systems, video recorders and patient care services.

Part NumberTRJD0773BDNLBrandTrxcom
Connector TypeJackMounting TypeThrough Hole
Number of Positions/Contacts8p8c(RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x1 PortSpeed10/100/1000 Base-T
LatchUPCores per Port8
Orientation180° Angle (Right)PCB Mount AngleTHT Solder
Shield EMI TabsWithoutLED OptionYellow/Green Leds
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.654/16.60Package Length (Inches/mm)0.850/21.59
Package Width (Inches/mm)0.630/16.00Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYes
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT、C
