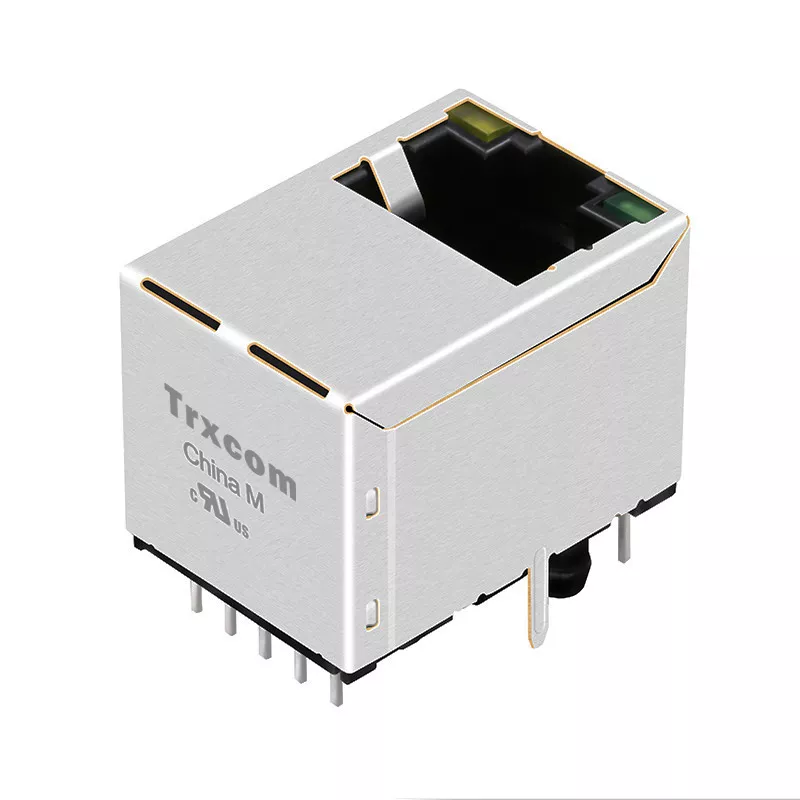

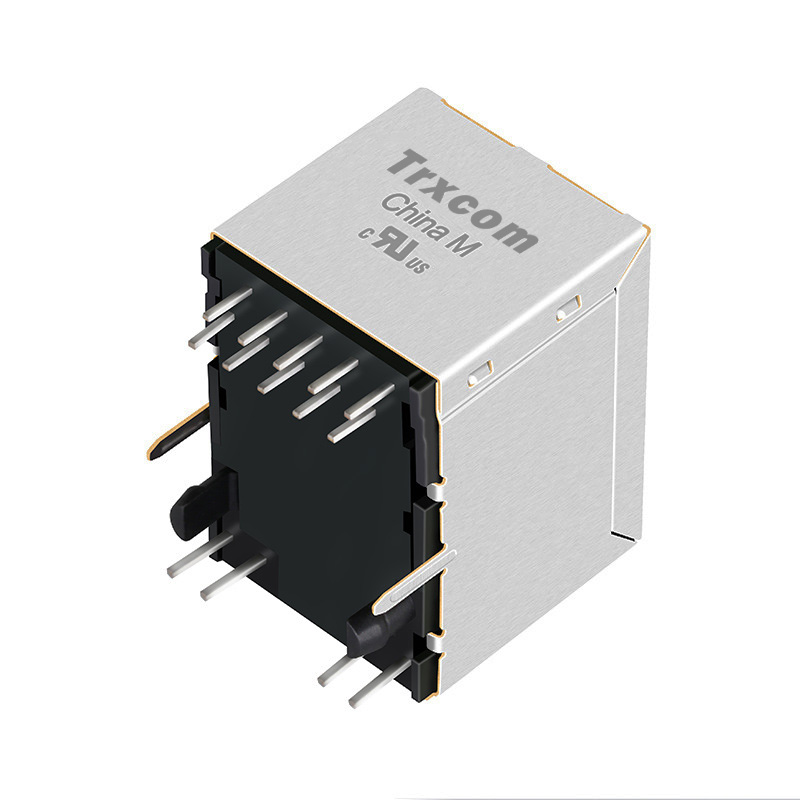

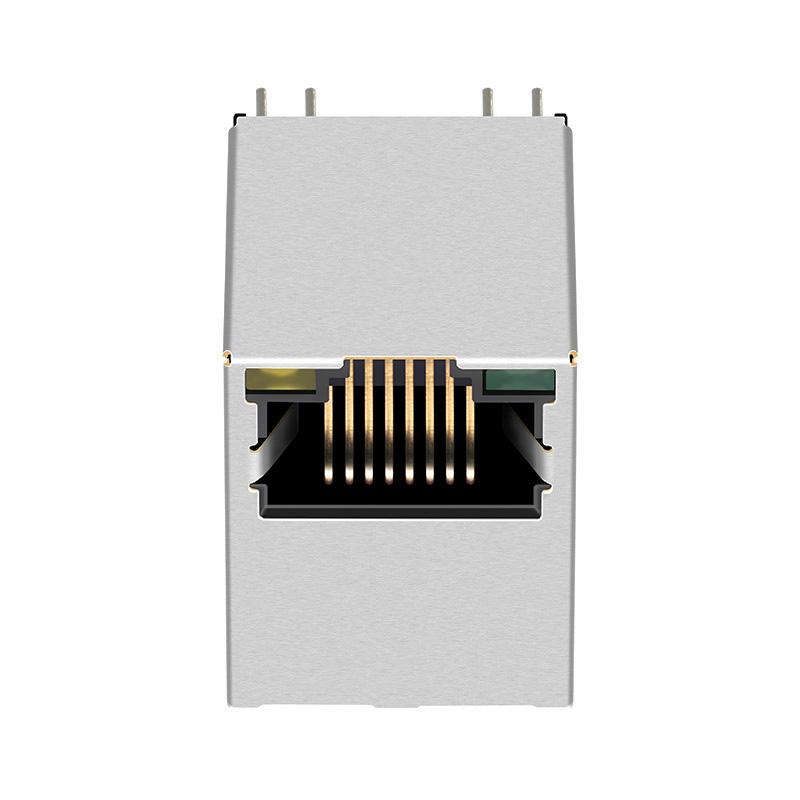

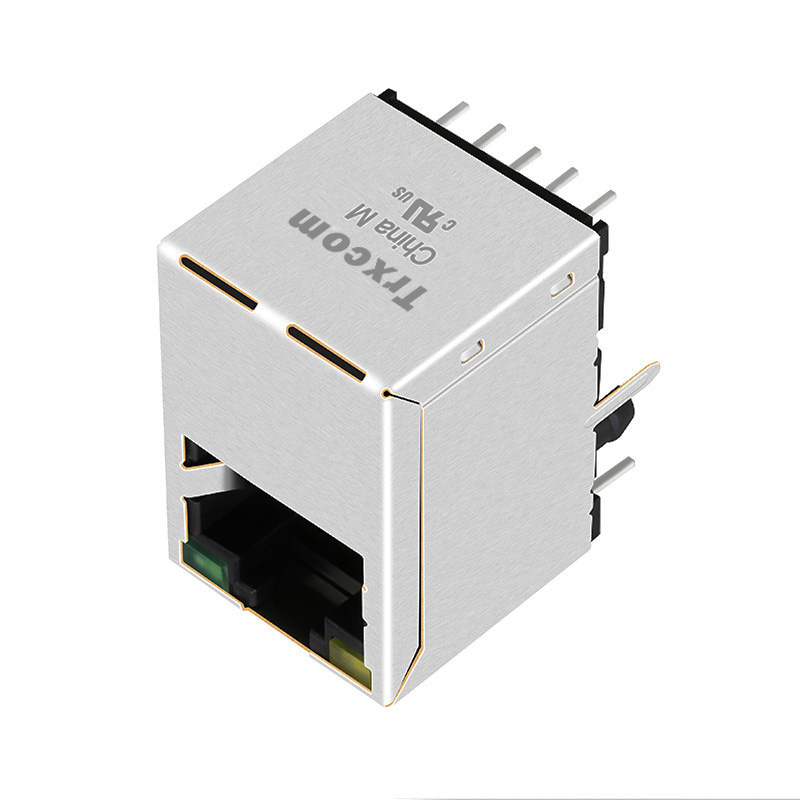

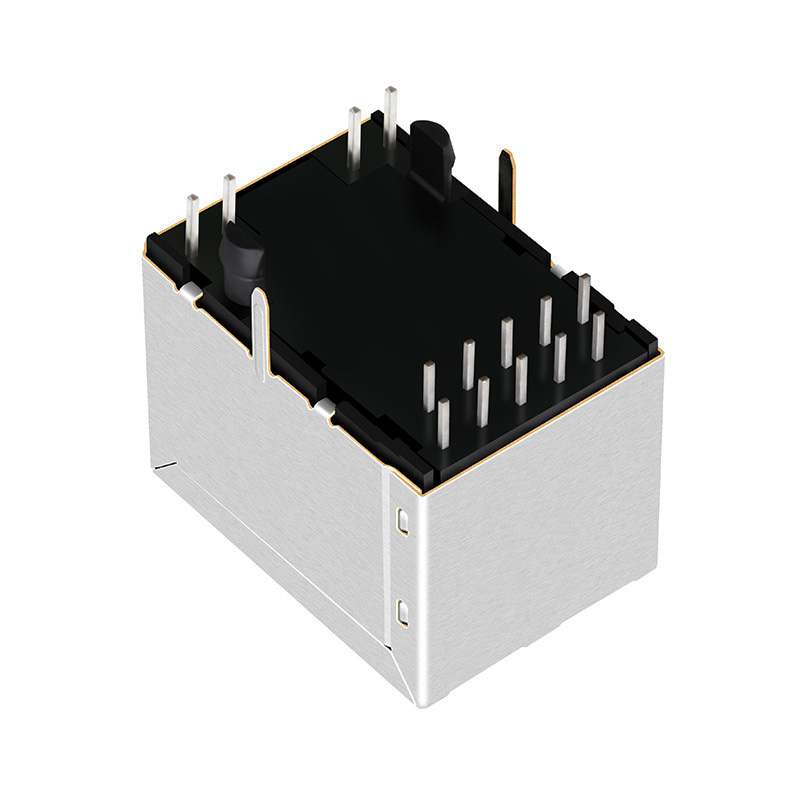

X Multiple XMV-J1N521ZJE Compatible TRJD0834BDNL 100/1000 Base-T Vertical Ethernet RJ45 Jack Yellow/Green LED

Name: X Multiple XMV-J1N521ZJE Compatible TRJD0834BDNL 100/1000 Base-T Vertical Ethernet RJ45 Jack Yellow/Green LED
Availability: InStock

Facebook

Line

Tumblr

Parameter

Brand ： Trxcom

P/N ： TRJD0834BDNL

Compatible Brand ： X Multiple

Compatible P/N ： XMV-J1N521ZJE

Port ： 1X1

Rate ： 1000Base-T

PoE ： NONE-PoE

Latch ： Vertical

LED ： Yellow/Green

Mount ： 0℃ to 70℃

Shield Tabs ： No

Get a Quote

Download

Consult Product

DetailReview(0)

X Multiple XMV-J1N521ZJE Compatible Trxcom TRJD0834BDNL 100/1000 Base-T Vertical RJ45 Female Connector For Router(Top Entry, Yellow/Green LED)

The X Multiple XMV-J1N521ZJE Compatible TRJD0834BDNL product from Trxcom supports 100/1000 Base-TX Ethernet data transmission and complies with IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001 standards. It can be applied in fields such as new energy, automation and industrial computers.

Part Number	TRJD0834BDNL	X Multiple Compatible	XMV-J1N521ZJE
Connector Type	Jack	Mounting Type	Through Hole
Number of Positions/Contacts	10p8c(RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100/1000 Base-T
Latch	UP	Cores per Port	8
Orientation	180° Angle (Right)	PCB Mount Angle	THT Solder
Shield EMI Tabs	Without	LED Option	Yellow/Green LEDs
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.660/16.76	Package Length (Inches/mm)	0.911/23.15
Package Width (Inches/mm)	0.634/16.10	Temperature	0℃ to 70℃
Bst Circuit	Yes	AutomDX	Yes
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T、C
