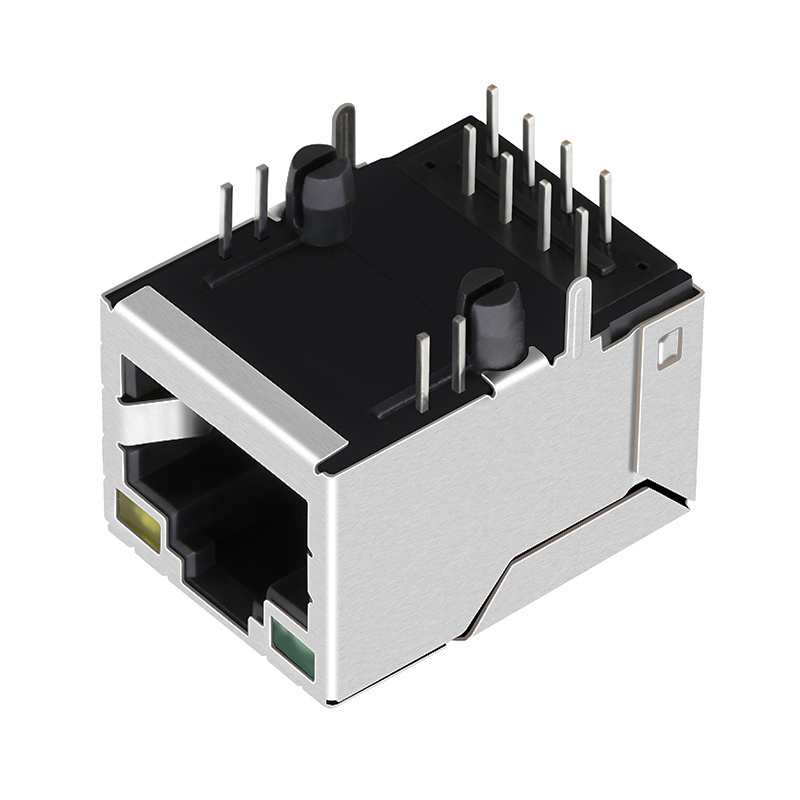

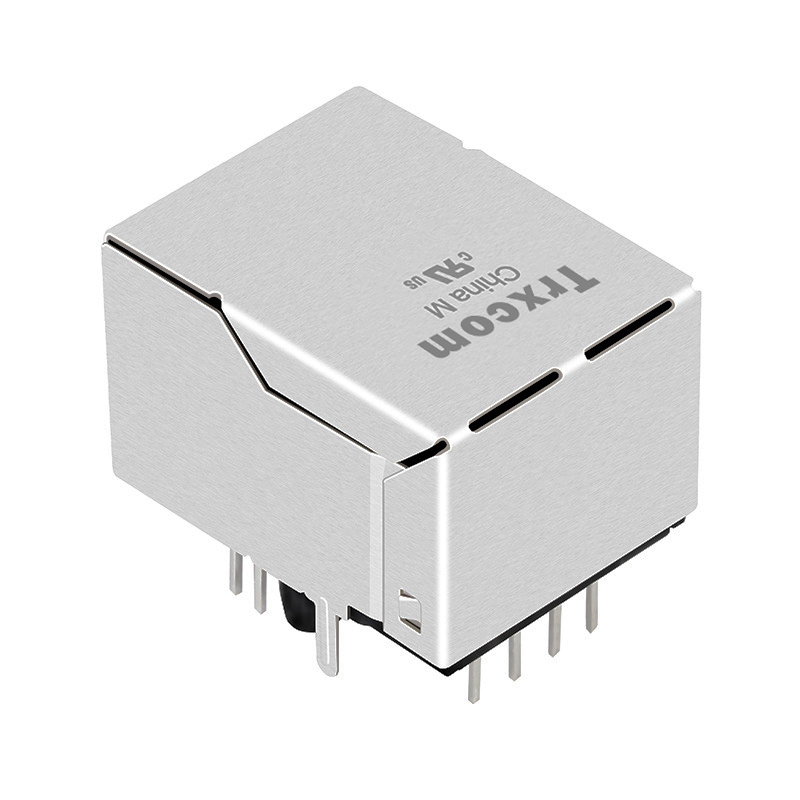

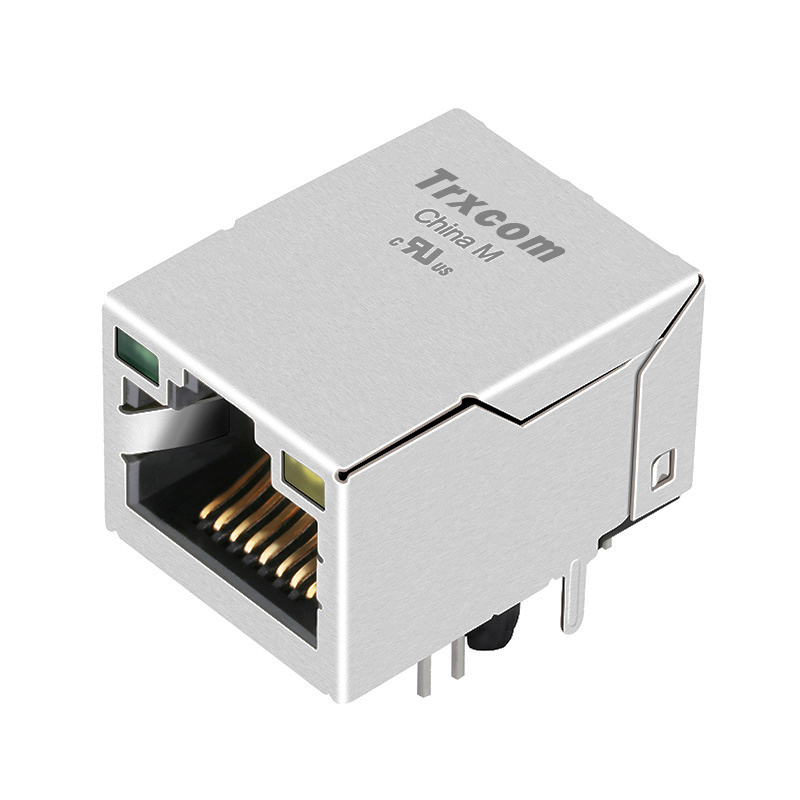

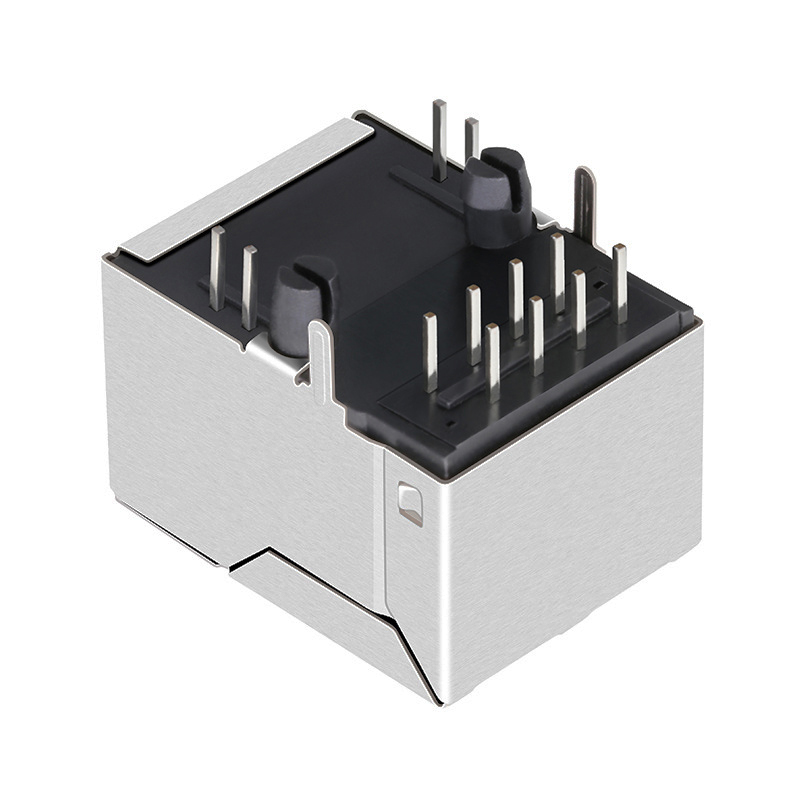

TRJ16011BDNL 10/100 Base-T Modular RJ45 Female Connectors Tab Up Without Led

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJ16011BDNL
Port: ： 1X1
Rate: ： 10/100Base-T
PoE: ： NONE-PoE
Latch: ： Up
LED: ： Green/Yellow
Mount: ： -40℃ to +85°C
Shield Tabs: ： No
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJ16011BDNL Single Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics, Green/Yellow LED, Tab Up, RoHS

The Trxcom TRJ16011BDNL supports 10/100 Base-T network speed and complies with IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001 standards. It can be applied in scenarios such as smart electric meters, photovoltaic inverters, automation equipment and video recorders.

Part NumberTRJ16011BDNLBrandTrxcom
Connector TypeJackMounting TypeThrough Hole
Number of Positions/Contacts8p8c(RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x1 PortSpeed10/100 Base-T
LatchUPCores per Port4
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithoutLED OptionGreen/Yellow Leds
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.535/13.60Package Length (Inches/mm)0.846/21.50
Package Width (Inches/mm)0.630/16.00Temperature-40℃ TO 85℃
Bst CircuitYesAutomDXYes
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT、C
