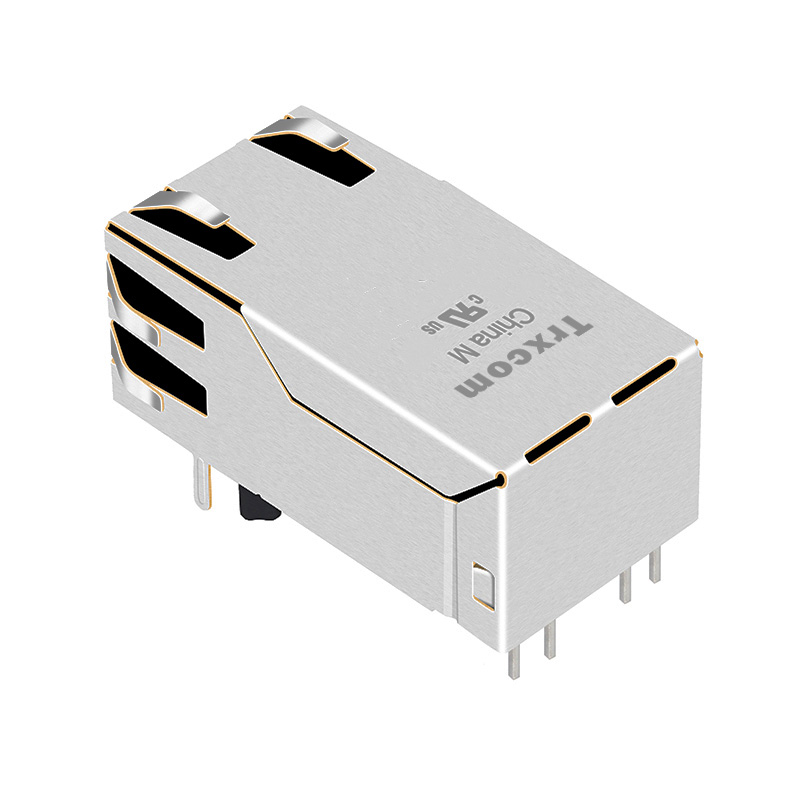

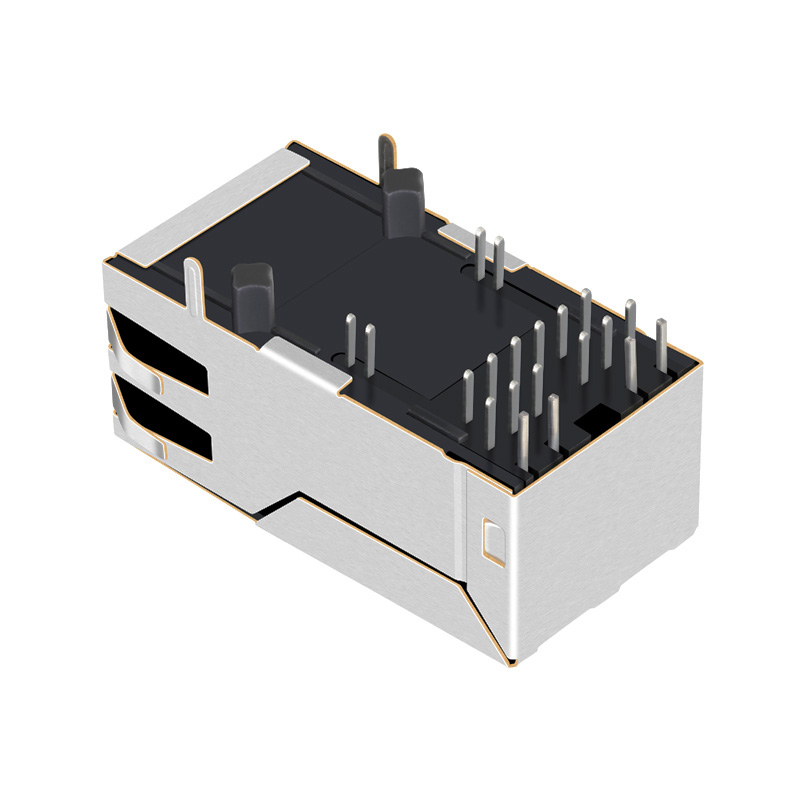

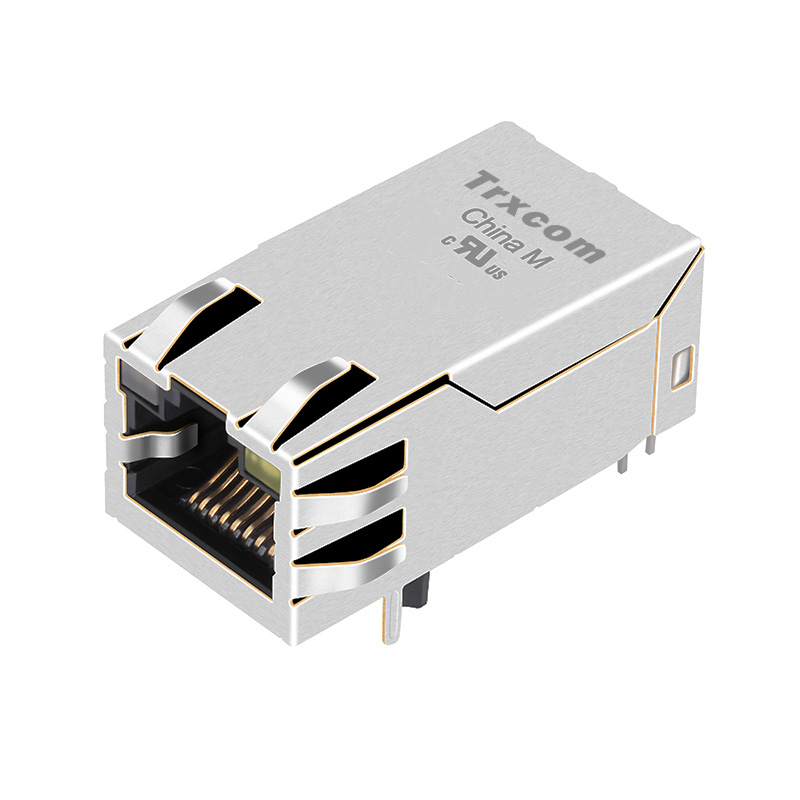

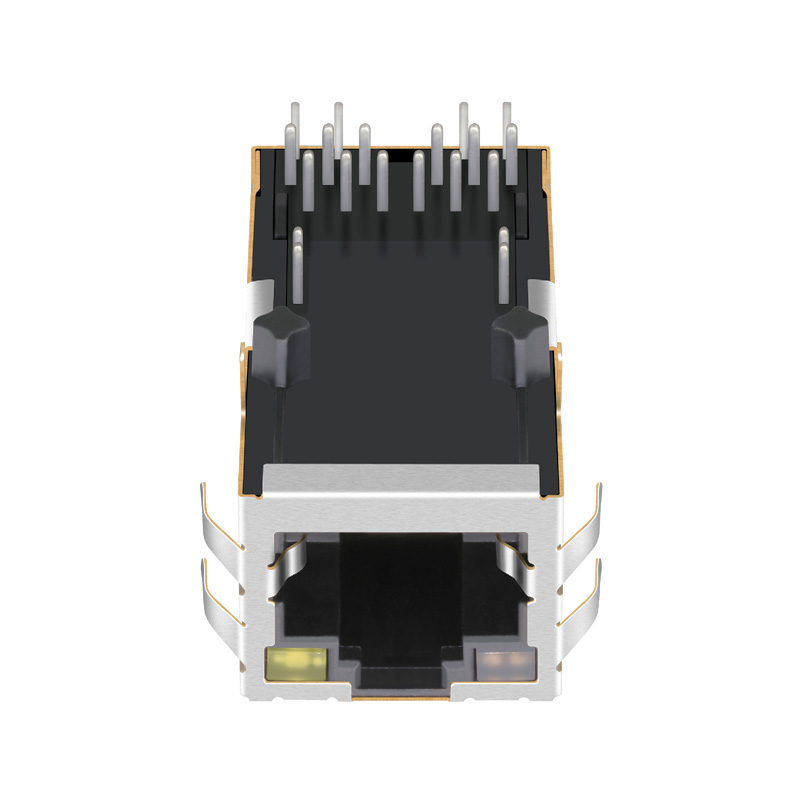

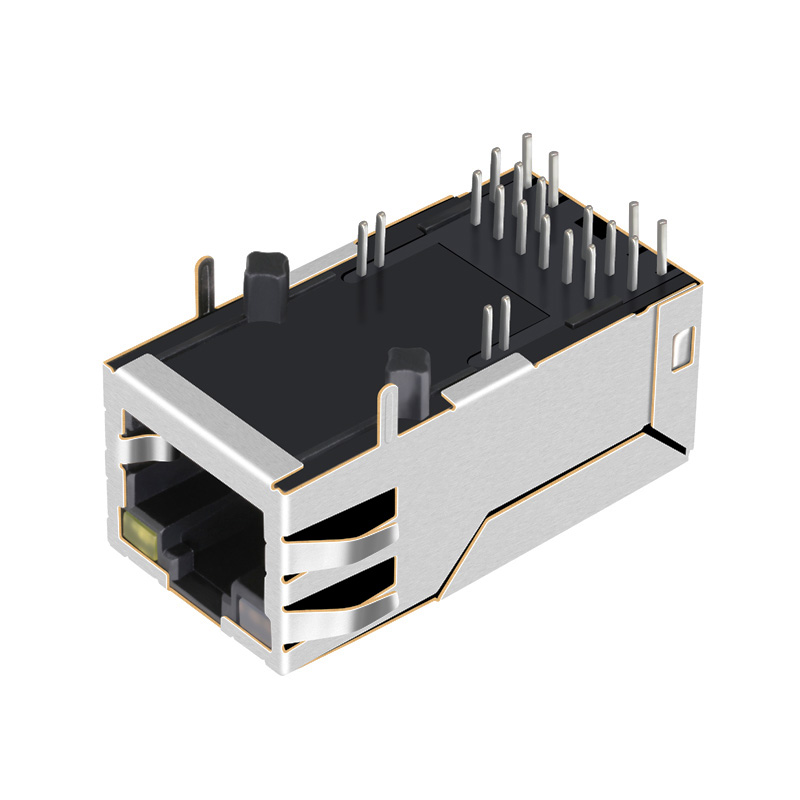

Trxcom TRJK2068AONL 100/1000 Base-T Single Port PoE+ RJ45 Ethernet Jack Tab Up Orange&Green/Yellow Led

Name: Trxcom TRJK2068AONL 100/1000 Base-T Single Port PoE+ RJ45 Ethernet Jack Tab Up Orange&Green/Yellow Led
Availability: InStock

Facebook

Line

Tumblr

Parameter

Brand ： Trxcom

P/N ： TRJK2068AONL

Compatible Brand ： Trxcom

Port ： 1X1

Rate ： 1000Base-T

PoE ： PoE+

Latch ： Up

LED ： Orange Green/Yellow

Mount ： 0℃ to 70℃

Shield Tabs ： Yes

Compatible Brand:

Trxcom

Compatible P/N:

TRJK2002AGNL

Get a Quote

Download

Consult Product

DetailReview(0)

Trxcom TRJK2068AONL 100/1000 Base-T POE+ Industrial RJ45 Ethernet Connector for Patient Care and (POE+, 1x1 Port, Tab Up, Orange&Green/Yellow Led)

The TRJK2068AONL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Home, Webcams, Solar Inverter and VoIP Gateways.

Part Number	TRJK2068AONL	Brand	Trxcom
Connector Type	Jack	Mounting Type	Through Hole
Number of Positions/Contacts	16p8c(RJ45, Ethernet)	Application-Lan	Ethernet(PoE+)
Number of Ports	1x1 Port	Speed	10/100/1000 Base-T
Latch	UP	Cores per Port	12
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Orange&Green/Yellow Led
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.531/13.50	Package Length (Inches/mm)	1.280/32.50
Package Width (Inches/mm)	0.654/16.60	Temperature	0℃ to 70℃
Bst Circuit	Yes	AutomDX	Yes
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T、C

Quality Certifications

We strictly control product quality, including strict control of manufacturer qualifications, quality control processes and production process standards, and compliance with various certifications and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, ISO 14001, CE, RoHS, REACH, UL, etc. For more details, please visit the Compliance Center Center to get documents.
