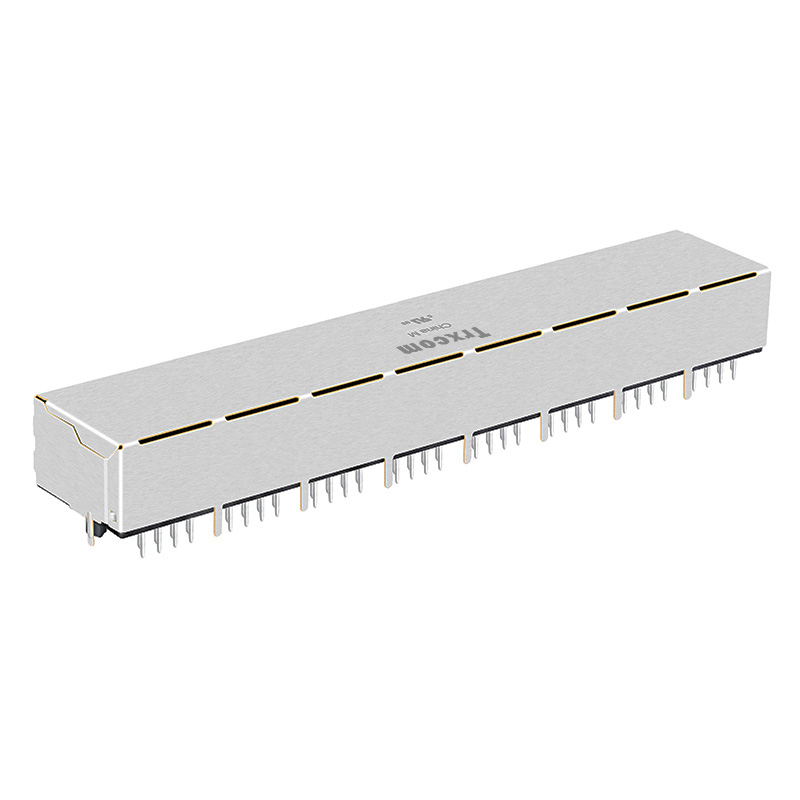

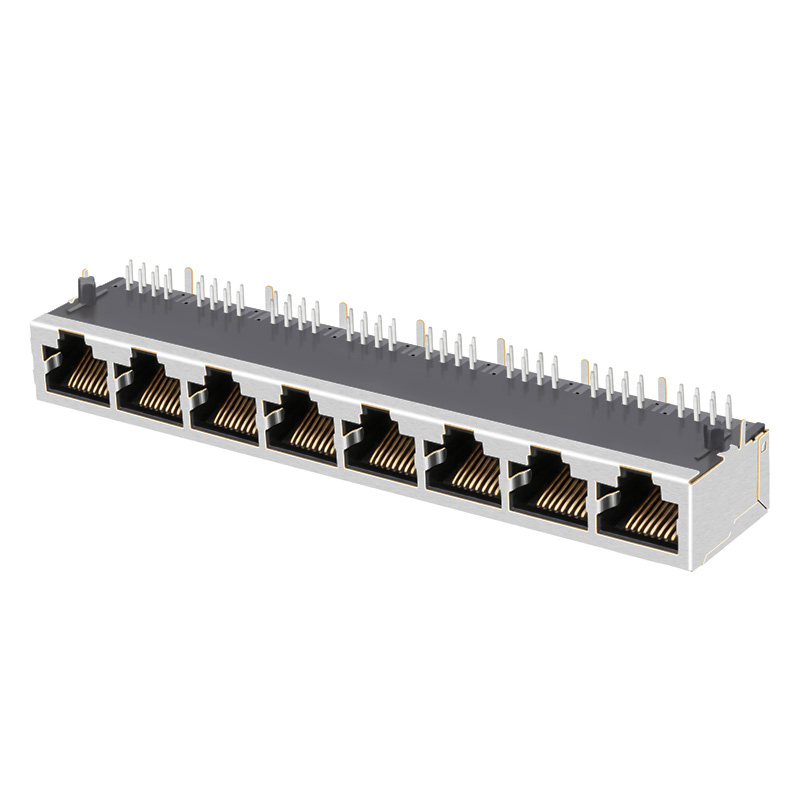

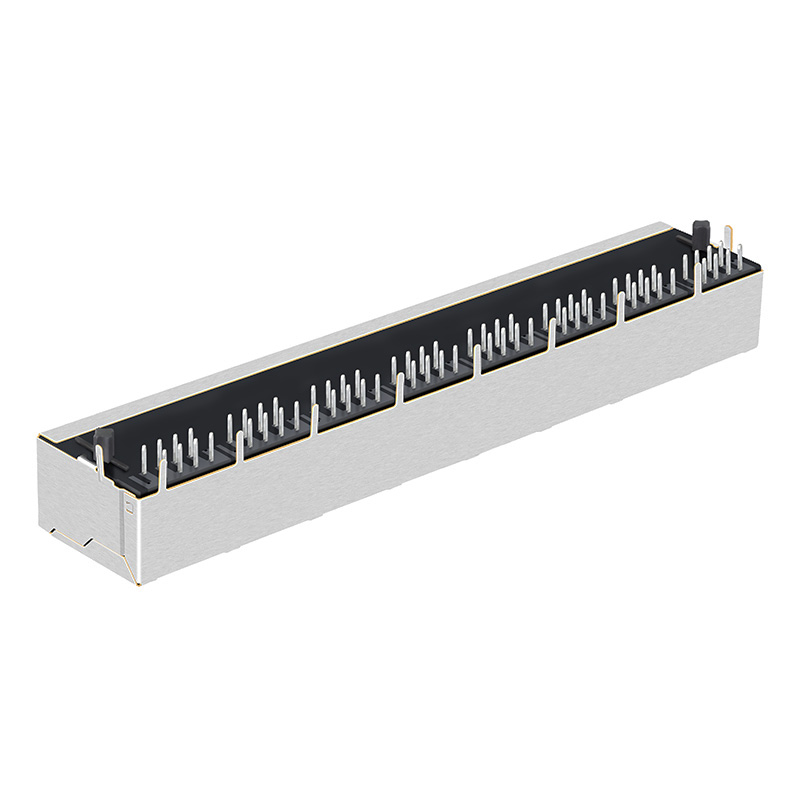

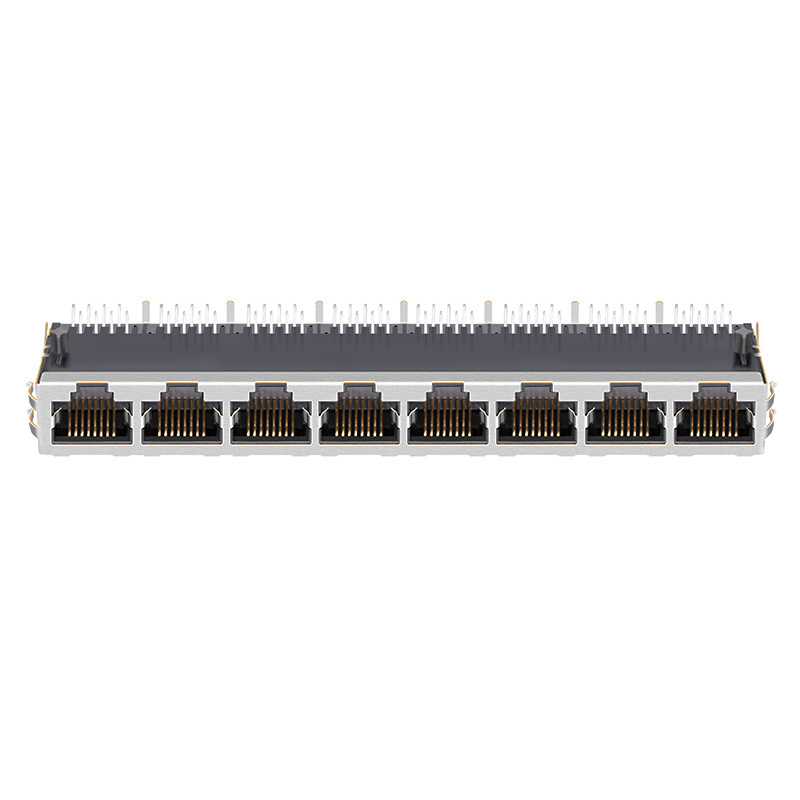

10/100 Base-T 1x8 Port RJ45 Jacks With Magnetics Tab Down Without LED TRJ128XDNL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJ128XDNL
Port: ： 1X8
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Down
LED: ： No LED
Mount: ： 0℃ to 70℃
Shield Tabs: ： No
Get a Quote
Consult products
DetailReview(0)

TRJ128XDNL 10/100 Base-T RJ45 Jacks With Magnetics For Sale for TV and Industrial PC (1x8 Port , Tab Down   ,Without LED)

The TRJ128XDNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as TV, Industrial PC,Media Player and Game Controller.

Part NumberTRJ128XDNLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts8p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x8 PortSpeed10/100 Base-T
LatchDownCores per Port4
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithoutLED OptionWithout Led
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.589/14.97Package Length (Inches/mm)0.865/21.97
Package Width (Inches/mm)4.554/115.67Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
