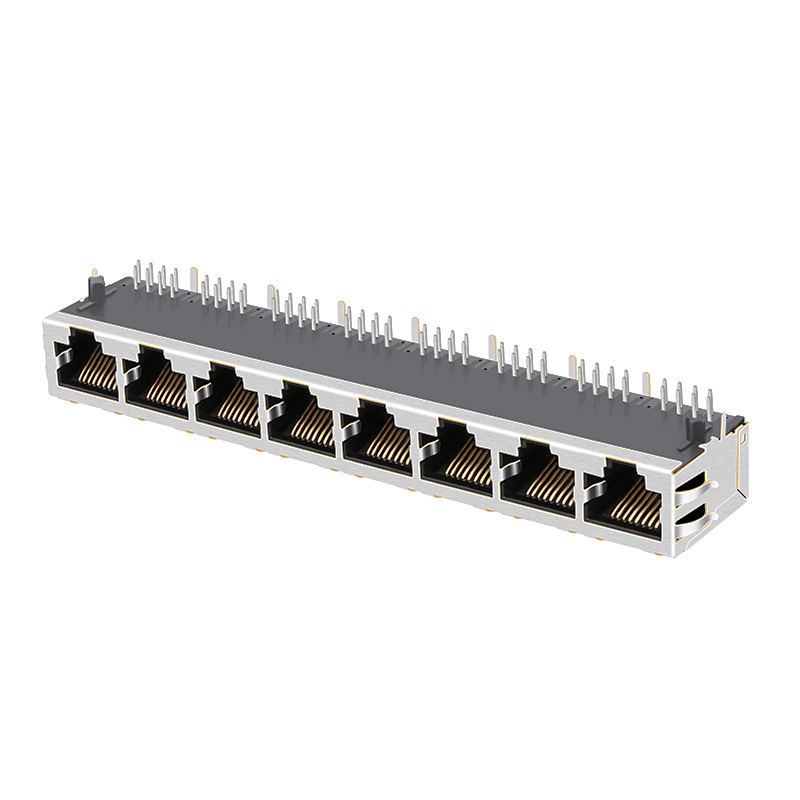

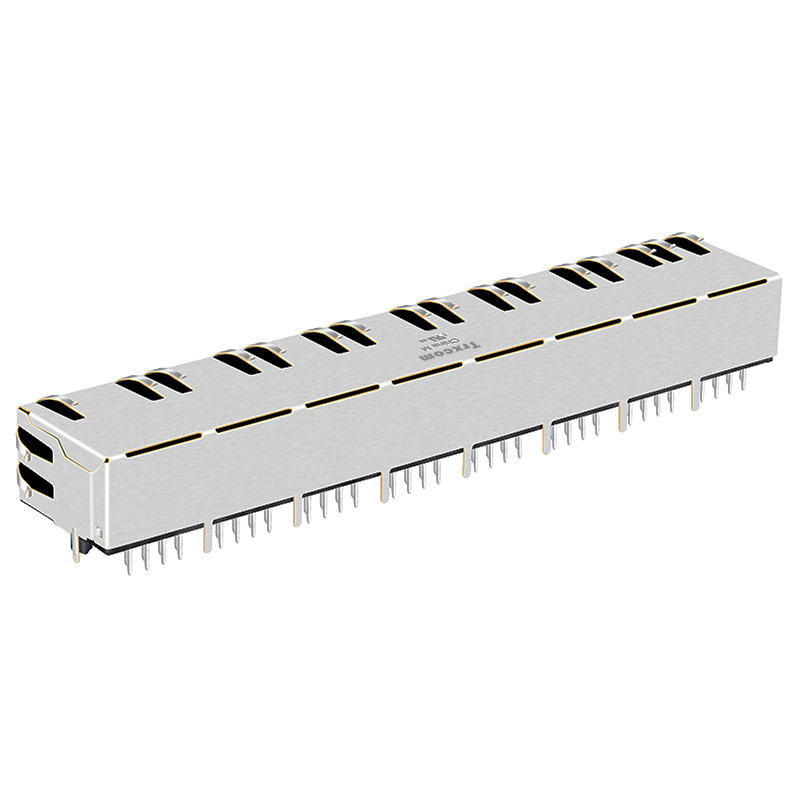

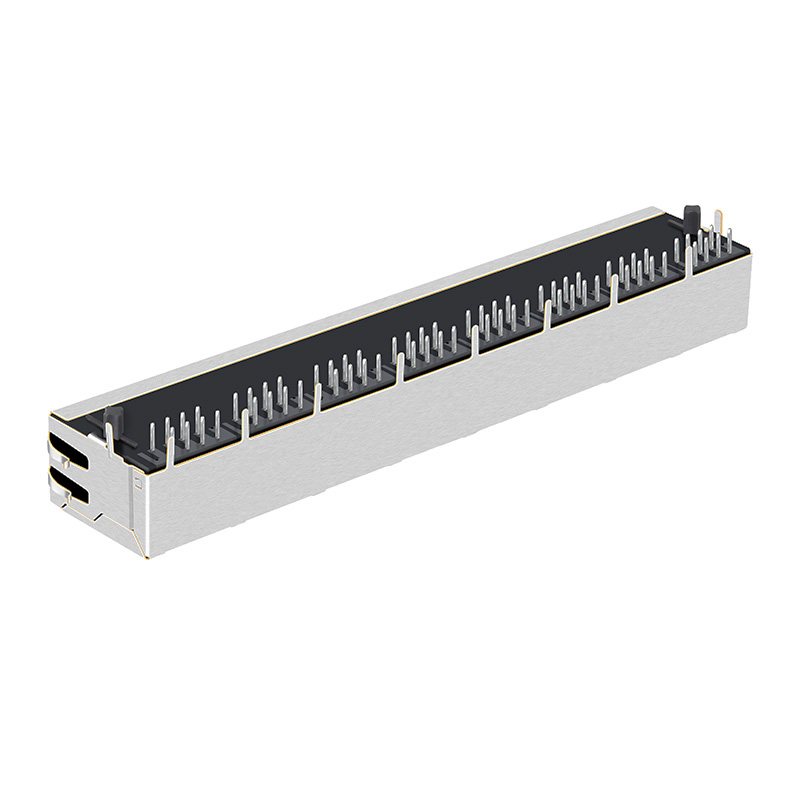

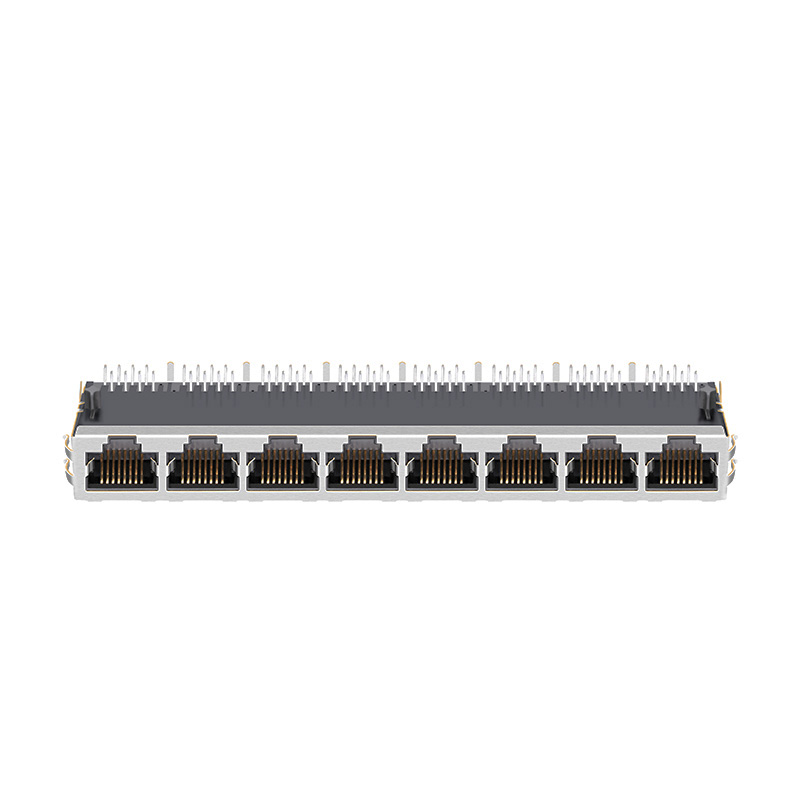

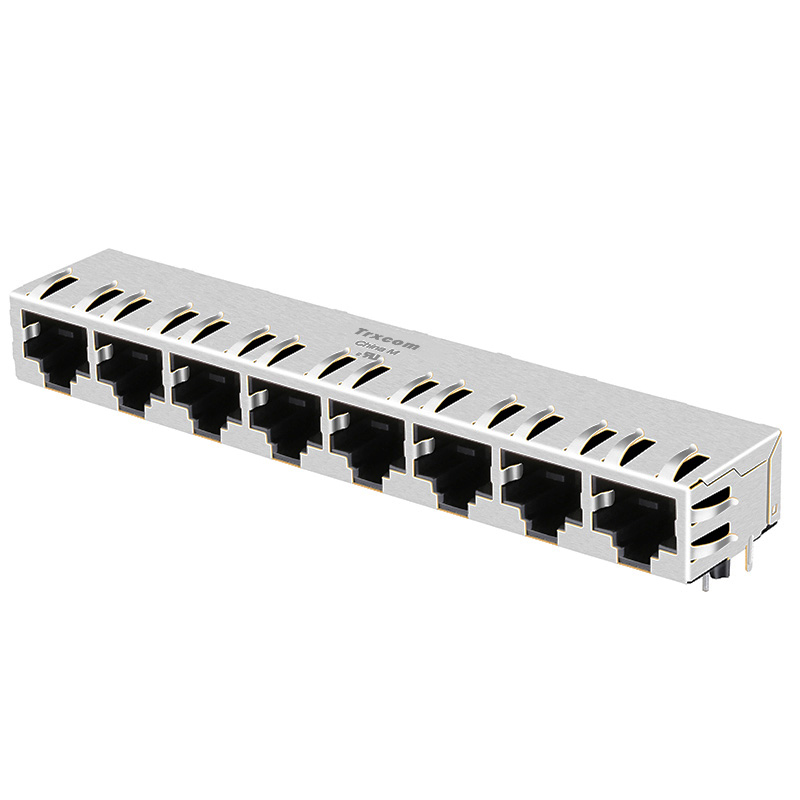

RJ45 1x8 Port MagJacks 10/100 Base-T Tab Down Without LED TRJF86274CNL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJF86274CNL
Port: ： 1X8
Rate: ： 10/100Base-T
PoE: ： NONE-PoE
Latch: ： Down
LED: ： No LED
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

TRXCOM TRJF86274CNL 10/100 Base-T RJ45 Mag Jacks for TV and Industrial PC (1x8 Port , Tab Down ,Without LED)

The TRJF86274CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as TV, Industrial PC,Media Player and Game Controller.

Part NumberTRJF86274CNLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts8p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports1x8 PortSpeed10/100 Base-T
LatchDownCores per Port4
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionWithout Led
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.589/14.97Package Length (Inches/mm)0.865/21.97
Package Width (Inches/mm)4.554/115.67Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
