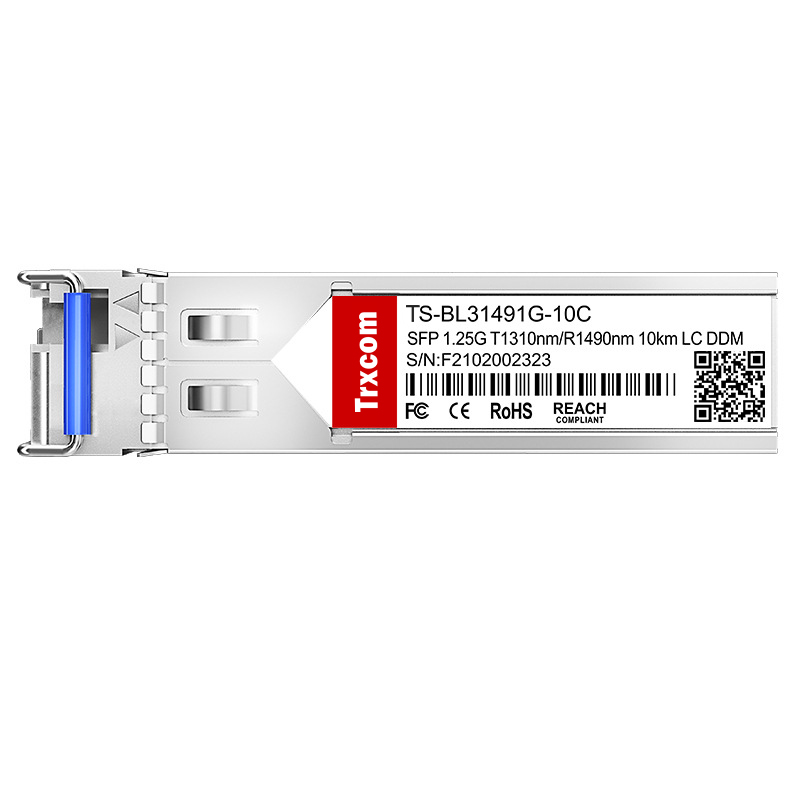

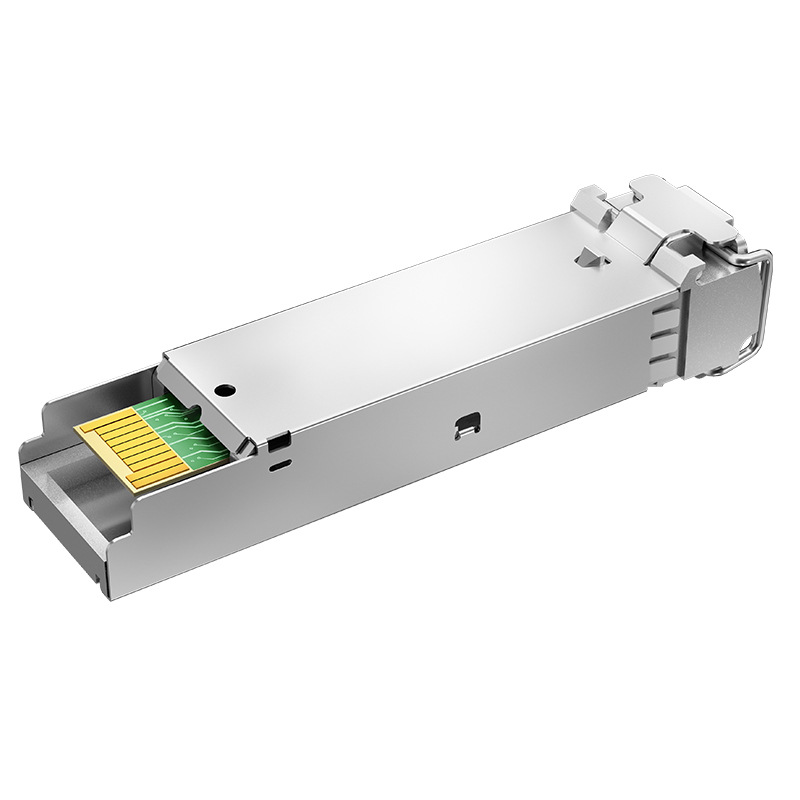

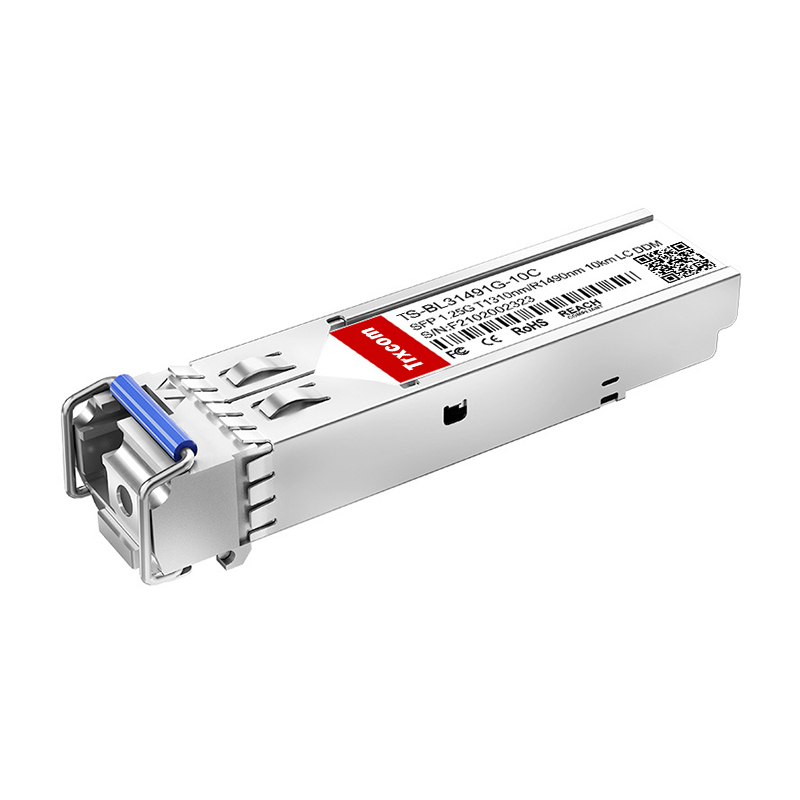

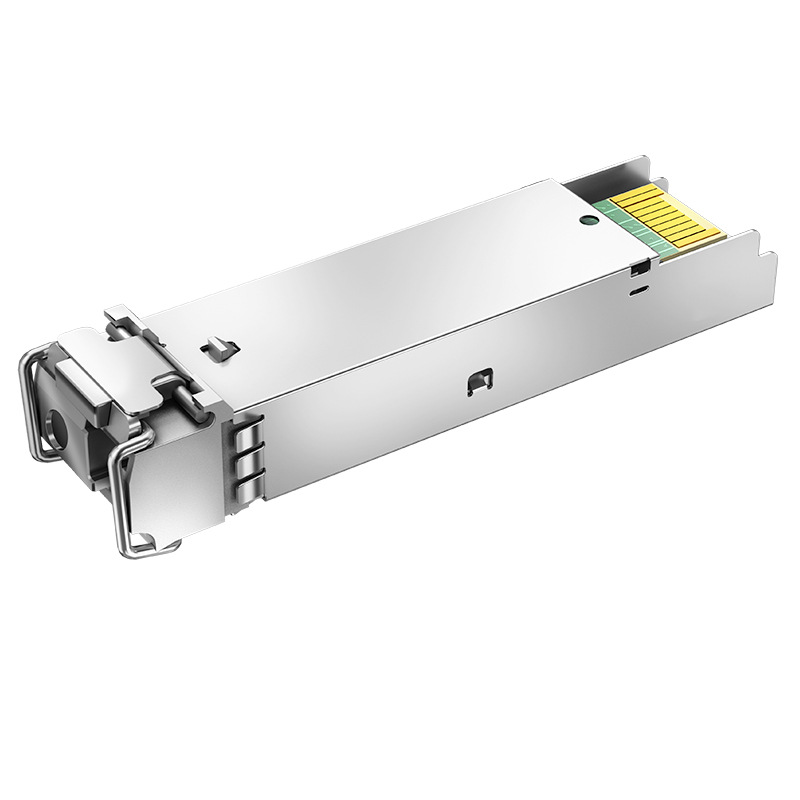

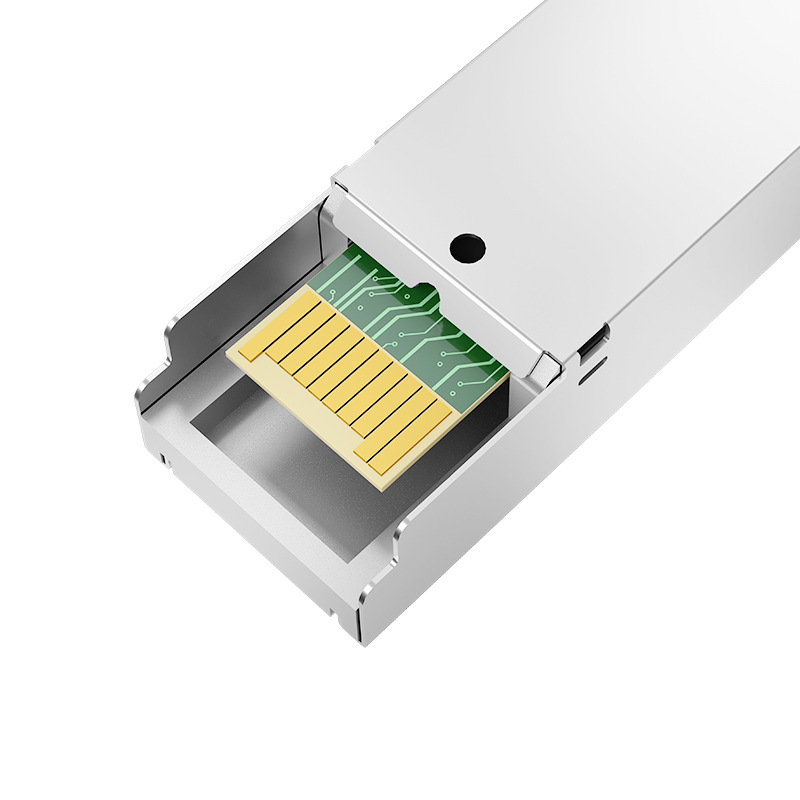

TS-BL31491G-10C SFP 1.25G BiDi 1310nm-TX/1490nm-RX 10km DOM Simplex LC/UPC SMF Optical Transceiver Module

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
P/N ： TS-BL31491G-10C
Form Factor ： SFP
Type ： Single Mode
Data Rate ： 1.25G
Connector ： Simplex LC
Distance ： ≤10km
Wavelength ： 1310nm-TX/1490nm-RX
Get a Quote
Consult products
DetailReview(0)

Trxcom TS-BL31491G-10C SFP 1.25G BiDi Simplex LC/UPC Optical Transceiver Module(SMF, 1310nm-TX/1490nm-RX, 10km, LC, DOM)

The TS-BL31491G-10C SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 10km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions

Trxcom Part NumberTS-BL31491G-10CVendor NameTrxcom
Form FactorSFPMax Data Rate1.25Gbps
Wavelength1310nm-TX/1490nm-RXMax Cable Distance10km
ConnectorSimplex LCOptical ComponentsFP BiDi
MediaSMFDOM SupportYes
TX Power-9 to 0dBmRX Power-23 to -1dBm
Receiver Sensitivity-23dBmReceiver Overload-1dBm
Operating case temperature0 to 70°CProtocolsFast Ethernet, Gigabit Fibre Channel, MSA Compliant
