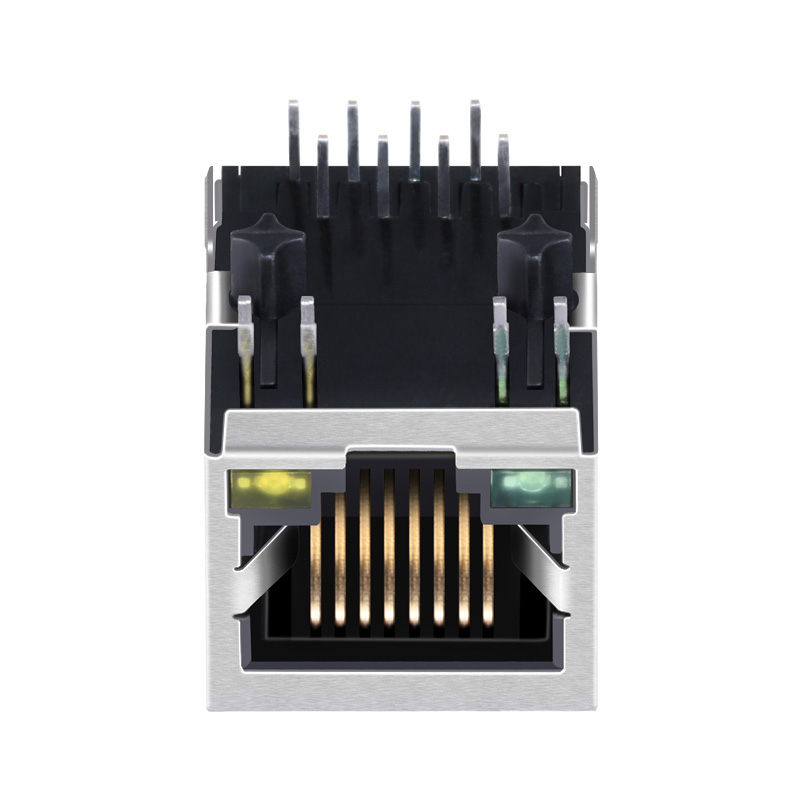

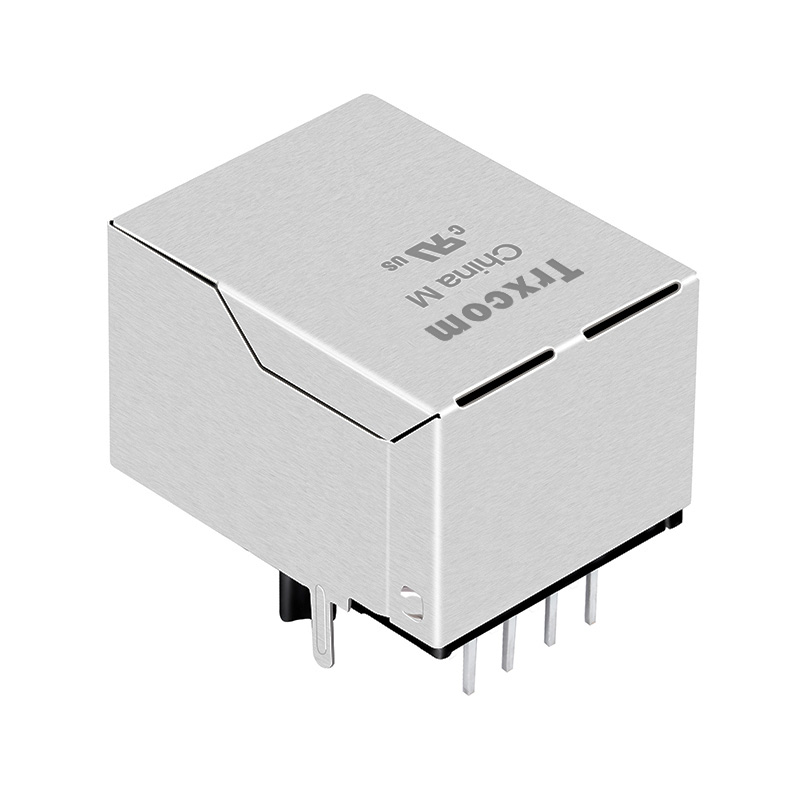

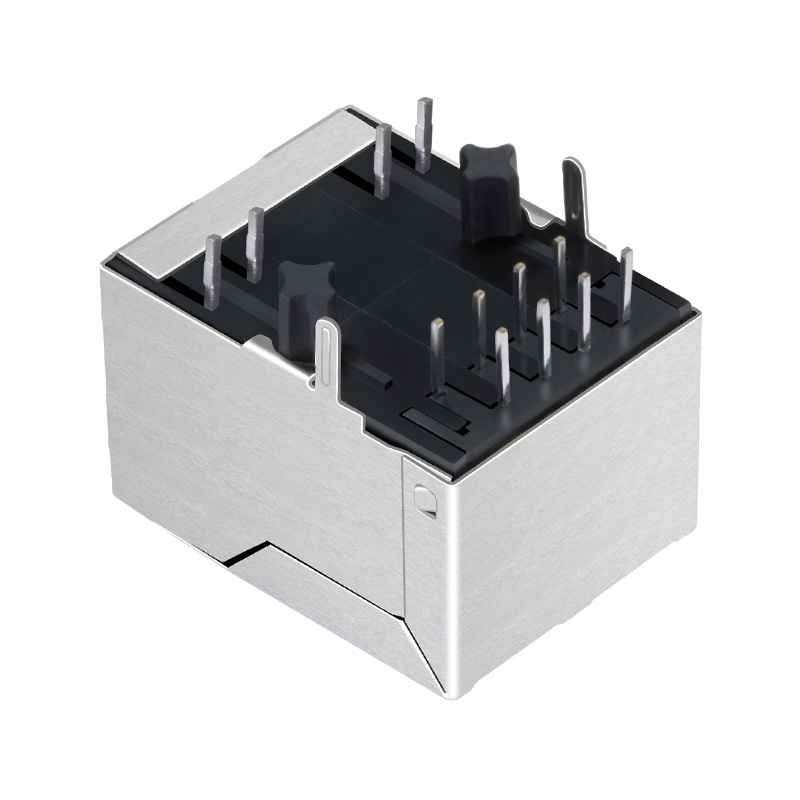

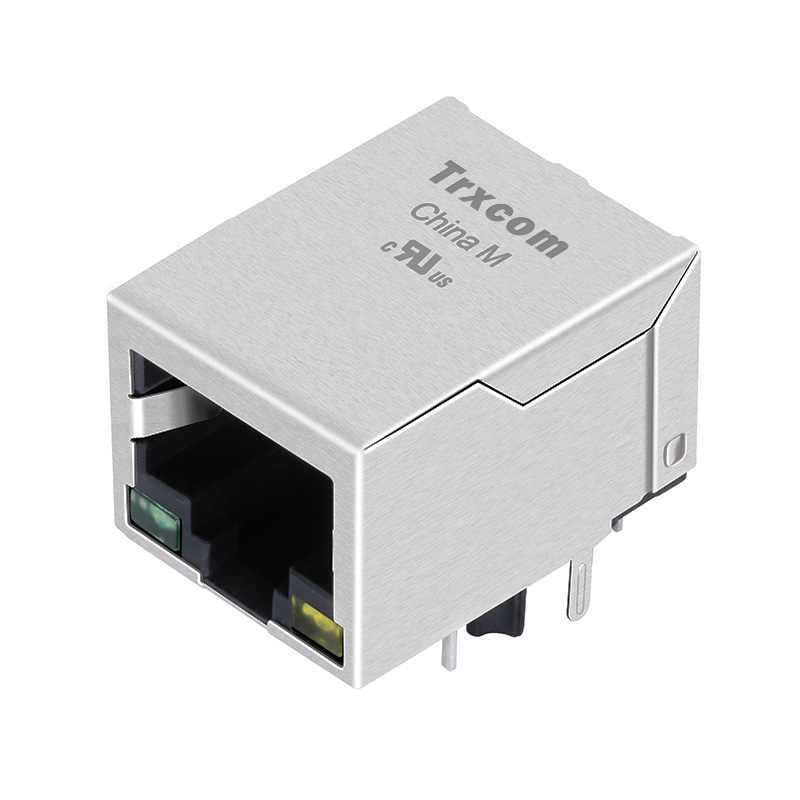

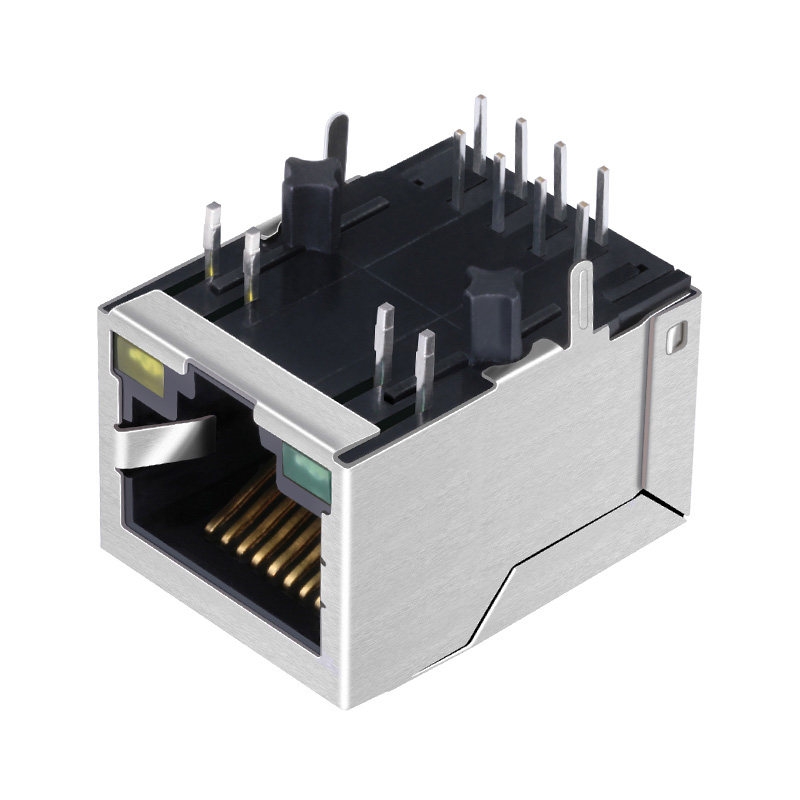

Wurth 7499010211A Compatible TRJ0011BBNL RJ45 Jack with Magnetics 10/100 Base-T Tab Down Single Port Green/Yellow Led
Wurth 7499010211A Compatible Trxcom TRJ0011BBNL 10/100 Base-T RJ45 Jack with Magnetics for Smart Meters and Satellite (Single Port, Tab Down, Green/Yellow Led)
Model: Trxcom TRJ0011BBNL
Type: 10/100 Base-T RJ45 jack with magnetics
Configuration: Single port, tab down, with green/yellow LED indicators
Speed: Supports 10/100 Base-T
Standards Compliance: IEEE 802.3, UL, Reach, RoHS, ISO 9001, ISO 14001
Applications: Suitable for smart meters, solar inverters, automation systems, and video recorders
| Trxcom Part Number | TRJ0011BBNL | Wurth Part Number | 7499010211A |
| Connector Type | Jack | Mounting Type | Through Hole |
| Number of Positions/Contacts | 8p8c(RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100 Base-T |
| Latch | UP | Cores per Port | 4 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without | LED Option | Green/Yellow Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.528/13.40 | Package Length (Inches/mm) | 0.839/21.30 |
| Package Width (Inches/mm) | 0.626/15.90 | Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes | AutomDX | Yes |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T、C |
Quality Certifications
We strictly control product quality, including strict control of manufacturer qualifications, quality control processes and production process standards, and compliance with various certifications and safety standards. Currently, our products comply with industry standards and mainstream quality certifications, such as ISO 9001, ISO 14001, CE, RoHS, REACH, UL, etc. For more details, please visit the Compliance Center Center to get documents.
