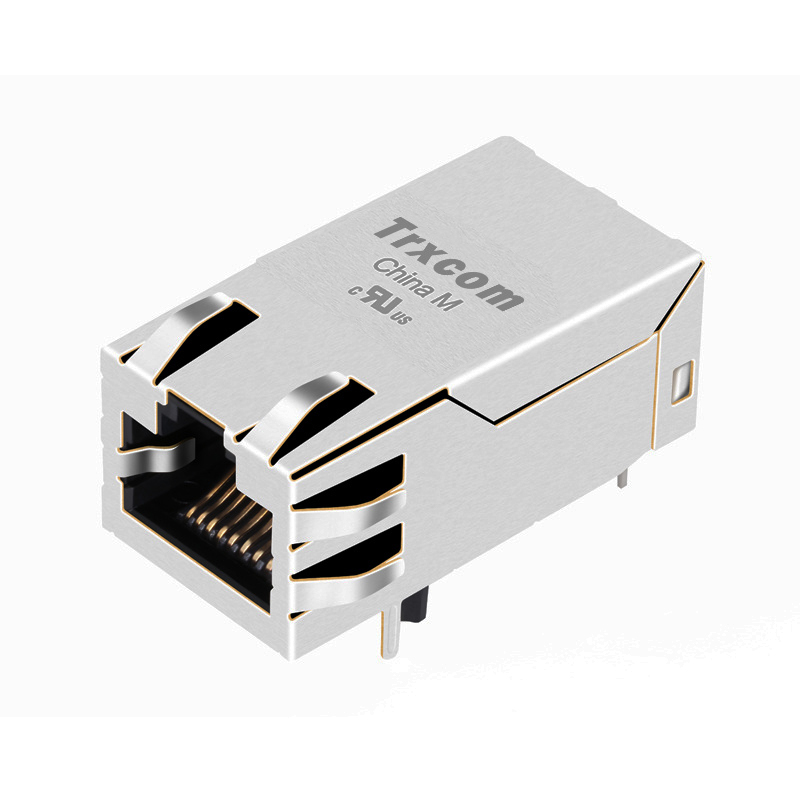

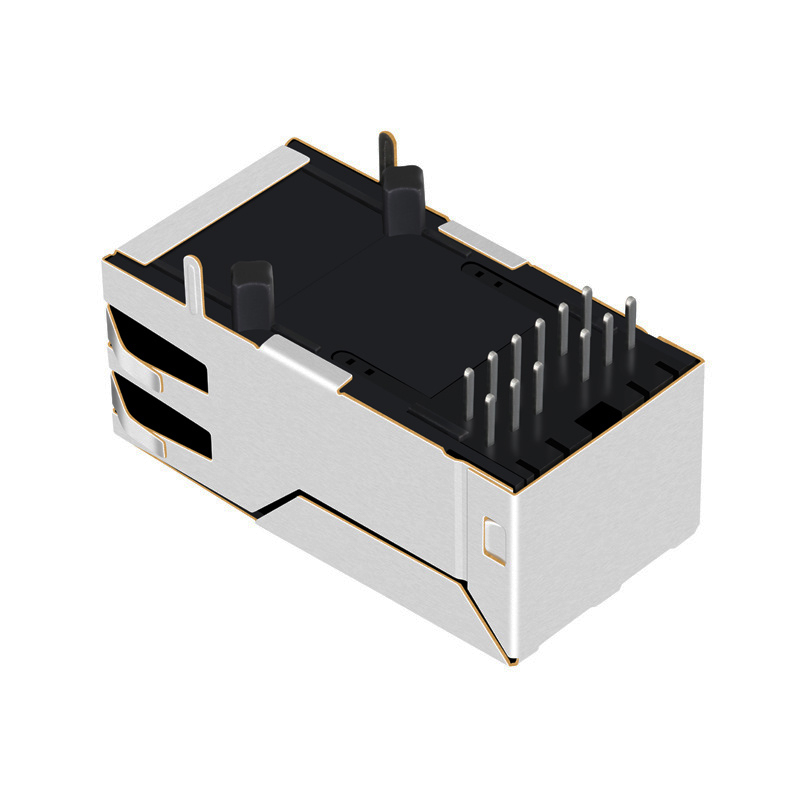

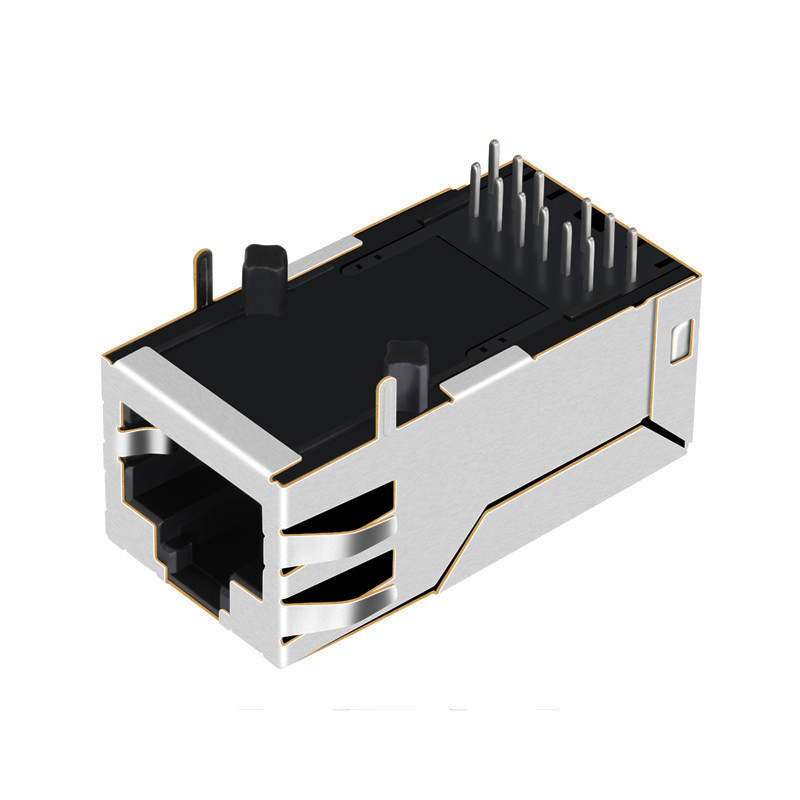

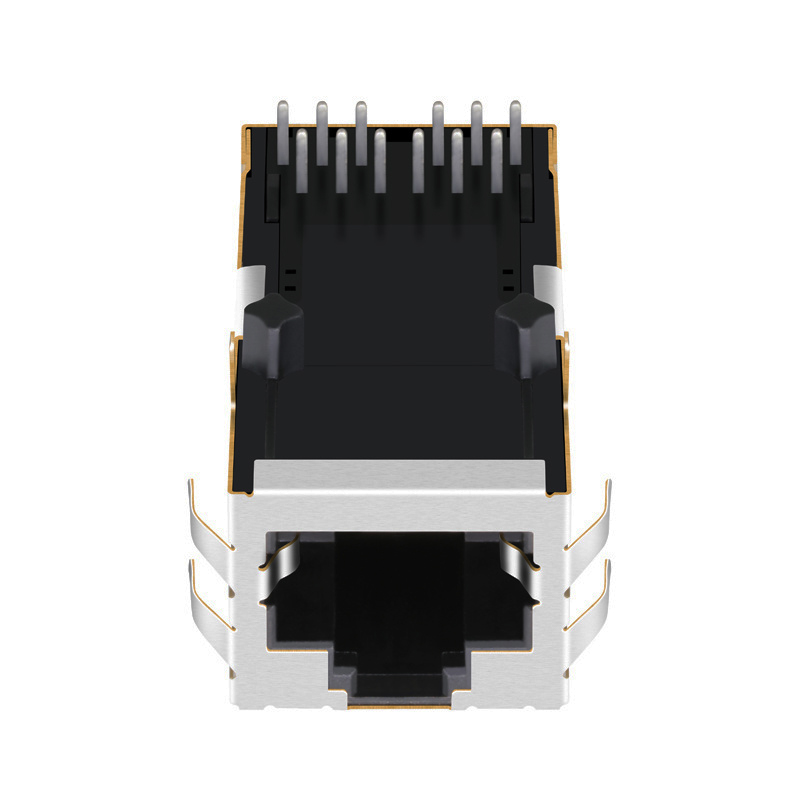

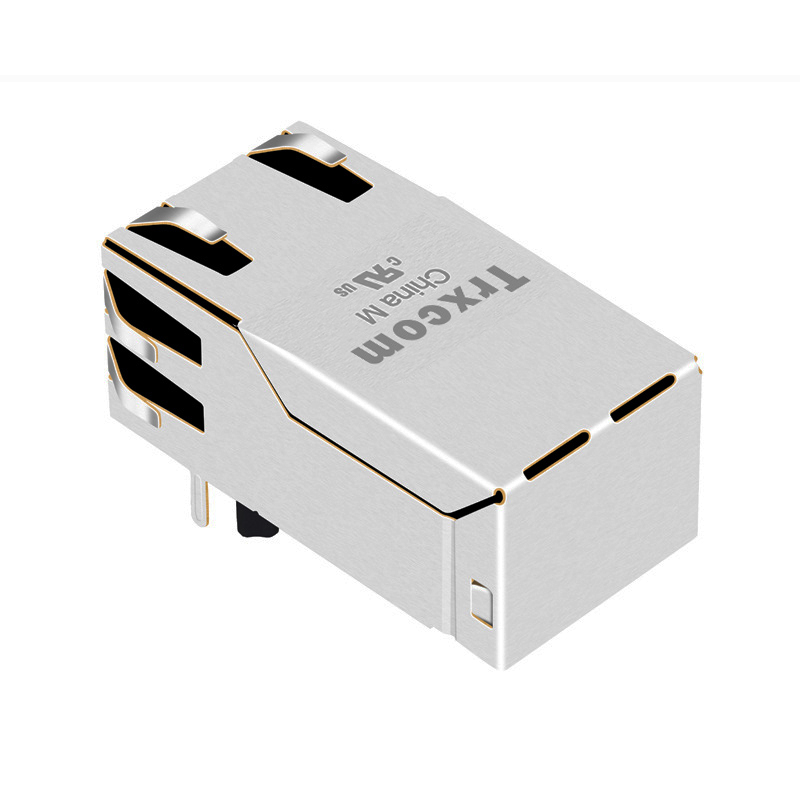

TRJK0010CNL 100/1000 Base-T POE Jack RJ45 Networking Tab Up Without Led

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJK0010CNL
Port: ： 1X1
Rate: ： 10/100Base-T
PoE: ： PoE
Latch: ： Up
LED: ： No LED
Mount: ： 0℃ to 70℃
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

Trxcom TRJK0010CNL 100/1000 Base-T POE Jack RJ 45 Networking for Smart Meters and Satellite (POE, 1x1 Port, Tab Up, Without Led)

TRJK0010AHNL supports 100/1000 Base-T transmission rates and complies with relevant standards including IEEE 802.3, UL, REACH, RoHS, ISO9001 and ISO14001. It can be applied in scenarios such as servers, NAS devices, game consoles, smart TVs and network firewalls.

Part NumberTRJK0010CNLBrandTrxcom
Connector TypeJackMounting TypeThrough Hole
Number of Positions/Contacts10p8c(RJ45, Ethernet)Application-LanEthernet(PoE)
Number of Ports1x1 PortSpeed10/100/1000 Base-T
LatchUPCores per Port8
Orientation90° Angle (Right)PCB Mount AngleTHT Solder
Shield EMI TabsWithLED OptionWithout Leds
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)0.531/13.50Package Length (Inches/mm)1.280/32.50
Package Width (Inches/mm)0.654/16.60Temperature0℃ TO 70℃
Bst CircuitYesAutomDXYes
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT、C
