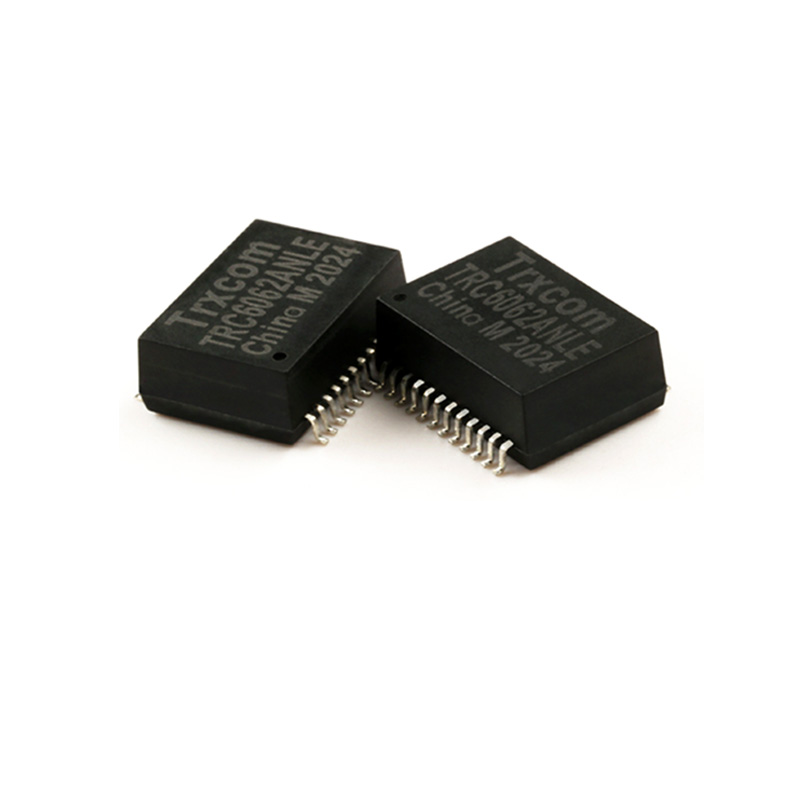

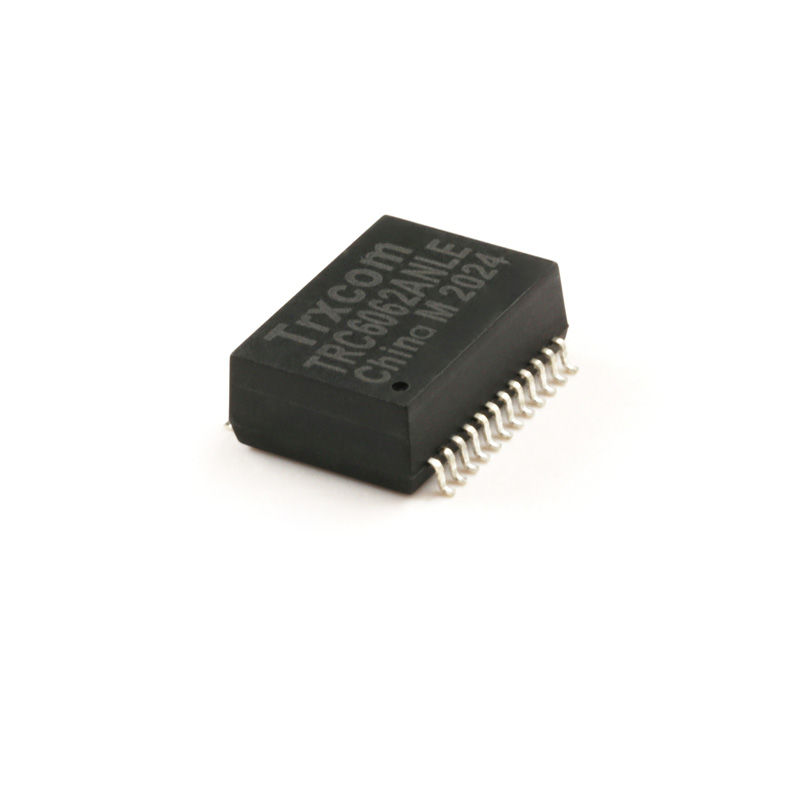

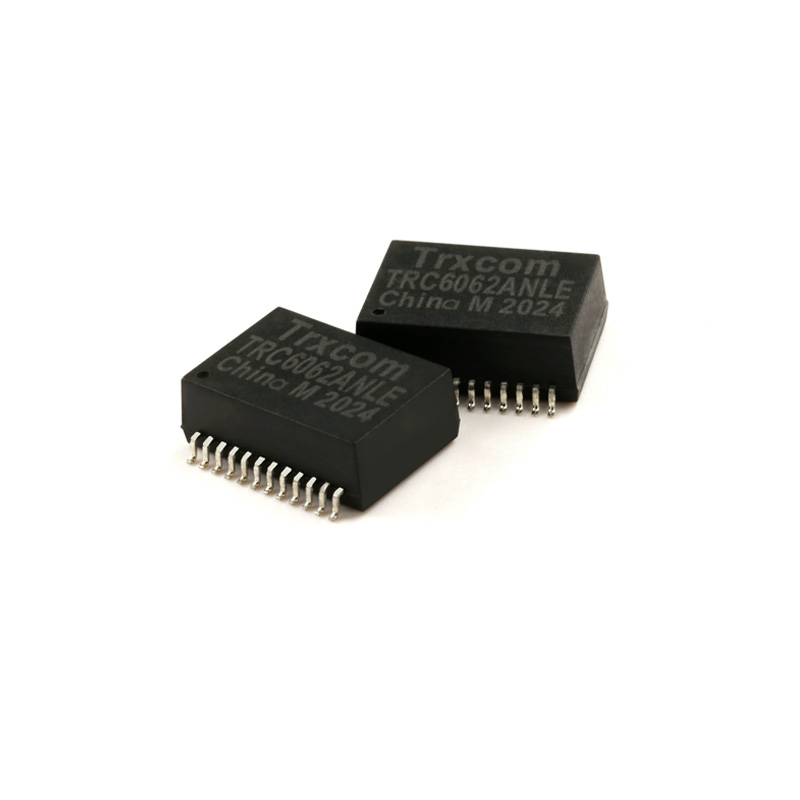

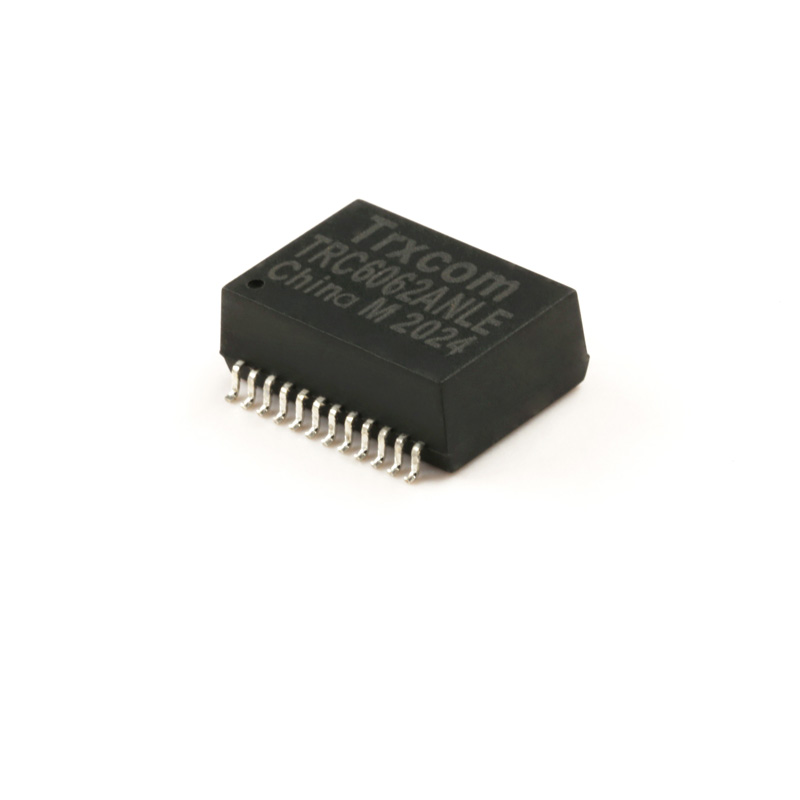

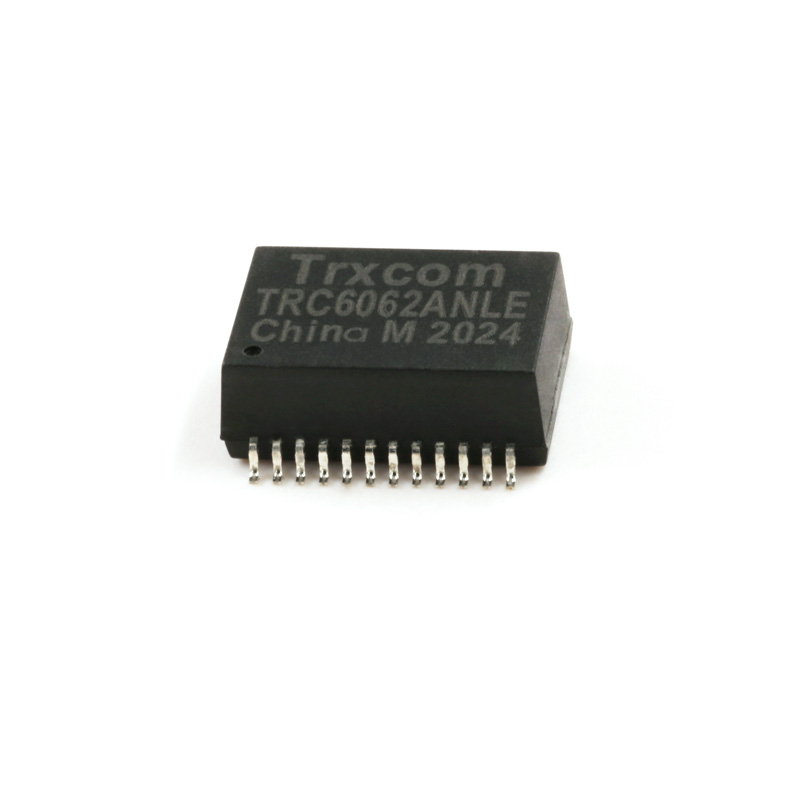

Single Port 10/100/1000 BASE-T PoE+ 24 Pin Lan Magnetic Transformer TRC6062ANLE
share
Parameter
Brand ： Trxcom
Model ： TRC6062ANLE
Data Rate ： 1000Base-T
PoE ： PoE+
Mount ： SMT
Temperature ： -40℃ to +85℃
PIN ： 24PIN
DetailReview(0)
Trxcom TRC6062ANL 10/100/1000 Base-T Lan Magnetic Transformer For Router ( PoE+ ,SMD,24PIN,Single Port )
The TRXCOM TRC6062ANL speed 10/100/1000 Base-T, It is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to Router, Smart Home, Smart Meters, Satellite.
| Part Number | TRC6062ANL | Transformer Type | Lan Transformer |
| Part Status | Active | Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Construction | OPEN FRAME | Application-Lan | Ethernet(PoE+) |
| Number of Ports | Single Port | Speed | 10/100/1000 Base-T |
| Package | Tape & Reel | Cores per Port | 8 |
| AutomDX | Yes | Comment | SAME AS NL VERSION |
| PIN number | 24 | Mounting Type | Surface Mount |
| Package Height (Inches/mm) | 0.260/6.60 | Package Length (Inches/mm) | 0.697/17.70 |
| Package Width (Inches/mm) | 0.630/16.00 | Temperature | -40℃ TO +85℃ |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
