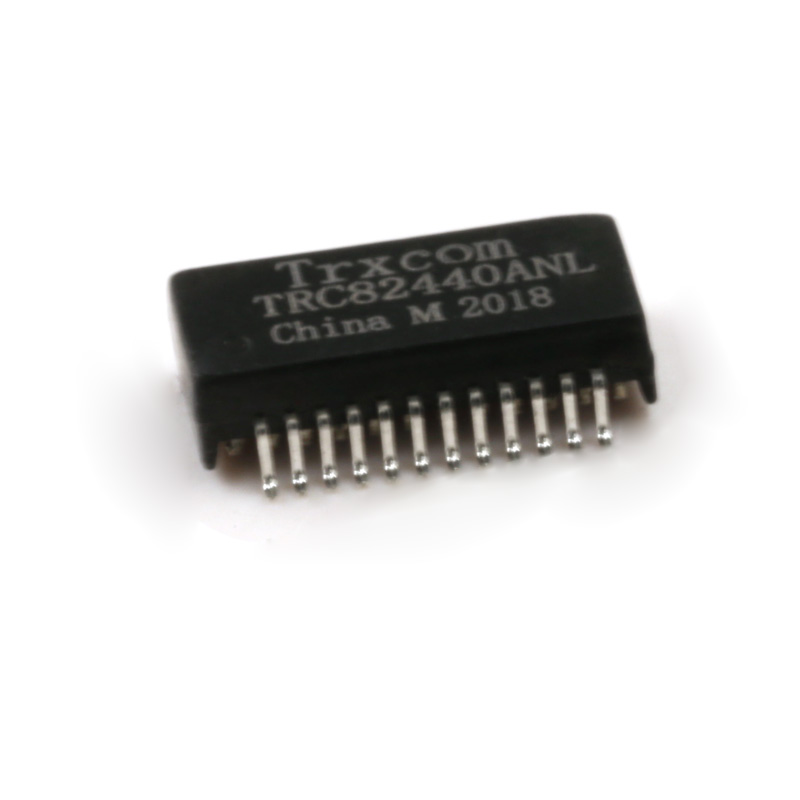

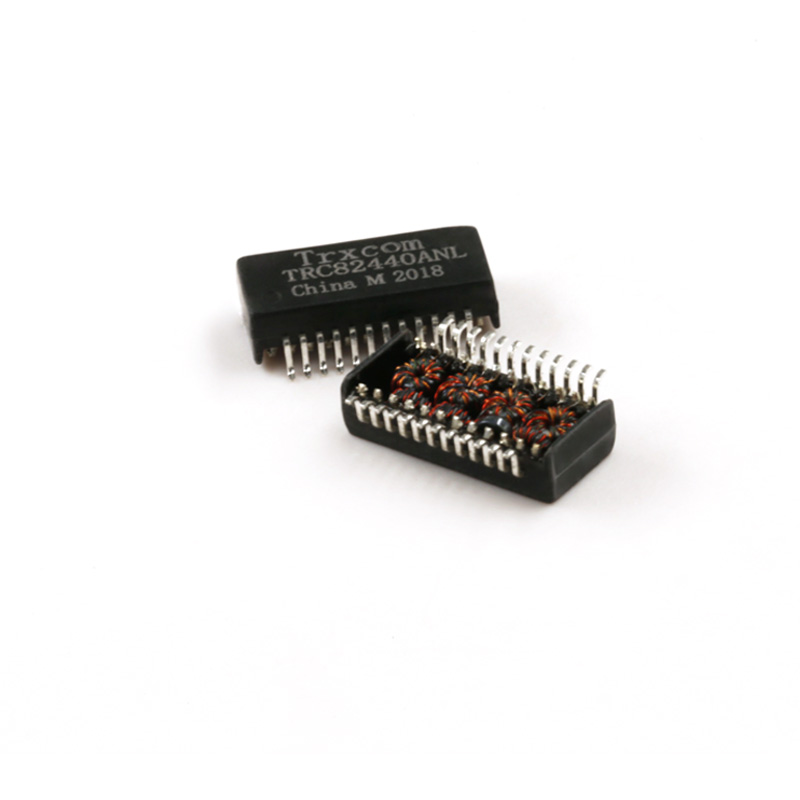

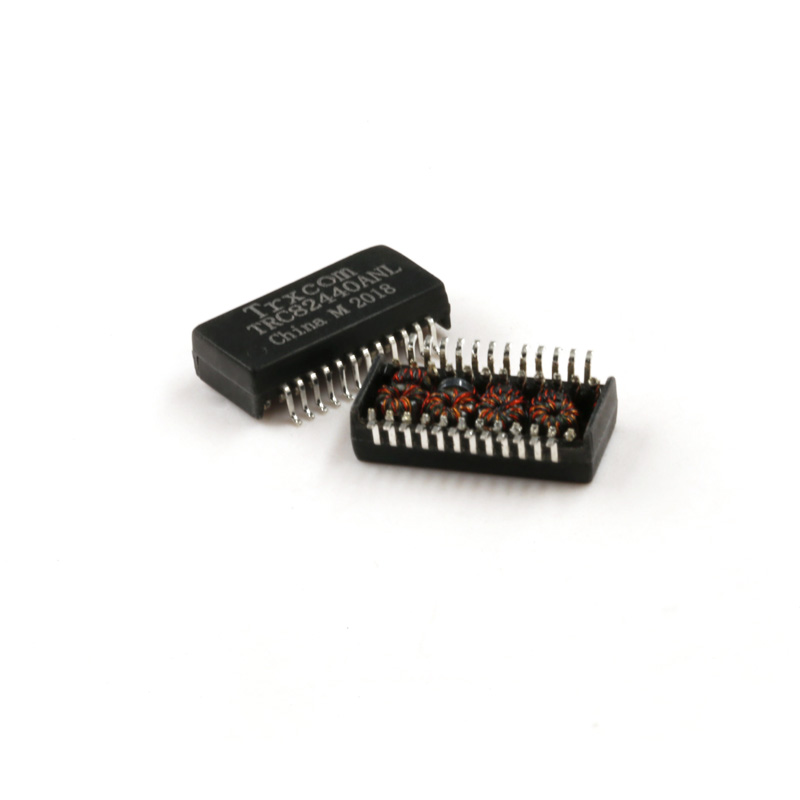

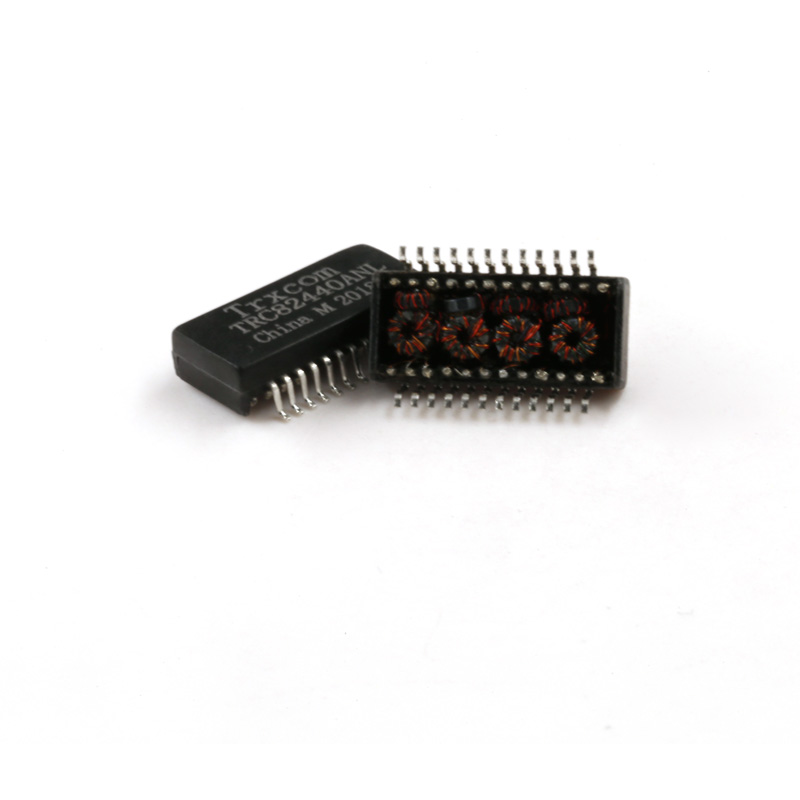

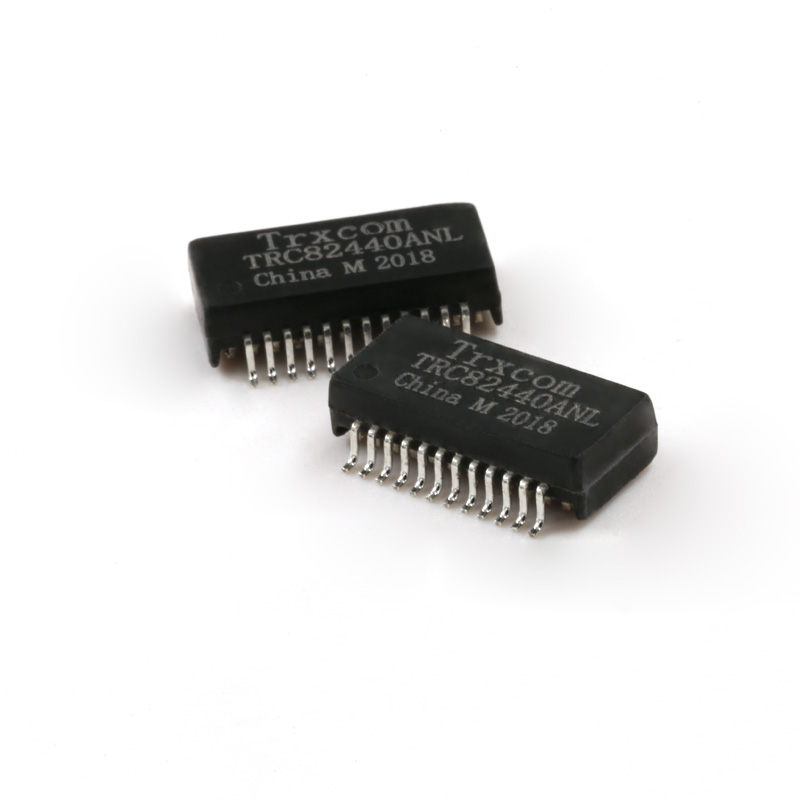

1000 BASE-T Single Port Low Profile POE Lan Magnetics Transformer SMD 24 Pin TRC82440ANL
share
Parameter
Brand ： Trxcom
Model ： TRC82440ANL
Data Rate ： 1000Base-T
PoE ： PoE
Mount ： SMT
Temperature ： -40℃ to +85℃
PIN ： 24PIN
DetailReview(0)
Trxcom TRC82440ANL 10/100/1000 Base-T Lan Magnetics Transformer for Switches ( POE,Low Profile 4.01mm ,SMD,24PIN,Single Port )
The TRXCOM TRC82440ANL speed 10/100/1000 Base-T, It is compliant to IEEE 802.3 af , UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to Industrial PC, Embedded Main Board, Intercom, Media Player.
| Part Number | TRC82440ANL | Transformer Type | Lan Transformer |
| Part Status | Active | Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Construction | OPEN FRAME | Application-Lan | Ethernet(PoE) |
| Number of Ports | Single Port | Speed | 10/100/1000 Base-T |
| Package | Tape & Reel | Cores per Port | 8 |
| AutomDX | Yes | Comment | SAME AS NL VERSION |
| PIN number | 24 | Mounting Type | Surface Mount |
| Package Height (Inches/mm) | 0.158/4.01 | Package Length (Inches/mm) | 0.594/15.10 |
| Package Width (Inches/mm) | 0.394/10.0 | Temperature | -40℃ TO +85℃ |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
